kcenon::network::interfaces::i_udp_server Interface Reference

Interface for UDP server components. More...

#include <i_udp_server.h>

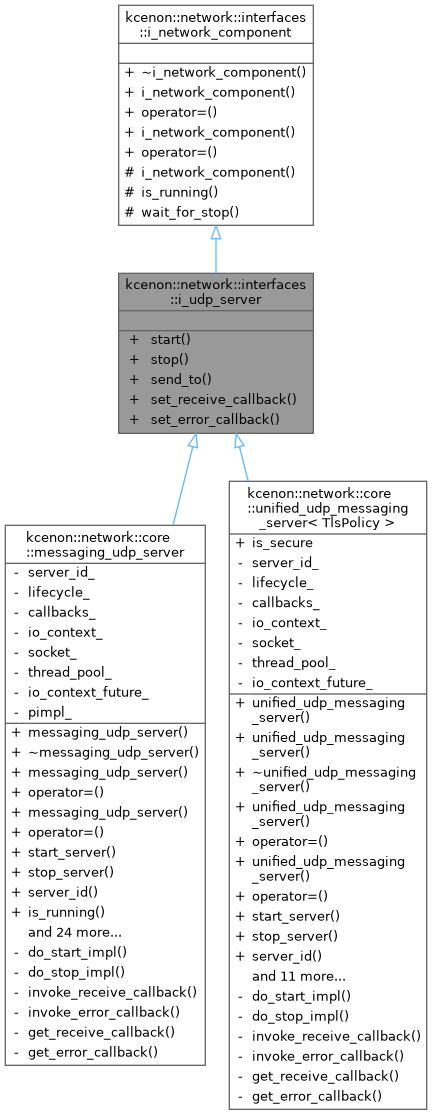

Inheritance diagram for kcenon::network::interfaces::i_udp_server:

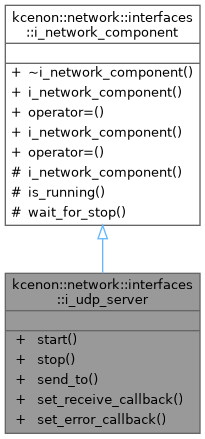

Collaboration diagram for kcenon::network::interfaces::i_udp_server:

Public Types
using	endpoint_info = i_udp_client::endpoint_info
	Reuse endpoint_info from i_udp_client.
using	receive_callback_t
	Callback type for received data (includes sender endpoint)
using	error_callback_t = std::function<void(std::error_code)>
	Callback type for errors.
using	send_callback_t = std::function<void(std::error_code, std::size_t)>
	Callback type for send completion.

Public Member Functions
virtual auto	start (uint16_t port) -> VoidResult=0
	Starts the UDP server on the specified port.
virtual auto	stop () -> VoidResult=0
	Stops the UDP server.
virtual auto	send_to (const endpoint_info &endpoint, std::vector< uint8_t > &&data, send_callback_t handler=nullptr) -> VoidResult=0
	Sends a datagram to the specified endpoint.
virtual auto	set_receive_callback (receive_callback_t callback) -> void=0
	Sets the callback for received datagrams.
virtual auto	set_error_callback (error_callback_t callback) -> void=0
	Sets the callback for errors.
Public Member Functions inherited from kcenon::network::interfaces::i_network_component
virtual	~i_network_component ()=default
	Virtual destructor for proper cleanup of derived classes.
	i_network_component (const i_network_component &)=delete
i_network_component &	operator= (const i_network_component &)=delete
	i_network_component (i_network_component &&)=delete
i_network_component &	operator= (i_network_component &&)=delete

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_network_component
	i_network_component ()=default
	Default constructor (only for derived classes)
virtual auto	is_running () const -> bool=0
	Checks if the component is currently running.
virtual auto	wait_for_stop () -> void=0
	Blocks until the component has stopped.

Detailed Description

Interface for UDP server components.

This interface extends i_network_component with UDP server-specific operations such as receiving datagrams from multiple clients and sending responses to specific endpoints.

Key Characteristics

• Connectionless: No client session management required
• Endpoint-aware: Each received datagram includes sender information
• Bidirectional: Can send responses to any endpoint

Thread Safety

• All public methods must be thread-safe
• Callbacks may be invoked from I/O threads

See also

i_server

Definition at line 39 of file i_udp_server.h.

Member Typedef Documentation

endpoint_info

using kcenon::network::interfaces::i_udp_server::endpoint_info = i_udp_client::endpoint_info

Reuse endpoint_info from i_udp_client.

Definition at line 43 of file i_udp_server.h.

error_callback_t

using kcenon::network::interfaces::i_udp_server::error_callback_t = std::function<void(std::error_code)>

Callback type for errors.

Definition at line 51 of file i_udp_server.h.

receive_callback_t

using kcenon::network::interfaces::i_udp_server::receive_callback_t

Initial value:

 std::function<void(
            const std::vector<uint8_t>&,
            const endpoint_info&)>

Callback type for received data (includes sender endpoint)

Definition at line 46 of file i_udp_server.h.

send_callback_t

using kcenon::network::interfaces::i_udp_server::send_callback_t = std::function<void(std::error_code, std::size_t)>

Callback type for send completion.

Definition at line 54 of file i_udp_server.h.

Member Function Documentation

send_to()

virtual auto kcenon::network::interfaces::i_udp_server::send_to ( const endpoint_info & endpoint, std::vector< uint8_t > && data, send_callback_t handler = nullptr ) -> VoidResult

nodiscardpure virtual

Sends a datagram to the specified endpoint.

Parameters

endpoint	The target endpoint.
data	The data to send.
handler	Optional completion handler.

Returns

VoidResult indicating success or failure.

Thread Safety

Thread-safe. Multiple sends may be queued.

Implemented in kcenon::network::core::messaging_udp_server, and kcenon::network::core::unified_udp_messaging_server< TlsPolicy >.

set_error_callback()

virtual auto kcenon::network::interfaces::i_udp_server::set_error_callback ( error_callback_t callback ) -> void

pure virtual

Sets the callback for errors.

Parameters

callback

The callback function.

Implemented in kcenon::network::core::messaging_udp_server, and kcenon::network::core::unified_udp_messaging_server< TlsPolicy >.

set_receive_callback()

virtual auto kcenon::network::interfaces::i_udp_server::set_receive_callback ( receive_callback_t callback ) -> void

pure virtual

Sets the callback for received datagrams.

Parameters

callback

The callback function.

Note

The callback receives both the data and the sender's endpoint information, allowing responses to be sent using send_to().

Implemented in kcenon::network::core::messaging_udp_server, and kcenon::network::core::unified_udp_messaging_server< TlsPolicy >.

start()

virtual auto kcenon::network::interfaces::i_udp_server::start ( uint16_t port ) -> VoidResult

nodiscardpure virtual

Starts the UDP server on the specified port.

Parameters

port	The port number to bind to.

Returns

VoidResult indicating success or failure.

Behavior

• Creates a UDP socket and binds to the specified port
• Begins listening for incoming datagrams

Error Conditions

• Returns error if already running
• Returns error if socket creation fails
• Returns error if port binding fails

Thread Safety

Thread-safe. Only one start operation can succeed at a time.

Implemented in kcenon::network::core::messaging_udp_server, and kcenon::network::core::unified_udp_messaging_server< TlsPolicy >.

stop()

virtual auto kcenon::network::interfaces::i_udp_server::stop ( ) -> VoidResult

nodiscardpure virtual

Stops the UDP server.

Returns

VoidResult indicating success or failure.

Thread Safety

Thread-safe. Pending operations are cancelled.

Implemented in kcenon::network::core::messaging_udp_server, and kcenon::network::core::unified_udp_messaging_server< TlsPolicy >.

---

The documentation for this interface was generated from the following file:

• src/internal/interfaces/i_udp_server.h
