Interface for UDP client components. More...

#include <i_udp_client.h>

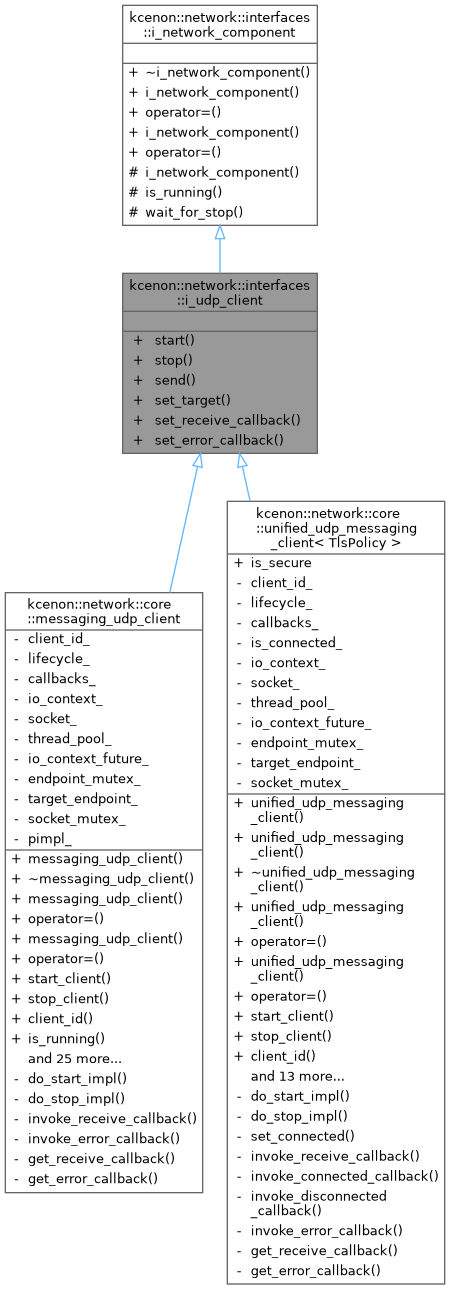

Inheritance diagram for kcenon::network::interfaces::i_udp_client:

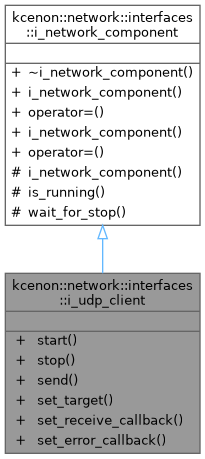

Collaboration diagram for kcenon::network::interfaces::i_udp_client:

Classes
struct	endpoint_info
	Endpoint information for UDP datagrams. More...

Public Types
using	receive_callback_t
	Callback type for received data (includes sender endpoint)

using	error_callback_t = std::function<void(std::error_code)>
	Callback type for errors.

using	send_callback_t = std::function<void(std::error_code, std::size_t)>
	Callback type for send completion.

Public Member Functions
virtual auto	start (std::string_view host, uint16_t port) -> VoidResult=0
	Starts the UDP client targeting the specified endpoint.

virtual auto	stop () -> VoidResult=0
	Stops the UDP client.

virtual auto	send (std::vector< uint8_t > &&data, send_callback_t handler=nullptr) -> VoidResult=0
	Sends a datagram to the configured target endpoint.

virtual auto	set_target (std::string_view host, uint16_t port) -> VoidResult=0
	Changes the target endpoint for future sends.

virtual auto	set_receive_callback (receive_callback_t callback) -> void=0
	Sets the callback for received datagrams.

virtual auto	set_error_callback (error_callback_t callback) -> void=0
	Sets the callback for errors.

Public Member Functions inherited from kcenon::network::interfaces::i_network_component
virtual	~i_network_component ()=default
	Virtual destructor for proper cleanup of derived classes.

	i_network_component (const i_network_component &)=delete

i_network_component &	operator= (const i_network_component &)=delete

	i_network_component (i_network_component &&)=delete

i_network_component &	operator= (i_network_component &&)=delete

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_network_component
	i_network_component ()=default
	Default constructor (only for derived classes)

virtual auto	is_running () const -> bool=0
	Checks if the component is currently running.

virtual auto	wait_for_stop () -> void=0
	Blocks until the component has stopped.

Detailed Description

Interface for UDP client components.

This interface extends i_network_component with UDP-specific operations such as connectionless datagram transmission and receiving datagrams with sender endpoint information.

Key Characteristics

Connectionless: Each send operation is independent
Unreliable: No built-in acknowledgment or ordering
Endpoint-aware: Receive callbacks include sender information

Callback Types

receive_callback_t: Called when data is received (includes sender endpoint)
error_callback_t: Called when an error occurs

Thread Safety

All public methods must be thread-safe
Callbacks may be invoked from I/O threads

See also: i_client

Definition at line 43 of file i_udp_client.h.

Member Typedef Documentation

◆ error_callback_t

using kcenon::network::interfaces::i_udp_client::error_callback_t = std::function<void(std::error_code)>

Callback type for errors.

Definition at line 59 of file i_udp_client.h.

◆ receive_callback_t

using kcenon::network::interfaces::i_udp_client::receive_callback_t

Initial value:

 std::function<void(
            const std::vector<uint8_t>&,
            const endpoint_info&)>

Callback type for received data (includes sender endpoint)

Definition at line 54 of file i_udp_client.h.

◆ send_callback_t

using kcenon::network::interfaces::i_udp_client::send_callback_t = std::function<void(std::error_code, std::size_t)>

Callback type for send completion.

Definition at line 62 of file i_udp_client.h.

Member Function Documentation

◆ send()

virtual auto kcenon::network::interfaces::i_udp_client::send	(	std::vector< uint8_t > &&	data,
		send_callback_t	handler = nullptr ) -> VoidResult

nodiscardpure virtual

Sends a datagram to the configured target endpoint.

Parameters

data	The data to send.
handler	Optional completion handler.

Returns: VoidResult indicating success or failure.

Error Conditions

Returns error if not running
Returns error if send fails

Thread Safety

Thread-safe. Multiple sends may be queued.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

◆ set_error_callback()

virtual auto kcenon::network::interfaces::i_udp_client::set_error_callback ( error_callback_t callback ) -> void

pure virtual

Sets the callback for errors.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

◆ set_receive_callback()

virtual auto kcenon::network::interfaces::i_udp_client::set_receive_callback ( receive_callback_t callback ) -> void

pure virtual

Sets the callback for received datagrams.

Parameters

callback The callback function.

Note

The callback receives both the data and the sender's endpoint information, allowing responses to be sent to the correct peer.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

◆ set_target()

virtual auto kcenon::network::interfaces::i_udp_client::set_target	(	std::string_view	host,
		uint16_t	port ) -> VoidResult

nodiscardpure virtual

Changes the target endpoint for future sends.

Parameters

host	The new target hostname or IP address.
port	The new target port number.

Returns: VoidResult indicating success or failure.

Error Conditions

Returns error if name resolution fails

Thread Safety

Thread-safe.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

◆ start()

virtual auto kcenon::network::interfaces::i_udp_client::start	(	std::string_view	host,
		uint16_t	port ) -> VoidResult

nodiscardpure virtual

Starts the UDP client targeting the specified endpoint.

Parameters

host	The target hostname or IP address.
port	The target port number.

Returns: VoidResult indicating success or failure.

Behavior

Creates a UDP socket
Resolves the target endpoint
Begins listening for incoming datagrams

Error Conditions

Returns error if already running
Returns error if socket creation fails
Returns error if name resolution fails

Thread Safety

Thread-safe. Only one start operation can succeed at a time.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

◆ stop()

virtual auto kcenon::network::interfaces::i_udp_client::stop ( ) -> VoidResult

nodiscardpure virtual

Stops the UDP client.

Returns: VoidResult indicating success or failure.

Thread Safety

Thread-safe. Pending operations are cancelled.

Implemented in kcenon::network::core::messaging_udp_client, and kcenon::network::core::unified_udp_messaging_client< TlsPolicy >.

The documentation for this interface was generated from the following file:

src/internal/interfaces/i_udp_client.h
