Timer data with percentile calculations. More...

#include <metric_types.h>

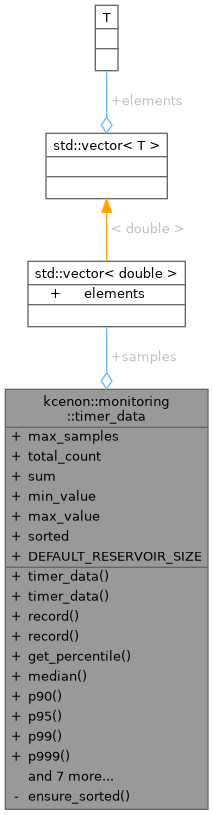

Collaboration diagram for kcenon::monitoring::timer_data:

Classes
struct	snapshot
	Get snapshot of current statistics. More...

Public Member Functions
	timer_data ()
	Construct timer with default reservoir size.

	timer_data (size_t reservoir_size)
	Construct timer with custom reservoir size.

void	record (double duration_ms)
	Record a duration sample (in milliseconds)

template<typename Rep , typename Period >
void	record (std::chrono::duration< Rep, Period > duration)
	Record a duration using chrono duration.

double	get_percentile (double percentile) const
	Get percentile value (0-100)

double	median () const
	Get median (p50)

double	p90 () const
	Get p90 value.

double	p95 () const
	Get p95 value.

double	p99 () const
	Get p99 value.

double	p999 () const
	Get p999 value (99.9th percentile)

double	mean () const noexcept
	Get mean value.

uint64_t	count () const noexcept
	Get sample count.

double	min () const noexcept
	Get minimum recorded value.

double	max () const noexcept
	Get maximum recorded value.

double	stddev () const
	Get standard deviation.

void	reset ()
	Reset all data.

snapshot	get_snapshot () const

Public Attributes
std::vector< double >	samples

size_t	max_samples

uint64_t	total_count = 0

double	sum = 0.0

double	min_value = (std::numeric_limits<double>::max)()

double	max_value = (std::numeric_limits<double>::lowest)()

bool	sorted = false

Static Public Attributes
static constexpr size_t	DEFAULT_RESERVOIR_SIZE = 1024

Private Member Functions
void	ensure_sorted () const

Detailed Description

Timer data with percentile calculations.

Stores duration samples and provides percentile calculations. Uses a reservoir sampling approach for memory efficiency.

Examples: custom_metric_types_example.cpp.

Definition at line 359 of file metric_types.h.

Constructor & Destructor Documentation

◆ timer_data() [1/2]

kcenon::monitoring::timer_data::timer_data ( )

inline

Construct timer with default reservoir size.

Definition at line 373 of file metric_types.h.

                 : max_samples(DEFAULT_RESERVOIR_SIZE) {
        samples.reserve(max_samples);
    }

References max_samples, and samples.

◆ timer_data() [2/2]

kcenon::monitoring::timer_data::timer_data ( size_t reservoir_size )

inlineexplicit

Construct timer with custom reservoir size.

Definition at line 380 of file metric_types.h.

        : max_samples(reservoir_size) {
        samples.reserve(max_samples);
    }

References max_samples, and samples.

Member Function Documentation

◆ count()

uint64_t kcenon::monitoring::timer_data::count ( ) const

inlinenoexcept

Get sample count.

Examples: custom_metric_types_example.cpp.

Definition at line 485 of file metric_types.h.

                                    {
        return total_count;
    }

References total_count.

Referenced by demonstrate_timer_scope().

Here is the caller graph for this function:

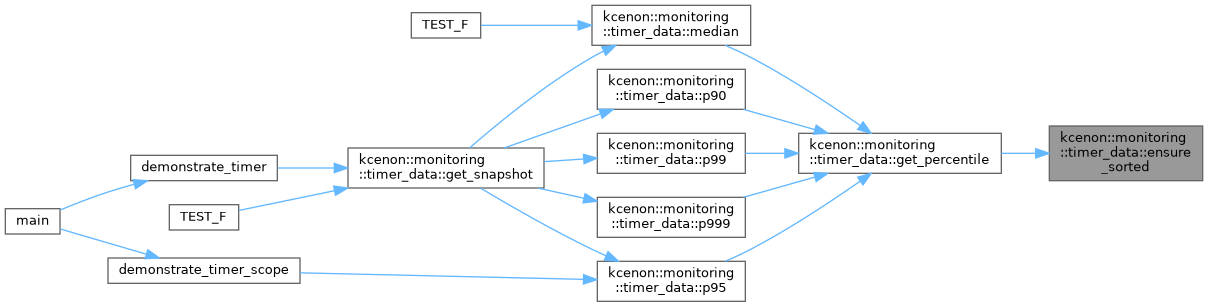

◆ ensure_sorted()

void kcenon::monitoring::timer_data::ensure_sorted ( ) const

inlineprivate

Definition at line 564 of file metric_types.h.

                               {
        if (!sorted && !samples.empty()) {
            auto& mutable_samples = const_cast<std::vector<double>&>(samples);
            std::sort(mutable_samples.begin(), mutable_samples.end());
            const_cast<bool&>(sorted) = true;
        }
    }

References samples, and sorted.

Referenced by get_percentile().

Here is the caller graph for this function:

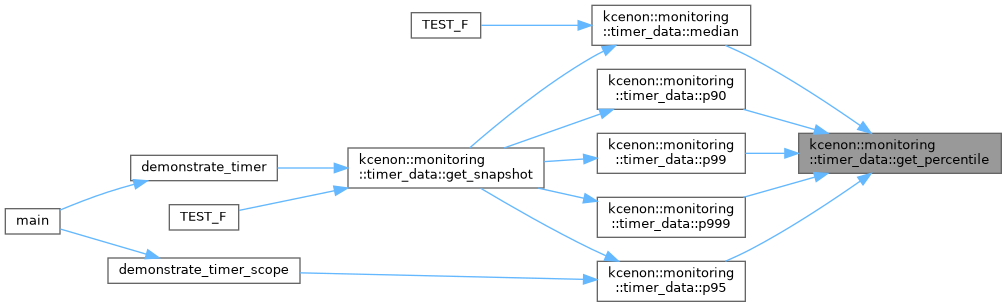

◆ get_percentile()

double kcenon::monitoring::timer_data::get_percentile ( double percentile ) const

inline

Get percentile value (0-100)

Parameters

percentile The percentile to calculate (e.g., 50 for median, 99 for p99)

Returns: The value at the given percentile

Definition at line 420 of file metric_types.h.

                                                   {
        if (samples.empty()) return 0.0;
        if (percentile <= 0) return min_value;
        if (percentile >= 100) return max_value;

        ensure_sorted();

        double rank = (percentile / 100.0) * (samples.size() - 1);
        size_t lower_idx = static_cast<size_t>(rank);
        size_t upper_idx = lower_idx + 1;
        double fraction = rank - lower_idx;

        if (upper_idx >= samples.size()) {
            return samples[lower_idx];
        }

        // Linear interpolation between adjacent values
        return samples[lower_idx] + fraction * (samples[upper_idx] - samples[lower_idx]);
    }

References ensure_sorted(), max_value, min_value, and samples.

Referenced by median(), p90(), p95(), p99(), and p999().

Here is the call graph for this function:

Here is the caller graph for this function:

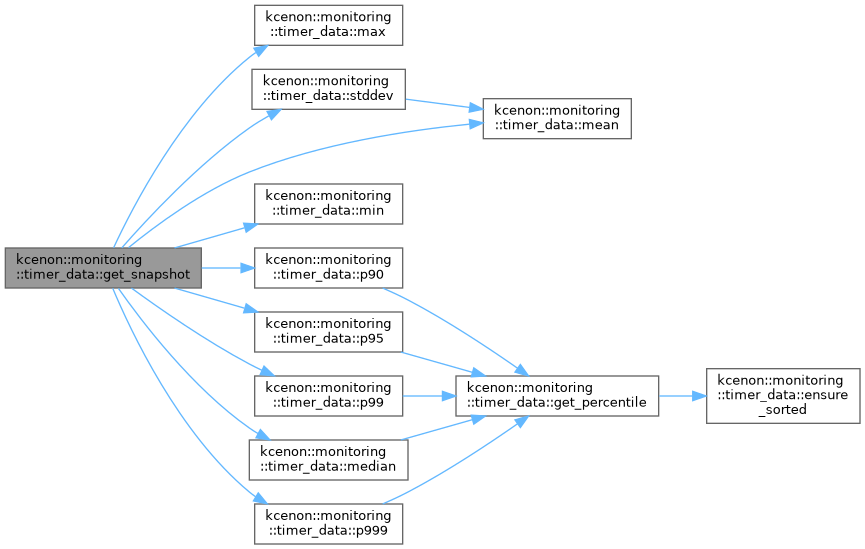

◆ get_snapshot()

snapshot kcenon::monitoring::timer_data::get_snapshot ( ) const

inline

Definition at line 548 of file metric_types.h.

                                  {
        return snapshot{
            total_count,
            mean(),
            min(),
            max(),
            stddev(),
            median(),
            p90(),
            p95(),
            p99(),
            p999()
        };
    }

References max(), mean(), median(), min(), p90(), p95(), p99(), p999(), stddev(), and total_count.

Referenced by demonstrate_timer(), and TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ max()

double kcenon::monitoring::timer_data::max ( ) const

inlinenoexcept

Get maximum recorded value.

Examples: custom_metric_types_example.cpp.

Definition at line 499 of file metric_types.h.

                                {
        return total_count > 0 ? max_value : 0.0;
    }

References max_value, and total_count.

Referenced by demonstrate_timer_scope(), and get_snapshot().

Here is the caller graph for this function:

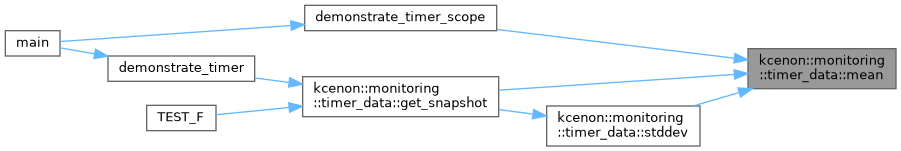

◆ mean()

double kcenon::monitoring::timer_data::mean ( ) const

inlinenoexcept

Get mean value.

Examples: custom_metric_types_example.cpp.

Definition at line 478 of file metric_types.h.

                                 {
        return total_count > 0 ? sum / total_count : 0.0;
    }

References sum, and total_count.

Referenced by demonstrate_timer_scope(), get_snapshot(), and stddev().

Here is the caller graph for this function:

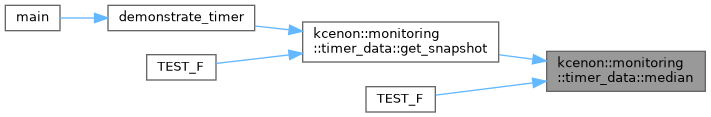

◆ median()

double kcenon::monitoring::timer_data::median ( ) const

inline

Get median (p50)

Definition at line 443 of file metric_types.h.

                          {
        return get_percentile(50.0);
    }

References get_percentile().

Referenced by get_snapshot(), and TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

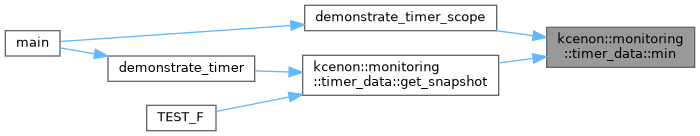

◆ min()

double kcenon::monitoring::timer_data::min ( ) const

inlinenoexcept

Get minimum recorded value.

Examples: custom_metric_types_example.cpp.

Definition at line 492 of file metric_types.h.

                                {
        return total_count > 0 ? min_value : 0.0;
    }

References min_value, and total_count.

Referenced by demonstrate_timer_scope(), and get_snapshot().

Here is the caller graph for this function:

◆ p90()

double kcenon::monitoring::timer_data::p90 ( ) const

inline

Get p90 value.

Definition at line 450 of file metric_types.h.

                       {
        return get_percentile(90.0);
    }

References get_percentile().

Referenced by get_snapshot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ p95()

double kcenon::monitoring::timer_data::p95 ( ) const

inline

Get p95 value.

Examples: custom_metric_types_example.cpp.

Definition at line 457 of file metric_types.h.

                       {
        return get_percentile(95.0);
    }

References get_percentile().

Referenced by demonstrate_timer_scope(), and get_snapshot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ p99()

double kcenon::monitoring::timer_data::p99 ( ) const

inline

Get p99 value.

Definition at line 464 of file metric_types.h.

                       {
        return get_percentile(99.0);
    }

References get_percentile().

Referenced by get_snapshot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ p999()

double kcenon::monitoring::timer_data::p999 ( ) const

inline

Get p999 value (99.9th percentile)

Definition at line 471 of file metric_types.h.

                        {
        return get_percentile(99.9);
    }

References get_percentile().

Referenced by get_snapshot().

Here is the call graph for this function:

Here is the caller graph for this function:

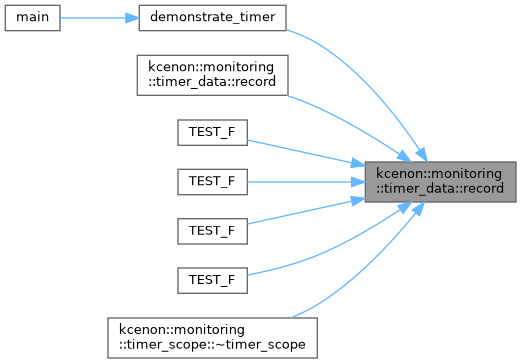

◆ record() [1/2]

void kcenon::monitoring::timer_data::record ( double duration_ms )

inline

Record a duration sample (in milliseconds)

Definition at line 388 of file metric_types.h.

                                    {
        total_count++;
        sum += duration_ms;
        min_value = (std::min)(min_value, duration_ms);
        max_value = (std::max)(max_value, duration_ms);
        sorted = false;

        if (samples.size() < max_samples) {
            samples.push_back(duration_ms);
        } else {
            // Reservoir sampling for memory efficiency
            size_t idx = static_cast<size_t>(rand()) % total_count;
            if (idx < max_samples) {
                samples[idx] = duration_ms;
            }
        }
    }

References max_samples, max_value, min_value, samples, sorted, sum, and total_count.

Referenced by demonstrate_timer(), record(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and kcenon::monitoring::timer_scope::~timer_scope().

Here is the caller graph for this function:

◆ record() [2/2]

template<typename Rep , typename Period >

void kcenon::monitoring::timer_data::record ( std::chrono::duration< Rep, Period > duration )

inline

Record a duration using chrono duration.

Definition at line 410 of file metric_types.h.

                                                         {
        auto ms = std::chrono::duration_cast<std::chrono::microseconds>(duration).count() / 1000.0;
        record(ms);
    }

References record().

Here is the call graph for this function:

◆ reset()

void kcenon::monitoring::timer_data::reset ( )

inline

Reset all data.

Definition at line 522 of file metric_types.h.

                 {
        samples.clear();
        samples.reserve(max_samples);
        total_count = 0;
        sum = 0.0;
        min_value = (std::numeric_limits<double>::max)();
        max_value = (std::numeric_limits<double>::lowest)();
        sorted = false;
    }

References max_samples, max_value, min_value, samples, sorted, sum, and total_count.

◆ stddev()

double kcenon::monitoring::timer_data::stddev ( ) const

inline

Get standard deviation.

Definition at line 506 of file metric_types.h.

                          {
        if (samples.size() < 2) return 0.0;

        double avg = mean();
        double variance = 0.0;
        for (double sample : samples) {
            double diff = sample - avg;
            variance += diff * diff;
        }
        variance /= samples.size();
        return std::sqrt(variance);
    }

References mean(), and samples.

Referenced by get_snapshot().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ DEFAULT_RESERVOIR_SIZE

size_t kcenon::monitoring::timer_data::DEFAULT_RESERVOIR_SIZE = 1024

staticconstexpr

Definition at line 360 of file metric_types.h.

◆ max_samples

size_t kcenon::monitoring::timer_data::max_samples

Definition at line 363 of file metric_types.h.

Referenced by record(), reset(), timer_data(), and timer_data().

◆ max_value

double kcenon::monitoring::timer_data::max_value = (std::numeric_limits<double>::lowest)()

Definition at line 367 of file metric_types.h.

Referenced by get_percentile(), max(), record(), and reset().

◆ min_value

double kcenon::monitoring::timer_data::min_value = (std::numeric_limits<double>::max)()

Definition at line 366 of file metric_types.h.

Referenced by get_percentile(), min(), record(), and reset().

◆ samples

std::vector<double> kcenon::monitoring::timer_data::samples

Definition at line 362 of file metric_types.h.

Referenced by ensure_sorted(), get_percentile(), record(), reset(), stddev(), timer_data(), and timer_data().

◆ sorted

bool kcenon::monitoring::timer_data::sorted = false

mutable

Definition at line 368 of file metric_types.h.

Referenced by ensure_sorted(), record(), and reset().

◆ sum

double kcenon::monitoring::timer_data::sum = 0.0

Definition at line 365 of file metric_types.h.

Referenced by mean(), record(), and reset().

◆ total_count

uint64_t kcenon::monitoring::timer_data::total_count = 0

Definition at line 364 of file metric_types.h.

Referenced by count(), get_snapshot(), max(), mean(), min(), record(), and reset().

The documentation for this struct was generated from the following file:

include/kcenon/monitoring/utils/metric_types.h

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ timer_data() [1/2]

◆ timer_data() [2/2]

Member Function Documentation

◆ count()

◆ ensure_sorted()

◆ get_percentile()

◆ get_snapshot()

◆ max()

◆ mean()

◆ median()

◆ min()

◆ p90()

◆ p95()

◆ p99()

◆ p999()

◆ record() [1/2]

◆ record() [2/2]

◆ reset()

◆ stddev()

Member Data Documentation

◆ DEFAULT_RESERVOIR_SIZE

◆ max_samples

◆ max_value

◆ min_value

◆ samples

◆ sorted

◆ sum

◆ total_count
