Demonstrates platform_metrics_collector usage. More...

#include <iostream>
#include <thread>
#include <chrono>
#include <iomanip>
#include "kcenon/monitoring/collectors/platform_metrics_collector.h"

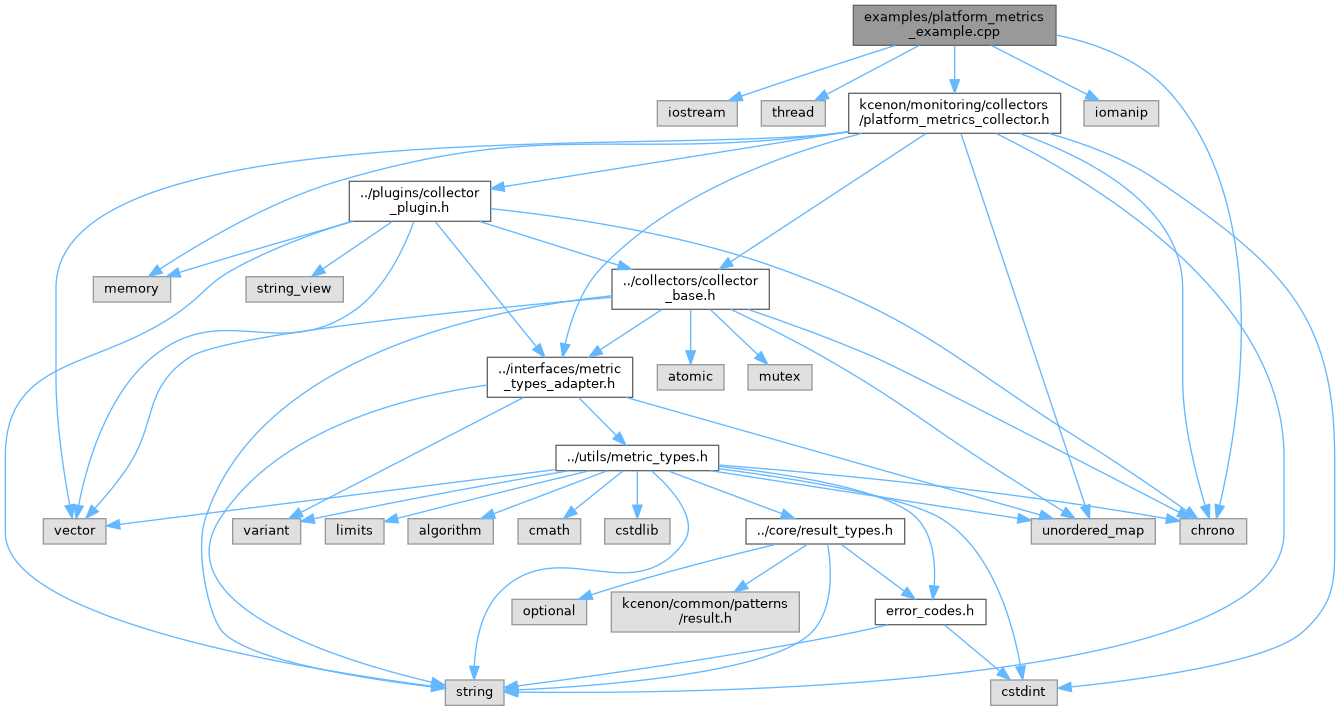

Include dependency graph for platform_metrics_example.cpp:

Go to the source code of this file.

Functions
void	display_platform_info (const platform_info &info)

void	display_uptime_metrics (const platform_uptime &uptime)

void	display_context_switch_stats (const platform_context_switches &switches)

void	display_tcp_info (const platform_tcp_info &tcp)

void	display_socket_info (const platform_socket_info &socket)

void	display_interrupt_info (const platform_interrupt_info &interrupts)

void	demonstrate_platform_features (platform_metrics_collector &collector)

void	demonstrate_metric_normalization (const std::vector< metric > &metrics)

int	main ()

Detailed Description

Demonstrates platform_metrics_collector usage.

Definition in file platform_metrics_example.cpp.

Function Documentation

◆ demonstrate_metric_normalization()

void demonstrate_metric_normalization ( const std::vector< metric > & metrics )

Demonstrate cross-platform metric normalization

Examples: platform_metrics_example.cpp.

Definition at line 197 of file platform_metrics_example.cpp.

                                                                        {
    std::cout << "\n=== Cross-Platform Metric Normalization ===" << std::endl;

    std::cout << "\nAll metrics use standardized naming conventions:" << std::endl;
    std::cout << "  platform.uptime.* - Uptime metrics" << std::endl;
    std::cout << "  platform.context_switches.* - Context switch metrics" << std::endl;
    std::cout << "  platform.tcp.* - TCP state metrics" << std::endl;
    std::cout << "  platform.socket.* - Socket buffer metrics" << std::endl;
    std::cout << "  platform.interrupts.* - Interrupt metrics" << std::endl;

    std::cout << "\nCollected Metrics (" << metrics.size() << " total):" << std::endl;

    // Display metrics directly without grouping to avoid compilation issues
    for (const auto& m : metrics) {
        std::cout << "  " << m.name << ": ";
        std::visit([](const auto& val) { std::cout << val; }, m.value);
        auto unit_it = m.tags.find("unit");
        if (unit_it != m.tags.end() && !unit_it->second.empty()) {
            std::cout << " " << unit_it->second;
        }
        std::cout << std::endl;
    }
}

Referenced by main().

Here is the caller graph for this function:

◆ demonstrate_platform_features()

void demonstrate_platform_features ( platform_metrics_collector & collector )

Demonstrate platform-specific feature detection and handling

Examples: platform_metrics_example.cpp.

Definition at line 156 of file platform_metrics_example.cpp.

                                                                          {
    std::cout << "\n=== Platform-Specific Feature Detection ===" << std::endl;

    // Collect platform info first
    auto info = collector.get_platform_info();

    std::cout << "\nDetected Platform: " << info.name << std::endl;

    // Demonstrate feature availability checks before collection
    std::cout << "\nFeature Availability:" << std::endl;

    // Display feature availability
    std::cout << "  Platform Available: " << (collector.is_platform_available() ? "Yes" : "No") << std::endl;
    std::cout << "  Collector Health: " << (collector.is_available() ? "Healthy" : "Unhealthy") << std::endl;

    std::cout << "\nNote: The Strategy pattern abstracts platform-specific implementations." << std::endl;
    std::cout << "      Features not supported on a platform return empty/unavailable values." << std::endl;

#if defined(__linux__)
    std::cout << "\nLinux-specific features:" << std::endl;
    std::cout << "  - Reading /proc/stat for context switches" << std::endl;
    std::cout << "  - Reading /proc/net/tcp for TCP state info" << std::endl;
    std::cout << "  - Reading /proc/uptime for system uptime" << std::endl;
#elif defined(__APPLE__)
    std::cout << "\nmacOS-specific features:" << std::endl;
    std::cout << "  - Using sysctl for system metrics" << std::endl;
    std::cout << "  - Limited TCP state information" << std::endl;
    std::cout << "  - Using kern.boottime for uptime" << std::endl;
#elif defined(_WIN32)
    std::cout << "\nWindows-specific features:" << std::endl;
    std::cout << "  - Using GetTickCount64 for uptime" << std::endl;
    std::cout << "  - Using Performance Counters for metrics" << std::endl;
    std::cout << "  - Limited context switch information" << std::endl;
#else
    std::cout << "\nUnknown platform - limited feature support" << std::endl;
#endif
}

References kcenon::monitoring::platform_metrics_collector::get_platform_info(), kcenon::monitoring::info, kcenon::monitoring::platform_metrics_collector::is_available(), kcenon::monitoring::platform_metrics_collector::is_platform_available(), and kcenon::monitoring::platform_info::name.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ display_context_switch_stats()

void display_context_switch_stats ( const platform_context_switches & switches )

Display context switch statistics

Examples: platform_metrics_example.cpp.

Definition at line 84 of file platform_metrics_example.cpp.

                                                                             {
    std::cout << "\n=== Context Switch Statistics ===" << std::endl;

    if (switches.available) {
        std::cout << "Total Switches: " << switches.total_switches << std::endl;
        std::cout << "Voluntary Switches: " << switches.voluntary_switches << std::endl;
        std::cout << "Involuntary Switches: " << switches.involuntary_switches << std::endl;
        std::cout << "Switches Per Second: " << std::fixed << std::setprecision(2)
                  << switches.switches_per_second << std::endl;
    } else {
        std::cout << "Context switch statistics not available on this platform" << std::endl;
    }
}

References kcenon::monitoring::platform_context_switches::available, kcenon::monitoring::platform_context_switches::involuntary_switches, kcenon::monitoring::platform_context_switches::switches_per_second, kcenon::monitoring::platform_context_switches::total_switches, and kcenon::monitoring::platform_context_switches::voluntary_switches.

Referenced by main().

Here is the caller graph for this function:

◆ display_interrupt_info()

void display_interrupt_info ( const platform_interrupt_info & interrupts )

Display interrupt statistics

Examples: platform_metrics_example.cpp.

Definition at line 143 of file platform_metrics_example.cpp.

                                                                       {
    std::cout << "\n=== Interrupt Statistics ===" << std::endl;

    if (interrupts.available) {
        std::cout << "Total Interrupts: " << interrupts.total_interrupts << std::endl;
    } else {
        std::cout << "Interrupt statistics not available on this platform" << std::endl;
    }
}

References kcenon::monitoring::platform_interrupt_info::available, and kcenon::monitoring::platform_interrupt_info::total_interrupts.

Referenced by main().

Here is the caller graph for this function:

◆ display_platform_info()

void display_platform_info ( const platform_info & info )

Display platform information

Examples: platform_metrics_example.cpp.

Definition at line 31 of file platform_metrics_example.cpp.

                                                      {
    std::cout << "\n=== Platform Information ===" << std::endl;

    if (info.available) {
        std::cout << "Platform: " << info.name << std::endl;
        std::cout << "Version: " << info.version << std::endl;
        std::cout << "Architecture: " << info.architecture << std::endl;
    } else {
        std::cout << "Platform information not available" << std::endl;
    }
}

References kcenon::monitoring::info.

Referenced by main().

Here is the caller graph for this function:

◆ display_socket_info()

void display_socket_info ( const platform_socket_info & socket )

Display socket buffer information

Examples: platform_metrics_example.cpp.

Definition at line 122 of file platform_metrics_example.cpp.

                                                             {
    std::cout << "\n=== Socket Buffer Information ===" << std::endl;

    if (socket.available) {
        std::cout << "RX Buffer Size: " << (socket.rx_buffer_size / 1024.0) << " KB" << std::endl;
        std::cout << "TX Buffer Size: " << (socket.tx_buffer_size / 1024.0) << " KB" << std::endl;
        std::cout << "RX Buffer Used: " << (socket.rx_buffer_used / 1024.0) << " KB ("
                  << std::fixed << std::setprecision(1)
                  << (socket.rx_buffer_size > 0 ? (socket.rx_buffer_used * 100.0 / socket.rx_buffer_size) : 0.0)
                  << "%)" << std::endl;
        std::cout << "TX Buffer Used: " << (socket.tx_buffer_used / 1024.0) << " KB ("
                  << (socket.tx_buffer_size > 0 ? (socket.tx_buffer_used * 100.0 / socket.tx_buffer_size) : 0.0)
                  << "%)" << std::endl;
    } else {
        std::cout << "Socket buffer information not available on this platform" << std::endl;
    }
}

References kcenon::monitoring::platform_socket_info::available, kcenon::monitoring::platform_socket_info::rx_buffer_size, kcenon::monitoring::platform_socket_info::rx_buffer_used, kcenon::monitoring::platform_socket_info::tx_buffer_size, and kcenon::monitoring::platform_socket_info::tx_buffer_used.

Referenced by main().

Here is the caller graph for this function:

◆ display_tcp_info()

void display_tcp_info ( const platform_tcp_info & tcp )

Display TCP connection state information

Examples: platform_metrics_example.cpp.

Definition at line 101 of file platform_metrics_example.cpp.

                                                    {
    std::cout << "\n=== TCP Connection States ===" << std::endl;

    if (tcp.available) {
        std::cout << "ESTABLISHED: " << tcp.established << std::endl;
        std::cout << "SYN_SENT: " << tcp.syn_sent << std::endl;
        std::cout << "SYN_RECV: " << tcp.syn_recv << std::endl;
        std::cout << "FIN_WAIT1: " << tcp.fin_wait1 << std::endl;
        std::cout << "FIN_WAIT2: " << tcp.fin_wait2 << std::endl;
        std::cout << "TIME_WAIT: " << tcp.time_wait << std::endl;
        std::cout << "CLOSE_WAIT: " << tcp.close_wait << std::endl;
        std::cout << "LISTEN: " << tcp.listen << std::endl;
        std::cout << "Total Connections: " << tcp.total << std::endl;
    } else {
        std::cout << "TCP state information not available on this platform" << std::endl;
    }
}

Referenced by main().

Here is the caller graph for this function:

◆ display_uptime_metrics()

void display_uptime_metrics ( const platform_uptime & uptime )

Display uptime metrics

Examples: platform_metrics_example.cpp.

Definition at line 46 of file platform_metrics_example.cpp.

                                                           {
    std::cout << "\n=== Uptime Metrics ===" << std::endl;

    if (uptime.available) {
        // Convert seconds to days, hours, minutes
        int64_t seconds = uptime.uptime_seconds;
        int64_t days = seconds / (24 * 3600);
        seconds %= (24 * 3600);
        int64_t hours = seconds / 3600;
        seconds %= 3600;
        int64_t minutes = seconds / 60;
        seconds %= 60;

        std::cout << "System Uptime: " << days << "d " << hours << "h "
                  << minutes << "m " << seconds << "s" << std::endl;
        std::cout << "Total Uptime: " << uptime.uptime_seconds << " seconds" << std::endl;
        std::cout << "Idle Time: " << uptime.idle_seconds << " seconds" << std::endl;

        // Display boot timestamp as ISO 8601 format if available
        if (uptime.boot_timestamp > 0) {
            auto boot_time = std::chrono::system_clock::from_time_t(uptime.boot_timestamp);
            auto boot_tt = std::chrono::system_clock::to_time_t(boot_time);
            std::tm boot_tm{};
#ifdef _MSC_VER
            localtime_s(&boot_tm, &boot_tt);
#else
            localtime_r(&boot_tt, &boot_tm);
#endif
            std::cout << "Boot Time: " << std::put_time(&boot_tm, "%Y-%m-%d %H:%M:%S") << std::endl;
        }
    } else {
        std::cout << "Uptime metrics not available on this platform" << std::endl;
    }
}

References kcenon::monitoring::platform_uptime::available, kcenon::monitoring::platform_uptime::boot_timestamp, kcenon::monitoring::platform_uptime::idle_seconds, and kcenon::monitoring::platform_uptime::uptime_seconds.

Referenced by main().

Here is the caller graph for this function:

◆ main()

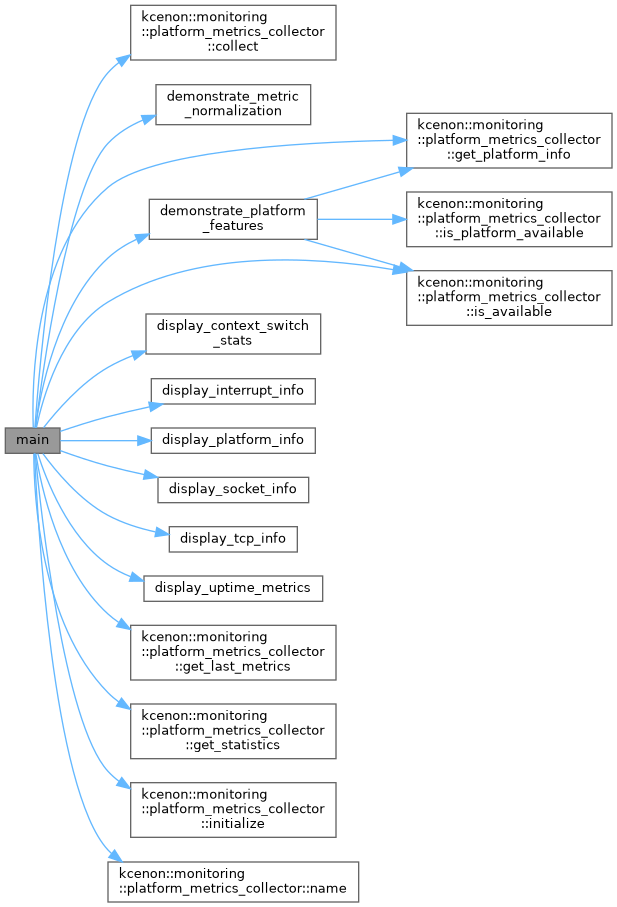

int main ( )

Definition at line 221 of file platform_metrics_example.cpp.

           {
    std::cout << "=== Platform Metrics Example ===" << std::endl;

    try {
        // Step 1: Create platform_metrics_collector with configuration
        std::cout << "\n1. Creating platform_metrics_collector..." << std::endl;

        platform_metrics_config config;
        config.collect_uptime = true;
        config.collect_context_switches = true;
        config.collect_tcp_states = true;
        config.collect_socket_buffers = true;
        config.collect_interrupts = true;

        platform_metrics_collector collector(config);

        // Initialize the collector
        std::unordered_map<std::string, std::string> init_config;
        if (!collector.initialize(init_config)) {
            std::cerr << "Failed to initialize platform_metrics_collector" << std::endl;
            return 1;
        }

        std::cout << "   Initialized: " << collector.name() << std::endl;
        std::cout << "   Health: " << (collector.is_available() ? "OK" : "UNHEALTHY") << std::endl;

        // Step 2: Display platform information
        std::cout << "\n2. Retrieving platform information..." << std::endl;
        auto platform_info = collector.get_platform_info();
        display_platform_info(platform_info);

        // Step 3: Demonstrate platform-specific feature detection
        std::cout << "\n3. Demonstrating platform-specific features..." << std::endl;
        demonstrate_platform_features(collector);

        // Step 4: Collect and display metrics (3 iterations)
        std::cout << "\n4. Collecting platform metrics (3 iterations)..." << std::endl;

        for (int i = 0; i < 3; ++i) {
            std::cout << "\n--- Iteration " << (i + 1) << "/3 ---" << std::endl;

            // Collect all platform metrics
            auto metrics = collector.collect();
            std::cout << "Metrics collected: " << metrics.size() << std::endl;

            // Get last collected metrics for detailed display
            auto last_metrics = collector.get_last_metrics();

            // Display each metric category
            display_uptime_metrics(last_metrics.uptime);
            display_context_switch_stats(last_metrics.context_switches);
            display_tcp_info(last_metrics.tcp);
            display_socket_info(last_metrics.socket);
            display_interrupt_info(last_metrics.interrupts);

            // Wait before next collection
            if (i < 2) {
                std::cout << "\nWaiting 2 seconds before next collection..." << std::endl;
                std::this_thread::sleep_for(2s);
            }
        }

        // Step 5: Demonstrate metric normalization
        std::cout << "\n5. Demonstrating cross-platform metric normalization..." << std::endl;
        auto final_metrics = collector.collect();
        demonstrate_metric_normalization(final_metrics);

        // Step 6: Display collector statistics
        std::cout << "\n6. Collector Statistics:" << std::endl;

        auto stats = collector.get_statistics();
        for (const auto& [key, value] : stats) {
            std::cout << "  " << key << ": " << value << std::endl;
        }

        // Step 7: Demonstrate dynamic configuration updates
        std::cout << "\n7. Configuration note:" << std::endl;
        std::cout << "   Platform metrics collector configuration is set at initialization." << std::endl;
        std::cout << "   To change configuration, recreate the collector with new config." << std::endl;

        std::cout << "\n=== Example completed successfully ===" << std::endl;

    } catch (const std::exception& e) {
        std::cerr << "Exception: " << e.what() << std::endl;
        return 1;
    }

    return 0;
}

Here is the call graph for this function:

Functions

Detailed Description

Function Documentation

◆ demonstrate_metric_normalization()

◆ demonstrate_platform_features()

◆ display_context_switch_stats()

◆ display_interrupt_info()

◆ display_platform_info()

◆ display_socket_info()

◆ display_tcp_info()

◆ display_uptime_metrics()

◆ main()
