#include <system_resource_collector.h>

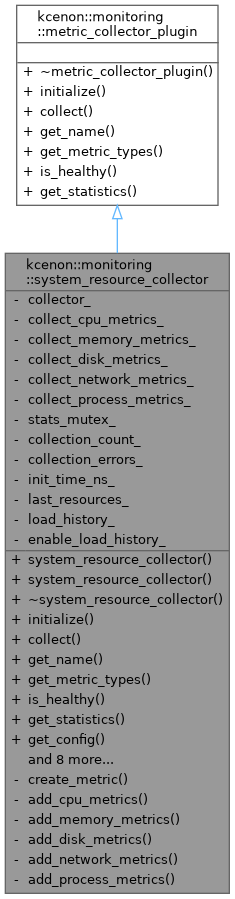

Inheritance diagram for kcenon::monitoring::system_resource_collector:

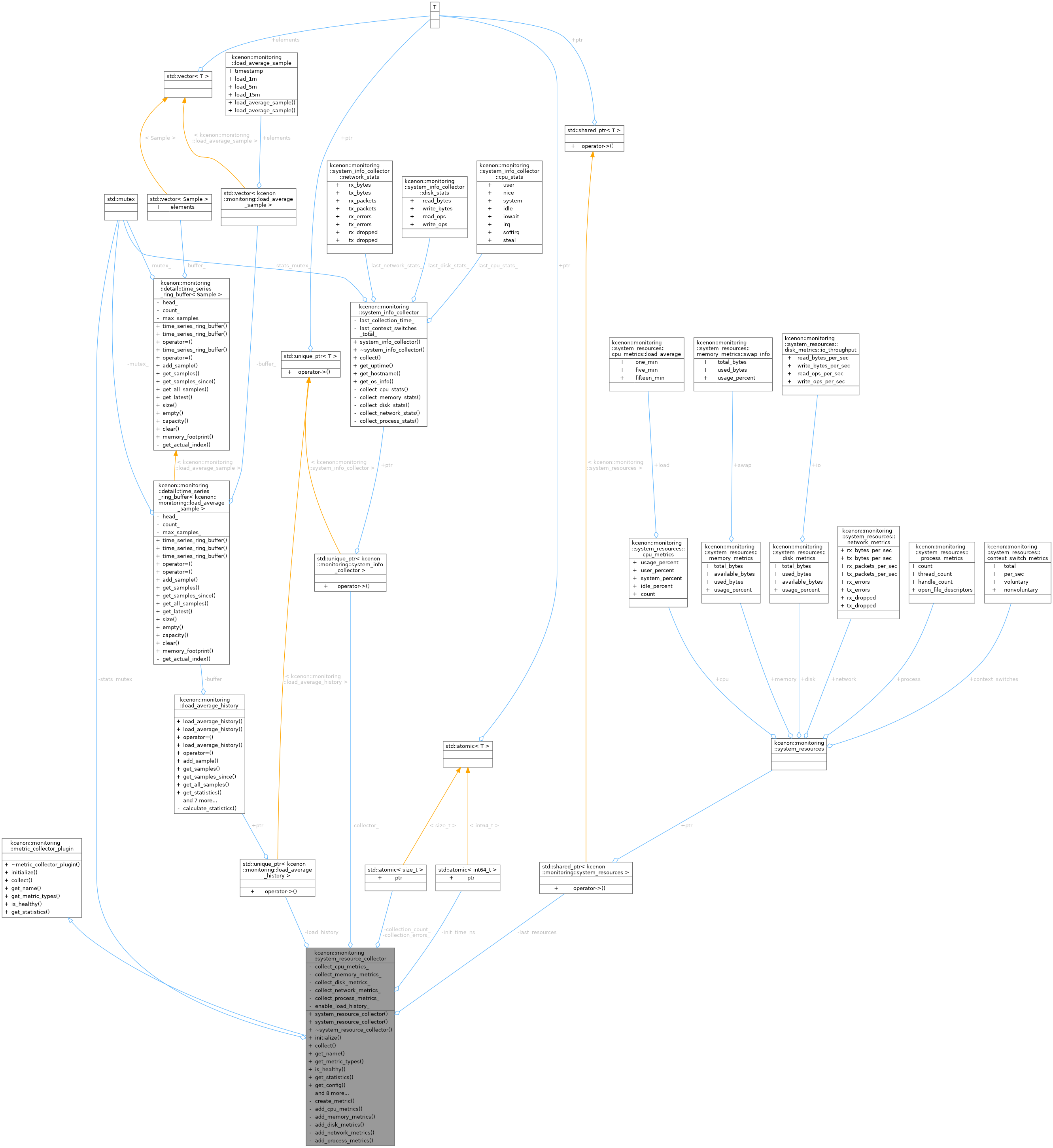

Collaboration diagram for kcenon::monitoring::system_resource_collector:

Public Member Functions
	system_resource_collector ()

	system_resource_collector (const system_metrics_config &config)

	~system_resource_collector () override=default

bool	initialize (const std::unordered_map< std::string, std::string > &config) override

std::vector< metric >	collect () override

std::string	get_name () const override

std::vector< std::string >	get_metric_types () const override

bool	is_healthy () const override

std::unordered_map< std::string, double >	get_statistics () const override

system_metrics_config	get_config () const

void	set_config (const system_metrics_config &config)

system_resources	get_last_resources () const

template<typename Duration >
std::vector< load_average_sample >	get_load_history (Duration duration) const

template<typename Duration >
load_average_statistics	get_load_statistics (Duration duration) const

std::vector< load_average_sample >	get_all_load_history () const

load_average_statistics	get_all_load_statistics () const

void	configure_load_history (size_t max_samples)

bool	is_load_history_enabled () const

Public Member Functions inherited from kcenon::monitoring::metric_collector_plugin
virtual	~metric_collector_plugin ()=default

Private Member Functions
metric	create_metric (const std::string &name, double value, const std::string &unit="", const std::unordered_map< std::string, std::string > &labels={}) const

void	add_cpu_metrics (std::vector< metric > &metrics, const system_resources &resources)

void	add_memory_metrics (std::vector< metric > &metrics, const system_resources &resources)

void	add_disk_metrics (std::vector< metric > &metrics, const system_resources &resources)

void	add_network_metrics (std::vector< metric > &metrics, const system_resources &resources)

void	add_process_metrics (std::vector< metric > &metrics, const system_resources &resources)

Private Attributes
std::unique_ptr< system_info_collector >	collector_

bool	collect_cpu_metrics_ {true}

bool	collect_memory_metrics_ {true}

bool	collect_disk_metrics_ {true}

bool	collect_network_metrics_ {true}

bool	collect_process_metrics_ {true}

std::mutex	stats_mutex_

std::atomic< size_t >	collection_count_ {0}

std::atomic< size_t >	collection_errors_ {0}

std::atomic< int64_t >	init_time_ns_ {0}

std::shared_ptr< system_resources >	last_resources_

std::unique_ptr< load_average_history >	load_history_

bool	enable_load_history_ {true}

Detailed Description

System resource collector plugin implementation

Collects system-level metrics with consistent naming convention:

system.cpu.* - CPU metrics
system.memory.* - Memory metrics
system.disk.* - Disk metrics
system.network.* - Network metrics
system.process.* - Process metrics
system.context_switches.* - Context switch metrics

Examples: system_collectors_example.cpp.

Definition at line 287 of file system_resource_collector.h.

Constructor & Destructor Documentation

◆ system_resource_collector() [1/2]

kcenon::monitoring::system_resource_collector::system_resource_collector ( )

◆ system_resource_collector() [2/2]

kcenon::monitoring::system_resource_collector::system_resource_collector ( const system_metrics_config & config )

explicit

Construct with configuration

Parameters

config Collection configuration

◆ ~system_resource_collector()

kcenon::monitoring::system_resource_collector::~system_resource_collector ( )

overridedefault

Member Function Documentation

◆ add_cpu_metrics()

void kcenon::monitoring::system_resource_collector::add_cpu_metrics	(	std::vector< metric > &	metrics,
		const system_resources &	resources )

private

◆ add_disk_metrics()

void kcenon::monitoring::system_resource_collector::add_disk_metrics	(	std::vector< metric > &	metrics,
		const system_resources &	resources )

private

◆ add_memory_metrics()

void kcenon::monitoring::system_resource_collector::add_memory_metrics	(	std::vector< metric > &	metrics,
		const system_resources &	resources )

private

◆ add_network_metrics()

void kcenon::monitoring::system_resource_collector::add_network_metrics	(	std::vector< metric > &	metrics,
		const system_resources &	resources )

private

◆ add_process_metrics()

void kcenon::monitoring::system_resource_collector::add_process_metrics	(	std::vector< metric > &	metrics,
		const system_resources &	resources )

private

◆ collect()

std::vector< metric > kcenon::monitoring::system_resource_collector::collect ( )

overridevirtual

Collect metrics from the data source

Returns: Collection of metrics

Implements kcenon::monitoring::metric_collector_plugin.

Referenced by main().

Here is the caller graph for this function:

◆ configure_load_history()

void kcenon::monitoring::system_resource_collector::configure_load_history ( size_t max_samples )

Configure load history buffer size

Parameters

max_samples Maximum number of samples to keep (default: 1000)

◆ create_metric()

metric kcenon::monitoring::system_resource_collector::create_metric	(	const std::string &	name,
		double	value,
		const std::string &	unit = "",
		const std::unordered_map< std::string, std::string > &	labels = {} ) const

private

◆ get_all_load_history()

std::vector< load_average_sample > kcenon::monitoring::system_resource_collector::get_all_load_history ( ) const

Get all load average history

Returns: Vector of all load average samples

Referenced by main().

Here is the caller graph for this function:

◆ get_all_load_statistics()

load_average_statistics kcenon::monitoring::system_resource_collector::get_all_load_statistics ( ) const

Get load average statistics for all history

Returns: Statistics for all load average samples

Referenced by main().

Here is the caller graph for this function:

◆ get_config()

system_metrics_config kcenon::monitoring::system_resource_collector::get_config ( ) const

Get current configuration

Returns: Current metrics configuration

◆ get_last_resources()

system_resources kcenon::monitoring::system_resource_collector::get_last_resources ( ) const

Get last collected resources

Returns: Last system resources snapshot

Referenced by main().

Here is the caller graph for this function:

◆ get_load_history()

template<typename Duration >

std::vector< load_average_sample > kcenon::monitoring::system_resource_collector::get_load_history ( Duration duration ) const

inline

Get load average history for trend analysis

Parameters

duration How far back to look

Returns: Vector of load average samples within the duration

Definition at line 331 of file system_resource_collector.h.

                                                                             {
        if (load_history_) {
            return load_history_->get_samples(duration);
        }
        return {};
    }

References load_history_.

◆ get_load_statistics()

template<typename Duration >

load_average_statistics kcenon::monitoring::system_resource_collector::get_load_statistics ( Duration duration ) const

inline

Get load average statistics for a duration

Parameters

duration How far back to look

Returns: Statistics for load averages within the duration

Definition at line 344 of file system_resource_collector.h.

                                                                         {
        if (load_history_) {
            return load_history_->get_statistics(duration);
        }
        return {};
    }

References load_history_.

◆ get_metric_types()

std::vector< std::string > kcenon::monitoring::system_resource_collector::get_metric_types ( ) const

overridevirtual

Get supported metric types

Returns: Vector of supported metric type names

Implements kcenon::monitoring::metric_collector_plugin.

◆ get_name()

std::string kcenon::monitoring::system_resource_collector::get_name ( ) const

inlineoverridevirtual

Get the name of this plugin

Returns: Plugin name

Implements kcenon::monitoring::metric_collector_plugin.

Definition at line 302 of file system_resource_collector.h.

302{ return "system_resource_collector"; }

Referenced by main().

Here is the caller graph for this function:

◆ get_statistics()

std::unordered_map< std::string, double > kcenon::monitoring::system_resource_collector::get_statistics ( ) const

overridevirtual

Get plugin-specific statistics

Returns: Map of statistic name to value

Implements kcenon::monitoring::metric_collector_plugin.

Referenced by main().

Here is the caller graph for this function:

◆ initialize()

bool kcenon::monitoring::system_resource_collector::initialize ( const std::unordered_map< std::string, std::string > & config )

overridevirtual

Initialize the plugin with configuration

Parameters

config Plugin-specific configuration

Returns: true if initialization successful

Implements kcenon::monitoring::metric_collector_plugin.

Referenced by main().

Here is the caller graph for this function:

◆ is_healthy()

bool kcenon::monitoring::system_resource_collector::is_healthy ( ) const

overridevirtual

Check if the plugin is healthy

Returns: true if plugin is operational

Implements kcenon::monitoring::metric_collector_plugin.

Referenced by main().

Here is the caller graph for this function:

◆ is_load_history_enabled()

bool kcenon::monitoring::system_resource_collector::is_load_history_enabled ( ) const

Check if load history tracking is enabled

Returns: true if load history tracking is enabled

◆ set_config()

void kcenon::monitoring::system_resource_collector::set_config ( const system_metrics_config & config )

Update configuration

Parameters

config New configuration to apply

Member Data Documentation

◆ collect_cpu_metrics_

bool kcenon::monitoring::system_resource_collector::collect_cpu_metrics_ {true}

private

Definition at line 380 of file system_resource_collector.h.

380{true};

◆ collect_disk_metrics_

bool kcenon::monitoring::system_resource_collector::collect_disk_metrics_ {true}

private

Definition at line 382 of file system_resource_collector.h.

382{true};

◆ collect_memory_metrics_

bool kcenon::monitoring::system_resource_collector::collect_memory_metrics_ {true}

private

Definition at line 381 of file system_resource_collector.h.

381{true};

◆ collect_network_metrics_

bool kcenon::monitoring::system_resource_collector::collect_network_metrics_ {true}

private

Definition at line 383 of file system_resource_collector.h.

383{true};

◆ collect_process_metrics_

bool kcenon::monitoring::system_resource_collector::collect_process_metrics_ {true}

private

Definition at line 384 of file system_resource_collector.h.

384{true};

◆ collection_count_

std::atomic<size_t> kcenon::monitoring::system_resource_collector::collection_count_ {0}

private

Definition at line 388 of file system_resource_collector.h.

388{0};

◆ collection_errors_

std::atomic<size_t> kcenon::monitoring::system_resource_collector::collection_errors_ {0}

private

Definition at line 389 of file system_resource_collector.h.

389{0};

◆ collector_

std::unique_ptr<system_info_collector> kcenon::monitoring::system_resource_collector::collector_

private

Definition at line 377 of file system_resource_collector.h.

◆ enable_load_history_

bool kcenon::monitoring::system_resource_collector::enable_load_history_ {true}

private

Definition at line 395 of file system_resource_collector.h.

395{true};

◆ init_time_ns_

std::atomic<int64_t> kcenon::monitoring::system_resource_collector::init_time_ns_ {0}

private

Definition at line 390 of file system_resource_collector.h.

390{0}; // Store as nanoseconds for atomic access

◆ last_resources_

std::shared_ptr<system_resources> kcenon::monitoring::system_resource_collector::last_resources_

private

Definition at line 391 of file system_resource_collector.h.

◆ load_history_

std::unique_ptr<load_average_history> kcenon::monitoring::system_resource_collector::load_history_

private

Definition at line 394 of file system_resource_collector.h.

Referenced by get_load_history(), and get_load_statistics().

◆ stats_mutex_

std::mutex kcenon::monitoring::system_resource_collector::stats_mutex_

mutableprivate

Definition at line 387 of file system_resource_collector.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/collectors/system_resource_collector.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ system_resource_collector() [1/2]

◆ system_resource_collector() [2/2]

◆ ~system_resource_collector()

Member Function Documentation

◆ add_cpu_metrics()

◆ add_disk_metrics()

◆ add_memory_metrics()

◆ add_network_metrics()

◆ add_process_metrics()

◆ collect()

◆ configure_load_history()

◆ create_metric()

◆ get_all_load_history()

◆ get_all_load_statistics()

◆ get_config()

◆ get_last_resources()

◆ get_load_history()

◆ get_load_statistics()

◆ get_metric_types()

◆ get_name()

◆ get_statistics()

◆ initialize()

◆ is_healthy()

◆ is_load_history_enabled()

◆ set_config()

Member Data Documentation

◆ collect_cpu_metrics_

◆ collect_disk_metrics_

◆ collect_memory_metrics_

◆ collect_network_metrics_

◆ collect_process_metrics_

◆ collection_count_

◆ collection_errors_

◆ collector_

◆ enable_load_history_

◆ init_time_ns_

◆ last_resources_

◆ load_history_

◆ stats_mutex_
