kcenon::monitoring::smart_collector Class Reference

#include <smart_collector.h>

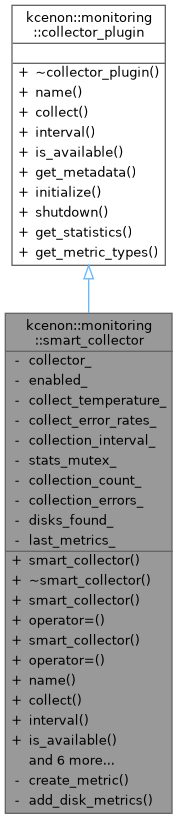

Inheritance diagram for kcenon::monitoring::smart_collector:

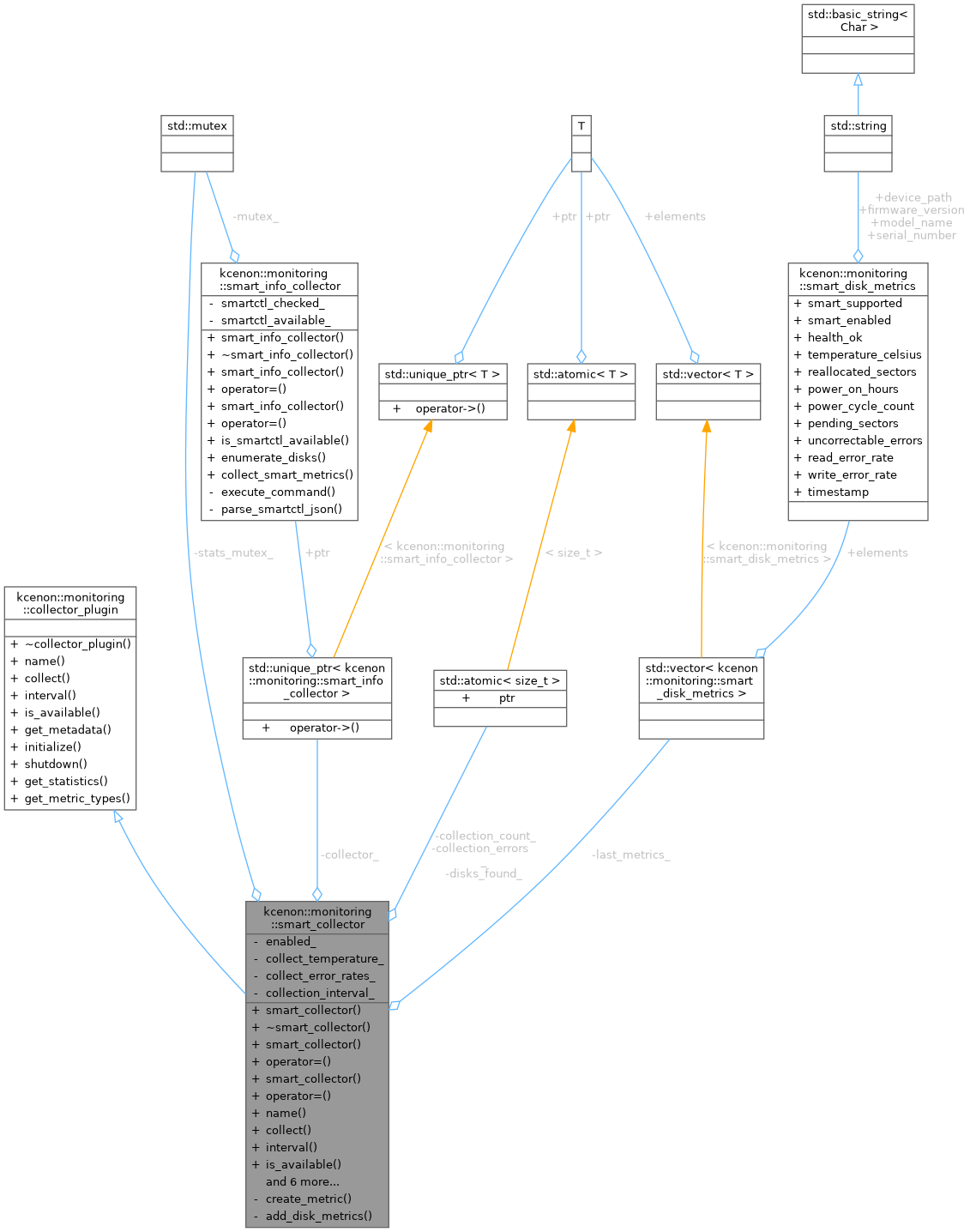

Collaboration diagram for kcenon::monitoring::smart_collector:

Public Member Functions
	smart_collector ()
	~smart_collector ()=default
	smart_collector (const smart_collector &)=delete
smart_collector &	operator= (const smart_collector &)=delete
	smart_collector (smart_collector &&)=delete
smart_collector &	operator= (smart_collector &&)=delete
auto	name () const -> std::string_view override
	Get the unique name of this plugin.
auto	collect () -> std::vector< metric > override
	Collect current metrics from this plugin.
auto	interval () const -> std::chrono::milliseconds override
	Get the collection interval for this plugin.
auto	is_available () const -> bool override
	Check if this plugin is available on the current system.
bool	is_healthy () const
auto	get_metric_types () const -> std::vector< std::string > override
	Get supported metric types.
bool	initialize (const std::unordered_map< std::string, std::string > &config) override
std::unordered_map< std::string, double >	get_statistics () const override
std::vector< smart_disk_metrics >	get_last_metrics () const
bool	is_smart_available () const
Public Member Functions inherited from kcenon::monitoring::collector_plugin
virtual	~collector_plugin ()=default
virtual auto	get_metadata () const -> plugin_metadata
	Get plugin metadata.
virtual void	shutdown ()
	Shutdown plugin and release resources.

Private Member Functions
metric	create_metric (const std::string &name, double value, const smart_disk_metrics &disk, const std::string &unit="") const
void	add_disk_metrics (std::vector< metric > &metrics, const smart_disk_metrics &disk)

Private Attributes
std::unique_ptr< smart_info_collector >	collector_
bool	enabled_ {true}
bool	collect_temperature_ {true}
bool	collect_error_rates_ {true}
std::chrono::milliseconds	collection_interval_ {std::chrono::seconds(300)}
std::mutex	stats_mutex_
std::atomic< size_t >	collection_count_ {0}
std::atomic< size_t >	collection_errors_ {0}
std::atomic< size_t >	disks_found_ {0}
std::vector< smart_disk_metrics >	last_metrics_

Detailed Description

SMART disk health collector implementing the collector_plugin interface

Collects S.M.A.R.T. disk health data using smartctl (smartmontools). Gracefully degrades when smartctl is not available or disks don't support SMART.

Definition at line 121 of file smart_collector.h.

Constructor & Destructor Documentation

smart_collector() [1/3]

kcenon::monitoring::smart_collector::smart_collector

(

)

~smart_collector()

kcenon::monitoring::smart_collector::~smart_collector ( )

default

smart_collector() [2/3]

kcenon::monitoring::smart_collector::smart_collector ( const smart_collector & )

delete

smart_collector() [3/3]

kcenon::monitoring::smart_collector::smart_collector ( smart_collector && )

delete

Member Function Documentation

add_disk_metrics()

void kcenon::monitoring::smart_collector::add_disk_metrics ( std::vector< metric > & metrics, const smart_disk_metrics & disk )

private

collect()

auto kcenon::monitoring::smart_collector::collect ( ) -> std::vector< metric >

overridevirtual

Collect current metrics from this plugin.

Returns

Vector of collected metrics

This method is called periodically based on interval(). Implementations should:

• Return quickly (< 100ms recommended)
• Handle errors gracefully (return empty vector on failure)
• Be thread-safe if concurrent collection is enabled
• Avoid blocking I/O when possible

Implements kcenon::monitoring::collector_plugin.

create_metric()

metric kcenon::monitoring::smart_collector::create_metric ( const std::string & name, double value, const smart_disk_metrics & disk, const std::string & unit = "" ) const

private

get_last_metrics()

std::vector< smart_disk_metrics > kcenon::monitoring::smart_collector::get_last_metrics

(

)

const

Get last collected SMART metrics

Returns

Vector of SMART disk metrics

get_metric_types()

auto kcenon::monitoring::smart_collector::get_metric_types ( ) const -> std::vector< std::string >

overridevirtual

Get supported metric types.

Returns

Vector of metric type names this plugin produces

Used for filtering and documentation.

Implements kcenon::monitoring::collector_plugin.

get_statistics()

std::unordered_map< std::string, double > kcenon::monitoring::smart_collector::get_statistics ( ) const

overridevirtual

Get collector statistics

Returns

Map of statistic name to value

Reimplemented from kcenon::monitoring::collector_plugin.

initialize()

bool kcenon::monitoring::smart_collector::initialize ( const std::unordered_map< std::string, std::string > & config )

overridevirtual

Initialize the collector with configuration

Parameters

config

Configuration options

Returns

true if initialization successful

Reimplemented from kcenon::monitoring::collector_plugin.

interval()

auto kcenon::monitoring::smart_collector::interval ( ) const -> std::chrono::milliseconds

inlineoverridevirtual

Get the collection interval for this plugin.

Returns

Collection interval in milliseconds

The registry uses this value to schedule collection tasks. Typical values:

• Fast metrics (CPU, memory): 1-5 seconds
• Slow metrics (disk, network): 10-60 seconds
• Very slow metrics (SMART data): 5-15 minutes

Implements kcenon::monitoring::collector_plugin.

Definition at line 135 of file smart_collector.h.

{ return collection_interval_; }

References collection_interval_.

is_available()

auto kcenon::monitoring::smart_collector::is_available ( ) const -> bool

overridevirtual

Check if this plugin is available on the current system.

Returns

True if plugin can collect metrics, false otherwise

Availability checks may include:

• Platform compatibility (Linux-only, Windows-only)
• Hardware presence (GPU, sensors)
• Permission checks (root required)
• Resource availability (proc filesystem, WMI)

The registry may skip unavailable plugins during registration.

Implements kcenon::monitoring::collector_plugin.

is_healthy()

bool kcenon::monitoring::smart_collector::is_healthy

(

)

const

Check if collector is in a healthy state

Returns

True if collector is operational

is_smart_available()

bool kcenon::monitoring::smart_collector::is_smart_available

(

)

const

Check if SMART monitoring is available

Returns

True if smartctl is available

name()

auto kcenon::monitoring::smart_collector::name ( ) const -> std::string_view

inlineoverridevirtual

Get the unique name of this plugin.

Returns

Plugin name (must be unique within registry)

The name is used for:

• Plugin lookup and discovery
• Configuration mapping
• Metric tagging (added as "collector" tag)

Implements kcenon::monitoring::collector_plugin.

Definition at line 133 of file smart_collector.h.

{ return "smart_collector"; }

operator=() [1/2]

smart_collector & kcenon::monitoring::smart_collector::operator= ( const smart_collector & )

delete

operator=() [2/2]

smart_collector & kcenon::monitoring::smart_collector::operator= ( smart_collector && )

delete

Member Data Documentation

collect_error_rates_

bool kcenon::monitoring::smart_collector::collect_error_rates_ {true}

private

Definition at line 176 of file smart_collector.h.

{true};

collect_temperature_

bool kcenon::monitoring::smart_collector::collect_temperature_ {true}

private

Definition at line 175 of file smart_collector.h.

{true};

collection_count_

std::atomic<size_t> kcenon::monitoring::smart_collector::collection_count_ {0}

private

Definition at line 181 of file smart_collector.h.

{0};

collection_errors_

std::atomic<size_t> kcenon::monitoring::smart_collector::collection_errors_ {0}

private

Definition at line 182 of file smart_collector.h.

{0};

collection_interval_

std::chrono::milliseconds kcenon::monitoring::smart_collector::collection_interval_ {std::chrono::seconds(300)}

private

Definition at line 177 of file smart_collector.h.

{std::chrono::seconds(300)};

Referenced by interval().

collector_

std::unique_ptr<smart_info_collector> kcenon::monitoring::smart_collector::collector_

private

Definition at line 171 of file smart_collector.h.

disks_found_

std::atomic<size_t> kcenon::monitoring::smart_collector::disks_found_ {0}

private

Definition at line 183 of file smart_collector.h.

{0};

enabled_

bool kcenon::monitoring::smart_collector::enabled_ {true}

private

Definition at line 174 of file smart_collector.h.

{true};

last_metrics_

std::vector<smart_disk_metrics> kcenon::monitoring::smart_collector::last_metrics_

private

Definition at line 184 of file smart_collector.h.

stats_mutex_

std::mutex kcenon::monitoring::smart_collector::stats_mutex_

mutableprivate

Definition at line 180 of file smart_collector.h.

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/collectors/smart_collector.h
