Unified process-level metrics collector. More...

#include <process_metrics_collector.h>

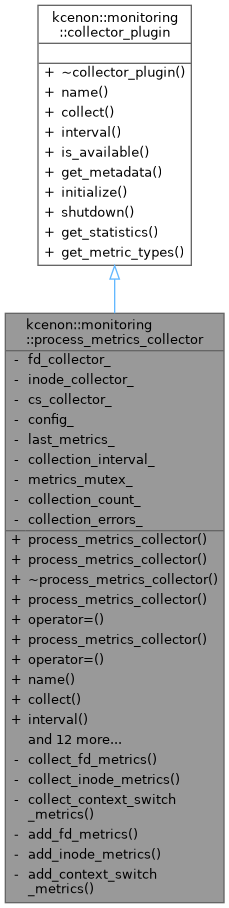

Inheritance diagram for kcenon::monitoring::process_metrics_collector:

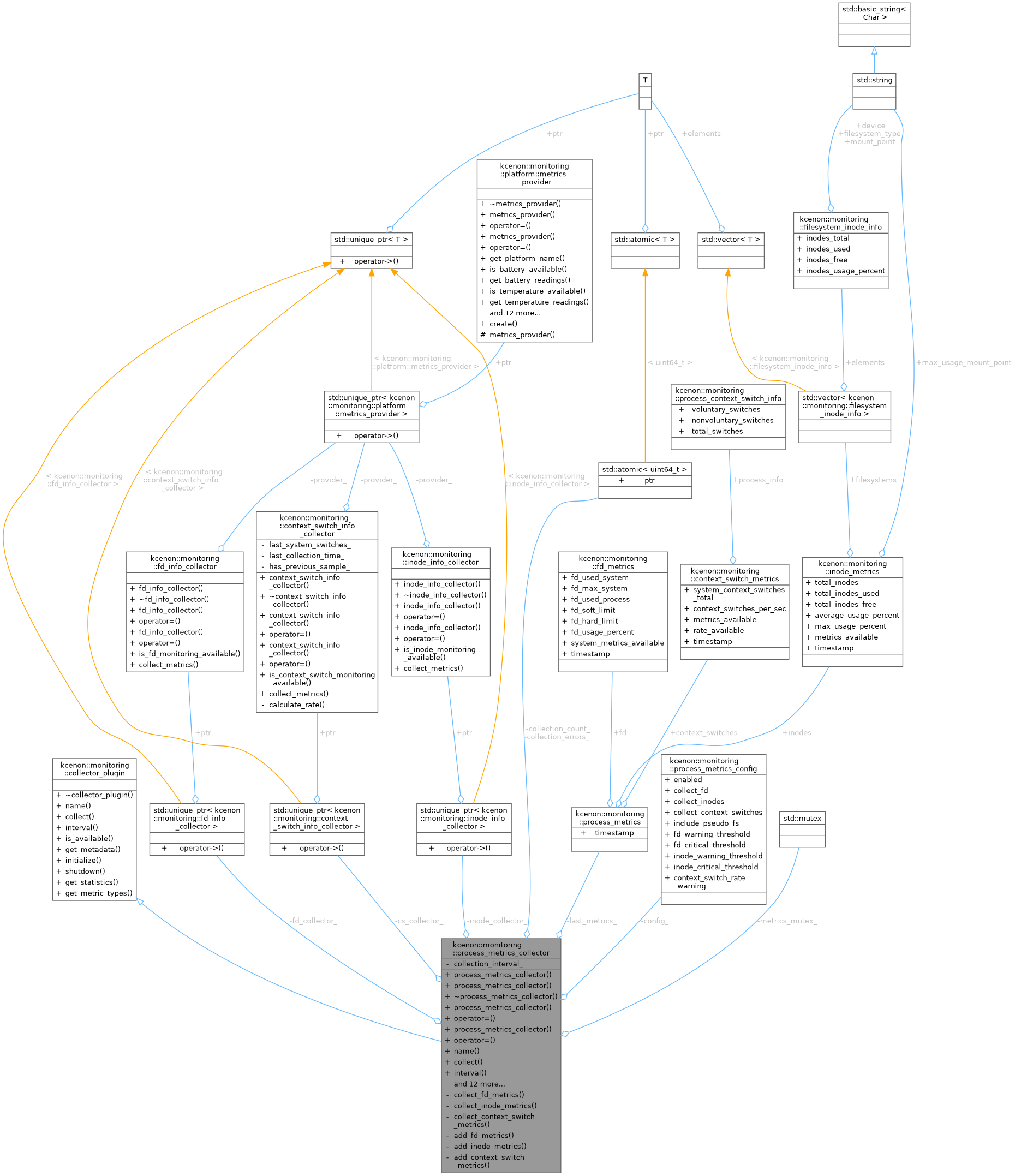

Collaboration diagram for kcenon::monitoring::process_metrics_collector:

Public Member Functions
	process_metrics_collector ()

	process_metrics_collector (process_metrics_config config)

	~process_metrics_collector () override=default

	process_metrics_collector (const process_metrics_collector &)=delete

process_metrics_collector &	operator= (const process_metrics_collector &)=delete

	process_metrics_collector (process_metrics_collector &&)=delete

process_metrics_collector &	operator= (process_metrics_collector &&)=delete

auto	name () const -> std::string_view override
	Get the unique name of this plugin.

auto	collect () -> std::vector< metric > override
	Collect current metrics from this plugin.

auto	interval () const -> std::chrono::milliseconds override
	Get the collection interval for this plugin.

auto	is_available () const -> bool override
	Check if this plugin is available on the current system.

bool	is_healthy () const

auto	get_metric_types () const -> std::vector< std::string > override
	Get supported metric types.

bool	initialize (const config_map &config) override
	Initialize plugin with configuration.

auto	get_statistics () const -> stats_map override

process_metrics	get_last_metrics () const

fd_metrics	get_last_fd_metrics () const

inode_metrics	get_last_inode_metrics () const

context_switch_metrics	get_last_context_switch_metrics () const

bool	is_fd_monitoring_available () const

bool	is_inode_monitoring_available () const

bool	is_context_switch_monitoring_available () const

Public Member Functions inherited from kcenon::monitoring::collector_plugin
virtual	~collector_plugin ()=default

virtual auto	get_metadata () const -> plugin_metadata
	Get plugin metadata.

virtual void	shutdown ()
	Shutdown plugin and release resources.

Private Member Functions
void	collect_fd_metrics (std::vector< metric > &metrics)

void	collect_inode_metrics (std::vector< metric > &metrics)

void	collect_context_switch_metrics (std::vector< metric > &metrics)

void	add_fd_metrics (std::vector< metric > &metrics, const fd_metrics &fd_data)

void	add_inode_metrics (std::vector< metric > &metrics, const inode_metrics &inode_data)

void	add_context_switch_metrics (std::vector< metric > &metrics, const context_switch_metrics &cs_data)

Private Attributes
std::unique_ptr< fd_info_collector >	fd_collector_

std::unique_ptr< inode_info_collector >	inode_collector_

std::unique_ptr< context_switch_info_collector >	cs_collector_

process_metrics_config	config_

process_metrics	last_metrics_

std::chrono::milliseconds	collection_interval_ {std::chrono::seconds(5)}

std::mutex	metrics_mutex_

std::atomic< uint64_t >	collection_count_ {0}

std::atomic< uint64_t >	collection_errors_ {0}

Detailed Description

Unified process-level metrics collector.

Consolidates file descriptor, inode, and context switch monitoring into a single collector for comprehensive process health monitoring.

Configuration options:

"collect_fd": "true"/"false" - Enable FD collection (default: true)
"collect_inodes": "true"/"false" - Enable inode collection (default: true)
"collect_context_switches": "true"/"false" - Enable context switch collection (default: true)
"include_pseudo_fs": "true"/"false" - Include pseudo filesystems (default: false)
"fd_warning_threshold": percentage (default: 80.0)
"fd_critical_threshold": percentage (default: 95.0)
"inode_warning_threshold": percentage (default: 80.0)
"inode_critical_threshold": percentage (default: 95.0)
"context_switch_rate_warning": rate (default: 100000.0)

Examples: system_collectors_example.cpp.

Definition at line 240 of file process_metrics_collector.h.

Constructor & Destructor Documentation

◆ process_metrics_collector() [1/4]

kcenon::monitoring::process_metrics_collector::process_metrics_collector ( )

◆ process_metrics_collector() [2/4]

kcenon::monitoring::process_metrics_collector::process_metrics_collector ( process_metrics_config config )

explicit

◆ ~process_metrics_collector()

kcenon::monitoring::process_metrics_collector::~process_metrics_collector ( )

overridedefault

◆ process_metrics_collector() [3/4]

kcenon::monitoring::process_metrics_collector::process_metrics_collector ( const process_metrics_collector & )

delete

◆ process_metrics_collector() [4/4]

kcenon::monitoring::process_metrics_collector::process_metrics_collector ( process_metrics_collector && )

delete

Member Function Documentation

◆ add_context_switch_metrics()

void kcenon::monitoring::process_metrics_collector::add_context_switch_metrics	(	std::vector< metric > &	metrics,
		const context_switch_metrics &	cs_data )

private

◆ add_fd_metrics()

void kcenon::monitoring::process_metrics_collector::add_fd_metrics	(	std::vector< metric > &	metrics,
		const fd_metrics &	fd_data )

private

◆ add_inode_metrics()

void kcenon::monitoring::process_metrics_collector::add_inode_metrics	(	std::vector< metric > &	metrics,
		const inode_metrics &	inode_data )

private

◆ collect()

auto kcenon::monitoring::process_metrics_collector::collect ( ) -> std::vector< metric >

overridevirtual

Collect current metrics from this plugin.

Returns: Vector of collected metrics

This method is called periodically based on interval(). Implementations should:

Return quickly (< 100ms recommended)
Handle errors gracefully (return empty vector on failure)
Be thread-safe if concurrent collection is enabled
Avoid blocking I/O when possible

Implements kcenon::monitoring::collector_plugin.

Examples: system_collectors_example.cpp.

Referenced by main().

Here is the caller graph for this function:

◆ collect_context_switch_metrics()

void kcenon::monitoring::process_metrics_collector::collect_context_switch_metrics ( std::vector< metric > & metrics )

private

◆ collect_fd_metrics()

void kcenon::monitoring::process_metrics_collector::collect_fd_metrics ( std::vector< metric > & metrics )

private

◆ collect_inode_metrics()

void kcenon::monitoring::process_metrics_collector::collect_inode_metrics ( std::vector< metric > & metrics )

private

◆ get_last_context_switch_metrics()

context_switch_metrics kcenon::monitoring::process_metrics_collector::get_last_context_switch_metrics ( ) const

◆ get_last_fd_metrics()

fd_metrics kcenon::monitoring::process_metrics_collector::get_last_fd_metrics ( ) const

◆ get_last_inode_metrics()

inode_metrics kcenon::monitoring::process_metrics_collector::get_last_inode_metrics ( ) const

◆ get_last_metrics()

process_metrics kcenon::monitoring::process_metrics_collector::get_last_metrics ( ) const

◆ get_metric_types()

auto kcenon::monitoring::process_metrics_collector::get_metric_types ( ) const -> std::vector< std::string >

overridevirtual

Get supported metric types.

Returns: Vector of metric type names this plugin produces

Used for filtering and documentation.

Implements kcenon::monitoring::collector_plugin.

◆ get_statistics()

auto kcenon::monitoring::process_metrics_collector::get_statistics ( ) const -> stats_map

overridevirtual

Get collector statistics

Returns: Map of statistics

Reimplemented from kcenon::monitoring::collector_plugin.

Examples: system_collectors_example.cpp.

Referenced by main().

Here is the caller graph for this function:

◆ initialize()

bool kcenon::monitoring::process_metrics_collector::initialize ( const config_map & )

overridevirtual

Initialize plugin with configuration.

Parameters

config Configuration key-value pairs

Returns: True if initialization succeeded

Called once after plugin registration. Optional: Default implementation always succeeds.

Reimplemented from kcenon::monitoring::collector_plugin.

Examples: system_collectors_example.cpp.

Referenced by main().

Here is the caller graph for this function:

◆ interval()

auto kcenon::monitoring::process_metrics_collector::interval ( ) const -> std::chrono::milliseconds

inlineoverridevirtual

Get the collection interval for this plugin.

Returns: Collection interval in milliseconds

The registry uses this value to schedule collection tasks. Typical values:

Fast metrics (CPU, memory): 1-5 seconds
Slow metrics (disk, network): 10-60 seconds
Very slow metrics (SMART data): 5-15 minutes

Implements kcenon::monitoring::collector_plugin.

Definition at line 254 of file process_metrics_collector.h.

254{ return collection_interval_; }

kcenon::monitoring::process_metrics_collector::collection_interval_

std::chrono::milliseconds collection_interval_

Definition process_metrics_collector.h:290

References collection_interval_.

◆ is_available()

auto kcenon::monitoring::process_metrics_collector::is_available ( ) const -> bool

overridevirtual

Check if this plugin is available on the current system.

Returns: True if plugin can collect metrics, false otherwise

Availability checks may include:

Platform compatibility (Linux-only, Windows-only)
Hardware presence (GPU, sensors)
Permission checks (root required)
Resource availability (proc filesystem, WMI)

The registry may skip unavailable plugins during registration.

Implements kcenon::monitoring::collector_plugin.

Examples: system_collectors_example.cpp.

Referenced by main().

Here is the caller graph for this function:

◆ is_context_switch_monitoring_available()

bool kcenon::monitoring::process_metrics_collector::is_context_switch_monitoring_available ( ) const

◆ is_fd_monitoring_available()

bool kcenon::monitoring::process_metrics_collector::is_fd_monitoring_available ( ) const

◆ is_healthy()

bool kcenon::monitoring::process_metrics_collector::is_healthy ( ) const

Check if collector is in a healthy state

Returns: True if collector is operational (regardless of enabled state)

◆ is_inode_monitoring_available()

bool kcenon::monitoring::process_metrics_collector::is_inode_monitoring_available ( ) const

◆ name()

auto kcenon::monitoring::process_metrics_collector::name ( ) const -> std::string_view

inlineoverridevirtual

Get the unique name of this plugin.

Returns: Plugin name (must be unique within registry)

The name is used for:

Plugin lookup and discovery
Configuration mapping
Metric tagging (added as "collector" tag)

Implements kcenon::monitoring::collector_plugin.

Examples: system_collectors_example.cpp.

Definition at line 252 of file process_metrics_collector.h.

252{ return "process_metrics_collector"; }

Referenced by main().

Here is the caller graph for this function:

◆ operator=() [1/2]

process_metrics_collector & kcenon::monitoring::process_metrics_collector::operator= ( const process_metrics_collector & )

delete

◆ operator=() [2/2]

process_metrics_collector & kcenon::monitoring::process_metrics_collector::operator= ( process_metrics_collector && )

delete

Member Data Documentation

◆ collection_count_

std::atomic<uint64_t> kcenon::monitoring::process_metrics_collector::collection_count_ {0}

mutableprivate

Definition at line 294 of file process_metrics_collector.h.

294{0};

◆ collection_errors_

std::atomic<uint64_t> kcenon::monitoring::process_metrics_collector::collection_errors_ {0}

mutableprivate

Definition at line 295 of file process_metrics_collector.h.

295{0};

◆ collection_interval_

std::chrono::milliseconds kcenon::monitoring::process_metrics_collector::collection_interval_ {std::chrono::seconds(5)}

private

Definition at line 290 of file process_metrics_collector.h.

290{std::chrono::seconds(5)};

Referenced by interval().

◆ config_

process_metrics_config kcenon::monitoring::process_metrics_collector::config_

private

Definition at line 288 of file process_metrics_collector.h.

◆ cs_collector_

std::unique_ptr<context_switch_info_collector> kcenon::monitoring::process_metrics_collector::cs_collector_

private

Definition at line 286 of file process_metrics_collector.h.

◆ fd_collector_

std::unique_ptr<fd_info_collector> kcenon::monitoring::process_metrics_collector::fd_collector_

private

Definition at line 284 of file process_metrics_collector.h.

◆ inode_collector_

std::unique_ptr<inode_info_collector> kcenon::monitoring::process_metrics_collector::inode_collector_

private

Definition at line 285 of file process_metrics_collector.h.

◆ last_metrics_

process_metrics kcenon::monitoring::process_metrics_collector::last_metrics_

private

Definition at line 289 of file process_metrics_collector.h.

◆ metrics_mutex_

std::mutex kcenon::monitoring::process_metrics_collector::metrics_mutex_

mutableprivate

Definition at line 291 of file process_metrics_collector.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/collectors/process_metrics_collector.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ process_metrics_collector() [1/4]

◆ process_metrics_collector() [2/4]

◆ ~process_metrics_collector()

◆ process_metrics_collector() [3/4]

◆ process_metrics_collector() [4/4]

Member Function Documentation

◆ add_context_switch_metrics()

◆ add_fd_metrics()

◆ add_inode_metrics()

◆ collect()

◆ collect_context_switch_metrics()

◆ collect_fd_metrics()

◆ collect_inode_metrics()

◆ get_last_context_switch_metrics()

◆ get_last_fd_metrics()

◆ get_last_inode_metrics()

◆ get_last_metrics()

◆ get_metric_types()

◆ get_statistics()

◆ initialize()

◆ interval()

◆ is_available()

◆ is_context_switch_monitoring_available()

◆ is_fd_monitoring_available()

◆ is_healthy()

◆ is_inode_monitoring_available()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

Member Data Documentation

◆ collection_count_

◆ collection_errors_

◆ collection_interval_

◆ config_

◆ cs_collector_

◆ fd_collector_

◆ inode_collector_

◆ last_metrics_

◆ metrics_mutex_
