kcenon::monitoring::opentelemetry_tracer_adapter Class Reference

Adapter for converting monitoring system traces to OpenTelemetry format. More...

#include <opentelemetry_adapter.h>

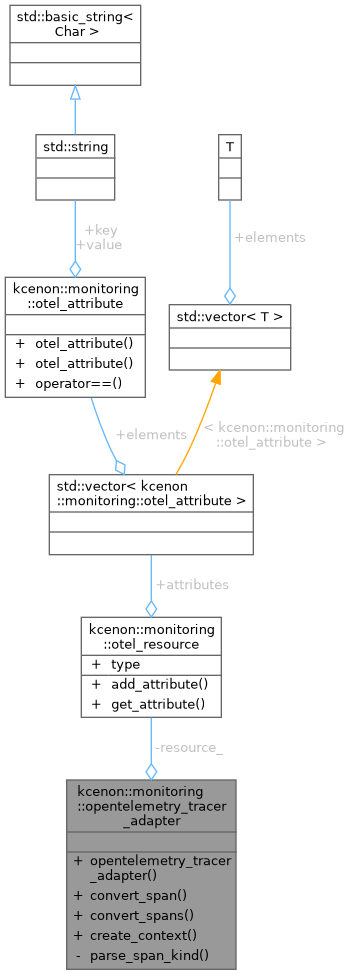

Collaboration diagram for kcenon::monitoring::opentelemetry_tracer_adapter:

Public Member Functions
	opentelemetry_tracer_adapter (const otel_resource &resource)
common::Result< otel_span_data >	convert_span (const trace_span &span)
	Convert internal span to OpenTelemetry span data.
common::Result< std::vector< otel_span_data > >	convert_spans (const std::vector< trace_span > &spans)
	Convert multiple spans to OpenTelemetry format.
common::Result< otel_span_context >	create_context (const trace_context &context)
	Create OpenTelemetry context from internal trace context.

Private Member Functions
otel_span_kind	parse_span_kind (const std::string &kind_str)

Private Attributes
otel_resource	resource_

Detailed Description

Adapter for converting monitoring system traces to OpenTelemetry format.

Definition at line 185 of file opentelemetry_adapter.h.

Constructor & Destructor Documentation

opentelemetry_tracer_adapter()

kcenon::monitoring::opentelemetry_tracer_adapter::opentelemetry_tracer_adapter ( const otel_resource & resource )

inlineexplicit

Definition at line 187 of file opentelemetry_adapter.h.

        : resource_(resource) {}

Member Function Documentation

convert_span()

common::Result< otel_span_data > kcenon::monitoring::opentelemetry_tracer_adapter::convert_span ( const trace_span & span )

inline

Convert internal span to OpenTelemetry span data.

Definition at line 193 of file opentelemetry_adapter.h.

                                                                      {
        otel_span_data otel_span;

        // Convert basic span information
        otel_span.name = span.operation_name;
        otel_span.context = otel_span_context(span.trace_id, span.span_id);

        if (!span.parent_span_id.empty()) {
            otel_span.parent_context = otel_span_context(span.trace_id, span.parent_span_id);
        }

        otel_span.start_time = span.start_time;
        otel_span.end_time = span.end_time;
        otel_span.resource = resource_;

        // First determine span kind from tags
        auto kind_it = span.tags.find("span.kind");
        if (kind_it != span.tags.end()) {
            otel_span.kind = parse_span_kind(kind_it->second);
        }

        // Set status from tags
        auto error_it = span.tags.find("error");
        if (error_it != span.tags.end() && error_it->second == "true") {
            otel_span.status_code = otel_status_code::error;
            auto error_msg_it = span.tags.find("error.message");
            if (error_msg_it != span.tags.end()) {
                otel_span.status_message = error_msg_it->second;
            }
        } else {
            otel_span.status_code = otel_status_code::ok;
        }

        // Convert tags to attributes, excluding special OpenTelemetry fields
        for (const auto& [key, value] : span.tags) {
            // Skip special fields that are handled above
            if (key != "span.kind" && key != "error" && key != "error.message") {
                otel_span.add_attribute(key, value);
            }
        }

        return common::Result<otel_span_data>::ok(std::move(otel_span));
    }

References kcenon::monitoring::otel_span_data::add_attribute(), kcenon::monitoring::otel_span_data::context, kcenon::monitoring::otel_span_data::end_time, kcenon::monitoring::trace_span::end_time, kcenon::monitoring::error, kcenon::monitoring::otel_span_data::kind, kcenon::monitoring::otel_span_data::name, kcenon::monitoring::ok, kcenon::monitoring::trace_span::operation_name, kcenon::monitoring::otel_span_data::parent_context, kcenon::monitoring::trace_span::parent_span_id, parse_span_kind(), kcenon::monitoring::otel_span_data::resource, resource_, kcenon::monitoring::trace_span::span_id, kcenon::monitoring::otel_span_data::start_time, kcenon::monitoring::trace_span::start_time, kcenon::monitoring::otel_span_data::status_code, kcenon::monitoring::otel_span_data::status_message, kcenon::monitoring::trace_span::tags, and kcenon::monitoring::trace_span::trace_id.

Referenced by convert_spans(), TEST_F(), and TEST_F().

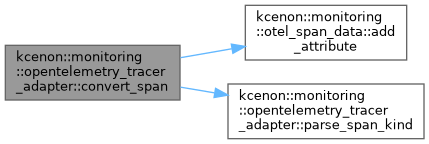

Here is the call graph for this function:

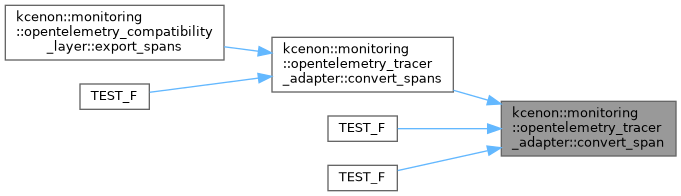

Here is the caller graph for this function:

convert_spans()

common::Result< std::vector< otel_span_data > > kcenon::monitoring::opentelemetry_tracer_adapter::convert_spans ( const std::vector< trace_span > & spans )

inline

Convert multiple spans to OpenTelemetry format.

Definition at line 240 of file opentelemetry_adapter.h.

                                                                                              {
        std::vector<otel_span_data> otel_spans;
        otel_spans.reserve(spans.size());

        for (const auto& span : spans) {
            auto convert_result = convert_span(span);
            if (convert_result.is_err()) {
                return common::Result<std::vector<otel_span_data>>::err(error_info(monitoring_error_code::processing_failed,
                    "Failed to convert span: " + convert_result.error().message).to_common_error());
            }
            otel_spans.push_back(convert_result.value());
        }

        return common::Result<std::vector<otel_span_data>>::ok(std::move(otel_spans));
    }

References convert_span(), kcenon::monitoring::ok, kcenon::monitoring::processing_failed, and kcenon::monitoring::error_info::to_common_error().

Referenced by kcenon::monitoring::opentelemetry_compatibility_layer::export_spans(), and TEST_F().

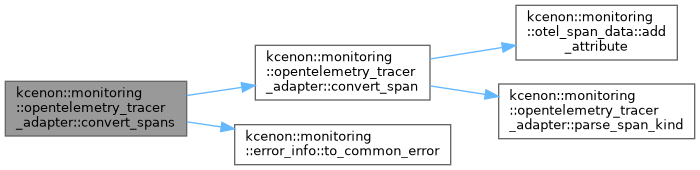

Here is the call graph for this function:

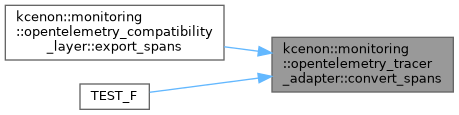

Here is the caller graph for this function:

create_context()

common::Result< otel_span_context > kcenon::monitoring::opentelemetry_tracer_adapter::create_context ( const trace_context & context )

inline

Create OpenTelemetry context from internal trace context.

Definition at line 259 of file opentelemetry_adapter.h.

                                                                                 {
        return common::Result<otel_span_context>::ok(otel_span_context(context.trace_id, context.span_id));
    }

References kcenon::monitoring::trace_context::span_id, and kcenon::monitoring::trace_context::trace_id.

parse_span_kind()

otel_span_kind kcenon::monitoring::opentelemetry_tracer_adapter::parse_span_kind ( const std::string & kind_str )

inlineprivate

Definition at line 264 of file opentelemetry_adapter.h.

                                                              {
        if (kind_str == "server") return otel_span_kind::server;
        if (kind_str == "client") return otel_span_kind::client;
        if (kind_str == "producer") return otel_span_kind::producer;
        if (kind_str == "consumer") return otel_span_kind::consumer;
        if (kind_str == "internal") return otel_span_kind::internal;
        return otel_span_kind::unspecified;
    }

References kcenon::monitoring::client, kcenon::monitoring::consumer, kcenon::monitoring::internal, kcenon::monitoring::producer, kcenon::monitoring::server, and kcenon::monitoring::unspecified.

Referenced by convert_span().

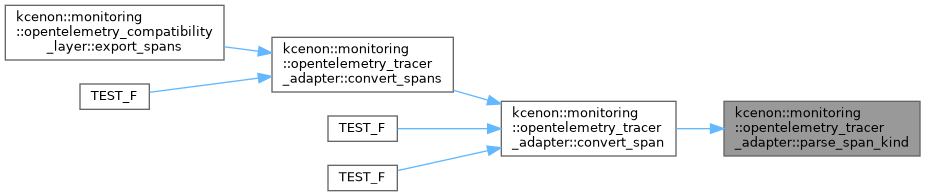

Here is the caller graph for this function:

Member Data Documentation

resource_

otel_resource kcenon::monitoring::opentelemetry_tracer_adapter::resource_

private

Definition at line 273 of file opentelemetry_adapter.h.

Referenced by convert_span().

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/exporters/opentelemetry_adapter.h
