kcenon::monitoring::otel_span_data Struct Reference

OpenTelemetry span data representation. More...

#include <opentelemetry_adapter.h>

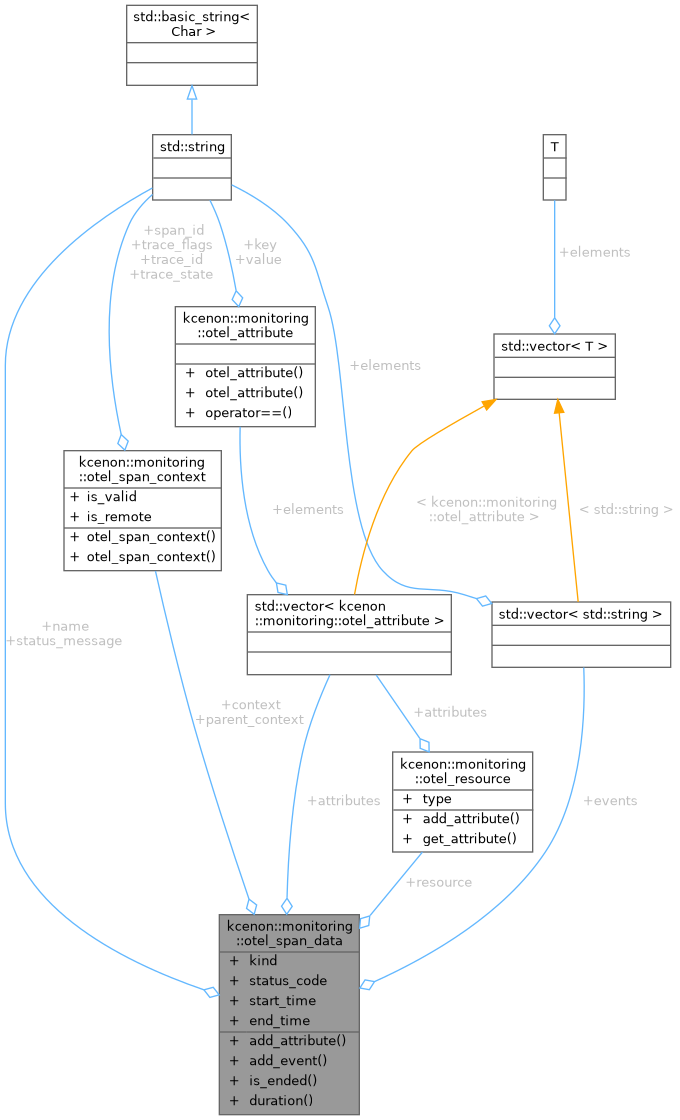

Collaboration diagram for kcenon::monitoring::otel_span_data:

Public Member Functions
void	add_attribute (const std::string &key, const std::string &value)
void	add_event (const std::string &event)
bool	is_ended () const
std::chrono::microseconds	duration () const

Public Attributes
otel_span_context	context
otel_span_context	parent_context
std::string	name
otel_span_kind	kind {otel_span_kind::internal}
otel_status_code	status_code {otel_status_code::unset}
std::string	status_message
std::chrono::system_clock::time_point	start_time
std::chrono::system_clock::time_point	end_time
std::vector< otel_attribute >	attributes
std::vector< std::string >	events
otel_resource	resource

Detailed Description

OpenTelemetry span data representation.

Definition at line 130 of file opentelemetry_adapter.h.

Member Function Documentation

add_attribute()

void kcenon::monitoring::otel_span_data::add_attribute ( const std::string & key, const std::string & value )

inline

Definition at line 143 of file opentelemetry_adapter.h.

                                                                     {
        attributes.emplace_back(key, value);
    }

References attributes.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), and TEST_F().

Here is the caller graph for this function:

add_event()

void kcenon::monitoring::otel_span_data::add_event ( const std::string & event )

inline

Definition at line 147 of file opentelemetry_adapter.h.

                                           {
        events.push_back(event);
    }

References events.

Referenced by TEST_F().

Here is the caller graph for this function:

duration()

std::chrono::microseconds kcenon::monitoring::otel_span_data::duration ( ) const

inline

Definition at line 155 of file opentelemetry_adapter.h.

                                           {
        if (!is_ended()) {
            return std::chrono::microseconds{0};
        }
        return std::chrono::duration_cast<std::chrono::microseconds>(end_time - start_time);
    }

References end_time, is_ended(), and start_time.

Referenced by TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

is_ended()

bool kcenon::monitoring::otel_span_data::is_ended ( ) const

inline

Definition at line 151 of file opentelemetry_adapter.h.

                          {
        return end_time != std::chrono::system_clock::time_point{};
    }

References end_time.

Referenced by duration(), and TEST_F().

Here is the caller graph for this function:

Member Data Documentation

attributes

std::vector<otel_attribute> kcenon::monitoring::otel_span_data::attributes

Definition at line 139 of file opentelemetry_adapter.h.

Referenced by add_attribute(), and TEST_F().

context

otel_span_context kcenon::monitoring::otel_span_data::context

Definition at line 131 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span().

end_time

std::chrono::system_clock::time_point kcenon::monitoring::otel_span_data::end_time

Definition at line 138 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), duration(), is_ended(), and TEST_F().

events

std::vector<std::string> kcenon::monitoring::otel_span_data::events

Definition at line 140 of file opentelemetry_adapter.h.

Referenced by add_event(), and TEST_F().

kind

otel_span_kind kcenon::monitoring::otel_span_data::kind {otel_span_kind::internal}

Definition at line 134 of file opentelemetry_adapter.h.

{otel_span_kind::internal};

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), and TEST_F().

name

std::string kcenon::monitoring::otel_span_data::name

Definition at line 133 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), and TEST_F().

parent_context

otel_span_context kcenon::monitoring::otel_span_data::parent_context

Definition at line 132 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span().

resource

otel_resource kcenon::monitoring::otel_span_data::resource

Definition at line 141 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span().

start_time

std::chrono::system_clock::time_point kcenon::monitoring::otel_span_data::start_time

Definition at line 137 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), duration(), and TEST_F().

status_code

otel_status_code kcenon::monitoring::otel_span_data::status_code {otel_status_code::unset}

Definition at line 135 of file opentelemetry_adapter.h.

{otel_status_code::unset};

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span(), and TEST_F().

status_message

std::string kcenon::monitoring::otel_span_data::status_message

Definition at line 136 of file opentelemetry_adapter.h.

Referenced by kcenon::monitoring::opentelemetry_tracer_adapter::convert_span().

---

The documentation for this struct was generated from the following file:

• include/kcenon/monitoring/exporters/opentelemetry_adapter.h
