kcenon::monitoring::collector_registry Class Reference

Thread-safe registry for managing collector plugins. More...

#include <collector_registry.h>

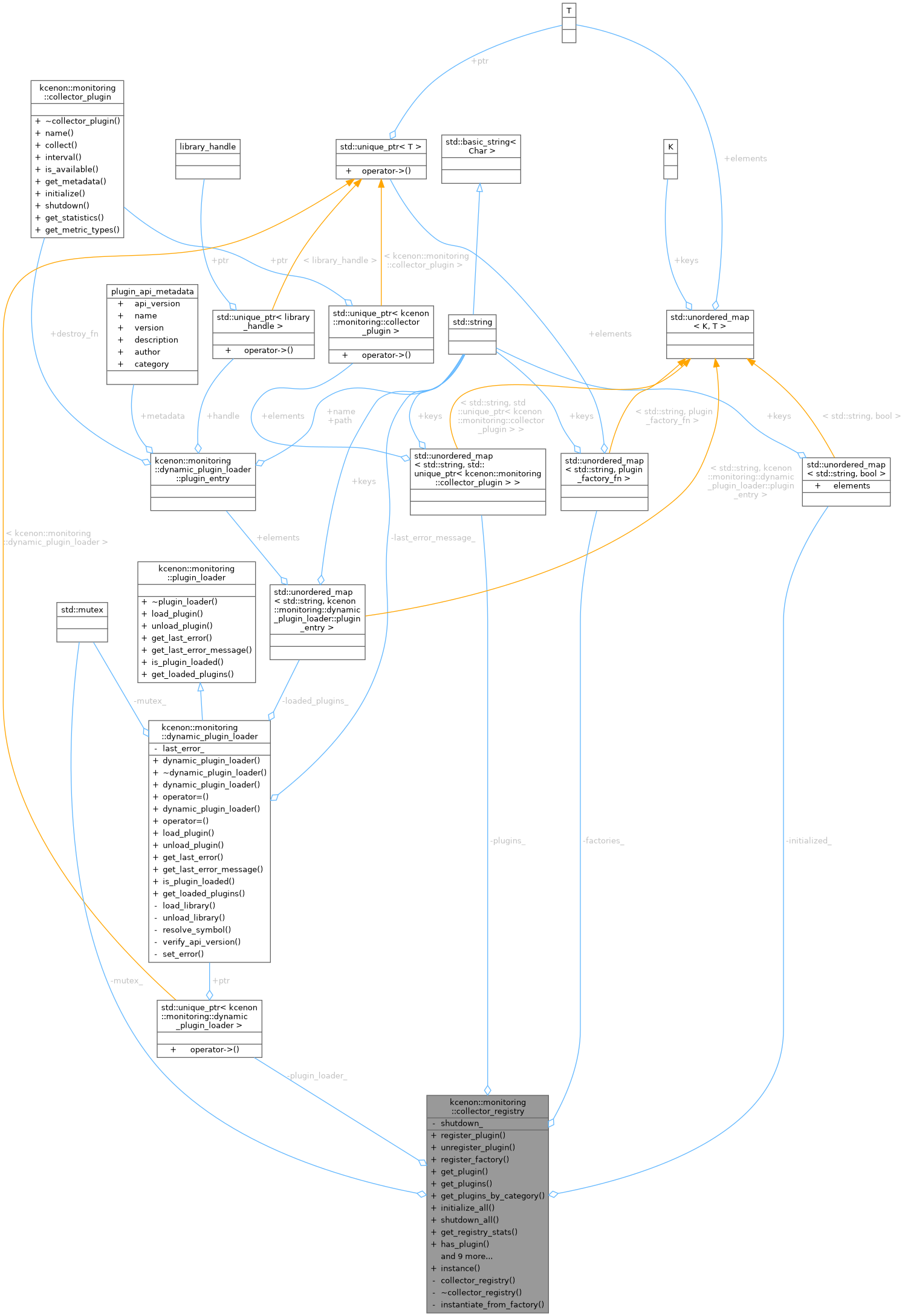

Collaboration diagram for kcenon::monitoring::collector_registry:

Public Member Functions
auto	register_plugin (std::unique_ptr< collector_plugin > plugin) -> bool
	Register a plugin instance.
auto	unregister_plugin (std::string_view name) -> bool
	Unregister a plugin by name.
template<typename T >
void	register_factory (std::string_view name)
	Register a factory function for lazy instantiation.
auto	get_plugin (std::string_view name) -> collector_plugin *
	Get a plugin by name.
auto	get_plugins () -> std::vector< collector_plugin * >
	Get all registered plugins.
auto	get_plugins_by_category (plugin_category category) -> std::vector< collector_plugin * >
	Get plugins in a specific category.
auto	initialize_all (const config_map &config={}) -> size_t
	Initialize all registered plugins.
void	shutdown_all ()
	Shutdown all registered plugins.
auto	get_registry_stats () const -> std::map< std::string, size_t >
	Get registry statistics.
auto	has_plugin (std::string_view name) const -> bool
	Check if a plugin is registered.
auto	plugin_count () const -> size_t
	Get the number of registered plugins.
auto	load_plugin (std::string_view path) -> bool
	Load a plugin from a shared library.
auto	unload_plugin (std::string_view name) -> bool
	Unload a dynamically loaded plugin.
auto	get_plugin_loader_error () const -> std::string
	Get the last error from plugin loader.
void	clear ()
	Clear all plugins (for testing)
	collector_registry (const collector_registry &)=delete
collector_registry &	operator= (const collector_registry &)=delete
	collector_registry (collector_registry &&)=delete
collector_registry &	operator= (collector_registry &&)=delete

Static Public Member Functions
static auto	instance () -> collector_registry &
	Get the singleton instance.

Private Member Functions
	collector_registry ()=default
	~collector_registry ()
auto	instantiate_from_factory (const std::string &name) -> bool
	Instantiate a plugin from factory if needed.

Private Attributes
std::unordered_map< std::string, std::unique_ptr< collector_plugin > >	plugins_
std::unordered_map< std::string, plugin_factory_fn >	factories_
std::unordered_map< std::string, bool >	initialized_
std::mutex	mutex_
bool	shutdown_ {false}
std::unique_ptr< dynamic_plugin_loader >	plugin_loader_

Detailed Description

Thread-safe registry for managing collector plugins.

This class manages the lifecycle of all collector plugins in the system. It supports both eager registration (with plugin instances) and lazy registration (with factory functions).

Thread Safety:

• All public methods are thread-safe
• Uses internal mutex for synchronization
• Safe to call from multiple threads concurrently

Lifecycle:

1. Construction (via instance())
2. Plugin registration (register_plugin, register_factory)
3. Initialization (initialize_all)
4. Collection (periodic calls to each plugin's collect())
5. Shutdown (shutdown_all)
6. Destruction (automatic on program exit)

Definition at line 82 of file collector_registry.h.

Constructor & Destructor Documentation

collector_registry() [1/3]

kcenon::monitoring::collector_registry::collector_registry ( const collector_registry & )

delete

collector_registry() [2/3]

kcenon::monitoring::collector_registry::collector_registry ( collector_registry && )

delete

collector_registry() [3/3]

kcenon::monitoring::collector_registry::collector_registry ( )

privatedefault

~collector_registry()

kcenon::monitoring::collector_registry::~collector_registry ( )

private

Member Function Documentation

clear()

void kcenon::monitoring::collector_registry::clear

(

)

Clear all plugins (for testing)

Calls shutdown_all() and removes all plugins. Use with caution in production code.

get_plugin()

auto kcenon::monitoring::collector_registry::get_plugin

(

std::string_view

name

)

-> collector_plugin *

Get a plugin by name.

Parameters

name	Plugin name

Returns

Pointer to plugin, or nullptr if not found

If the plugin was registered via factory and not yet instantiated, this will trigger instantiation.

get_plugin_loader_error()

auto kcenon::monitoring::collector_registry::get_plugin_loader_error

(

)

const -> std::string

Get the last error from plugin loader.

Returns

Error message string (empty if no error)

get_plugins()

auto kcenon::monitoring::collector_registry::get_plugins

(

)

-> std::vector< collector_plugin * >

Get all registered plugins.

Returns

Vector of plugin pointers

Triggers instantiation of any factory-registered plugins.

get_plugins_by_category()

auto kcenon::monitoring::collector_registry::get_plugins_by_category

(

plugin_category

category

)

-> std::vector< collector_plugin * >

Get plugins in a specific category.

Parameters

category

Plugin category filter

Returns

Vector of matching plugin pointers

Triggers instantiation of any factory-registered plugins.

get_registry_stats()

auto kcenon::monitoring::collector_registry::get_registry_stats

(

)

const -> std::map< std::string, size_t >

Get registry statistics.

Returns

Map of statistic name to value

Available statistics:

• "total_plugins": Total number of registered plugins
• "initialized_plugins": Number of initialized plugins
• "available_plugins": Number of available plugins
• "category_<name>_count": Count per category

has_plugin()

auto kcenon::monitoring::collector_registry::has_plugin

(

std::string_view

name

)

const -> bool

Check if a plugin is registered.

Parameters

name	Plugin name

Returns

True if plugin exists (either instantiated or factory-registered)

initialize_all()

auto kcenon::monitoring::collector_registry::initialize_all

(

const config_map &

config = {}

)

-> size_t

Initialize all registered plugins.

Parameters

config

Configuration map (optional)

Returns

Number of successfully initialized plugins

Calls initialize() on each plugin. Plugins that fail initialization remain registered but may fail collection.

instance()

static auto kcenon::monitoring::collector_registry::instance ( ) -> collector_registry &

static

Get the singleton instance.

Returns

Reference to the global registry instance

Referenced by main(), kcenon::monitoring::register_builtin_collectors(), CollectorRegistryIntegrationTest::SetUp(), CollectorRegistryIntegrationTest::TearDown(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

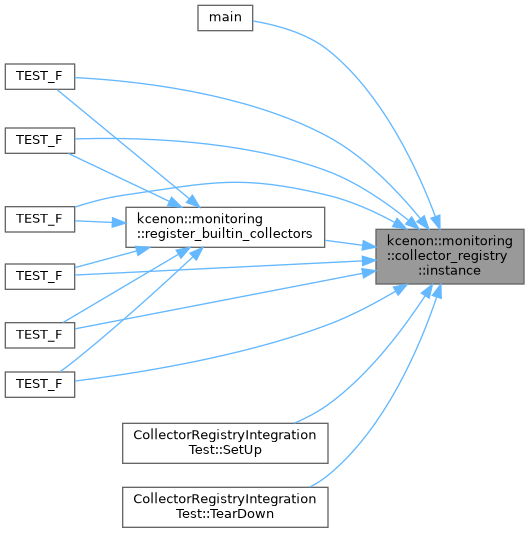

Here is the caller graph for this function:

instantiate_from_factory()

auto kcenon::monitoring::collector_registry::instantiate_from_factory ( const std::string & name ) -> bool

private

Instantiate a plugin from factory if needed.

Parameters

name	Plugin name

Returns

True if plugin was instantiated or already exists

load_plugin()

auto kcenon::monitoring::collector_registry::load_plugin

(

std::string_view

path

)

-> bool

Load a plugin from a shared library.

Parameters

path	Path to the shared library (.so/.dylib/.dll)

Returns

True if plugin loaded and registered successfully

This method:

1. Loads the shared library using dynamic_plugin_loader
2. Creates the plugin instance
3. Registers it in the registry

If loading fails, check the loader's error message via get_plugin_loader_error().

operator=() [1/2]

collector_registry & kcenon::monitoring::collector_registry::operator= ( collector_registry && )

delete

operator=() [2/2]

collector_registry & kcenon::monitoring::collector_registry::operator= ( const collector_registry & )

delete

plugin_count()

auto kcenon::monitoring::collector_registry::plugin_count

(

)

const -> size_t

Get the number of registered plugins.

Returns

Count of plugins (both instantiated and factory-registered)

register_factory()

template<typename T >

void kcenon::monitoring::collector_registry::register_factory ( std::string_view name )

inline

Register a factory function for lazy instantiation.

Template Parameters

T	Plugin type (must derive from collector_plugin)

Parameters

name	Plugin name (used for lookup)

The factory function will be called when the plugin is first accessed. This allows deferring plugin construction until needed.

Definition at line 119 of file collector_registry.h.

                                               {
        static_assert(std::is_base_of_v<collector_plugin, T>,
                      "T must derive from collector_plugin");

        std::lock_guard<std::mutex> lock(mutex_);
        factories_[std::string(name)] = []() -> std::unique_ptr<collector_plugin> {
            return std::make_unique<T>();
        };
    }

References factories_, and mutex_.

register_plugin()

auto kcenon::monitoring::collector_registry::register_plugin

(

std::unique_ptr< collector_plugin >

plugin

)

-> bool

Register a plugin instance.

Parameters

plugin

Unique pointer to the plugin

Returns

True if registration succeeded, false if plugin already exists

The registry takes ownership of the plugin. If a plugin with the same name already exists, registration fails. Unavailable plugins (is_available() returns false) are not registered.

shutdown_all()

void kcenon::monitoring::collector_registry::shutdown_all

(

)

Shutdown all registered plugins.

Calls shutdown() on each plugin in reverse registration order. Safe to call multiple times.

unload_plugin()

auto kcenon::monitoring::collector_registry::unload_plugin

(

std::string_view

name

)

-> bool

Unload a dynamically loaded plugin.

Parameters

name	Plugin name

Returns

True if plugin was unloaded successfully

This method:

1. Unregisters the plugin from registry
2. Destroys the plugin instance
3. Unloads the shared library

Only plugins loaded via load_plugin() can be unloaded this way.

unregister_plugin()

auto kcenon::monitoring::collector_registry::unregister_plugin

(

std::string_view

name

)

-> bool

Unregister a plugin by name.

Parameters

name	Plugin name

Returns

True if plugin was found and removed

Calls shutdown() on the plugin before removal.

Member Data Documentation

factories_

std::unordered_map<std::string, plugin_factory_fn> kcenon::monitoring::collector_registry::factories_

private

Definition at line 263 of file collector_registry.h.

Referenced by register_factory().

initialized_

std::unordered_map<std::string, bool> kcenon::monitoring::collector_registry::initialized_

private

Definition at line 266 of file collector_registry.h.

mutex_

std::mutex kcenon::monitoring::collector_registry::mutex_

mutableprivate

Definition at line 269 of file collector_registry.h.

Referenced by register_factory().

plugin_loader_

std::unique_ptr<dynamic_plugin_loader> kcenon::monitoring::collector_registry::plugin_loader_

private

Definition at line 275 of file collector_registry.h.

plugins_

std::unordered_map<std::string, std::unique_ptr<collector_plugin> > kcenon::monitoring::collector_registry::plugins_

private

Definition at line 260 of file collector_registry.h.

shutdown_

bool kcenon::monitoring::collector_registry::shutdown_ {false}

private

Definition at line 272 of file collector_registry.h.

{false};

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/plugins/collector_registry.h
