kcenon::monitoring::dynamic_plugin_loader Class Reference

Concrete implementation of plugin_loader using OS dynamic loading APIs. More...

#include <plugin_loader.h>

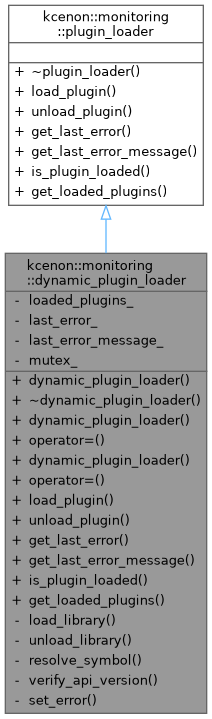

Inheritance diagram for kcenon::monitoring::dynamic_plugin_loader:

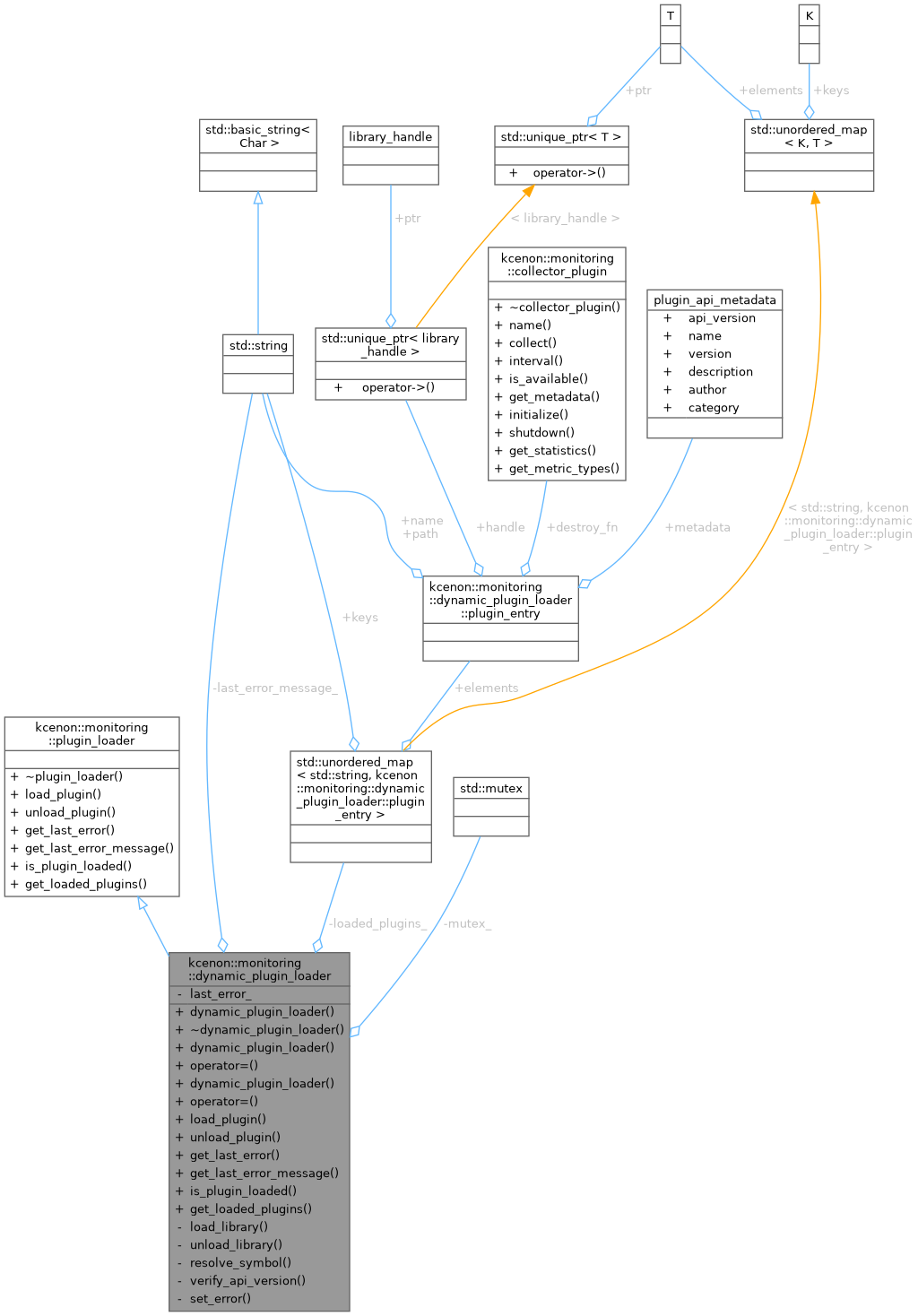

Collaboration diagram for kcenon::monitoring::dynamic_plugin_loader:

Classes
struct	plugin_entry
	Information about a loaded plugin. More...

Public Member Functions
	dynamic_plugin_loader ()
	~dynamic_plugin_loader () override
	dynamic_plugin_loader (const dynamic_plugin_loader &)=delete
dynamic_plugin_loader &	operator= (const dynamic_plugin_loader &)=delete
	dynamic_plugin_loader (dynamic_plugin_loader &&) noexcept
dynamic_plugin_loader &	operator= (dynamic_plugin_loader &&) noexcept
auto	load_plugin (std::string_view path) -> std::unique_ptr< collector_plugin > override
	Load a plugin from a shared library.
auto	unload_plugin (std::string_view plugin_name) -> bool override
	Unload a previously loaded plugin.
auto	get_last_error () const -> plugin_load_error override
	Get the last error that occurred.
auto	get_last_error_message () const -> std::string override
	Get detailed error message for the last error.
auto	is_plugin_loaded (std::string_view plugin_name) const -> bool override
	Check if a plugin is currently loaded.
auto	get_loaded_plugins () const -> std::vector< std::string > override
	Get list of loaded plugin names.
Public Member Functions inherited from kcenon::monitoring::plugin_loader
virtual	~plugin_loader ()=default

Private Member Functions
auto	load_library (std::string_view path) -> std::unique_ptr< library_handle >
	Load a library file.
void	unload_library (std::unique_ptr< library_handle > handle)
	Unload a library.
template<typename T >
auto	resolve_symbol (library_handle *handle, const char *symbol_name) -> T
	Resolve a symbol from a library.
auto	verify_api_version (const plugin_api_metadata &metadata) const -> bool
	Verify plugin API version compatibility.
void	set_error (plugin_load_error error, std::string message)
	Set error state.

Private Attributes
std::unordered_map< std::string, plugin_entry >	loaded_plugins_
plugin_load_error	last_error_ {plugin_load_error::none}
std::string	last_error_message_
std::mutex	mutex_

Detailed Description

Concrete implementation of plugin_loader using OS dynamic loading APIs.

This class uses platform-specific APIs:

• Linux/macOS: dlopen, dlsym, dlclose
• Windows: LoadLibrary, GetProcAddress, FreeLibrary

Thread Safety:

• All operations are thread-safe
• Uses internal mutex for synchronization

Definition at line 150 of file plugin_loader.h.

Constructor & Destructor Documentation

dynamic_plugin_loader() [1/3]

kcenon::monitoring::dynamic_plugin_loader::dynamic_plugin_loader

(

)

~dynamic_plugin_loader()

kcenon::monitoring::dynamic_plugin_loader::~dynamic_plugin_loader ( )

override

dynamic_plugin_loader() [2/3]

kcenon::monitoring::dynamic_plugin_loader::dynamic_plugin_loader ( const dynamic_plugin_loader & )

delete

dynamic_plugin_loader() [3/3]

kcenon::monitoring::dynamic_plugin_loader::dynamic_plugin_loader ( dynamic_plugin_loader && )

noexcept

Member Function Documentation

get_last_error()

auto kcenon::monitoring::dynamic_plugin_loader::get_last_error ( ) const -> plugin_load_error

overridevirtual

Get the last error that occurred.

Returns

Error code

Implements kcenon::monitoring::plugin_loader.

get_last_error_message()

auto kcenon::monitoring::dynamic_plugin_loader::get_last_error_message ( ) const -> std::string

overridevirtual

Get detailed error message for the last error.

Returns

Error message string

Implements kcenon::monitoring::plugin_loader.

get_loaded_plugins()

auto kcenon::monitoring::dynamic_plugin_loader::get_loaded_plugins ( ) const -> std::vector< std::string >

overridevirtual

Get list of loaded plugin names.

Returns

Vector of plugin names

Implements kcenon::monitoring::plugin_loader.

is_plugin_loaded()

auto kcenon::monitoring::dynamic_plugin_loader::is_plugin_loaded ( std::string_view plugin_name ) const -> bool

overridevirtual

Check if a plugin is currently loaded.

Parameters

plugin_name

Name of the plugin

Returns

True if the plugin is loaded

Implements kcenon::monitoring::plugin_loader.

load_library()

auto kcenon::monitoring::dynamic_plugin_loader::load_library ( std::string_view path ) -> std::unique_ptr< library_handle >

private

Load a library file.

Parameters

path	Library file path

Returns

Library handle or nullptr

load_plugin()

auto kcenon::monitoring::dynamic_plugin_loader::load_plugin ( std::string_view path ) -> std::unique_ptr< collector_plugin >

overridevirtual

Load a plugin from a shared library.

Parameters

path	Path to the plugin library (.so/.dylib/.dll)

Returns

Unique pointer to the loaded plugin, or nullptr on failure

The loader will:

1. Load the shared library
2. Resolve required symbols (create_plugin, etc.)
3. Verify API version compatibility
4. Create the plugin instance
5. Track the plugin for cleanup

On failure, check get_last_error() for details.

Implements kcenon::monitoring::plugin_loader.

operator=() [1/2]

dynamic_plugin_loader & kcenon::monitoring::dynamic_plugin_loader::operator= ( const dynamic_plugin_loader & )

delete

operator=() [2/2]

dynamic_plugin_loader & kcenon::monitoring::dynamic_plugin_loader::operator= ( dynamic_plugin_loader && )

noexcept

resolve_symbol()

template<typename T >

auto kcenon::monitoring::dynamic_plugin_loader::resolve_symbol ( library_handle * handle, const char * symbol_name ) -> T

private

Resolve a symbol from a library.

Template Parameters

T	Function pointer type

Parameters

handle	Library handle
symbol_name	Symbol name to resolve

Returns

Function pointer or nullptr

set_error()

void kcenon::monitoring::dynamic_plugin_loader::set_error ( plugin_load_error error, std::string message )

private

Set error state.

Parameters

error	Error code
message	Detailed error message

unload_library()

void kcenon::monitoring::dynamic_plugin_loader::unload_library ( std::unique_ptr< library_handle > handle )

private

Unload a library.

Parameters

handle

Library handle to unload

unload_plugin()

auto kcenon::monitoring::dynamic_plugin_loader::unload_plugin ( std::string_view plugin_name ) -> bool

overridevirtual

Unload a previously loaded plugin.

Parameters

plugin_name

Name of the plugin to unload

Returns

True if unloaded successfully

This will:

1. Destroy the plugin instance
2. Unload the shared library
3. Clean up tracking data

The plugin instance must have been destroyed before calling this.

Implements kcenon::monitoring::plugin_loader.

verify_api_version()

auto kcenon::monitoring::dynamic_plugin_loader::verify_api_version ( const plugin_api_metadata & metadata ) const -> bool

private

Verify plugin API version compatibility.

Parameters

metadata

Plugin API metadata

Returns

True if compatible

Member Data Documentation

last_error_

plugin_load_error kcenon::monitoring::dynamic_plugin_loader::last_error_ {plugin_load_error::none}

private

Definition at line 237 of file plugin_loader.h.

{plugin_load_error::none};

last_error_message_

std::string kcenon::monitoring::dynamic_plugin_loader::last_error_message_

private

Definition at line 238 of file plugin_loader.h.

loaded_plugins_

std::unordered_map<std::string, plugin_entry> kcenon::monitoring::dynamic_plugin_loader::loaded_plugins_

private

Definition at line 234 of file plugin_loader.h.

mutex_

std::mutex kcenon::monitoring::dynamic_plugin_loader::mutex_

mutableprivate

Definition at line 241 of file plugin_loader.h.

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/plugins/plugin_loader.h
