kcenon::thread::diagnostics::thread_info Struct Reference

Information about a worker thread in the pool. More...

#include <thread_info.h>

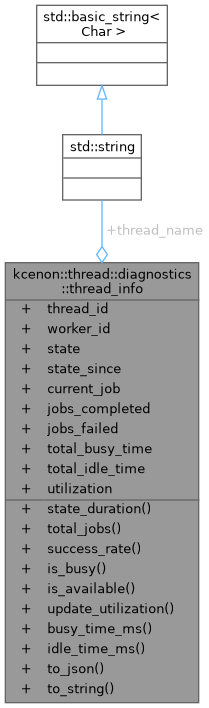

Collaboration diagram for kcenon::thread::diagnostics::thread_info:

Public Member Functions
auto	state_duration () const -> std::chrono::nanoseconds
	Calculates the duration in the current state.
auto	total_jobs () const -> std::uint64_t
	Gets the total number of jobs processed (completed + failed).
auto	success_rate () const -> double
	Calculates the success rate.
auto	is_busy () const -> bool
	Checks if the worker is currently processing a job.
auto	is_available () const -> bool
	Checks if the worker is available to process jobs.
auto	update_utilization () -> void
	Recalculates utilization based on busy and idle times.
auto	busy_time_ms () const -> double
	Converts busy time to milliseconds.
auto	idle_time_ms () const -> double
	Converts idle time to milliseconds.
auto	to_json () const -> std::string
	Converts the thread info to a JSON string.
auto	to_string () const -> std::string
	Converts the thread info to a human-readable string.

Public Attributes
std::thread::id	thread_id
	System thread ID.
std::string	thread_name
	Human-readable name for this thread.
std::size_t	worker_id {0}
	Worker ID within the pool.
worker_state	state {worker_state::idle}
	Current operational state of the worker.
std::chrono::steady_clock::time_point	state_since
	Time when the worker entered its current state.
std::optional< job_info >	current_job
	Information about the currently executing job.
std::uint64_t	jobs_completed {0}
	Total number of jobs successfully completed by this worker.
std::uint64_t	jobs_failed {0}
	Total number of jobs that failed during execution.
std::chrono::nanoseconds	total_busy_time {0}
	Total time spent executing jobs (busy time).
std::chrono::nanoseconds	total_idle_time {0}
	Total time spent waiting for jobs (idle time).
double	utilization {0.0}
	Worker utilization ratio.

Detailed Description

Information about a worker thread in the pool.

Contains comprehensive information about a worker thread including its identity, current state, statistics, and optionally the job it is currently processing.

Example Output

Worker-0 [tid:12345] ACTIVE (2.5s)
  Current Job: ProcessOrder#1234 (running 150ms)
  Jobs: 1523 completed, 2 failed
  Utilization: 87.3%

Usage Example

auto threads = diagnostics.dump_thread_states();
for (const auto& t : threads) {
    LOG_INFO("Worker {} ({}): {} jobs done, {:.1f}% utilization",
             t.thread_name, worker_state_to_string(t.state),
             t.jobs_completed, t.utilization * 100.0);
}

Definition at line 87 of file thread_info.h.

Member Function Documentation

busy_time_ms()

auto kcenon::thread::diagnostics::thread_info::busy_time_ms ( ) const -> double

inlinenodiscard

Converts busy time to milliseconds.

Returns

Busy time in milliseconds.

Definition at line 239 of file thread_info.h.

        {
            return std::chrono::duration<double, std::milli>(total_busy_time).count();
        }

References total_busy_time.

Referenced by to_json().

Here is the caller graph for this function:

idle_time_ms()

auto kcenon::thread::diagnostics::thread_info::idle_time_ms ( ) const -> double

inlinenodiscard

Converts idle time to milliseconds.

Returns

Idle time in milliseconds.

Definition at line 248 of file thread_info.h.

        {
            return std::chrono::duration<double, std::milli>(total_idle_time).count();
        }

References total_idle_time.

Referenced by to_json().

Here is the caller graph for this function:

is_available()

auto kcenon::thread::diagnostics::thread_info::is_available ( ) const -> bool

inlinenodiscard

Checks if the worker is available to process jobs.

Returns

true if state == idle.

Definition at line 210 of file thread_info.h.

        {
            return state == worker_state::idle;
        }

References kcenon::thread::diagnostics::idle, and state.

is_busy()

auto kcenon::thread::diagnostics::thread_info::is_busy ( ) const -> bool

inlinenodiscard

Checks if the worker is currently processing a job.

Returns

true if state == active.

Definition at line 201 of file thread_info.h.

        {
            return state == worker_state::active;
        }

References kcenon::thread::diagnostics::active, and state.

state_duration()

auto kcenon::thread::diagnostics::thread_info::state_duration ( ) const -> std::chrono::nanoseconds

inlinenodiscard

Calculates the duration in the current state.

Returns

Time since entering the current state.

Definition at line 169 of file thread_info.h.

        {
            return std::chrono::steady_clock::now() - state_since;
        }

References state_since.

Referenced by to_json(), and to_string().

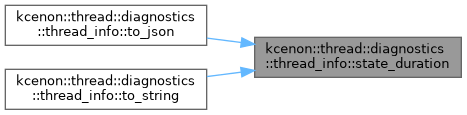

Here is the caller graph for this function:

success_rate()

auto kcenon::thread::diagnostics::thread_info::success_rate ( ) const -> double

inlinenodiscard

Calculates the success rate.

Returns

Success ratio (0.0 to 1.0), or 1.0 if no jobs processed.

Definition at line 187 of file thread_info.h.

        {
            auto total = total_jobs();
            if (total == 0)
            {
                return 1.0;
            }
            return static_cast<double>(jobs_completed) / static_cast<double>(total);
        }

References jobs_completed, and total_jobs().

Referenced by to_json(), and to_string().

Here is the call graph for this function:

Here is the caller graph for this function:

to_json()

auto kcenon::thread::diagnostics::thread_info::to_json ( ) const -> std::string

inlinenodiscard

Converts the thread info to a JSON string.

Returns

JSON representation of the thread info.

Output format:

{
  "worker_id": 0,
  "thread_name": "Worker-0",
  "thread_id": "12345",
  "state": "ACTIVE",
  "state_duration_ms": 2500.0,
  "jobs_completed": 1523,
  "jobs_failed": 2,
  "success_rate": 0.9987,
  "utilization": 0.873,
  "busy_time_ms": 87300.0,
  "idle_time_ms": 12700.0,
  "current_job": null
}

Definition at line 275 of file thread_info.h.

        {
            std::ostringstream oss;
            oss << "{\n";
            oss << "  \"worker_id\": " << worker_id << ",\n";
            oss << "  \"thread_name\": \"" << thread_name << "\",\n";

            // Format thread_id as string
            std::ostringstream tid_oss;
            tid_oss << thread_id;
            oss << "  \"thread_id\": \"" << tid_oss.str() << "\",\n";

            oss << "  \"state\": \"" << worker_state_to_string(state) << "\",\n";
            oss << std::fixed << std::setprecision(3);
            oss << "  \"state_duration_ms\": "
                << std::chrono::duration<double, std::milli>(state_duration()).count() << ",\n";
            oss << "  \"jobs_completed\": " << jobs_completed << ",\n";
            oss << "  \"jobs_failed\": " << jobs_failed << ",\n";
            oss << std::setprecision(4);
            oss << "  \"success_rate\": " << success_rate() << ",\n";
            oss << "  \"utilization\": " << utilization << ",\n";
            oss << std::setprecision(3);
            oss << "  \"busy_time_ms\": " << busy_time_ms() << ",\n";
            oss << "  \"idle_time_ms\": " << idle_time_ms();

            if (current_job.has_value())
            {
                oss << ",\n  \"current_job\": " << current_job.value().to_json();
            }
            else
            {
                oss << ",\n  \"current_job\": null";
            }

            oss << "\n}";
            return oss.str();
        }

References busy_time_ms(), current_job, idle_time_ms(), jobs_completed, jobs_failed, state, state_duration(), success_rate(), thread_id, thread_name, utilization, worker_id, and kcenon::thread::diagnostics::worker_state_to_string().

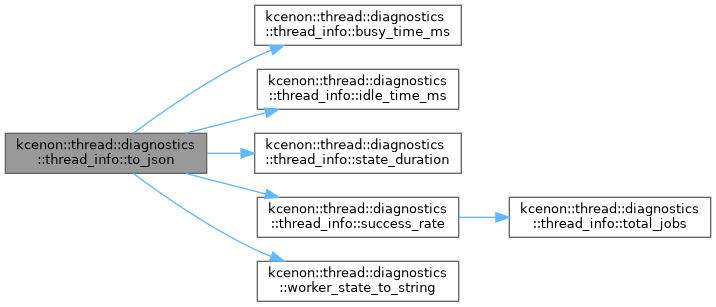

Here is the call graph for this function:

to_string()

auto kcenon::thread::diagnostics::thread_info::to_string ( ) const -> std::string

inlinenodiscard

Converts the thread info to a human-readable string.

Returns

String representation of the thread info.

Output format:

Worker-0 [tid:12345] ACTIVE (2.5s)
  Current Job: ProcessOrder#1234 (running 150ms)
  Jobs: 1523 completed, 2 failed (99.9% success)
  Utilization: 87.3%

Definition at line 325 of file thread_info.h.

        {
            std::ostringstream oss;

            auto duration_sec = std::chrono::duration<double>(state_duration()).count();

            // First line: name, thread id, state, duration
            oss << thread_name << " [tid:" << thread_id << "] "
                << worker_state_to_string(state)
                << " (" << std::fixed << std::setprecision(1) << duration_sec << "s)\n";

            // Current job if present
            if (current_job.has_value())
            {
                const auto& job = current_job.value();
                auto exec_time_ms_val = std::chrono::duration<double, std::milli>(
                    job.execution_time).count();
                oss << "  Current Job: " << job.job_name << "#" << job.job_id
                    << " (running " << std::setprecision(0) << exec_time_ms_val << "ms)\n";
            }

            // Job statistics
            oss << "  Jobs: " << jobs_completed << " completed, "
                << jobs_failed << " failed ("
                << std::setprecision(1) << (success_rate() * 100.0) << "% success)\n";

            // Utilization
            oss << "  Utilization: " << std::setprecision(1)
                << (utilization * 100.0) << "%";

            return oss.str();
        }

References current_job, jobs_completed, jobs_failed, state, state_duration(), success_rate(), thread_id, thread_name, utilization, and kcenon::thread::diagnostics::worker_state_to_string().

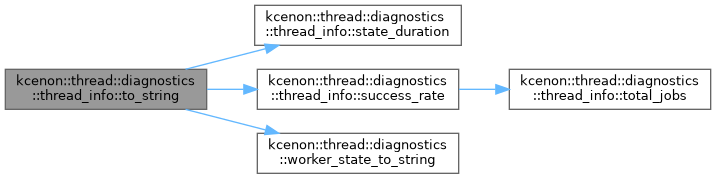

Here is the call graph for this function:

total_jobs()

auto kcenon::thread::diagnostics::thread_info::total_jobs ( ) const -> std::uint64_t

inlinenodiscard

Gets the total number of jobs processed (completed + failed).

Returns

Total job count.

Definition at line 178 of file thread_info.h.

        {
            return jobs_completed + jobs_failed;
        }

References jobs_completed, and jobs_failed.

Referenced by success_rate().

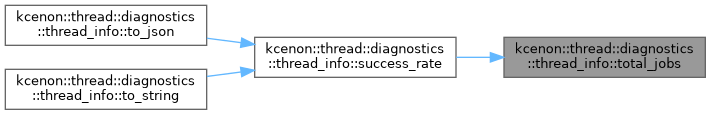

Here is the caller graph for this function:

update_utilization()

auto kcenon::thread::diagnostics::thread_info::update_utilization ( ) -> void

inline

Recalculates utilization based on busy and idle times.

Updates the utilization field based on current total_busy_time and total_idle_time values.

Definition at line 221 of file thread_info.h.

        {
            auto total_time = total_busy_time + total_idle_time;
            if (total_time.count() == 0)
            {
                utilization = 0.0;
            }
            else
            {
                utilization = static_cast<double>(total_busy_time.count()) /
                              static_cast<double>(total_time.count());
            }
        }

References total_busy_time, total_idle_time, and utilization.

Member Data Documentation

current_job

std::optional<job_info> kcenon::thread::diagnostics::thread_info::current_job

Information about the currently executing job.

Only has a value if state == active.

Definition at line 127 of file thread_info.h.

Referenced by to_json(), and to_string().

jobs_completed

std::uint64_t kcenon::thread::diagnostics::thread_info::jobs_completed {0}

Total number of jobs successfully completed by this worker.

Definition at line 136 of file thread_info.h.

{0};

Referenced by success_rate(), to_json(), to_string(), and total_jobs().

jobs_failed

std::uint64_t kcenon::thread::diagnostics::thread_info::jobs_failed {0}

Total number of jobs that failed during execution.

Definition at line 141 of file thread_info.h.

{0};

Referenced by to_json(), to_string(), and total_jobs().

state

worker_state kcenon::thread::diagnostics::thread_info::state {worker_state::idle}

Current operational state of the worker.

Definition at line 113 of file thread_info.h.

{worker_state::idle};

Referenced by is_available(), is_busy(), to_json(), and to_string().

state_since

std::chrono::steady_clock::time_point kcenon::thread::diagnostics::thread_info::state_since

Time when the worker entered its current state.

Used to calculate how long the worker has been in its current state.

Definition at line 120 of file thread_info.h.

Referenced by state_duration().

thread_id

std::thread::id kcenon::thread::diagnostics::thread_info::thread_id

System thread ID.

The native thread identifier from the operating system.

Definition at line 94 of file thread_info.h.

Referenced by to_json(), and to_string().

thread_name

std::string kcenon::thread::diagnostics::thread_info::thread_name

Human-readable name for this thread.

Typically in the format "Worker-N" where N is the worker index.

Definition at line 101 of file thread_info.h.

Referenced by to_json(), and to_string().

total_busy_time

std::chrono::nanoseconds kcenon::thread::diagnostics::thread_info::total_busy_time {0}

Total time spent executing jobs (busy time).

Definition at line 146 of file thread_info.h.

{0};

Referenced by busy_time_ms(), and update_utilization().

total_idle_time

std::chrono::nanoseconds kcenon::thread::diagnostics::thread_info::total_idle_time {0}

Total time spent waiting for jobs (idle time).

Definition at line 151 of file thread_info.h.

{0};

Referenced by idle_time_ms(), and update_utilization().

utilization

double kcenon::thread::diagnostics::thread_info::utilization {0.0}

Worker utilization ratio.

Calculated as: total_busy_time / (total_busy_time + total_idle_time). Value ranges from 0.0 (never busy) to 1.0 (always busy).

Definition at line 159 of file thread_info.h.

{0.0};

Referenced by to_json(), to_string(), and update_utilization().

worker_id

std::size_t kcenon::thread::diagnostics::thread_info::worker_id {0}

Worker ID within the pool.

Unique identifier for this worker, assigned by the pool.

Definition at line 108 of file thread_info.h.

{0};

Referenced by kcenon::thread::diagnostics::thread_pool_diagnostics::get_worker_info(), and to_json().

---

The documentation for this struct was generated from the following file:

• include/kcenon/thread/diagnostics/thread_info.h
