kcenon::thread::work_affinity_tracker Class Reference

Tracks cooperation patterns between workers for locality-aware stealing. More...

#include <work_affinity_tracker.h>

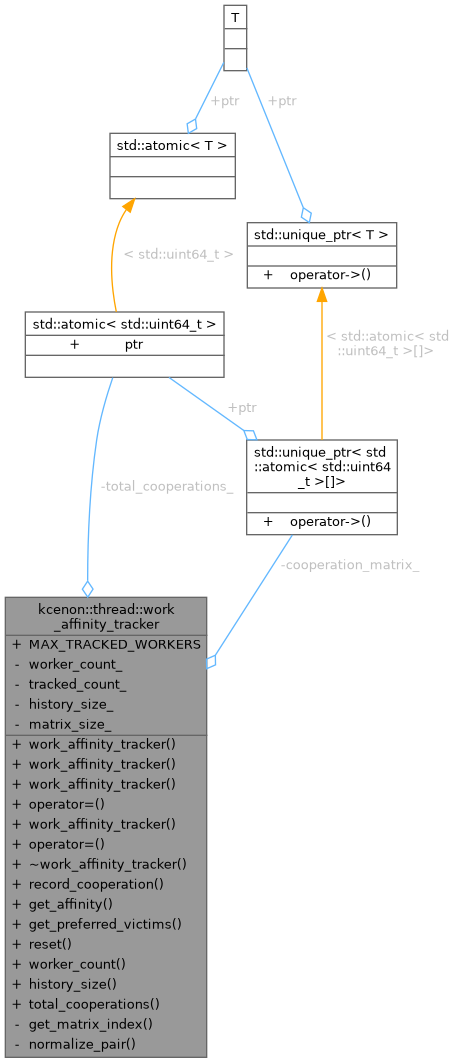

Collaboration diagram for kcenon::thread::work_affinity_tracker:

Public Member Functions
	work_affinity_tracker (std::size_t worker_count, std::size_t history_size=16)
	Construct a work affinity tracker.
	work_affinity_tracker ()=default
	Default constructor - creates an empty tracker.
	work_affinity_tracker (work_affinity_tracker &&other) noexcept
	Move constructor.
auto	operator= (work_affinity_tracker &&other) noexcept -> work_affinity_tracker &
	Move assignment operator.
	work_affinity_tracker (const work_affinity_tracker &)=delete
auto	operator= (const work_affinity_tracker &) -> work_affinity_tracker &=delete
	~work_affinity_tracker ()=default
	Destructor.
void	record_cooperation (std::size_t thief_id, std::size_t victim_id)
	Record a cooperation event between two workers.
auto	get_affinity (std::size_t worker_a, std::size_t worker_b) const -> double
	Get the affinity score between two workers.
auto	get_preferred_victims (std::size_t worker_id, std::size_t max_count) const -> std::vector< std::size_t >
	Get preferred victims for a worker, sorted by affinity.
void	reset ()
	Reset all affinity data.
auto	worker_count () const -> std::size_t
	Get the number of workers being tracked.
auto	history_size () const -> std::size_t
	Get the configured history size.
auto	total_cooperations () const -> std::uint64_t
	Get total cooperation events recorded.

Static Public Attributes
static constexpr std::size_t	MAX_TRACKED_WORKERS = 32
	Maximum number of workers tracked for affinity.

Private Member Functions
auto	get_matrix_index (std::size_t worker_a, std::size_t worker_b) const -> std::size_t
	Get the matrix index for a worker pair.

Static Private Member Functions
static auto	normalize_pair (std::size_t a, std::size_t b) -> std::pair< std::size_t, std::size_t >
	Normalize worker IDs to ensure a < b.

Private Attributes
std::size_t	worker_count_ {0}
std::size_t	tracked_count_ {0}
std::size_t	history_size_ {16}
std::size_t	matrix_size_ {0}
std::unique_ptr< std::atomic< std::uint64_t >[]>	cooperation_matrix_
std::atomic< std::uint64_t >	total_cooperations_ {0}

Detailed Description

Tracks cooperation patterns between workers for locality-aware stealing.

This class maintains a cooperation matrix that records successful work-stealing interactions between worker threads. Workers that frequently exchange work develop higher affinity scores, making them preferred victims for future steals.

Design Rationale

When workers frequently cooperate (steal from each other successfully), they likely share related work that benefits from cache locality. By preferring to steal from high-affinity workers, we improve cache utilization and reduce memory access latency.

Thread Safety

All methods are thread-safe. The cooperation matrix uses atomic operations for lock-free updates and reads.

Memory Model

• record_cooperation(): Uses relaxed ordering (eventual consistency is acceptable)
• get_affinity(): Uses relaxed ordering (snapshot view)
• get_preferred_victims(): Uses acquire ordering for consistent ranking

Usage Example

// Create tracker for 8 workers with history size of 16
work_affinity_tracker tracker(8, 16);

// Record successful steal: worker 2 stole from worker 5
tracker.record_cooperation(2, 5);

// Get preferred victims for worker 2
auto victims = tracker.get_preferred_victims(2, 3);
// Returns up to 3 workers sorted by affinity with worker 2

// Check specific affinity
double affinity = tracker.get_affinity(2, 5);
// Higher values indicate stronger cooperation history

Decay Mechanism

The tracker implements a simple decay mechanism: new interactions are weighted more heavily than older ones. This ensures the affinity scores reflect recent behavior rather than historical patterns that may no longer be relevant.

Definition at line 69 of file work_affinity_tracker.h.

Constructor & Destructor Documentation

work_affinity_tracker() [1/4]

kcenon::thread::work_affinity_tracker::work_affinity_tracker ( std::size_t worker_count, std::size_t history_size = 16 )

explicit

Construct a work affinity tracker.

Parameters

worker_count	Number of workers to track
history_size	Size of history to consider for affinity calculations

Note

If worker_count exceeds MAX_TRACKED_WORKERS, only the first MAX_TRACKED_WORKERS workers are tracked in the cooperation matrix.

The history_size affects memory usage: O(min(worker_count, MAX_TRACKED_WORKERS)^2)

Definition at line 12 of file work_affinity_tracker.cpp.

    : worker_count_(worker_count)
    , tracked_count_(std::min(worker_count, MAX_TRACKED_WORKERS))
    , history_size_(history_size)
    , matrix_size_(0)
    , total_cooperations_(0)
{
    if (tracked_count_ > 1)
    {
        // Size of upper triangular matrix without diagonal
        // For n tracked workers: n*(n-1)/2 pairs
        // Capped at MAX_TRACKED_WORKERS to prevent O(n^2) growth
        matrix_size_ = (tracked_count_ * (tracked_count_ - 1)) / 2;
        cooperation_matrix_ =
            std::make_unique<std::atomic<std::uint64_t>[]>(matrix_size_);

        // Initialize all counters to zero
        for (std::size_t i = 0; i < matrix_size_; ++i)
        {
            cooperation_matrix_[i].store(0, std::memory_order_relaxed);
        }
    }
}

References cooperation_matrix_, matrix_size_, and tracked_count_.

work_affinity_tracker() [2/4]

kcenon::thread::work_affinity_tracker::work_affinity_tracker ( )

default

Default constructor - creates an empty tracker.

work_affinity_tracker() [3/4]

kcenon::thread::work_affinity_tracker::work_affinity_tracker ( work_affinity_tracker && other )

noexcept

Move constructor.

Definition at line 37 of file work_affinity_tracker.cpp.

    : worker_count_(other.worker_count_)
    , tracked_count_(other.tracked_count_)
    , history_size_(other.history_size_)
    , matrix_size_(other.matrix_size_)
    , cooperation_matrix_(std::move(other.cooperation_matrix_))
    , total_cooperations_(other.total_cooperations_.load(std::memory_order_relaxed))
{
    other.worker_count_ = 0;
    other.tracked_count_ = 0;
    other.history_size_ = 0;
    other.matrix_size_ = 0;
    other.total_cooperations_.store(0, std::memory_order_relaxed);
}

work_affinity_tracker() [4/4]

kcenon::thread::work_affinity_tracker::work_affinity_tracker ( const work_affinity_tracker & )

delete

~work_affinity_tracker()

kcenon::thread::work_affinity_tracker::~work_affinity_tracker ( )

default

Destructor.

Member Function Documentation

get_affinity()

auto kcenon::thread::work_affinity_tracker::get_affinity ( std::size_t worker_a, std::size_t worker_b ) const -> double

nodiscard

Get the affinity score between two workers.

Parameters

worker_a	First worker ID
worker_b	Second worker ID

Returns

Affinity score (0.0 = no cooperation, higher = more cooperation)

The affinity is symmetric: get_affinity(a, b) == get_affinity(b, a)

The returned score is normalized based on the history size, making it comparable across different tracker configurations.

Definition at line 92 of file work_affinity_tracker.cpp.

{
    if (worker_a >= tracked_count_ || worker_b >= tracked_count_ ||
        worker_a == worker_b || !cooperation_matrix_)
    {
        return 0.0;
    }

    auto idx = get_matrix_index(worker_a, worker_b);
    if (idx >= matrix_size_)
    {
        return 0.0;
    }

    auto cooperation_count = cooperation_matrix_[idx].load(std::memory_order_relaxed);
    if (cooperation_count == 0)
    {
        return 0.0;
    }

    // Normalize by history size to make scores comparable
    return static_cast<double>(cooperation_count) / static_cast<double>(history_size_);
}

get_matrix_index()

auto kcenon::thread::work_affinity_tracker::get_matrix_index ( std::size_t worker_a, std::size_t worker_b ) const -> std::size_t

nodiscardprivate

Get the matrix index for a worker pair.

Note

Uses upper triangular matrix indexing (worker_a < worker_b)

Definition at line 184 of file work_affinity_tracker.cpp.

{
    auto [i, j] = normalize_pair(worker_a, worker_b);

    // Upper triangular matrix index formula:
    // For pair (i, j) where i < j:
    // index = i * tracked_count - i*(i+1)/2 + j - i - 1
    return (i * tracked_count_) - ((i * (i + 1)) / 2) + j - i - 1;
}

Referenced by record_cooperation().

Here is the caller graph for this function:

get_preferred_victims()

auto kcenon::thread::work_affinity_tracker::get_preferred_victims ( std::size_t worker_id, std::size_t max_count ) const -> std::vector<std::size_t>

nodiscard

Get preferred victims for a worker, sorted by affinity.

Parameters

worker_id	The worker seeking victims
max_count	Maximum number of victims to return

Returns

Vector of worker IDs sorted by descending affinity

Returns workers with the highest affinity scores, excluding the requesting worker itself. Workers with zero affinity may be included if there aren't enough high-affinity workers.

Definition at line 117 of file work_affinity_tracker.cpp.

{
    if (worker_id >= tracked_count_ || max_count == 0)
    {
        return {};
    }

    // Build list of (affinity, worker_id) pairs for tracked workers only
    std::vector<std::pair<double, std::size_t>> affinities;
    affinities.reserve(tracked_count_ - 1);

    for (std::size_t i = 0; i < tracked_count_; ++i)
    {
        if (i != worker_id)
        {
            double affinity = get_affinity(worker_id, i);
            affinities.emplace_back(affinity, i);
        }
    }

    // Sort by descending affinity
    std::sort(affinities.begin(), affinities.end(),
              [](const auto& lhs, const auto& rhs) {
                  return lhs.first > rhs.first;
              });

    // Extract worker IDs up to max_count
    std::vector<std::size_t> result;
    result.reserve(std::min(max_count, affinities.size()));

    for (std::size_t i = 0; i < std::min(max_count, affinities.size()); ++i)
    {
        result.push_back(affinities[i].second);
    }

    return result;
}

history_size()

auto kcenon::thread::work_affinity_tracker::history_size ( ) const -> std::size_t

nodiscard

Get the configured history size.

Returns

History size

Definition at line 174 of file work_affinity_tracker.cpp.

{
    return history_size_;
}

References history_size_.

normalize_pair()

auto kcenon::thread::work_affinity_tracker::normalize_pair ( std::size_t a, std::size_t b ) -> std::pair<std::size_t, std::size_t>

staticprivate

Normalize worker IDs to ensure a < b.

Definition at line 196 of file work_affinity_tracker.cpp.

{
    if (a < b)
    {
        return {a, b};
    }
    return {b, a};
}

operator=() [1/2]

auto kcenon::thread::work_affinity_tracker::operator= ( const work_affinity_tracker & ) -> work_affinity_tracker &=delete

delete

operator=() [2/2]

auto kcenon::thread::work_affinity_tracker::operator= ( work_affinity_tracker && other ) -> work_affinity_tracker&

noexcept

Move assignment operator.

Definition at line 52 of file work_affinity_tracker.cpp.

{
    if (this != &other)
    {
        worker_count_ = other.worker_count_;
        tracked_count_ = other.tracked_count_;
        history_size_ = other.history_size_;
        matrix_size_ = other.matrix_size_;
        cooperation_matrix_ = std::move(other.cooperation_matrix_);
        total_cooperations_.store(
            other.total_cooperations_.load(std::memory_order_relaxed),
            std::memory_order_relaxed);

        other.worker_count_ = 0;
        other.tracked_count_ = 0;
        other.history_size_ = 0;
        other.matrix_size_ = 0;
        other.total_cooperations_.store(0, std::memory_order_relaxed);
    }
    return *this;
}

record_cooperation()

void kcenon::thread::work_affinity_tracker::record_cooperation	(	std::size_t	thief_id,
		std::size_t	victim_id )

Record a cooperation event between two workers.

Parameters

thief_id	Worker that stole work (the one receiving work)
victim_id	Worker that provided work (the one being stolen from)

This method is typically called after a successful steal operation. It updates the cooperation matrix to reflect the interaction.

Note

Thread-safe, can be called concurrently from multiple workers

Definition at line 75 of file work_affinity_tracker.cpp.

{
    if (thief_id >= tracked_count_ || victim_id >= tracked_count_ ||
        thief_id == victim_id || !cooperation_matrix_)
    {
        return;
    }

    auto idx = get_matrix_index(thief_id, victim_id);
    if (idx < matrix_size_)
    {
        cooperation_matrix_[idx].fetch_add(1, std::memory_order_relaxed);
        total_cooperations_.fetch_add(1, std::memory_order_relaxed);
    }
}

References cooperation_matrix_, get_matrix_index(), matrix_size_, total_cooperations_, and tracked_count_.

Here is the call graph for this function:

reset()

void kcenon::thread::work_affinity_tracker::reset

(

)

Reset all affinity data.

Clears all cooperation history, resetting all affinities to zero. Useful when worker roles change significantly.

Definition at line 157 of file work_affinity_tracker.cpp.

{
    if (cooperation_matrix_)
    {
        for (std::size_t i = 0; i < matrix_size_; ++i)
        {
            cooperation_matrix_[i].store(0, std::memory_order_relaxed);
        }
    }
    total_cooperations_.store(0, std::memory_order_relaxed);
}

References cooperation_matrix_, matrix_size_, and total_cooperations_.

total_cooperations()

auto kcenon::thread::work_affinity_tracker::total_cooperations ( ) const -> std::uint64_t

nodiscard

Get total cooperation events recorded.

Returns

Total cooperation count

Definition at line 179 of file work_affinity_tracker.cpp.

{
    return total_cooperations_.load(std::memory_order_relaxed);
}

References total_cooperations_.

worker_count()

auto kcenon::thread::work_affinity_tracker::worker_count ( ) const -> std::size_t

nodiscard

Get the number of workers being tracked.

Returns

Worker count

Definition at line 169 of file work_affinity_tracker.cpp.

{
    return worker_count_;
}

References worker_count_.

Member Data Documentation

cooperation_matrix_

std::unique_ptr<std::atomic<std::uint64_t>[]> kcenon::thread::work_affinity_tracker::cooperation_matrix_

private

Definition at line 205 of file work_affinity_tracker.h.

Referenced by record_cooperation(), reset(), and work_affinity_tracker().

history_size_

std::size_t kcenon::thread::work_affinity_tracker::history_size_ {16}

private

Definition at line 200 of file work_affinity_tracker.h.

{16};

Referenced by history_size().

matrix_size_

std::size_t kcenon::thread::work_affinity_tracker::matrix_size_ {0}

private

Definition at line 201 of file work_affinity_tracker.h.

{0};

Referenced by record_cooperation(), reset(), and work_affinity_tracker().

MAX_TRACKED_WORKERS

std::size_t kcenon::thread::work_affinity_tracker::MAX_TRACKED_WORKERS = 32

staticconstexpr

Maximum number of workers tracked for affinity.

When the pool has more workers than this limit, only the first MAX_TRACKED_WORKERS are tracked in the cooperation matrix to prevent O(n^2) memory growth. Workers beyond this cap can still participate in work stealing but won't have affinity data.

Definition at line 80 of file work_affinity_tracker.h.

total_cooperations_

std::atomic<std::uint64_t> kcenon::thread::work_affinity_tracker::total_cooperations_ {0}

private

Definition at line 208 of file work_affinity_tracker.h.

{0};

Referenced by record_cooperation(), reset(), and total_cooperations().

tracked_count_

std::size_t kcenon::thread::work_affinity_tracker::tracked_count_ {0}

private

Definition at line 199 of file work_affinity_tracker.h.

{0};

Referenced by record_cooperation(), and work_affinity_tracker().

worker_count_

std::size_t kcenon::thread::work_affinity_tracker::worker_count_ {0}

private

Definition at line 198 of file work_affinity_tracker.h.

{0};

Referenced by worker_count().

---

The documentation for this class was generated from the following files:

• include/kcenon/thread/stealing/work_affinity_tracker.h
• src/stealing/work_affinity_tracker.cpp
