kcenon::thread::metrics::MetricsBackend Class Reference

Abstract interface for metrics export backends. More...

#include <metrics_backend.h>

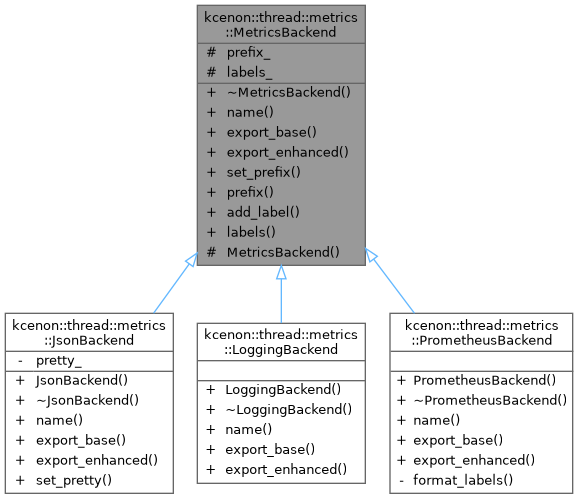

Inheritance diagram for kcenon::thread::metrics::MetricsBackend:

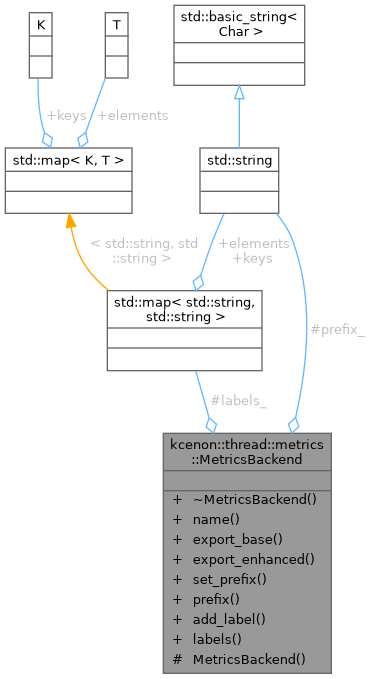

Collaboration diagram for kcenon::thread::metrics::MetricsBackend:

Public Member Functions
virtual	~MetricsBackend ()=default
	Virtual destructor for proper cleanup.
virtual std::string	name () const =0
	Get the backend name.
virtual std::string	export_base (const BaseSnapshot &snapshot) const =0
	Export base metrics snapshot.
virtual std::string	export_enhanced (const EnhancedSnapshot &snapshot) const =0
	Export enhanced metrics snapshot.
virtual void	set_prefix (const std::string &prefix)
	Set metric name prefix.
const std::string &	prefix () const
	Get current metric name prefix.
virtual void	add_label (const std::string &key, const std::string &value)
	Add a label to all exported metrics.
const std::map< std::string, std::string > &	labels () const
	Get all configured labels.

Protected Member Functions
	MetricsBackend ()=default
	Default constructor.

Protected Attributes
std::string	prefix_ {"thread_pool"}
	Metric name prefix.
std::map< std::string, std::string >	labels_
	Labels to attach to all metrics.

Detailed Description

Abstract interface for metrics export backends.

This interface defines the contract for exporting metrics to various monitoring systems (Prometheus, JSON, logging, etc.).

Implementation Guidelines

• Implementations should be thread-safe
• Export methods should not throw exceptions
• Use canonical metric naming conventions

Example Implementation

class CustomBackend : public MetricsBackend {
public:
    std::string name() const override { return "custom"; }

    std::string export_base(const BaseSnapshot& snap) const override {
        // Export base metrics in custom format
    }

    std::string export_enhanced(const EnhancedSnapshot& snap) const override {
        // Export enhanced metrics in custom format
    }
};

See also

PrometheusBackend

JsonBackend

LoggingBackend

Definition at line 57 of file metrics_backend.h.

Constructor & Destructor Documentation

~MetricsBackend()

virtual kcenon::thread::metrics::MetricsBackend::~MetricsBackend ( )

virtualdefault

Virtual destructor for proper cleanup.

MetricsBackend()

kcenon::thread::metrics::MetricsBackend::MetricsBackend ( )

protecteddefault

Default constructor.

Member Function Documentation

add_label()

virtual void kcenon::thread::metrics::MetricsBackend::add_label ( const std::string & key, const std::string & value )

inlinevirtual

Add a label to all exported metrics.

Parameters

key	Label key.
value	Label value.

Definition at line 107 of file metrics_backend.h.

                                                                         {
        labels_[key] = value;
    }

References labels_.

export_base()

virtual std::string kcenon::thread::metrics::MetricsBackend::export_base ( const BaseSnapshot & snapshot ) const

nodiscardpure virtual

Export base metrics snapshot.

Parameters

snapshot

The base metrics snapshot to export.

Returns

Formatted string representation.

Implemented in kcenon::thread::metrics::JsonBackend, kcenon::thread::metrics::LoggingBackend, and kcenon::thread::metrics::PrometheusBackend.

export_enhanced()

virtual std::string kcenon::thread::metrics::MetricsBackend::export_enhanced ( const EnhancedSnapshot & snapshot ) const

nodiscardpure virtual

Export enhanced metrics snapshot.

Parameters

snapshot

The enhanced metrics snapshot to export.

Returns

Formatted string representation.

Implemented in kcenon::thread::metrics::JsonBackend, kcenon::thread::metrics::LoggingBackend, and kcenon::thread::metrics::PrometheusBackend.

labels()

const std::map< std::string, std::string > & kcenon::thread::metrics::MetricsBackend::labels ( ) const

inlinenodiscard

Get all configured labels.

Returns

Map of label key-value pairs.

Definition at line 115 of file metrics_backend.h.

                                                                     {
        return labels_;
    }

References labels_.

Referenced by kcenon::thread::metrics::PrometheusBackend::export_base(), and kcenon::thread::metrics::PrometheusBackend::export_enhanced().

Here is the caller graph for this function:

name()

virtual std::string kcenon::thread::metrics::MetricsBackend::name ( ) const

nodiscardpure virtual

Get the backend name.

Returns

Human-readable backend identifier (e.g., "prometheus", "json").

Implemented in kcenon::thread::metrics::JsonBackend, kcenon::thread::metrics::LoggingBackend, and kcenon::thread::metrics::PrometheusBackend.

prefix()

const std::string & kcenon::thread::metrics::MetricsBackend::prefix ( ) const

inlinenodiscard

Get current metric name prefix.

Returns

Current prefix string.

Definition at line 98 of file metrics_backend.h.

                                                  {
        return prefix_;
    }

References prefix_.

Referenced by set_prefix().

Here is the caller graph for this function:

set_prefix()

virtual void kcenon::thread::metrics::MetricsBackend::set_prefix ( const std::string & prefix )

inlinevirtual

Set metric name prefix.

Parameters

prefix

Prefix to prepend to all metric names.

Definition at line 90 of file metrics_backend.h.

                                                     {
        prefix_ = prefix;
    }

References prefix(), and prefix_.

Referenced by kcenon::thread::metrics::EnhancedThreadPoolMetrics::to_prometheus().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

labels_

std::map<std::string, std::string> kcenon::thread::metrics::MetricsBackend::labels_

protected

Labels to attach to all metrics.

Definition at line 133 of file metrics_backend.h.

Referenced by add_label(), kcenon::thread::metrics::PrometheusBackend::export_enhanced(), kcenon::thread::metrics::PrometheusBackend::format_labels(), and labels().

prefix_

std::string kcenon::thread::metrics::MetricsBackend::prefix_ {"thread_pool"}

protected

Metric name prefix.

Definition at line 128 of file metrics_backend.h.

{"thread_pool"};

Referenced by kcenon::thread::metrics::LoggingBackend::export_base(), kcenon::thread::metrics::PrometheusBackend::export_base(), kcenon::thread::metrics::LoggingBackend::export_enhanced(), kcenon::thread::metrics::PrometheusBackend::export_enhanced(), prefix(), and set_prefix().

---

The documentation for this class was generated from the following file:

• include/kcenon/thread/metrics/metrics_backend.h
