System Overview

Thread System is a comprehensive, modern C++20 multithreading framework designed to democratize concurrent programming. By providing intuitive abstractions and robust implementations, it empowers developers of all skill levels to build high-performance, thread-safe applications without the typical complexity and pitfalls of manual thread management.

As a Tier 1 Core Services library in the kcenon ecosystem, Thread System depends only on common_system (Tier 0) and provides the concurrency foundation for logger_system, monitoring_system, network_system, and database_system.

Key goals:

Eliminate threading complexity through intuitive, high-level abstractions
Ensure thread safety by design, preventing common concurrency bugs
Maximize performance through optimized algorithms and modern C++ features
Promote code reusability across different platforms and use cases

Key Features

Category	Feature	Description
Core	Thread Pool	Multi-worker pool with adaptive queue and submit_task API
Core	Typed Thread Pool	Priority-based scheduling with job type routing and aging
Queue	Adaptive Job Queue	Auto-switches between mutex and lock-free modes
Queue	Policy Queue	Configurable sync, overflow, and bounded policies
Lock-free	Lock-free Job Queue	Michael-Scott algorithm with hazard pointer reclamation
Lock-free	Work Stealing Deque	Chase-Lev deque for work stealing schedulers
Scheduling	DAG Scheduler	Dependency graph-based job execution with dag_job_builder
Scheduling	Work Stealing	NUMA-aware work stealing across thread pools
Scaling	Autoscaler	Dynamic thread pool sizing based on load metrics
Diagnostics	Health Status	Thread pool health monitoring and bottleneck detection
Metrics	Latency Histogram	Per-job latency tracking with sliding window counters
Safety	Cancellation Token	Cooperative cancellation with hierarchy support
Safety	Hazard Pointers	Thread-local hazard arrays for lock-free memory reclamation

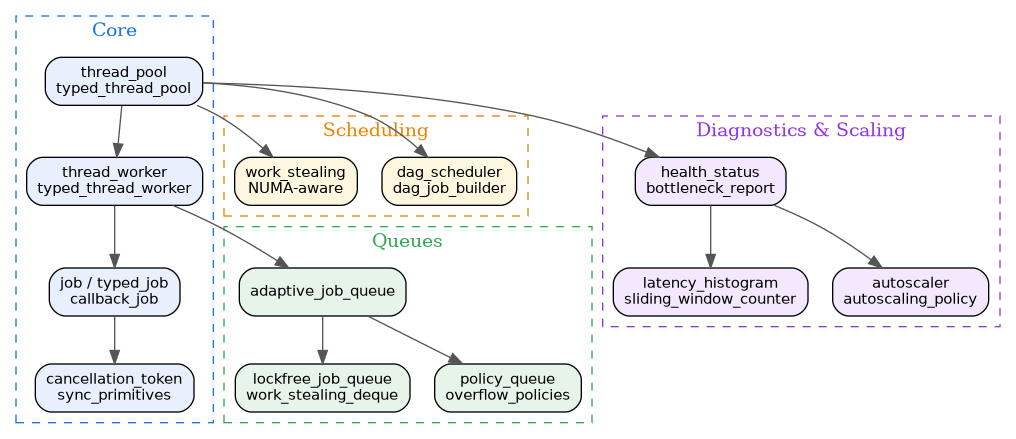

Architecture Diagram

The library is organized into layers. Higher layers depend on lower layers, but never the reverse.

Quick Start

Create a thread pool and submit jobs in a few lines:

#include <kcenon/thread/thread_pool.h>
#include <iostream>
#include <future>

int main() {
    // Create a thread pool with hardware concurrency workers
    auto pool = kcenon::thread::thread_pool::create();
    pool->start();

    // Submit a job and get a future
    auto future = pool->submit_task([]() -> kcenon::thread::result_void {
        std::cout << "Hello from thread pool!\n";
        return {};
    });

    // Wait for completion
    future.wait();

    // Typed thread pool with priority scheduling
    using job_types = kcenon::thread::job_types;
    auto typed_pool = std::make_shared<
        kcenon::thread::typed_thread_pool_t<job_types>>();

    typed_pool->add_worker(job_types::High);
    typed_pool->add_worker({job_types::High, job_types::Normal});
    typed_pool->start();

    typed_pool->enqueue(
        std::make_unique<kcenon::thread::callback_typed_job_t<job_types>>(
            []() -> kcenon::thread::result_void {
                std::cout << "High-priority task executed\n";
                return {};
            }, job_types::High));

    typed_pool->stop();
    pool->stop();
    return 0;
}

Installation

CMake FetchContent (Recommended)

include(FetchContent)
FetchContent_Declare(
    thread_system
    GIT_REPOSITORY https://github.com/kcenon/thread_system.git
    GIT_TAG        v0.3.1
)
FetchContent_MakeAvailable(thread_system)

target_link_libraries(your_target PRIVATE kcenon::thread_core)

vcpkg

vcpkg install kcenon-thread-system

find_package(thread_system CONFIG REQUIRED)

target_link_libraries(your_target PRIVATE kcenon::thread_core)

Build from Source

git clone https://github.com/kcenon/thread_system.git
cd thread_system
./scripts/dependency.sh && ./scripts/build.sh   # Linux/macOS
./scripts/dependency.bat && ./scripts/build.bat  # Windows

Module Overview

Module	Directory	Key Headers	Description
Core	`core/`	thread_pool.h, thread_worker.h, job.h, job_queue.h	Thread pool, workers, jobs, cancellation, hazard pointers, sync primitives
Queue	`queue/`	adaptive_job_queue.h, queue_factory.h	Adaptive job queue (auto mutex/lockfree) and factory
Lock-free	`lockfree/`	lockfree_job_queue.h, work_stealing_deque.h	Michael-Scott queue, Chase-Lev deque
DAG	`dag/`	dag_scheduler.h, dag_job.h, dag_config.h	Dependency graph-based job scheduling
Stealing	`stealing/`	work_stealing_pool.h, numa_topology.h	NUMA-aware work stealing scheduler
Scaling	`scaling/`	autoscaler.h, autoscaling_policy.h	Dynamic thread pool sizing
Diagnostics	`diagnostics/`	thread_pool_diagnostics.h, health_status.h	Health monitoring, bottleneck reporting
Metrics	`metrics/`	enhanced_metrics.h, latency_histogram.h	Latency histograms, sliding window counters
Policies	`policies/`	sync_policies.h, overflow_policies.h	Sync and overflow policy abstractions
Pool Policies	`pool_policies/`	autoscaling.h, circuit_breaker.h, work_stealing.h	Pool-level behavioral policies
Adapters	`adapters/`	common_executor_adapter.h, job_queue_adapter.h	Bridges to common_system IExecutor
Concepts	`concepts/`	thread_concepts.h	C++20 concepts for thread domain

Learning Resources

New to Thread System? Start here. These pages walk through the most common integration scenarios and answer the questions developers ask most often.

Resource	Description
Tutorial: Thread Pool	Choosing between basic and typed pools, work-stealing, sizing
Tutorial: DAG Scheduling	Defining task dependencies, execution order, error handling
Tutorial: Lock-Free Queue Patterns	MPMC vs SPSC selection, hazard pointers, performance
Frequently Asked Questions	Quick answers to the 10 most common integration questions
Troubleshooting Guide	Diagnosing deadlocks, leaks, hangs, and performance issues

Examples

Example	Source	Description
Thread Pool	thread_pool_sample	Basic thread pool creation and job submission
Typed Thread Pool	typed_thread_pool_sample	Priority-based scheduling with job types
Typed Thread Pool 2	typed_thread_pool_sample_2	Advanced typed pool patterns
Typed Job Queue	typed_job_queue_sample	Type-aware job queue operations
Job Cancellation	job_cancellation_example	Cooperative task cancellation
Adaptive Queue	adaptive_queue_sample	Auto-switching mutex/lockfree queue
Hazard Pointer	hazard_pointer_sample	Lock-free memory reclamation
MPMC Queue	mpmc_queue_sample	Multi-producer multi-consumer queue
Queue Factory	queue_factory_sample	Queue creation via factory
Queue Capabilities	queue_capabilities_sample	Query and compare queue features
Node Pool	node_pool_sample	Pooled node allocation
Crash Protection	crash_protection	Fault-tolerant job execution
Config Example	config_example	Thread pool configuration
Composition	composition_example	Composing thread pools and queues
Integration	integration_example	Multi-component integration
Minimal Pool	minimal_thread_pool	Minimal thread pool setup
Service Registry	service_registry_sample	DI-based thread pool registration
Logger Sample	logger_sample	Async logging with thread pool

Related Systems

Thread System is a Tier 1 Core Services library in the kcenon ecosystem. It depends on common_system and provides concurrency for higher-tier systems:

System	Tier	Relationship	Repository
common_system	0	Dependency (IExecutor, Result<T>)	https://github.com/kcenon/common_system
logger_system	2	Downstream (async logging)	https://github.com/kcenon/logger_system
monitoring_system	3	Downstream (concurrent monitoring)	https://github.com/kcenon/monitoring_system
network_system	4	Downstream (concurrent I/O)	https://github.com/kcenon/network_system
database_system	3	Downstream (async queries)	https://github.com/kcenon/database_system
