OpenSSL-backed WS-Security XML-DSig signer. More...

#include "wss_signer.h"
#include "soap_envelope.h"
#include <openssl/bio.h>
#include <openssl/err.h>
#include <openssl/evp.h>
#include <openssl/pem.h>
#include <openssl/sha.h>
#include <openssl/x509.h>
#include <pugixml.hpp>
#include <cstring>
#include <cstdio>
#include <memory>
#include <string>
#include <vector>

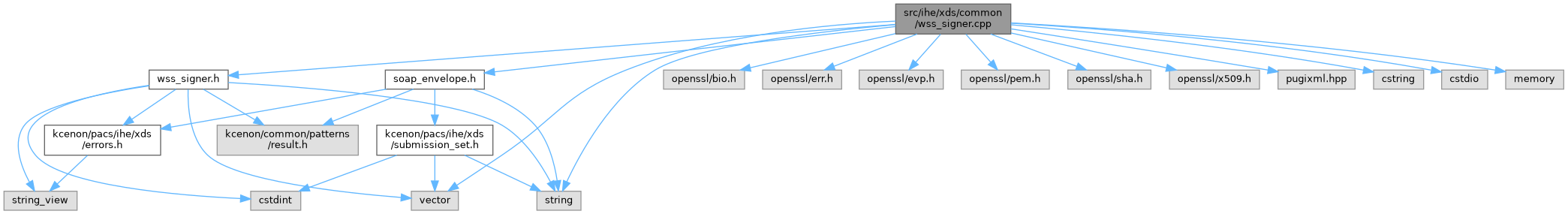

Include dependency graph for wss_signer.cpp:

Go to the source code of this file.

Namespaces
namespace	kcenon

namespace	kcenon::pacs

namespace	kcenon::pacs::ihe

namespace	kcenon::pacs::ihe::xds

namespace	kcenon::pacs::ihe::xds::detail

Functions
kcenon::common::Result< bool >	kcenon::pacs::ihe::xds::detail::sign_envelope (built_envelope &env, std::string_view cert_pem, std::string_view key_pem, std::string_view key_password)
	Sign the body + timestamp of `env` in place.

kcenon::common::Result< bool >	kcenon::pacs::ihe::xds::detail::verify_envelope_integrity (std::string_view signed_xml)
	Verify the structural integrity of a previously signed envelope against the certificate embedded in its own BinarySecurityToken.

std::vector< std::uint8_t >	kcenon::pacs::ihe::xds::detail::base64_decode_bytes (std::string_view b64)
	Base64-decode `b64` using the same BIO-backed decoder the signer and verifier use internally.

Detailed Description

OpenSSL-backed WS-Security XML-DSig signer.

Canonicalization policy

This signer does NOT implement Exclusive XML Canonicalization (http://www.w3.org/2001/10/xml-exc-c14n#). It serializes referenced nodes with pugixml's format_raw, which produces deterministic UTF-8 XML with no whitespace perturbation. Because the envelope built by soap_envelope.cpp declares every namespace on <soap:Envelope> at build time, every descendant inherits the same prefix bindings, so the byte stream is stable under our own verifier. It is NOT interoperable with a strict exc-c14n implementation (IHE Gazelle, .NET WIF, Apache CXF), which would require namespace rewriting and attribute ordering.

The advertised CanonicalizationMethod / Transform Algorithm URIs in the emitted <ds:Signature> are therefore the project-local identifier

urn:kcenon:xds:c14n:pugixml-format-raw-v1

NOT the exc-c14n URI. This is deliberate: advertising exc-c14n while emitting something else would silently produce signatures that look valid to our own test (EVP_DigestVerify over the same serializer) but fail in any third-party verifier. The project-local URI makes non-interoperable callers fail loudly at Algorithm check instead.

Full exc-c14n + Apache CXF / Gazelle round-trip verification is tracked as a follow-up issue and must land before production use against a real XDS.b registry.

Addresses review finding MAJOR-2 (Option A - honest URI).

Definition in file wss_signer.cpp.

Variable Documentation

◆ match

pugi::xml_node match

Definition at line 393 of file wss_signer.cpp.

Referenced by kcenon::pacs::ihe::xds::detail::parse_retrieve_response(), and kcenon::pacs::client::sync_manager::impl::query_remote_studies().

◆ needle

std::string needle

Definition at line 392 of file wss_signer.cpp.

◆ out

std::string out

Definition at line 191 of file wss_signer.cpp.
