sync_types.h File Reference

Types and structures for bidirectional DICOM synchronization. More...

#include <chrono>
#include <cstddef>
#include <cstdint>
#include <functional>
#include <optional>
#include <string>
#include <string_view>
#include <vector>

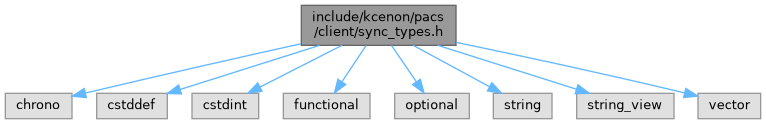

Include dependency graph for sync_types.h:

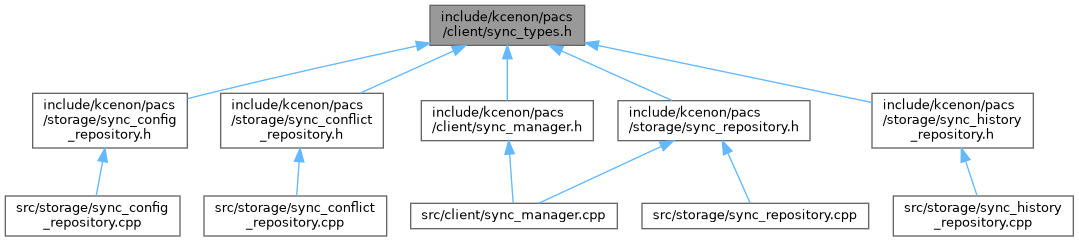

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::client::sync_config
	Configuration for a synchronization task. More...
struct	kcenon::pacs::client::sync_conflict
	Represents a conflict detected during synchronization. More...
struct	kcenon::pacs::client::sync_result
	Result of a synchronization operation. More...
struct	kcenon::pacs::client::sync_history
	Historical record of a sync operation. More...
struct	kcenon::pacs::client::sync_manager_config
	Configuration for the sync manager. More...
struct	kcenon::pacs::client::sync_statistics
	Aggregate statistics for synchronization operations. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::client

Typedefs
using	kcenon::pacs::client::sync_progress_callback
	Callback for sync progress updates.
using	kcenon::pacs::client::sync_completion_callback
	Callback for sync completion.
using	kcenon::pacs::client::sync_conflict_callback = std::function<void(const sync_conflict& conflict)>
	Callback for conflict detection.

Enumerations
enum class	kcenon::pacs::client::sync_direction { kcenon::pacs::client::pull , kcenon::pacs::client::push , kcenon::pacs::client::bidirectional }
	Direction of synchronization. More...
enum class	kcenon::pacs::client::sync_conflict_type { kcenon::pacs::client::missing_local , kcenon::pacs::client::missing_remote , kcenon::pacs::client::modified , kcenon::pacs::client::count_mismatch }
	Type of synchronization conflict. More...
enum class	kcenon::pacs::client::conflict_resolution { kcenon::pacs::client::prefer_local , kcenon::pacs::client::prefer_remote , kcenon::pacs::client::prefer_newer }
	Strategy for resolving synchronization conflicts. More...

Functions
constexpr const char *	kcenon::pacs::client::to_string (sync_direction direction) noexcept
	Convert sync_direction to string representation.
sync_direction	kcenon::pacs::client::sync_direction_from_string (std::string_view str) noexcept
	Parse sync_direction from string.
constexpr const char *	kcenon::pacs::client::to_string (sync_conflict_type type) noexcept
	Convert sync_conflict_type to string representation.
sync_conflict_type	kcenon::pacs::client::sync_conflict_type_from_string (std::string_view str) noexcept
	Parse sync_conflict_type from string.
constexpr const char *	kcenon::pacs::client::to_string (conflict_resolution resolution) noexcept
	Convert conflict_resolution to string representation.
conflict_resolution	kcenon::pacs::client::conflict_resolution_from_string (std::string_view str) noexcept
	Parse conflict_resolution from string.

Detailed Description

Types and structures for bidirectional DICOM synchronization.

This file provides data structures for representing synchronization configurations, conflicts, and results for the sync_manager.

See also

Issue #542 - Implement Sync Manager for Bidirectional Synchronization

Issue #530 - PACS Client System Support (Parent Epic)

Author

kcenon

Since

1.0.0

Definition in file sync_types.h.
