kcenon::pacs::network::presentation_data_value Struct Reference

Presentation Data Value (PDV) item for P-DATA-TF. More...

#include <pdu_types.h>

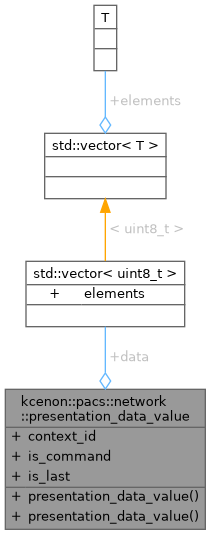

Collaboration diagram for kcenon::pacs::network::presentation_data_value:

Public Member Functions
	presentation_data_value ()=default
	presentation_data_value (uint8_t id, bool command, bool last, std::vector< uint8_t > d)

Public Attributes
uint8_t	context_id
	Presentation Context ID (odd number 1-255)
bool	is_command
	true if Command message, false if Data
bool	is_last
	true if last fragment
std::vector< uint8_t >	data
	Fragment data.

Detailed Description

Presentation Data Value (PDV) item for P-DATA-TF.

Definition at line 135 of file pdu_types.h.

Constructor & Destructor Documentation

presentation_data_value() [1/2]

kcenon::pacs::network::presentation_data_value::presentation_data_value ( )

default

presentation_data_value() [2/2]

kcenon::pacs::network::presentation_data_value::presentation_data_value ( uint8_t id, bool command, bool last, std::vector< uint8_t > d )

inline

Definition at line 142 of file pdu_types.h.

        : context_id(id), is_command(command), is_last(last), data(std::move(d)) {}

Member Data Documentation

context_id

uint8_t kcenon::pacs::network::presentation_data_value::context_id

Presentation Context ID (odd number 1-255)

Definition at line 136 of file pdu_types.h.

Referenced by kcenon::pacs::network::pdu_decoder::decode_p_data_tf().

data

std::vector<uint8_t> kcenon::pacs::network::presentation_data_value::data

Fragment data.

Definition at line 139 of file pdu_types.h.

Referenced by kcenon::pacs::network::pdu_decoder::decode_p_data_tf().

is_command

bool kcenon::pacs::network::presentation_data_value::is_command

true if Command message, false if Data

Definition at line 137 of file pdu_types.h.

Referenced by kcenon::pacs::network::pdu_decoder::decode_p_data_tf().

is_last

bool kcenon::pacs::network::presentation_data_value::is_last

true if last fragment

Definition at line 138 of file pdu_types.h.

Referenced by kcenon::pacs::network::pdu_decoder::decode_p_data_tf().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/network/pdu_types.h
