Remote PACS node configuration and status. More...

#include <remote_node.h>

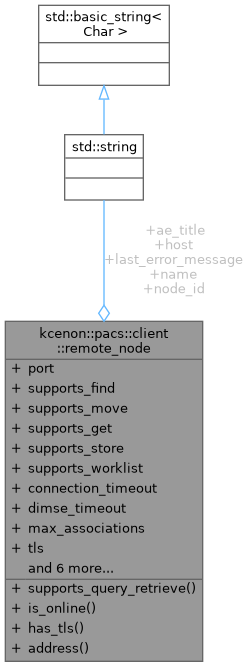

Collaboration diagram for kcenon::pacs::client::remote_node:

Public Member Functions
bool	supports_query_retrieve () const noexcept
	Check if node supports any query/retrieve operation.

bool	is_online () const noexcept
	Check if node is currently reachable.

bool	has_tls () const noexcept
	Check if TLS is enabled for this node.

std::string	address () const
	Get connection address string (host:port)

Public Attributes
std::string	node_id
	Unique identifier for this node.

std::string	name
	Human-readable display name.

std::string	ae_title
	DICOM Application Entity Title.

std::string	host
	IP address or hostname.

uint16_t	port {104}
	DICOM port (default: 104)

bool	supports_find {true}
	C-FIND support (Query)

bool	supports_move {true}
	C-MOVE support (Retrieve)

bool	supports_get {false}
	C-GET support (alternative retrieve)

bool	supports_store {true}
	C-STORE support (Send)

bool	supports_worklist {false}
	Modality Worklist support.

std::chrono::seconds	connection_timeout {30}
	TCP connection timeout.

std::chrono::seconds	dimse_timeout {60}
	DIMSE operation timeout.

size_t	max_associations {4}
	Max concurrent associations.

std::optional< tls_config >	tls
	TLS configuration (if secure)

node_status	status {node_status::unknown}
	Current connectivity status.

std::chrono::system_clock::time_point	last_verified
	Last successful verification.

std::chrono::system_clock::time_point	last_error
	Last error time.

std::string	last_error_message
	Last error description.

int64_t	pk {0}
	Primary key (0 if not persisted)

std::chrono::system_clock::time_point	created_at
	Creation timestamp.

std::chrono::system_clock::time_point	updated_at
	Last update timestamp.

Detailed Description

Remote PACS node configuration and status.

Represents a remote PACS server that can be connected to for DICOM operations. Includes connection parameters, supported services, and runtime status information.

Example:: remote_node node;

node.node_id = "external-pacs-1";

node.name = "Hospital PACS";

node.ae_title = "HOSP_PACS";

node.host = "192.168.1.100";

node.port = 104;

kcenon::pacs::client::remote_node
Remote PACS node configuration and status.
Definition remote_node.h:130

kcenon::pacs::client::remote_node::ae_title
std::string ae_title
DICOM Application Entity Title.
Definition remote_node.h:137

kcenon::pacs::client::remote_node::name
std::string name
Human-readable display name.
Definition remote_node.h:136

kcenon::pacs::client::remote_node::port
uint16_t port
DICOM port (default: 104)
Definition remote_node.h:139

kcenon::pacs::client::remote_node::node_id
std::string node_id
Unique identifier for this node.
Definition remote_node.h:135

kcenon::pacs::client::remote_node::host
std::string host
IP address or hostname.
Definition remote_node.h:138

Definition at line 130 of file remote_node.h.

Member Function Documentation

◆ address()

std::string kcenon::pacs::client::remote_node::address ( ) const

inlinenodiscard

Get connection address string (host:port)

Definition at line 210 of file remote_node.h.

                                            {
        return host + ":" + std::to_string(port);
    }

References host, and port.

◆ has_tls()

bool kcenon::pacs::client::remote_node::has_tls ( ) const

inlinenodiscardnoexcept

Check if TLS is enabled for this node.

Definition at line 203 of file remote_node.h.

                                                {
        return tls.has_value() && tls->is_configured();
    }

References tls.

◆ is_online()

bool kcenon::pacs::client::remote_node::is_online ( ) const

inlinenodiscardnoexcept

Check if node is currently reachable.

Definition at line 196 of file remote_node.h.

                                                  {
        return status == node_status::online;
    }

References kcenon::pacs::client::online, and status.

◆ supports_query_retrieve()

bool kcenon::pacs::client::remote_node::supports_query_retrieve ( ) const

inlinenodiscardnoexcept

Check if node supports any query/retrieve operation.

Definition at line 189 of file remote_node.h.

                                                                {
        return supports_find && (supports_move || supports_get);
    }

References supports_find, supports_get, and supports_move.

Member Data Documentation

◆ ae_title

std::string kcenon::pacs::client::remote_node::ae_title

DICOM Application Entity Title.

Definition at line 137 of file remote_node.h.

Referenced by kcenon::pacs::client::remote_node_manager::add_node(), kcenon::pacs::storage::node_repository::parse_row(), and kcenon::pacs::client::remote_node_manager::impl::perform_echo().

◆ connection_timeout

std::chrono::seconds kcenon::pacs::client::remote_node::connection_timeout {30}

TCP connection timeout.

Definition at line 155 of file remote_node.h.

155{30};

Referenced by kcenon::pacs::storage::node_repository::parse_row(), and kcenon::pacs::client::remote_node_manager::impl::perform_echo().

◆ created_at

std::chrono::system_clock::time_point kcenon::pacs::client::remote_node::created_at

Creation timestamp.

Definition at line 179 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ dimse_timeout

std::chrono::seconds kcenon::pacs::client::remote_node::dimse_timeout {60}

DIMSE operation timeout.

Definition at line 156 of file remote_node.h.

156{60};

Referenced by kcenon::pacs::storage::node_repository::parse_row(), and kcenon::pacs::client::remote_node_manager::impl::perform_echo().

◆ host

std::string kcenon::pacs::client::remote_node::host

IP address or hostname.

Definition at line 138 of file remote_node.h.

Referenced by kcenon::pacs::client::remote_node_manager::add_node(), address(), kcenon::pacs::storage::node_repository::parse_row(), and kcenon::pacs::client::remote_node_manager::impl::perform_echo().

◆ last_error

std::chrono::system_clock::time_point kcenon::pacs::client::remote_node::last_error

Last error time.

Definition at line 171 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ last_error_message

std::string kcenon::pacs::client::remote_node::last_error_message

Last error description.

Definition at line 172 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ last_verified

std::chrono::system_clock::time_point kcenon::pacs::client::remote_node::last_verified

Last successful verification.

Definition at line 170 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ max_associations

size_t kcenon::pacs::client::remote_node::max_associations {4}

Max concurrent associations.

Definition at line 157 of file remote_node.h.

157{4};

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ name

std::string kcenon::pacs::client::remote_node::name

Human-readable display name.

Definition at line 136 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ node_id

std::string kcenon::pacs::client::remote_node::node_id

Unique identifier for this node.

Definition at line 135 of file remote_node.h.

Referenced by kcenon::pacs::client::remote_node_manager::add_node(), kcenon::pacs::storage::node_repository::parse_row(), kcenon::pacs::client::remote_node_manager::impl::perform_echo(), and kcenon::pacs::client::remote_node_manager::update_node().

◆ pk

int64_t kcenon::pacs::client::remote_node::pk {0}

Primary key (0 if not persisted)

Definition at line 178 of file remote_node.h.

178{0};

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ port

uint16_t kcenon::pacs::client::remote_node::port {104}

DICOM port (default: 104)

Definition at line 139 of file remote_node.h.

139{104};

Referenced by kcenon::pacs::client::remote_node_manager::add_node(), address(), kcenon::pacs::storage::node_repository::parse_row(), and kcenon::pacs::client::remote_node_manager::impl::perform_echo().

◆ status

node_status kcenon::pacs::client::remote_node::status {node_status::unknown}

Current connectivity status.

Definition at line 169 of file remote_node.h.

169{node_status::unknown};

kcenon::pacs::client::node_status::unknown

@ unknown

Status not yet determined.

Referenced by is_online(), and kcenon::pacs::storage::node_repository::parse_row().

◆ supports_find

bool kcenon::pacs::client::remote_node::supports_find {true}

C-FIND support (Query)

Definition at line 145 of file remote_node.h.

145{true};

Referenced by kcenon::pacs::storage::node_repository::parse_row(), and supports_query_retrieve().

◆ supports_get

bool kcenon::pacs::client::remote_node::supports_get {false}

C-GET support (alternative retrieve)

Definition at line 147 of file remote_node.h.

147{false};

Referenced by kcenon::pacs::storage::node_repository::parse_row(), and supports_query_retrieve().

◆ supports_move

bool kcenon::pacs::client::remote_node::supports_move {true}

C-MOVE support (Retrieve)

Definition at line 146 of file remote_node.h.

146{true};

Referenced by kcenon::pacs::storage::node_repository::parse_row(), and supports_query_retrieve().

◆ supports_store

bool kcenon::pacs::client::remote_node::supports_store {true}

C-STORE support (Send)

Definition at line 148 of file remote_node.h.

148{true};

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ supports_worklist

bool kcenon::pacs::client::remote_node::supports_worklist {false}

Modality Worklist support.

Definition at line 149 of file remote_node.h.

149{false};

Referenced by kcenon::pacs::storage::node_repository::parse_row().

◆ tls

std::optional<tls_config> kcenon::pacs::client::remote_node::tls

TLS configuration (if secure)

Definition at line 163 of file remote_node.h.

Referenced by has_tls().

◆ updated_at

std::chrono::system_clock::time_point kcenon::pacs::client::remote_node::updated_at

Last update timestamp.

Definition at line 180 of file remote_node.h.

Referenced by kcenon::pacs::storage::node_repository::parse_row().

The documentation for this struct was generated from the following file:

include/kcenon/pacs/client/remote_node.h
