query_envelope.h File Reference

SOAP 1.2 envelope builder for IHE XDS.b ITI-18 RegistryStoredQuery. More...

#include <kcenon/common/patterns/result.h>
#include <kcenon/pacs/ihe/xds/errors.h>
#include <kcenon/pacs/ihe/xds/submission_set.h>
#include "../common/soap_envelope.h"

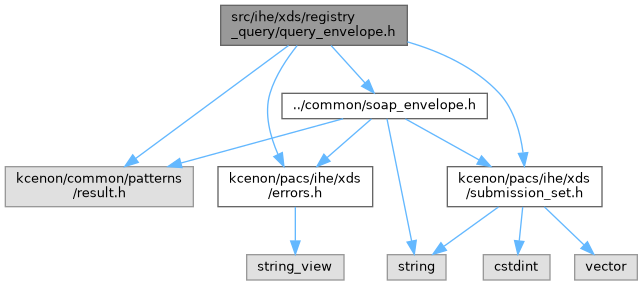

Include dependency graph for query_envelope.h:

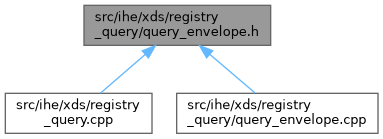

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::ihe
namespace	kcenon::pacs::ihe::xds
namespace	kcenon::pacs::ihe::xds::detail

Enumerations
enum class	kcenon::pacs::ihe::xds::detail::stored_query_kind { kcenon::pacs::ihe::xds::detail::find_documents , kcenon::pacs::ihe::xds::detail::get_documents }
	Discriminator for the two stored queries this actor supports. More...

Functions
kcenon::common::Result< built_envelope >	kcenon::pacs::ihe::xds::detail::build_iti18_envelope (const registry_query_request &req, stored_query_kind kind)
	Build a SOAP envelope for ITI-18 from a registry_query_request.

Detailed Description

SOAP 1.2 envelope builder for IHE XDS.b ITI-18 RegistryStoredQuery.

Produces an AdhocQueryRequest body wrapped in a SOAP 1.2 Envelope with a WS-Addressing header and an empty WS-Security header that wss_signer fills in. Two stored-query IDs are supported:

• FindDocuments: urn:uuid:14d4debf-8f97-4251-9a1e-a3a9d68b2a6f
• GetDocuments: urn:uuid:5737b14c-8a1a-4539-b659-e03a34a5e1e4

This is an internal header - not installed, not part of the public API.

See also

IHE ITI TF-2a §3.18.4.1.2 - RegistryStoredQuery Request

Definition in file query_envelope.h.
