CRTP base class for DICOM metric collectors. More...

#include <dicom_collector_base.h>

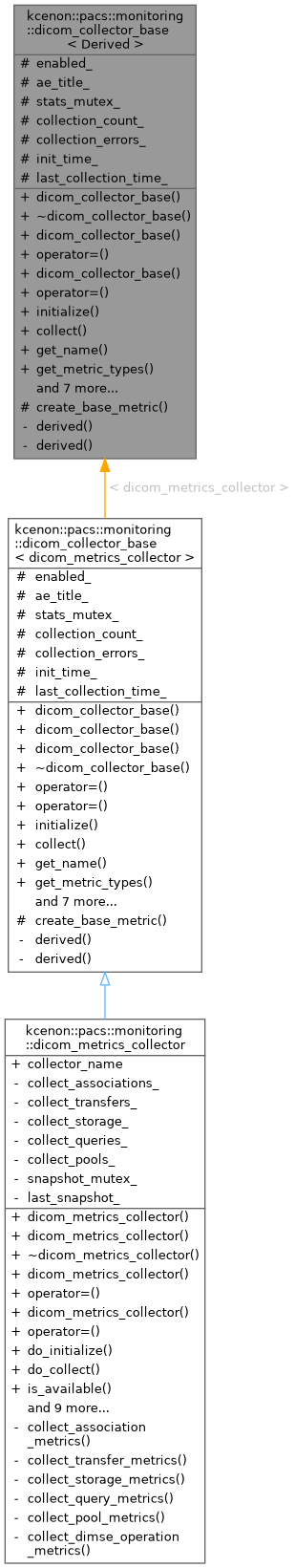

Inheritance diagram for kcenon::pacs::monitoring::dicom_collector_base< Derived >:

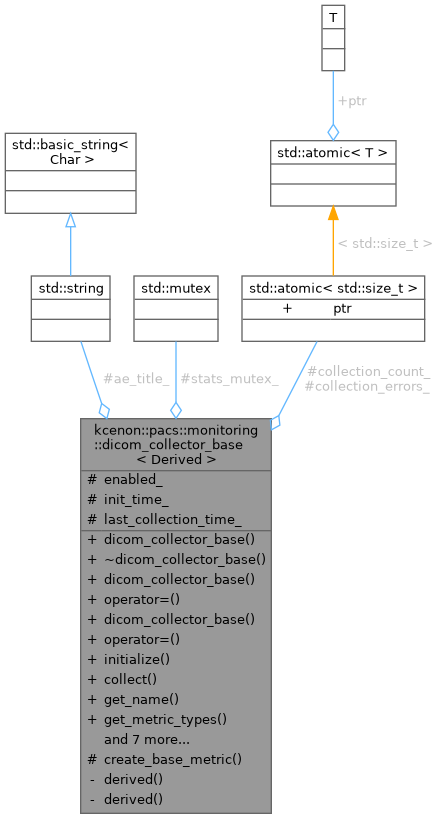

Collaboration diagram for kcenon::pacs::monitoring::dicom_collector_base< Derived >:

Public Member Functions
	dicom_collector_base ()=default

virtual	~dicom_collector_base ()=default

	dicom_collector_base (const dicom_collector_base &)=delete

dicom_collector_base &	operator= (const dicom_collector_base &)=delete

	dicom_collector_base (dicom_collector_base &&)=delete

dicom_collector_base &	operator= (dicom_collector_base &&)=delete

bool	initialize (const config_map &config)
	Initialize the collector with configuration.

std::vector< dicom_metric >	collect ()
	Collect metrics from the data source.

std::string	get_name () const
	Get the name of this collector.

std::vector< std::string >	get_metric_types () const
	Get supported metric types.

bool	is_healthy () const
	Check if the collector is healthy.

stats_map	get_statistics () const
	Get collector statistics.

bool	is_enabled () const
	Check if collector is enabled.

std::size_t	get_collection_count () const
	Get collection count.

std::size_t	get_collection_errors () const
	Get error count.

std::string	get_ae_title () const
	Get the AE title.

void	set_ae_title (std::string ae_title)
	Set the AE title.

Protected Member Functions
dicom_metric	create_base_metric (const std::string &name, double value, const std::string &type, const std::unordered_map< std::string, std::string > &extra_tags={}) const
	Create a metric with common tags.

Protected Attributes
bool	enabled_ {true}

std::string	ae_title_ {"PACS_SCP"}

std::mutex	stats_mutex_

std::atomic< std::size_t >	collection_count_ {0}

std::atomic< std::size_t >	collection_errors_ {0}

std::chrono::steady_clock::time_point	init_time_

std::chrono::system_clock::time_point	last_collection_time_

Private Member Functions
Derived &	derived ()
	Get reference to derived class (CRTP helper)

const Derived &	derived () const

Detailed Description

template<typename Derived>
class kcenon::pacs::monitoring::dicom_collector_base< Derived >

CRTP base class for DICOM metric collectors.

This template class implements common functionality shared by all DICOM collectors:

Configuration parsing (enabled state, AE title)
Collection with error handling and statistics
Health monitoring
Statistics tracking (collection count, error count)

Usage:

class my_dicom_collector : public dicom_collector_base<my_dicom_collector> {
public:
    static constexpr const char* collector_name = "my_dicom_collector";

    bool do_initialize(const config_map& config) {
        return true;
    }

    std::vector<dicom_metric> do_collect() {
        return metrics;
    }

    bool is_available() const { return true; }

    std::vector<std::string> do_get_metric_types() const {
        return {"metric_1", "metric_2"};
    }

    void do_add_statistics(stats_map& stats) const {}
};

Template Parameters

Derived The derived collector class (CRTP pattern)

Definition at line 104 of file dicom_collector_base.h.

Constructor & Destructor Documentation

◆ dicom_collector_base() [1/3]

template<typename Derived >

kcenon::pacs::monitoring::dicom_collector_base< Derived >::dicom_collector_base ( )

default

◆ ~dicom_collector_base()

template<typename Derived >

virtual kcenon::pacs::monitoring::dicom_collector_base< Derived >::~dicom_collector_base ( )

virtualdefault

◆ dicom_collector_base() [2/3]

template<typename Derived >

kcenon::pacs::monitoring::dicom_collector_base< Derived >::dicom_collector_base ( const dicom_collector_base< Derived > & )

delete

◆ dicom_collector_base() [3/3]

template<typename Derived >

kcenon::pacs::monitoring::dicom_collector_base< Derived >::dicom_collector_base ( dicom_collector_base< Derived > && )

delete

Member Function Documentation

◆ collect()

template<typename Derived >

std::vector< dicom_metric > kcenon::pacs::monitoring::dicom_collector_base< Derived >::collect ( )

inline

Collect metrics from the data source.

Returns: Collection of DICOM metrics

Definition at line 142 of file dicom_collector_base.h.

                                      {
        if (!enabled_) {
            return {};
        }

        try {
            auto metrics = derived().do_collect();
            ++collection_count_;
            last_collection_time_ = std::chrono::system_clock::now();
            return metrics;
        } catch (...) {
            ++collection_errors_;
            return {};
        }
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_count_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_errors_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::enabled_, and kcenon::pacs::monitoring::dicom_collector_base< Derived >::last_collection_time_.

Here is the call graph for this function:

◆ create_base_metric()

template<typename Derived >

dicom_metric kcenon::pacs::monitoring::dicom_collector_base< Derived >::create_base_metric	(	const std::string &	name,
		double	value,
		const std::string &	type,
		const std::unordered_map< std::string, std::string > &	extra_tags = {} ) const

inlinenodiscardprotected

Create a metric with common tags.

Parameters

name	Metric name
value	Metric value
type	Metric type ("gauge", "counter", "histogram")
extra_tags	Additional tags to include

Returns: Created metric

Definition at line 254 of file dicom_collector_base.h.

                                                                   {}) const {

        std::unordered_map<std::string, std::string> tags = extra_tags;
        tags["collector"] = Derived::collector_name;
        if (!ae_title_.empty()) {
            tags["ae_title"] = ae_title_;
        }

        return dicom_metric(name, value, type, std::move(tags));
    }

◆ derived() [1/2]

template<typename Derived >

Derived & kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived ( )

inlineprivate

Get reference to derived class (CRTP helper)

Definition at line 284 of file dicom_collector_base.h.

284{ return static_cast<Derived&>(*this); }

Referenced by kcenon::pacs::monitoring::dicom_collector_base< Derived >::collect(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_metric_types(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_statistics(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::initialize(), and kcenon::pacs::monitoring::dicom_collector_base< Derived >::is_healthy().

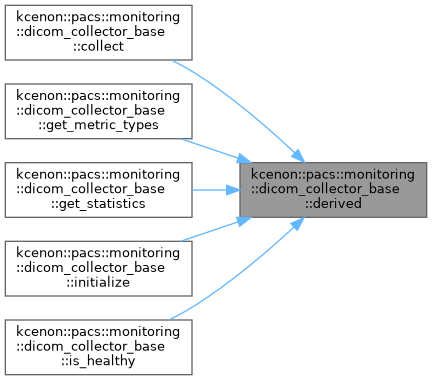

Here is the caller graph for this function:

◆ derived() [2/2]

template<typename Derived >

const Derived & kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived ( ) const

inlineprivate

Definition at line 285 of file dicom_collector_base.h.

285{ return static_cast<const Derived&>(*this); }

◆ get_ae_title()

template<typename Derived >

std::string kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_ae_title ( ) const

inlinenodiscard

Get the AE title.

Returns: Application Entity title

Definition at line 237 of file dicom_collector_base.h.

237{ return ae_title_; }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::ae_title_.

◆ get_collection_count()

template<typename Derived >

std::size_t kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_collection_count ( ) const

inlinenodiscard

Get collection count.

Returns: Number of successful collections

Definition at line 221 of file dicom_collector_base.h.

                                                         {
        return collection_count_.load();
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_count_.

◆ get_collection_errors()

template<typename Derived >

std::size_t kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_collection_errors ( ) const

inlinenodiscard

Get error count.

Returns: Number of failed collections

Definition at line 229 of file dicom_collector_base.h.

                                                          {
        return collection_errors_.load();
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_errors_.

◆ get_metric_types()

template<typename Derived >

std::vector< std::string > kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_metric_types ( ) const

inlinenodiscard

Get supported metric types.

Returns: Vector of supported metric type names

Definition at line 170 of file dicom_collector_base.h.

                                                                {
        return derived().do_get_metric_types();
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived().

Here is the call graph for this function:

◆ get_name()

template<typename Derived >

std::string kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_name ( ) const

inlinenodiscard

Get the name of this collector.

Returns: Collector name from Derived::collector_name

Definition at line 162 of file dicom_collector_base.h.

                                             {
        return Derived::collector_name;
    }

◆ get_statistics()

template<typename Derived >

stats_map kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_statistics ( ) const

inlinenodiscard

Get collector statistics.

Returns: Map of statistic name to value

Definition at line 189 of file dicom_collector_base.h.

                                                   {
        std::lock_guard<std::mutex> lock(stats_mutex_);
        stats_map stats;

        // Common statistics
        stats["enabled"] = enabled_ ? 1.0 : 0.0;
        stats["collection_count"] = static_cast<double>(collection_count_.load());
        stats["collection_errors"] = static_cast<double>(collection_errors_.load());

        // Uptime if initialized
        if (init_time_.time_since_epoch().count() > 0) {
            const auto uptime = std::chrono::duration_cast<std::chrono::seconds>(
                std::chrono::steady_clock::now() - init_time_);
            stats["uptime_seconds"] = static_cast<double>(uptime.count());
        }

        // Let derived class add specific statistics
        derived().do_add_statistics(stats);

        return stats;
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_count_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::collection_errors_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::enabled_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::init_time_, and kcenon::pacs::monitoring::dicom_collector_base< Derived >::stats_mutex_.

Here is the call graph for this function:

◆ initialize()

template<typename Derived >

bool kcenon::pacs::monitoring::dicom_collector_base< Derived >::initialize ( const config_map & config )

inline

Initialize the collector with configuration.

Parameters

config

Configuration options

"enabled": "true"/"false" (default: true)
"ae_title": Application Entity title for labeling

Returns: true if initialization successful

Definition at line 122 of file dicom_collector_base.h.

                                              {
        // Parse common configuration
        if (auto it = config.find("enabled"); it != config.end()) {
            enabled_ = (it->second == "true" || it->second == "1");
        }

        if (auto it = config.find("ae_title"); it != config.end()) {
            ae_title_ = it->second;
        }

        init_time_ = std::chrono::steady_clock::now();

        // Delegate to derived class for specific initialization
        return derived().do_initialize(config);
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::ae_title_, kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived(), kcenon::pacs::monitoring::dicom_collector_base< Derived >::enabled_, and kcenon::pacs::monitoring::dicom_collector_base< Derived >::init_time_.

Here is the call graph for this function:

◆ is_enabled()

template<typename Derived >

bool kcenon::pacs::monitoring::dicom_collector_base< Derived >::is_enabled ( ) const

inlinenodiscard

Check if collector is enabled.

Returns: true if enabled

Definition at line 215 of file dicom_collector_base.h.

215{ return enabled_; }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::enabled_.

◆ is_healthy()

template<typename Derived >

bool kcenon::pacs::monitoring::dicom_collector_base< Derived >::is_healthy ( ) const

inlinenodiscard

Check if the collector is healthy.

Returns: true if collector is operational

Definition at line 178 of file dicom_collector_base.h.

                                          {
        if (!enabled_) {
            return true;  // Disabled collectors are considered healthy
        }
        return derived().is_available();
    }

References kcenon::pacs::monitoring::dicom_collector_base< Derived >::derived(), and kcenon::pacs::monitoring::dicom_collector_base< Derived >::enabled_.

Here is the call graph for this function:

◆ operator=() [1/2]

template<typename Derived >

dicom_collector_base & kcenon::pacs::monitoring::dicom_collector_base< Derived >::operator= ( const dicom_collector_base< Derived > & )

delete

◆ operator=() [2/2]

template<typename Derived >

dicom_collector_base & kcenon::pacs::monitoring::dicom_collector_base< Derived >::operator= ( dicom_collector_base< Derived > && )

delete

◆ set_ae_title()

template<typename Derived >

void kcenon::pacs::monitoring::dicom_collector_base< Derived >::set_ae_title ( std::string ae_title )

inline

Set the AE title.

std::chrono::system_clock::time_point kcenon::pacs::monitoring::dicom_collector_base< Derived >::last_collection_time_

protected

Definition at line 278 of file dicom_collector_base.h.

Referenced by kcenon::pacs::monitoring::dicom_collector_base< Derived >::collect().

◆ stats_mutex_

template<typename Derived >

std::mutex kcenon::pacs::monitoring::dicom_collector_base< Derived >::stats_mutex_

mutableprotected

Definition at line 274 of file dicom_collector_base.h.

Referenced by kcenon::pacs::monitoring::dicom_collector_base< Derived >::get_statistics().

The documentation for this class was generated from the following file:

include/kcenon/pacs/monitoring/collectors/dicom_collector_base.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ dicom_collector_base() [1/3]

◆ ~dicom_collector_base()

◆ dicom_collector_base() [2/3]

◆ dicom_collector_base() [3/3]

Member Function Documentation

◆ collect()

◆ create_base_metric()

◆ derived() [1/2]

◆ derived() [2/2]

◆ get_ae_title()

◆ get_collection_count()

◆ get_collection_errors()

◆ get_metric_types()

◆ get_name()

◆ get_statistics()

◆ initialize()

◆ is_enabled()

◆ is_healthy()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ set_ae_title()

Member Data Documentation

◆ ae_title_

◆ collection_count_

◆ collection_errors_

◆ enabled_

◆ init_time_

◆ last_collection_time_

◆ stats_mutex_
