Main configuration structure for tracing. More...

#include <tracing_config.h>

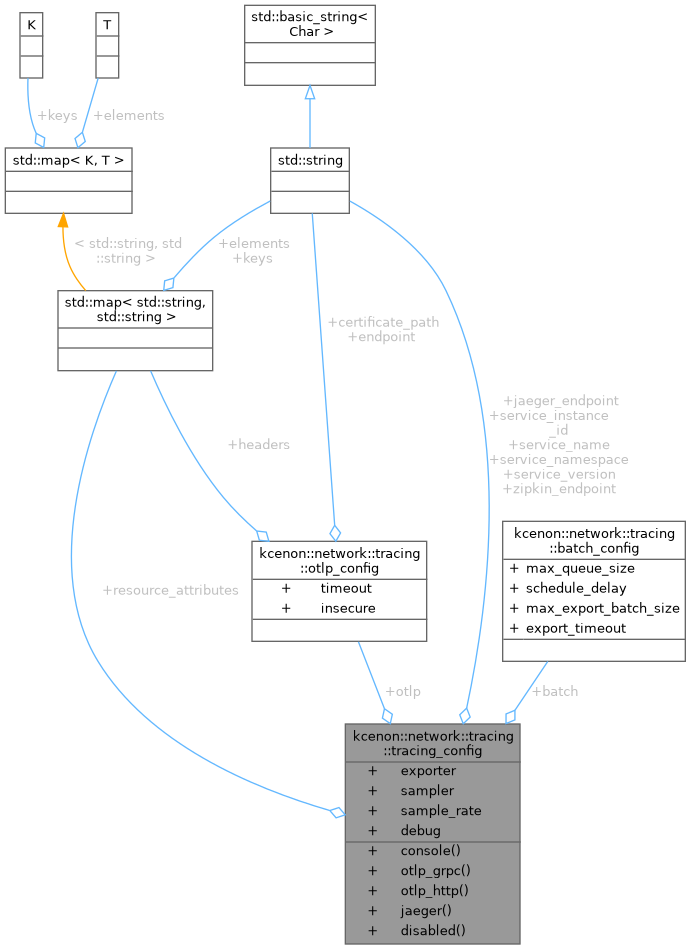

Collaboration diagram for kcenon::network::tracing::tracing_config:

Static Public Member Functions
static auto	console () -> tracing_config
	Create default configuration with console exporter.

static auto	otlp_grpc (const std::string &endpoint="http://localhost:4317") -> tracing_config
	Create default configuration for OTLP gRPC exporter.

static auto	otlp_http (const std::string &endpoint="http://localhost:4318") -> tracing_config
	Create default configuration for OTLP HTTP exporter.

static auto	jaeger (const std::string &endpoint="http://localhost:14268/api/traces") -> tracing_config
	Create default configuration for Jaeger exporter.

static auto	disabled () -> tracing_config
	Create disabled tracing configuration.

Public Attributes
exporter_type	exporter = exporter_type::none
	Exporter type to use @default exporter_type::none.

std::string	service_name = "network_system"
	Service name for trace identification @default "network_system".

std::string	service_version
	Service version @default "".

std::string	service_namespace
	Service namespace @default "".

std::string	service_instance_id
	Service instance ID (unique per instance) @default "" (auto-generated if empty)

std::map< std::string, std::string >	resource_attributes
	Additional resource attributes.

sampler_type	sampler = sampler_type::always_on
	Sampler type to use @default sampler_type::always_on.

double	sample_rate = 1.0
	Sampling rate (0.0 to 1.0)

otlp_config	otlp
	OTLP exporter configuration.

std::string	jaeger_endpoint = "http://localhost:14268/api/traces"
	Jaeger exporter endpoint @default "http://localhost:14268/api/traces".

std::string	zipkin_endpoint = "http://localhost:9411/api/v2/spans"
	Zipkin exporter endpoint @default "http://localhost:9411/api/v2/spans".

batch_config	batch
	Batch export configuration.

bool	debug = false
	Enable debug output @default false.

Detailed Description

Main configuration structure for tracing.

This structure contains all configuration options for the tracing system, including exporter selection, sampling configuration, and service metadata.

Example usage:: tracing_config config;

config.service_name = "my-service";

config.exporter = exporter_type::otlp_grpc;

config.otlp.endpoint = "http://otel-collector:4317";

config.sample_rate = 0.1; // Sample 10% of traces

configure_tracing(config);

config
tracing_config config
Definition exporters.cpp:29

kcenon::network::tracing::exporter_type::otlp_grpc
@ otlp_grpc
OTLP over gRPC (OpenTelemetry Collector)

kcenon::network::tracing::configure_tracing
void configure_tracing(const tracing_config &config)
Initialize the tracing system with configuration.
Definition exporters.cpp:599

kcenon::network::tracing::tracing_config
Main configuration structure for tracing.
Definition tracing_config.h:136

Definition at line 135 of file tracing_config.h.

Member Function Documentation

◆ console()

static auto kcenon::network::tracing::tracing_config::console ( ) -> tracing_config

inlinestaticnodiscard

Create default configuration with console exporter.

Returns: Configuration for console output

Definition at line 218 of file tracing_config.h.

    {
        tracing_config config;
        config.exporter = exporter_type::console;
        return config;
    }

References config, and kcenon::network::tracing::console.

◆ disabled()

static auto kcenon::network::tracing::tracing_config::disabled ( ) -> tracing_config

inlinestaticnodiscard

Create disabled tracing configuration.

Returns: Configuration with tracing disabled

Definition at line 272 of file tracing_config.h.

    {
        return tracing_config{};
    }

◆ jaeger()

static auto kcenon::network::tracing::tracing_config::jaeger ( const std::string & endpoint = "http://localhost:14268/api/traces" ) -> tracing_config

inlinestaticnodiscard

Create default configuration for Jaeger exporter.

Parameters

endpoint Jaeger collector endpoint

Returns: Configuration for Jaeger export

Definition at line 258 of file tracing_config.h.

                                         ://localhost:14268/api/traces")
        -> tracing_config
    {
        tracing_config config;
        config.exporter = exporter_type::jaeger;
        config.jaeger_endpoint = endpoint;
        return config;
    }

References config, and kcenon::network::tracing::jaeger.

◆ otlp_grpc()

static auto kcenon::network::tracing::tracing_config::otlp_grpc ( const std::string & endpoint = "http://localhost:4317" ) -> tracing_config

inlinestaticnodiscard

Create default configuration for OTLP gRPC exporter.

Parameters

endpoint OTLP endpoint URL

Returns: Configuration for OTLP gRPC export

Definition at line 230 of file tracing_config.h.

                                         ://localhost:4317") -> tracing_config
    {
        tracing_config config;
        config.exporter = exporter_type::otlp_grpc;
        config.otlp.endpoint = endpoint;
        return config;
    }

References config, and kcenon::network::tracing::otlp_grpc.

◆ otlp_http()

static auto kcenon::network::tracing::tracing_config::otlp_http ( const std::string & endpoint = "http://localhost:4318" ) -> tracing_config

inlinestaticnodiscard

Create default configuration for OTLP HTTP exporter.

Parameters

endpoint OTLP endpoint URL

Returns: Configuration for OTLP HTTP export

Definition at line 244 of file tracing_config.h.

                                         ://localhost:4318") -> tracing_config
    {
        tracing_config config;
        config.exporter = exporter_type::otlp_http;
        config.otlp.endpoint = endpoint;
        return config;
    }

References config, and kcenon::network::tracing::otlp_http.

Member Data Documentation

◆ batch

batch_config kcenon::network::tracing::tracing_config::batch

Batch export configuration.

Definition at line 206 of file tracing_config.h.

◆ debug

bool kcenon::network::tracing::tracing_config::debug = false

Enable debug output @default false.

Definition at line 212 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ exporter

exporter_type kcenon::network::tracing::tracing_config::exporter = exporter_type::none

Exporter type to use @default exporter_type::none.

Definition at line 141 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ jaeger_endpoint

std::string kcenon::network::tracing::tracing_config::jaeger_endpoint = "http://localhost:14268/api/traces"

Jaeger exporter endpoint @default "http://localhost:14268/api/traces".

Definition at line 195 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ otlp

otlp_config kcenon::network::tracing::tracing_config::otlp

OTLP exporter configuration.

Definition at line 189 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ resource_attributes

std::map<std::string, std::string> kcenon::network::tracing::tracing_config::resource_attributes

Additional resource attributes.

Definition at line 170 of file tracing_config.h.

◆ sample_rate

double kcenon::network::tracing::tracing_config::sample_rate = 1.0

Sampling rate (0.0 to 1.0)

Only used when sampler is trace_id. @default 1.0 (sample all traces)

Definition at line 184 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ sampler

sampler_type kcenon::network::tracing::tracing_config::sampler = sampler_type::always_on

Sampler type to use @default sampler_type::always_on.

Definition at line 176 of file tracing_config.h.

◆ service_instance_id

std::string kcenon::network::tracing::tracing_config::service_instance_id

Service instance ID (unique per instance) @default "" (auto-generated if empty)

Definition at line 165 of file tracing_config.h.

◆ service_name

std::string kcenon::network::tracing::tracing_config::service_name = "network_system"

Service name for trace identification @default "network_system".

Definition at line 147 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

◆ service_namespace

std::string kcenon::network::tracing::tracing_config::service_namespace

Service namespace @default "".

Definition at line 159 of file tracing_config.h.

◆ service_version

std::string kcenon::network::tracing::tracing_config::service_version

Service version @default "".

Definition at line 153 of file tracing_config.h.

◆ zipkin_endpoint

std::string kcenon::network::tracing::tracing_config::zipkin_endpoint = "http://localhost:9411/api/v2/spans"

Zipkin exporter endpoint @default "http://localhost:9411/api/v2/spans".

Definition at line 201 of file tracing_config.h.

Referenced by kcenon::network::tracing::configure_tracing().

The documentation for this struct was generated from the following file:

include/kcenon/network/detail/tracing/tracing_config.h
