kcenon::network::protocols::http2::http2_stream Struct Reference

HTTP/2 stream state and data. More...

#include <http2_client.h>

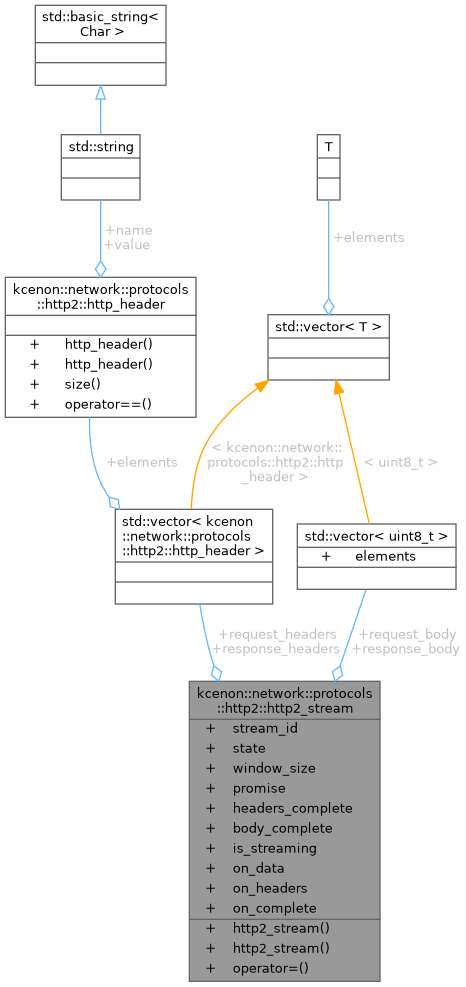

Collaboration diagram for kcenon::network::protocols::http2::http2_stream:

Public Member Functions
	http2_stream ()=default
	http2_stream (http2_stream &&other) noexcept
auto	operator= (http2_stream &&other) noexcept -> http2_stream &

Public Attributes
uint32_t	stream_id = 0
	Stream identifier.
std::atomic< stream_state >	state {stream_state::idle}
	Current state.
std::vector< http_header >	request_headers
	Request headers.
std::vector< http_header >	response_headers
	Response headers.
std::vector< uint8_t >	request_body
	Request body.
std::vector< uint8_t >	response_body
	Response body.
int32_t	window_size = 65535
	Flow control window.
std::promise< http2_response >	promise
	Response promise.
bool	headers_complete = false
	Headers fully received.
bool	body_complete = false
	Body fully received.
bool	is_streaming = false
	Streaming support.
std::function< void(std::vector< uint8_t >)>	on_data
	Callback for streaming data.
std::function< void(std::vector< http_header >)>	on_headers
	Callback for headers.
std::function< void(int)>	on_complete
	Callback when stream ends (status code)

Detailed Description

HTTP/2 stream state and data.

Definition at line 78 of file http2_client.h.

Constructor & Destructor Documentation

http2_stream() [1/2]

kcenon::network::protocols::http2::http2_stream::http2_stream ( )

default

http2_stream() [2/2]

kcenon::network::protocols::http2::http2_stream::http2_stream ( http2_stream && other )

inlinenoexcept

Definition at line 98 of file http2_client.h.

{ *this = std::move(other); }

Member Function Documentation

operator=()

auto kcenon::network::protocols::http2::http2_stream::operator= ( http2_stream && other ) -> http2_stream&

inlinenoexcept

Definition at line 99 of file http2_client.h.

        {
            if (this == &other) return *this;
            stream_id = other.stream_id;
            state.store(other.state.load());
            request_headers = std::move(other.request_headers);
            response_headers = std::move(other.response_headers);
            request_body = std::move(other.request_body);
            response_body = std::move(other.response_body);
            window_size = other.window_size;
            promise = std::move(other.promise);
            headers_complete = other.headers_complete;
            body_complete = other.body_complete;
            is_streaming = other.is_streaming;
            on_data = std::move(other.on_data);
            on_headers = std::move(other.on_headers);
            on_complete = std::move(other.on_complete);
            return *this;
        }

Member Data Documentation

body_complete

bool kcenon::network::protocols::http2::http2_stream::body_complete = false

Body fully received.

Definition at line 89 of file http2_client.h.

headers_complete

bool kcenon::network::protocols::http2::http2_stream::headers_complete = false

Headers fully received.

Definition at line 88 of file http2_client.h.

is_streaming

bool kcenon::network::protocols::http2::http2_stream::is_streaming = false

Streaming support.

Whether this is a streaming request

Definition at line 92 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_client::start_stream().

on_complete

std::function<void(int)> kcenon::network::protocols::http2::http2_stream::on_complete

Callback when stream ends (status code)

Definition at line 95 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_client::start_stream().

on_data

std::function<void(std::vector<uint8_t>)> kcenon::network::protocols::http2::http2_stream::on_data

Callback for streaming data.

Definition at line 93 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_client::start_stream().

on_headers

std::function<void(std::vector<http_header>)> kcenon::network::protocols::http2::http2_stream::on_headers

Callback for headers.

Definition at line 94 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_client::start_stream().

promise

std::promise<http2_response> kcenon::network::protocols::http2::http2_stream::promise

Response promise.

Definition at line 87 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_client::send_request().

request_body

std::vector<uint8_t> kcenon::network::protocols::http2::http2_stream::request_body

Request body.

Definition at line 84 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_server_connection::dispatch_request(), and kcenon::network::protocols::http2::http2_client::send_request().

request_headers

std::vector<http_header> kcenon::network::protocols::http2::http2_stream::request_headers

Request headers.

Definition at line 82 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_server_connection::dispatch_request(), kcenon::network::protocols::http2::http2_client::send_request(), and kcenon::network::protocols::http2::http2_client::start_stream().

response_body

std::vector<uint8_t> kcenon::network::protocols::http2::http2_stream::response_body

Response body.

Definition at line 85 of file http2_client.h.

response_headers

std::vector<http_header> kcenon::network::protocols::http2::http2_stream::response_headers

Response headers.

Definition at line 83 of file http2_client.h.

state

std::atomic<stream_state> kcenon::network::protocols::http2::http2_stream::state {stream_state::idle}

Current state.

Definition at line 81 of file http2_client.h.

{stream_state::idle};

Referenced by kcenon::network::protocols::http2::http2_server_connection::get_or_create_stream(), kcenon::network::protocols::http2::http2_client::send_request(), and kcenon::network::protocols::http2::http2_client::start_stream().

stream_id

uint32_t kcenon::network::protocols::http2::http2_stream::stream_id = 0

Stream identifier.

Definition at line 80 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_server_connection::get_or_create_stream(), kcenon::network::protocols::http2::http2_client::send_request(), and kcenon::network::protocols::http2::http2_client::start_stream().

window_size

int32_t kcenon::network::protocols::http2::http2_stream::window_size = 65535

Flow control window.

Definition at line 86 of file http2_client.h.

Referenced by kcenon::network::protocols::http2::http2_server_connection::get_or_create_stream().

---

The documentation for this struct was generated from the following file:

• src/internal/protocols/http2/http2_client.h
