Configuration for TLS/SSL connections. More...

#include <common_defs.h>

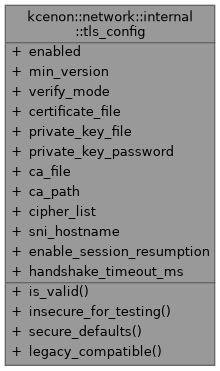

Collaboration diagram for kcenon::network::internal::tls_config:

Public Member Functions
auto	is_valid () const -> bool
	Validates the TLS configuration.

Static Public Member Functions
static auto	insecure_for_testing () -> tls_config
	Creates a default insecure configuration (testing only)

static auto	secure_defaults () -> tls_config
	Creates a secure default configuration.

static auto	legacy_compatible () -> tls_config
	Creates a backwards-compatible configuration (TLS 1.2+)

Public Attributes
bool	enabled = false
	Enable TLS/SSL for this connection (default: false)

tls_version	min_version = tls_version::tls_1_3
	Minimum TLS version to accept (default: TLS 1.3) Note: TLS 1.3 is enforced by default to prevent downgrade attacks (TICKET-009)

certificate_verification	verify_mode = certificate_verification::verify_peer
	Certificate verification mode (default: verify_peer)

std::optional< std::string >	certificate_file
	Path to server certificate file (PEM format) Required for servers when TLS is enabled.

std::optional< std::string >	private_key_file
	Path to server private key file (PEM format) Required for servers when TLS is enabled.

std::optional< std::string >	private_key_password
	Password for encrypted private key (if applicable)

std::optional< std::string >	ca_file
	Path to CA certificate file for verification (PEM format) Required when verify_mode != none.

std::optional< std::string >	ca_path
	Path to directory containing CA certificates.

std::optional< std::string >	cipher_list
	Cipher suite list (OpenSSL format) Default: Use strong ciphers (TLS 1.2+) Example: "ECDHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES128-GCM-SHA256".

std::optional< std::string >	sni_hostname
	Server Name Indication (SNI) hostname for clients Used for virtual hosting and certificate selection.

bool	enable_session_resumption = true
	Enable session resumption for performance.

std::size_t	handshake_timeout_ms = 10000
	Timeout for TLS handshake in milliseconds.

Detailed Description

Configuration for TLS/SSL connections.

This structure provides all necessary configuration for establishing secure TLS connections using ASIO SSL support.

Example Usage (Server)

tls_config server_tls;
server_tls.enabled = true;
server_tls.min_version = tls_version::tls_1_2;
server_tls.certificate_file = "/path/to/server.crt";
server_tls.private_key_file = "/path/to/server.key";
server_tls.verify_mode = certificate_verification::verify_peer;
server_tls.ca_file = "/path/to/ca.crt";

Example Usage (Client)

tls_config client_tls;
client_tls.enabled = true;
client_tls.min_version = tls_version::tls_1_2;
client_tls.verify_mode = certificate_verification::verify_peer;
client_tls.ca_file = "/path/to/ca.crt";

Security Notes

Always use TLS 1.2 or 1.3 in production
Always verify peer certificates in production
Protect private key files with appropriate file permissions
Use strong cipher suites (configured via cipher_list)

Definition at line 163 of file common_defs.h.

Member Function Documentation

◆ insecure_for_testing()

static auto kcenon::network::internal::tls_config::insecure_for_testing ( ) -> tls_config

inlinestaticnodiscard

Creates a default insecure configuration (testing only)

Returns: TLS config with verification disabled

WARNING: This configuration is INSECURE and should only be used for development and testing. Never use in production!

Definition at line 239 of file common_defs.h.

                                                                       {
            tls_config config;
            config.enabled = true;
            config.verify_mode = certificate_verification::none;
            return config;
        }

References config, and kcenon::network::internal::none.

◆ is_valid()

auto kcenon::network::internal::tls_config::is_valid ( ) const -> bool

inlinenodiscard

Validates the TLS configuration.

Returns: true if configuration is valid, false otherwise

Checks that required files are specified for the chosen mode.

Definition at line 213 of file common_defs.h.

                                                    {
            if (!enabled) {
                return true;  // Valid if disabled
            }

            // If verification is enabled, CA file/path is required
            if (verify_mode != certificate_verification::none) {
                if (!ca_file.has_value() && !ca_path.has_value()) {
                    return false;
                }
            }

            // Note: Certificate and private key validation depends on whether
            // this is a server or client configuration, which is context-dependent.
            // Server-specific validation should be done by the server class.

            return true;
        }

References ca_file, ca_path, enabled, kcenon::network::internal::none, and verify_mode.

◆ legacy_compatible()

static auto kcenon::network::internal::tls_config::legacy_compatible ( ) -> tls_config

inlinestaticnodiscard

Creates a backwards-compatible configuration (TLS 1.2+)

Returns: TLS config allowing TLS 1.2 for legacy client compatibility

WARNING: This allows TLS 1.2 which may be vulnerable to downgrade attacks. Use only when TLS 1.3 is not supported by all clients.

Definition at line 269 of file common_defs.h.

                                                                    {
            tls_config config;
            config.enabled = true;
            config.min_version = tls_version::tls_1_2;
            config.verify_mode = certificate_verification::verify_peer;
            config.enable_session_resumption = true;
            return config;
        }

References config, kcenon::network::internal::tls_1_2, and kcenon::network::internal::verify_peer.

◆ secure_defaults()

static auto kcenon::network::internal::tls_config::secure_defaults ( ) -> tls_config

inlinestaticnodiscard

Creates a secure default configuration.

Returns: TLS config with secure defaults (TLS 1.3 minimum)

You must still set certificate/key files and CA certificates. Uses TLS 1.3 by default to prevent protocol downgrade attacks.

Definition at line 253 of file common_defs.h.

                                                                  {
            tls_config config;
            config.enabled = true;
            config.min_version = tls_version::tls_1_3;
            config.verify_mode = certificate_verification::verify_peer;
            config.enable_session_resumption = true;
            return config;
        }

References config, kcenon::network::internal::tls_1_3, and kcenon::network::internal::verify_peer.

Member Data Documentation

◆ ca_file

std::optional<std::string> kcenon::network::internal::tls_config::ca_file

Path to CA certificate file for verification (PEM format) Required when verify_mode != none.

Definition at line 187 of file common_defs.h.

Referenced by is_valid().

◆ ca_path

std::optional<std::string> kcenon::network::internal::tls_config::ca_path

Path to directory containing CA certificates.

Definition at line 190 of file common_defs.h.

Referenced by is_valid().

◆ certificate_file

std::optional<std::string> kcenon::network::internal::tls_config::certificate_file

Path to server certificate file (PEM format) Required for servers when TLS is enabled.

Definition at line 176 of file common_defs.h.

◆ cipher_list

std::optional<std::string> kcenon::network::internal::tls_config::cipher_list

Cipher suite list (OpenSSL format) Default: Use strong ciphers (TLS 1.2+) Example: "ECDHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES128-GCM-SHA256".

Definition at line 195 of file common_defs.h.

◆ enable_session_resumption

bool kcenon::network::internal::tls_config::enable_session_resumption = true

Enable session resumption for performance.

Definition at line 202 of file common_defs.h.

◆ enabled

bool kcenon::network::internal::tls_config::enabled = false

Enable TLS/SSL for this connection (default: false)

Definition at line 165 of file common_defs.h.

Referenced by is_valid().

◆ handshake_timeout_ms

std::size_t kcenon::network::internal::tls_config::handshake_timeout_ms = 10000

Timeout for TLS handshake in milliseconds.

Definition at line 205 of file common_defs.h.

◆ min_version

tls_version kcenon::network::internal::tls_config::min_version = tls_version::tls_1_3

Minimum TLS version to accept (default: TLS 1.3) Note: TLS 1.3 is enforced by default to prevent downgrade attacks (TICKET-009)

Definition at line 169 of file common_defs.h.

◆ private_key_file

std::optional<std::string> kcenon::network::internal::tls_config::private_key_file

Path to server private key file (PEM format) Required for servers when TLS is enabled.

Definition at line 180 of file common_defs.h.

◆ private_key_password

std::optional<std::string> kcenon::network::internal::tls_config::private_key_password

Password for encrypted private key (if applicable)

Definition at line 183 of file common_defs.h.

◆ sni_hostname

std::optional<std::string> kcenon::network::internal::tls_config::sni_hostname

Server Name Indication (SNI) hostname for clients Used for virtual hosting and certificate selection.

Definition at line 199 of file common_defs.h.

◆ verify_mode

certificate_verification kcenon::network::internal::tls_config::verify_mode = certificate_verification::verify_peer

Certificate verification mode (default: verify_peer)

Definition at line 172 of file common_defs.h.

Referenced by is_valid().

The documentation for this struct was generated from the following file:

src/internal/utils/common_defs.h
