memory_profile_demo.cpp File Reference

Memory profiling demonstration for Network System. More...

#include <kcenon/network/facade/tcp_facade.h>
#include <kcenon/network/interfaces/i_session.h>
#include <iostream>
#include <iomanip>
#include <vector>
#include <memory>
#include <thread>
#include <chrono>
#include <string>
#include <cstring>
#include <map>
#include <mutex>

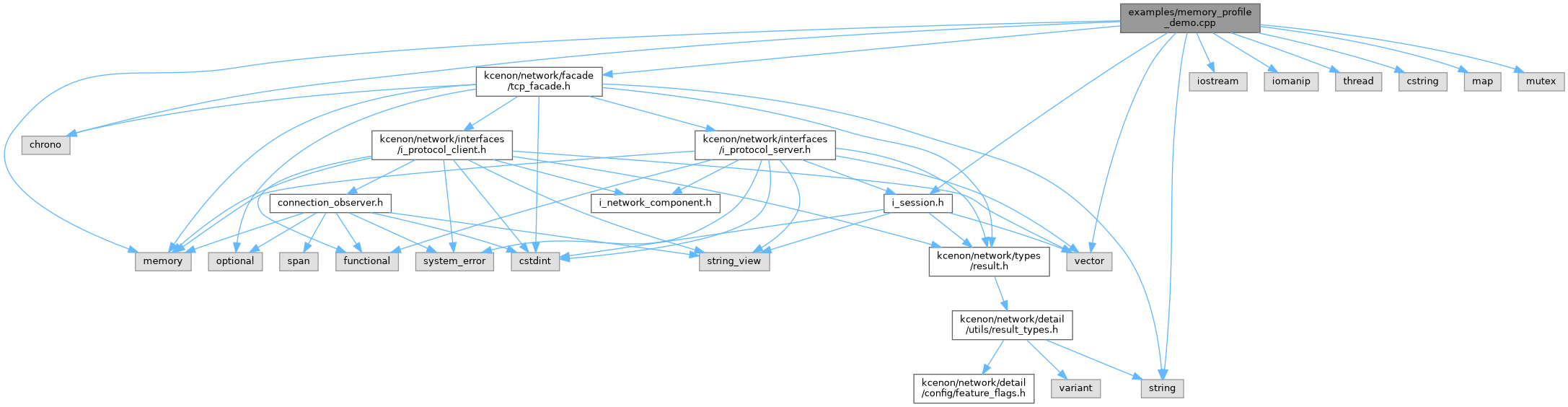

Include dependency graph for memory_profile_demo.cpp:

Go to the source code of this file.

Functions
size_t	get_current_rss ()
	Get current RSS (Resident Set Size) in bytes.
size_t	get_virtual_memory ()
	Get current virtual memory size in bytes.
void	print_memory_stats (const std::string &label)
	Print memory statistics with label.
void	profile_connections (int num_connections)
	Profile connection memory overhead.
void	profile_message_throughput (int num_messages)
	Profile message throughput memory.
void	profile_long_running (int duration_seconds)
	Profile long-running stability.
void	print_usage (const char *program_name)
int	main (int argc, char *argv[])

Detailed Description

Memory profiling demonstration for Network System.

This demo shows how to profile memory usage patterns including:

• Connection memory overhead
• Message throughput memory
• Long-running stability

Definition in file memory_profile_demo.cpp.

Function Documentation

get_current_rss()

size_t get_current_rss

(

)

Get current RSS (Resident Set Size) in bytes.

Definition at line 41 of file memory_profile_demo.cpp.

                         {
#if defined(__APPLE__)
    mach_task_basic_info_data_t info;
    mach_msg_type_number_t count = MACH_TASK_BASIC_INFO_COUNT;
    if (task_info(mach_task_self(), MACH_TASK_BASIC_INFO,
                  reinterpret_cast<task_info_t>(&info), &count) == KERN_SUCCESS) {
        return info.resident_size;
    }
    return 0;
#elif defined(__linux__)
    std::ifstream statm("/proc/self/statm");
    size_t size, rss;
    statm >> size >> rss;
    return rss * static_cast<size_t>(sysconf(_SC_PAGESIZE));
#else
    return 0;
#endif
}

Referenced by print_memory_stats(), profile_connections(), profile_long_running(), and profile_message_throughput().

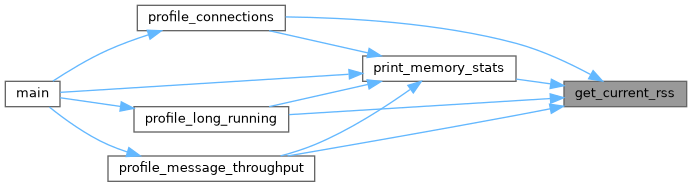

Here is the caller graph for this function:

get_virtual_memory()

size_t get_virtual_memory

(

)

Get current virtual memory size in bytes.

Definition at line 63 of file memory_profile_demo.cpp.

                            {
#if defined(__APPLE__)
    mach_task_basic_info_data_t info;
    mach_msg_type_number_t count = MACH_TASK_BASIC_INFO_COUNT;
    if (task_info(mach_task_self(), MACH_TASK_BASIC_INFO,
                  reinterpret_cast<task_info_t>(&info), &count) == KERN_SUCCESS) {
        return info.virtual_size;
    }
    return 0;
#elif defined(__linux__)
    std::ifstream statm("/proc/self/statm");
    size_t size;
    statm >> size;
    return size * static_cast<size_t>(sysconf(_SC_PAGESIZE));
#else
    return 0;
#endif
}

Referenced by print_memory_stats().

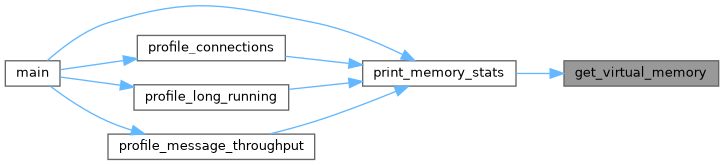

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char *	argv[] )

Definition at line 343 of file memory_profile_demo.cpp.

                                 {
    std::cout << "========================================\n";
    std::cout << "  Network System Memory Profiling Demo\n";
    std::cout << "========================================\n";

    std::string mode = "all";
    if (argc > 1) {
        if (std::strcmp(argv[1], "-h") == 0 || std::strcmp(argv[1], "--help") == 0) {
            print_usage(argv[0]);
            return 0;
        }
        mode = argv[1];
    }

    print_memory_stats("Program start");

    if (mode == "connections" || mode == "all") {
        profile_connections(200);
    }

    if (mode == "messages" || mode == "all") {
        profile_message_throughput(10000);
    }

    if (mode == "stability" || mode == "all") {
        profile_long_running(10);
    }

    std::cout << "\n========================================\n";
    std::cout << "  Profiling Complete\n";
    std::cout << "========================================\n";

    return 0;
}

References print_memory_stats(), print_usage(), profile_connections(), profile_long_running(), and profile_message_throughput().

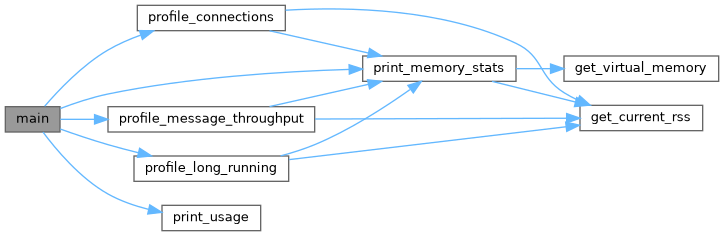

Here is the call graph for this function:

print_memory_stats()

void print_memory_stats

(

const std::string &

label

)

Print memory statistics with label.

Definition at line 85 of file memory_profile_demo.cpp.

                                                {
    size_t rss = get_current_rss();
    size_t vms = get_virtual_memory();
    std::cout << std::left << std::setw(40) << ("[" + label + "]")
              << "RSS: " << std::setw(8) << (rss / (1024 * 1024)) << " MB"
              << "  VMS: " << std::setw(8) << (vms / (1024 * 1024)) << " MB"
              << std::endl;
}

References get_current_rss(), and get_virtual_memory().

Referenced by main(), profile_connections(), profile_long_running(), and profile_message_throughput().

Here is the call graph for this function:

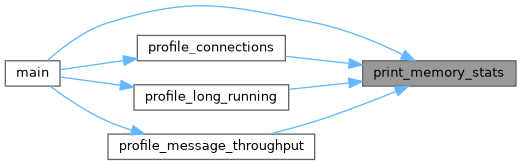

Here is the caller graph for this function:

print_usage()

void print_usage

(

const char *

program_name

)

Definition at line 331 of file memory_profile_demo.cpp.

                                           {
    std::cout << "Usage: " << program_name << " [mode]\n\n";
    std::cout << "Modes:\n";
    std::cout << "  connections  - Profile connection memory overhead\n";
    std::cout << "  messages     - Profile message throughput memory\n";
    std::cout << "  stability    - Profile long-running stability\n";
    std::cout << "  all          - Run all profiles (default)\n";
    std::cout << "\nExamples:\n";
    std::cout << "  " << program_name << " connections\n";
    std::cout << "  " << program_name << " all\n";
}

Referenced by main().

Here is the caller graph for this function:

profile_connections()

void profile_connections

(

int

num_connections

)

Profile connection memory overhead.

Definition at line 97 of file memory_profile_demo.cpp.

                                              {
    std::cout << "\n========================================\n";
    std::cout << "  Profiling Connection Memory\n";
    std::cout << "  Target: " << num_connections << " connections\n";
    std::cout << "========================================\n\n";

    size_t baseline_rss = get_current_rss();
    print_memory_stats("Before server start");

    facade::tcp_facade tcp;
    auto server = tcp.create_server({
        .port = 5555,
        .server_id = "profile-server"
    });

    auto start_result = server->start(5555);

    if (start_result.is_err()) {
        std::cerr << "Failed to start server: " << start_result.error().message << std::endl;
        return;
    }

    print_memory_stats("After server start");
    std::this_thread::sleep_for(std::chrono::milliseconds(100));

    std::vector<std::shared_ptr<interfaces::i_protocol_client>> clients;
    clients.reserve(static_cast<size_t>(num_connections));

    size_t before_clients_rss = get_current_rss();

    for (int i = 0; i < num_connections; ++i) {
        auto client = tcp.create_client({
            .client_id = "client-" + std::to_string(i)
        });
        auto result = client->start("localhost", 5555);

        if (result.is_ok()) {
            clients.push_back(std::move(client));
        } else {
            std::cerr << "Failed to connect client " << i << std::endl;
        }

        if ((i + 1) % 50 == 0) {
            print_memory_stats("After " + std::to_string(i + 1) + " connections");
        }
    }

    size_t after_clients_rss = get_current_rss();
    size_t total_client_memory = after_clients_rss - before_clients_rss;

    std::cout << "\n--- Connection Memory Summary ---\n";
    std::cout << "Connections created: " << clients.size() << "\n";
    std::cout << "Total memory for clients: " << (total_client_memory / 1024) << " KB\n";
    if (!clients.empty()) {
        std::cout << "Memory per connection: ~"
                  << (total_client_memory / clients.size() / 1024) << " KB\n";
    }

    // Cleanup
    std::cout << "\n--- Cleanup ---\n";
    for (auto& client : clients) {
        (void)client->stop();
    }
    clients.clear();

    std::this_thread::sleep_for(std::chrono::milliseconds(500));
    print_memory_stats("After cleanup");

    (void)server->stop();
    std::this_thread::sleep_for(std::chrono::milliseconds(100));
    print_memory_stats("After server stop");

    size_t final_rss = get_current_rss();
    std::cout << "\nMemory delta from baseline: "
              << static_cast<long long>(final_rss - baseline_rss) / 1024 << " KB\n";
}

References get_current_rss(), and print_memory_stats().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

profile_long_running()

void profile_long_running

(

int

duration_seconds

)

Profile long-running stability.

Definition at line 255 of file memory_profile_demo.cpp.

                                                {
    std::cout << "\n========================================\n";
    std::cout << "  Profiling Long-Running Stability\n";
    std::cout << "  Duration: " << duration_seconds << " seconds\n";
    std::cout << "========================================\n\n";

    size_t baseline_rss = get_current_rss();
    size_t peak_rss = baseline_rss;
    print_memory_stats("Baseline");

    facade::tcp_facade tcp;
    auto server = tcp.create_server({
        .port = 5557,
        .server_id = "profile-server"
    });

    auto server_result = server->start(5557);

    if (server_result.is_err()) {
        std::cerr << "Failed to start server\n";
        return;
    }

    print_memory_stats("After server start");

    auto start_time = std::chrono::steady_clock::now();
    int iterations = 0;
    int successful_cycles = 0;

    while (std::chrono::steady_clock::now() - start_time <
           std::chrono::seconds(duration_seconds)) {

        // Create client, send message, disconnect
        auto client = tcp.create_client({
            .client_id = "temp-client"
        });
        auto result = client->start("localhost", 5557);

        if (result.is_ok()) {
            (void)client->send({'t', 'e', 's', 't'});
            (void)client->stop();
            successful_cycles++;
        }

        iterations++;

        size_t current_rss = get_current_rss();
        if (current_rss > peak_rss) {
            peak_rss = current_rss;
        }

        if (iterations % 100 == 0) {
            print_memory_stats("After " + std::to_string(iterations) + " cycles");
        }

        std::this_thread::sleep_for(std::chrono::milliseconds(10));
    }

    std::cout << "\n--- Long-Running Summary ---\n";
    std::cout << "Total iterations: " << iterations << "\n";
    std::cout << "Successful cycles: " << successful_cycles << "\n";
    std::cout << "Peak RSS: " << (peak_rss / (1024 * 1024)) << " MB\n";

    (void)server->stop();

    std::this_thread::sleep_for(std::chrono::milliseconds(200));
    print_memory_stats("Final");

    size_t final_rss = get_current_rss();
    std::cout << "\nMemory delta from baseline: "
              << static_cast<long long>(final_rss - baseline_rss) / 1024 << " KB\n";
    std::cout << "Memory leak indicator: "
              << (final_rss > baseline_rss + 1024 * 1024 ? "POSSIBLE LEAK" : "OK")
              << "\n";
}

References get_current_rss(), and print_memory_stats().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

profile_message_throughput()

void profile_message_throughput

(

int

num_messages

)

Profile message throughput memory.

Definition at line 177 of file memory_profile_demo.cpp.

                                                  {
    std::cout << "\n========================================\n";
    std::cout << "  Profiling Message Memory\n";
    std::cout << "  Target: " << num_messages << " messages\n";
    std::cout << "========================================\n\n";

    size_t baseline_rss = get_current_rss();
    print_memory_stats("Before start");

    facade::tcp_facade tcp;
    auto server = tcp.create_server({
        .port = 5556,
        .server_id = "profile-server"
    });

    auto server_result = server->start(5556);

    if (server_result.is_err()) {
        std::cerr << "Failed to start server\n";
        return;
    }

    std::this_thread::sleep_for(std::chrono::milliseconds(100));

    auto client = tcp.create_client({
        .client_id = "profile-client"
    });
    auto client_result = client->start("localhost", 5556);

    if (client_result.is_err()) {
        std::cerr << "Failed to connect client\n";
        (void)server->stop();
        return;
    }

    print_memory_stats("Before messages");

    auto start_time = std::chrono::steady_clock::now();

    for (int i = 0; i < num_messages; ++i) {
        std::vector<uint8_t> msg(1024, static_cast<uint8_t>(i % 256));
        (void)client->send(std::move(msg));

        if ((i + 1) % 5000 == 0) {
            print_memory_stats("After " + std::to_string(i + 1) + " messages");
        }
    }

    auto end_time = std::chrono::steady_clock::now();
    auto duration = std::chrono::duration_cast<std::chrono::milliseconds>(end_time - start_time);

    print_memory_stats("After all messages");

    std::cout << "\n--- Message Throughput Summary ---\n";
    std::cout << "Messages sent: " << num_messages << "\n";
    std::cout << "Total time: " << duration.count() << " ms\n";
    std::cout << "Throughput: " << (num_messages * 1000 / std::max(1LL, static_cast<long long>(duration.count())))
              << " msg/s\n";

    // Wait for processing
    std::this_thread::sleep_for(std::chrono::seconds(1));
    print_memory_stats("After processing");

    // Cleanup
    (void)client->stop();
    (void)server->stop();

    std::this_thread::sleep_for(std::chrono::milliseconds(200));
    print_memory_stats("After cleanup");

    size_t final_rss = get_current_rss();
    std::cout << "\nMemory delta from baseline: "
              << static_cast<long long>(final_rss - baseline_rss) / 1024 << " KB\n";
}

References get_current_rss(), and print_memory_stats().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:
