kcenon::network::utils::startable_base< Derived > Class Template Reference

CRTP base class providing unified start/stop lifecycle management. More...

#include <startable_base.h>

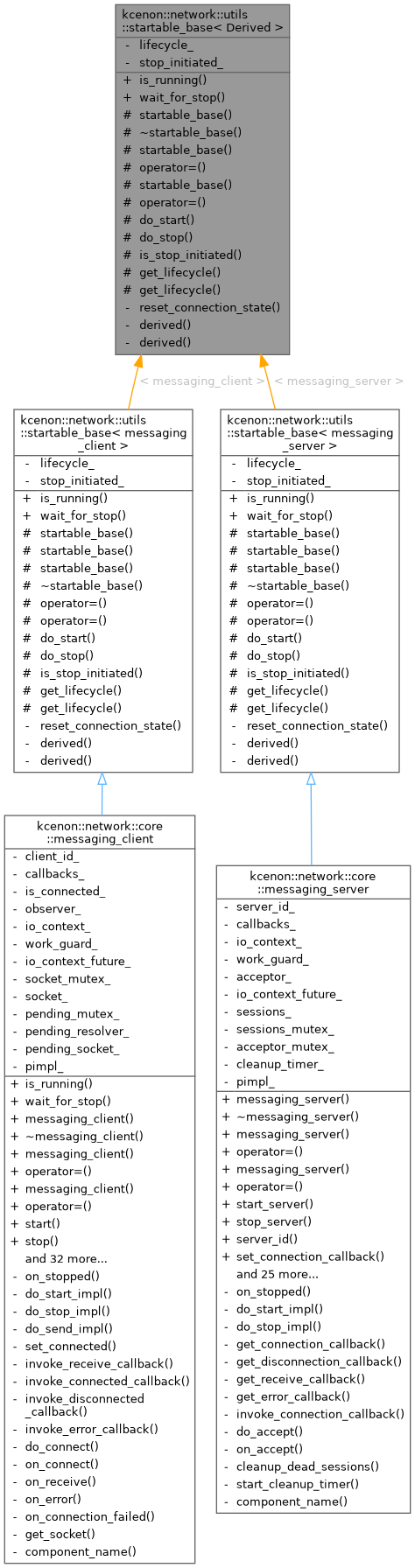

Inheritance diagram for kcenon::network::utils::startable_base< Derived >:

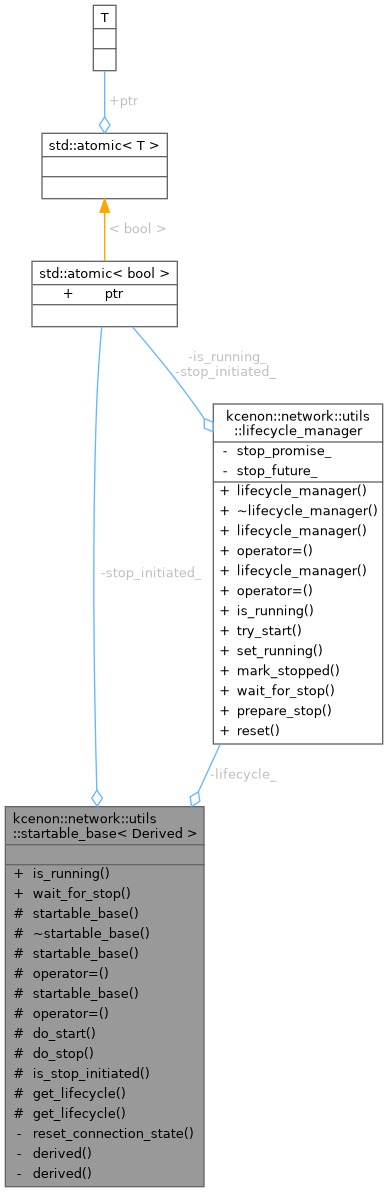

Collaboration diagram for kcenon::network::utils::startable_base< Derived >:

Public Member Functions
auto	is_running () const noexcept -> bool
	Checks if the component is currently running.
auto	wait_for_stop () -> void
	Blocks until stop is called.

Protected Member Functions
	startable_base ()=default
	Default constructor.
	~startable_base ()=default
	Destructor.
	startable_base (const startable_base &)=delete
startable_base &	operator= (const startable_base &)=delete
	startable_base (startable_base &&) noexcept=default
startable_base &	operator= (startable_base &&) noexcept=default
template<typename... Args>
auto	do_start (Args &&... args) -> VoidResult
	Unified start operation with lifecycle management.
auto	do_stop () -> VoidResult
	Unified stop operation with lifecycle management.
auto	is_stop_initiated () const noexcept -> bool
	Checks if stop has been initiated.
auto	get_lifecycle () -> lifecycle_manager &
	Gets the lifecycle manager for derived class access.
auto	get_lifecycle () const -> const lifecycle_manager &
	Gets the lifecycle manager (const version).

Private Member Functions
auto	reset_connection_state () -> void
	Resets connection state flags for a fresh start.
auto	derived () -> Derived &
	CRTP accessor for derived class.
auto	derived () const -> const Derived &
	CRTP accessor for derived class (const version).

Private Attributes
lifecycle_manager	lifecycle_
std::atomic< bool >	stop_initiated_ {false}

Detailed Description

template<typename Derived>
class kcenon::network::utils::startable_base< Derived >

CRTP base class providing unified start/stop lifecycle management.

This template extracts the common start/stop lifecycle pattern from client and server implementations. It handles:

• Running state checks and transitions
• Atomic flag management for stop prevention
• Connection state reset
• Error handling with state rollback

Template Parameters

Derived

The derived class using CRTP pattern.

Required Derived Class Interface

The derived class must implement:

• component_name() - Returns component identifier for error messages
• do_start_impl(args...) - Protocol-specific start implementation
• do_stop_impl() - Protocol-specific stop implementation
• on_stopped() - Called after successful stop (optional callbacks)

Thread Safety

All lifecycle methods are thread-safe using atomic operations.

Usage Example

class my_client : public startable_base<my_client> {
public:
    static constexpr std::string_view component_name() { return "MyClient"; }

    auto start_client(std::string_view host, unsigned short port) -> VoidResult {
        return do_start(host, port);
    }

    auto stop_client() -> VoidResult {
        return do_stop();
    }

protected:
    friend class startable_base<my_client>;

    auto do_start_impl(std::string_view host, unsigned short port) -> VoidResult {
        // TCP-specific implementation
    }

    auto do_stop_impl() -> VoidResult {
        // TCP-specific cleanup
    }

    auto on_stopped() -> void {
        // Invoke disconnected callback
    }
};

Definition at line 89 of file startable_base.h.

Constructor & Destructor Documentation

startable_base() [1/3]

template<typename Derived >

kcenon::network::utils::startable_base< Derived >::startable_base ( )

protecteddefault

Default constructor.

~startable_base()

template<typename Derived >

kcenon::network::utils::startable_base< Derived >::~startable_base ( )

protecteddefault

Destructor.

startable_base() [2/3]

template<typename Derived >

kcenon::network::utils::startable_base< Derived >::startable_base ( const startable_base< Derived > & )

protecteddelete

startable_base() [3/3]

template<typename Derived >

kcenon::network::utils::startable_base< Derived >::startable_base ( startable_base< Derived > && )

protecteddefaultnoexcept

Member Function Documentation

derived() [1/2]

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::derived ( ) -> Derived&

inlinenodiscardprivate

CRTP accessor for derived class.

Returns

Reference to the derived class instance.

Definition at line 242 of file startable_base.h.

        {
            return static_cast<Derived&>(*this);
        }

Referenced by kcenon::network::utils::startable_base< Derived >::do_start(), and kcenon::network::utils::startable_base< Derived >::do_stop().

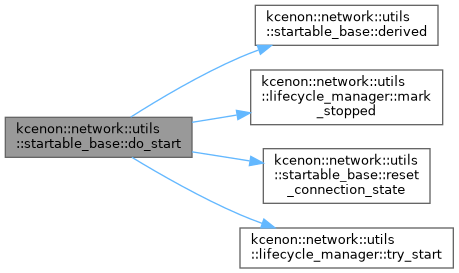

Here is the caller graph for this function:

derived() [2/2]

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::derived ( ) const -> const Derived&

inlinenodiscardprivate

CRTP accessor for derived class (const version).

Returns

Const reference to the derived class instance.

Definition at line 251 of file startable_base.h.

        {
            return static_cast<const Derived&>(*this);
        }

do_start()

template<typename Derived >

template<typename... Args>

auto kcenon::network::utils::startable_base< Derived >::do_start ( Args &&... args ) -> VoidResult

inlinenodiscardprotected

Unified start operation with lifecycle management.

Template Parameters

Args	The argument types for the start operation.

Parameters

args	The arguments to pass to do_start_impl.

Returns

Result<void> - Success if started, or error with code:

• error_codes::common_errors::already_exists if already running
• Propagated error from do_start_impl on failure

State Transitions

1. Check if already running -> return error
2. Set running state
3. Reset connection state flags
4. Call derived's do_start_impl
5. On failure: rollback to stopped state

Definition at line 144 of file startable_base.h.

        {
            if (!lifecycle_.try_start())
            {
                return error_void(
                    error_codes::common_errors::already_exists,
                    std::string(derived().component_name()) + " is already running",
                    "startable_base::do_start",
                    std::string(derived().component_name()));
            }

            reset_connection_state();

            auto result = derived().do_start_impl(std::forward<Args>(args)...);

            if (result.is_err())
            {
                lifecycle_.mark_stopped();
            }

            return result;
        }

References kcenon::network::utils::startable_base< Derived >::derived(), kcenon::network::utils::startable_base< Derived >::lifecycle_, kcenon::network::utils::lifecycle_manager::mark_stopped(), kcenon::network::utils::startable_base< Derived >::reset_connection_state(), and kcenon::network::utils::lifecycle_manager::try_start().

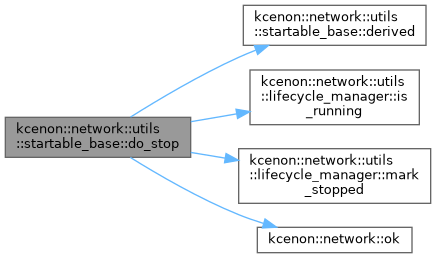

Here is the call graph for this function:

do_stop()

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::do_stop ( ) -> VoidResult

inlinenodiscardprotected

Unified stop operation with lifecycle management.

Returns

Result<void> - Success if stopped (or already stopped).

State Transitions

1. If not running -> return ok (idempotent)
2. Prevent multiple concurrent stops via atomic flag
3. Call derived's do_stop_impl
4. Mark as stopped
5. Call derived's on_stopped for cleanup callbacks

Definition at line 178 of file startable_base.h.

        {
            if (!lifecycle_.is_running())
            {
                return ok();
            }

            // Prevent multiple stop calls
            bool expected = false;
            if (!stop_initiated_.compare_exchange_strong(expected, true,
                                                          std::memory_order_acq_rel))
            {
                return ok();
            }

            auto result = derived().do_stop_impl();
            lifecycle_.mark_stopped();

            // Call derived class's on_stopped hook for callbacks
            derived().on_stopped();

            return result;
        }

References kcenon::network::utils::startable_base< Derived >::derived(), kcenon::network::utils::lifecycle_manager::is_running(), kcenon::network::utils::startable_base< Derived >::lifecycle_, kcenon::network::utils::lifecycle_manager::mark_stopped(), kcenon::network::ok(), and kcenon::network::utils::startable_base< Derived >::stop_initiated_.

Here is the call graph for this function:

get_lifecycle() [1/2]

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::get_lifecycle ( ) -> lifecycle_manager&

inlinenodiscardprotected

Gets the lifecycle manager for derived class access.

Returns

Reference to the lifecycle manager.

Definition at line 215 of file startable_base.h.

        {
            return lifecycle_;
        }

References kcenon::network::utils::startable_base< Derived >::lifecycle_.

get_lifecycle() [2/2]

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::get_lifecycle ( ) const -> const lifecycle_manager&

inlinenodiscardprotected

Gets the lifecycle manager (const version).

Returns

Const reference to the lifecycle manager.

Definition at line 224 of file startable_base.h.

        {
            return lifecycle_;
        }

References kcenon::network::utils::startable_base< Derived >::lifecycle_.

is_running()

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::is_running ( ) const -> bool

inlinenodiscardnoexcept

Checks if the component is currently running.

Returns

true if running, false otherwise.

Definition at line 96 of file startable_base.h.

        {
            return lifecycle_.is_running();
        }

References kcenon::network::utils::lifecycle_manager::is_running(), and kcenon::network::utils::startable_base< Derived >::lifecycle_.

Referenced by kcenon::network::core::messaging_client::is_running().

Here is the call graph for this function:

Here is the caller graph for this function:

is_stop_initiated()

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::is_stop_initiated ( ) const -> bool

inlinenodiscardprotectednoexcept

Checks if stop has been initiated.

Returns

true if stop is in progress, false otherwise.

Definition at line 206 of file startable_base.h.

        {
            return stop_initiated_.load(std::memory_order_acquire);
        }

References kcenon::network::utils::startable_base< Derived >::stop_initiated_.

operator=() [1/2]

template<typename Derived >

startable_base & kcenon::network::utils::startable_base< Derived >::operator= ( const startable_base< Derived > & )

protecteddelete

operator=() [2/2]

template<typename Derived >

startable_base & kcenon::network::utils::startable_base< Derived >::operator= ( startable_base< Derived > && )

protecteddefaultnoexcept

reset_connection_state()

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::reset_connection_state ( ) -> void

inlineprivate

Resets connection state flags for a fresh start.

Definition at line 233 of file startable_base.h.

        {
            stop_initiated_.store(false, std::memory_order_release);
        }

References kcenon::network::utils::startable_base< Derived >::stop_initiated_.

Referenced by kcenon::network::utils::startable_base< Derived >::do_start().

Here is the caller graph for this function:

wait_for_stop()

template<typename Derived >

auto kcenon::network::utils::startable_base< Derived >::wait_for_stop ( ) -> void

inline

Blocks until stop is called.

Definition at line 104 of file startable_base.h.

        {
            lifecycle_.wait_for_stop();
        }

References kcenon::network::utils::startable_base< Derived >::lifecycle_, and kcenon::network::utils::lifecycle_manager::wait_for_stop().

Referenced by kcenon::network::core::messaging_client::wait_for_stop().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

lifecycle_

template<typename Derived >

lifecycle_manager kcenon::network::utils::startable_base< Derived >::lifecycle_

private

Lifecycle state manager.

Definition at line 256 of file startable_base.h.

Referenced by kcenon::network::utils::startable_base< Derived >::do_start(), kcenon::network::utils::startable_base< Derived >::do_stop(), kcenon::network::utils::startable_base< Derived >::get_lifecycle(), kcenon::network::utils::startable_base< Derived >::get_lifecycle(), kcenon::network::utils::startable_base< Derived >::is_running(), and kcenon::network::utils::startable_base< Derived >::wait_for_stop().

stop_initiated_

template<typename Derived >

std::atomic<bool> kcenon::network::utils::startable_base< Derived >::stop_initiated_ {false}

private

Stop in progress flag.

Definition at line 257 of file startable_base.h.

{false};

Referenced by kcenon::network::utils::startable_base< Derived >::do_stop(), kcenon::network::utils::startable_base< Derived >::is_stop_initiated(), and kcenon::network::utils::startable_base< Derived >::reset_connection_state().

---

The documentation for this class was generated from the following file:

• include/kcenon/network/detail/utils/startable_base.h
