kcenon::network::unified::i_transport Interface Reference

Core interface for data transport abstraction. More...

#include <i_transport.h>

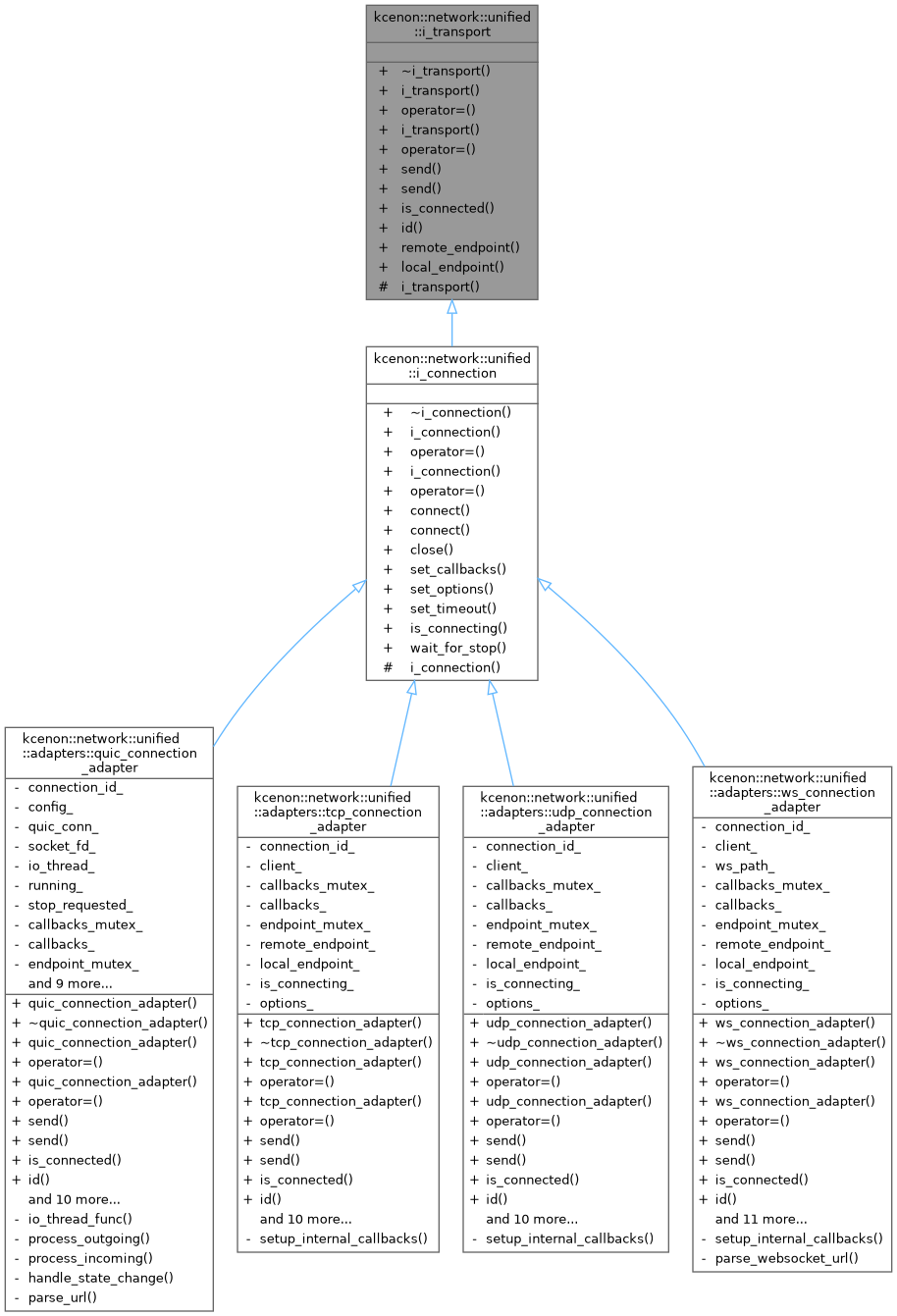

Inheritance diagram for kcenon::network::unified::i_transport:

Collaboration diagram for kcenon::network::unified::i_transport:

Public Member Functions
virtual	~i_transport ()=default
	Virtual destructor for proper cleanup of derived classes.
	i_transport (const i_transport &)=delete
i_transport &	operator= (const i_transport &)=delete
	i_transport (i_transport &&)=default
i_transport &	operator= (i_transport &&)=default
virtual auto	send (std::span< const std::byte > data) -> VoidResult=0
	Sends raw data to the remote endpoint.
virtual auto	send (std::vector< uint8_t > &&data) -> VoidResult=0
	Sends data from a uint8_t vector.
virtual auto	is_connected () const noexcept -> bool=0
	Checks if the transport is currently connected.
virtual auto	id () const noexcept -> std::string_view=0
	Gets the unique identifier for this transport/connection.
virtual auto	remote_endpoint () const noexcept -> endpoint_info=0
	Gets the remote endpoint information.
virtual auto	local_endpoint () const noexcept -> endpoint_info=0
	Gets the local endpoint information.

Protected Member Functions
	i_transport ()=default
	Default constructor (only for derived classes)

Detailed Description

Core interface for data transport abstraction.

This interface defines the fundamental operations for sending and receiving data across any network transport. It serves as the base abstraction that all protocol-specific implementations share.

Design Philosophy

The i_transport interface embodies Kent Beck's "Fewest Elements" rule by providing a minimal, protocol-agnostic API for data transfer. Protocol- specific details are handled by factory functions, not interface variations.

Supported Operations

• Send: Transmit raw bytes to the remote endpoint
• State Query: Check connection status
• Endpoint Info: Get remote endpoint information

Thread Safety

All public methods must be thread-safe. Implementations should use appropriate synchronization for internal state.

Usage Example

// Works with any transport implementation
void send_message(i_transport& transport, std::span<const std::byte> data) {
    if (!transport.is_connected()) {
        return; // Not connected
    }

    auto result = transport.send(data);
    if (!result) {
        // Handle error
        std::cerr << "Send failed: " << result.error().message << std::endl;
    }
}

See also

i_connection - Active connection (client-side or accepted)

i_listener - Passive listener (server-side)

Definition at line 73 of file i_transport.h.

Constructor & Destructor Documentation

~i_transport()

virtual kcenon::network::unified::i_transport::~i_transport ( )

virtualdefault

Virtual destructor for proper cleanup of derived classes.

i_transport() [1/3]

kcenon::network::unified::i_transport::i_transport ( const i_transport & )

delete

i_transport() [2/3]

kcenon::network::unified::i_transport::i_transport ( i_transport && )

default

i_transport() [3/3]

kcenon::network::unified::i_transport::i_transport ( )

protecteddefault

Default constructor (only for derived classes)

Member Function Documentation

id()

virtual auto kcenon::network::unified::i_transport::id ( ) const -> std::string_view

nodiscardpure virtualnoexcept

Gets the unique identifier for this transport/connection.

Returns

A string view of the transport ID

The ID is unique within the application and remains constant for the lifetime of the transport instance.

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

is_connected()

virtual auto kcenon::network::unified::i_transport::is_connected ( ) const -> bool

nodiscardpure virtualnoexcept

Checks if the transport is currently connected.

Returns

true if connected and ready to send/receive, false otherwise

Thread Safety

Thread-safe. Uses atomic operations internally.

Note

A false return may indicate:

• Connection not yet established
• Connection closed by remote peer
• Connection closed locally
• Network error occurred

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

local_endpoint()

virtual auto kcenon::network::unified::i_transport::local_endpoint ( ) const -> endpoint_info

nodiscardpure virtualnoexcept

Gets the local endpoint information.

Returns

endpoint_info of the local side

Returns valid information only when connected/listening. Returns empty endpoint_info if not bound.

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

operator=() [1/2]

i_transport & kcenon::network::unified::i_transport::operator= ( const i_transport & )

delete

operator=() [2/2]

i_transport & kcenon::network::unified::i_transport::operator= ( i_transport && )

default

remote_endpoint()

virtual auto kcenon::network::unified::i_transport::remote_endpoint ( ) const -> endpoint_info

nodiscardpure virtualnoexcept

Gets the remote endpoint information.

Returns

endpoint_info of the remote peer

Returns valid information only when connected. Returns empty endpoint_info if not connected.

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

send() [1/2]

virtual auto kcenon::network::unified::i_transport::send ( std::span< const std::byte > data ) -> VoidResult

nodiscardpure virtual

Sends raw data to the remote endpoint.

Parameters

data	The data to send as a span of bytes

Returns

VoidResult indicating success or failure

Error Conditions

• Returns error if not connected
• Returns error if send operation fails
• Returns error if data size exceeds protocol limits

Thread Safety

Thread-safe. Multiple sends may be queued internally.

Performance Note

Data is typically copied to an internal send buffer. For zero-copy sends, see protocol-specific implementations.

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

send() [2/2]

virtual auto kcenon::network::unified::i_transport::send ( std::vector< uint8_t > && data ) -> VoidResult

nodiscardpure virtual

Sends data from a uint8_t vector.

Parameters

data	The data to send as a vector of uint8_t

Returns

VoidResult indicating success or failure

Convenience overload for compatibility with existing code using std::vector<uint8_t>.

Implemented in kcenon::network::unified::adapters::quic_connection_adapter, kcenon::network::unified::adapters::tcp_connection_adapter, kcenon::network::unified::adapters::udp_connection_adapter, and kcenon::network::unified::adapters::ws_connection_adapter.

---

The documentation for this interface was generated from the following file:

• include/kcenon/network/detail/unified/i_transport.h
