kcenon::network::session::secure_session Class Reference

Manages a single connected secure (TLS/SSL) client session on the server side, providing asynchronous encrypted read/write operations. More...

#include <secure_session.h>

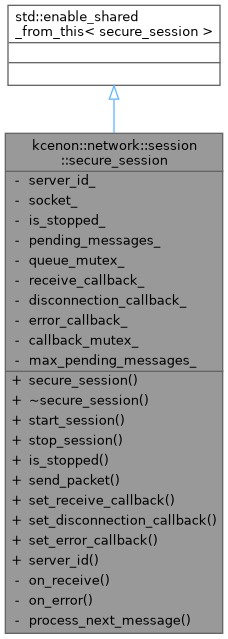

Inheritance diagram for kcenon::network::session::secure_session:

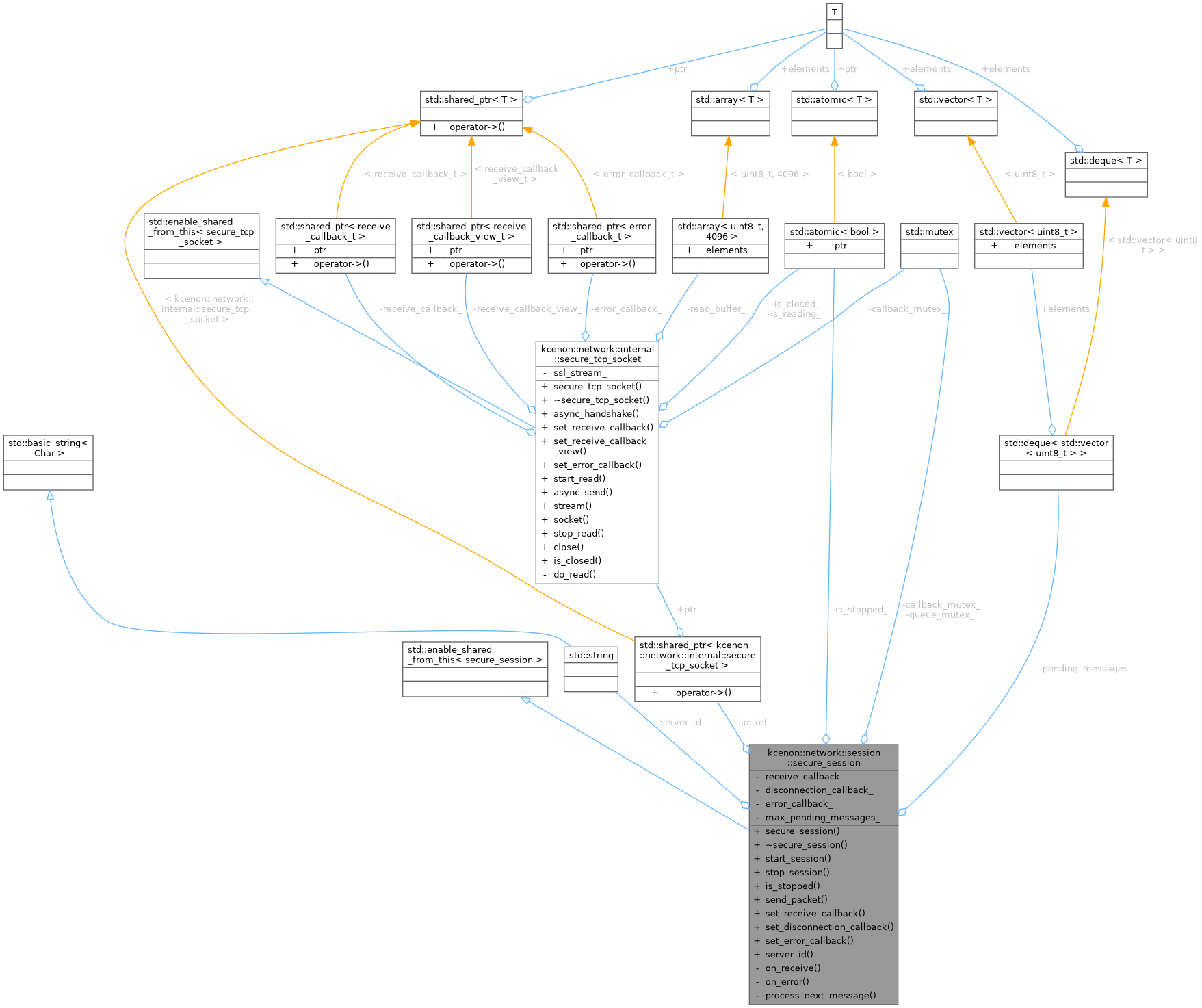

Collaboration diagram for kcenon::network::session::secure_session:

Public Member Functions
	secure_session (asio::ip::tcp::socket socket, asio::ssl::context &ssl_context, std::string_view server_id)
	Constructs a secure session with a given socket, SSL context, and server_id.
	~secure_session () noexcept
	Destructor; calls stop_session() if not already stopped.
auto	start_session () -> void
	Starts the session: performs SSL handshake, sets up read/error callbacks, and begins reading data.
auto	stop_session () -> void
	Stops the session by closing the socket and marking the session as inactive.
auto	is_stopped () const noexcept -> bool
	Checks if the session has been stopped.
auto	send_packet (std::vector< uint8_t > &&data) -> void
	Sends data to the connected client with encryption.
auto	set_receive_callback (std::function< void(const std::vector< uint8_t > &)> callback) -> void
	Sets the callback for received data.
auto	set_disconnection_callback (std::function< void(const std::string &)> callback) -> void
	Sets the callback for disconnection.
auto	set_error_callback (std::function< void(std::error_code)> callback) -> void
	Sets the callback for errors.
auto	server_id () const -> const std::string &
	Gets the server identifier.

Private Member Functions
auto	on_receive (const std::vector< uint8_t > &data) -> void
	Callback for when encrypted data arrives from the client.
auto	on_error (std::error_code ec) -> void
	Callback for handling socket errors from secure_tcp_socket.
auto	process_next_message () -> void
	Processes pending messages from the queue.

Private Attributes
std::string	server_id_
std::shared_ptr< internal::secure_tcp_socket >	socket_
std::atomic< bool >	is_stopped_
std::deque< std::vector< uint8_t > >	pending_messages_
	Queue of pending received messages awaiting processing.
std::mutex	queue_mutex_
	Mutex protecting access to pending_messages_ queue.
std::function< void(const std::vector< uint8_t > &)>	receive_callback_
	Callbacks for session events.
std::function< void(const std::string &)>	disconnection_callback_
std::function< void(std::error_code)>	error_callback_
std::mutex	callback_mutex_
	Mutex protecting callback access.

Static Private Attributes
static constexpr size_t	max_pending_messages_ = 1000
	Maximum number of pending messages before applying backpressure.

Detailed Description

Manages a single connected secure (TLS/SSL) client session on the server side, providing asynchronous encrypted read/write operations.

Responsibilities

• Owns a secure_tcp_socket for non-blocking encrypted I/O.
• Performs SSL handshake before data transmission.
• Optionally applies compression/encryption via pipeline_ before sending, and can do the reverse upon receiving data (if needed).
• Provides callbacks (on_receive, on_error) for data handling and error detection.

Lifecycle

• Constructed with an accepted asio::ip::tcp::socket and SSL context.
• start_session() performs SSL handshake and begins reading.
• stop_session() closes the underlying socket, stopping further I/O.

Thread Safety

• All public methods are thread-safe.
• Session state (is_stopped_) is protected by atomic operations.
• Pipeline mode flags are protected by mode_mutex_.
• Socket operations are serialized through ASIO's io_context.

Definition at line 63 of file secure_session.h.

Constructor & Destructor Documentation

secure_session()

kcenon::network::session::secure_session::secure_session	(	asio::ip::tcp::socket	socket,
		asio::ssl::context &	ssl_context,
		std::string_view	server_id )

Constructs a secure session with a given socket, SSL context, and server_id.

Parameters

socket	The asio::ip::tcp::socket (already connected).
ssl_context	SSL context for encryption settings.
server_id	An identifier for this server instance or context.

Definition at line 11 of file secure_session.cpp.

    : server_id_(server_id) {
  // Create the secure_tcp_socket wrapper
  socket_ = std::make_shared<internal::secure_tcp_socket>(std::move(socket),
                                                          ssl_context);
}

References socket_.

~secure_session()

kcenon::network::session::secure_session::~secure_session ( )

noexcept

Destructor; calls stop_session() if not already stopped.

Definition at line 20 of file secure_session.cpp.

                                         {
  try {
    // Call stop_session to clean up resources
    stop_session();
  } catch (...) {
    // Destructor must not throw - swallow all exceptions
  }
}

References stop_session().

Here is the call graph for this function:

Member Function Documentation

is_stopped()

auto kcenon::network::session::secure_session::is_stopped ( ) const -> bool

inlinenodiscardnoexcept

Checks if the session has been stopped.

Returns

true if the session is stopped, false otherwise.

Definition at line 98 of file secure_session.h.

                                                               {
            return is_stopped_.load(std::memory_order_relaxed);
        }

References is_stopped_.

on_error()

auto kcenon::network::session::secure_session::on_error ( std::error_code ec ) -> void

private

Callback for handling socket errors from secure_tcp_socket.

Parameters

ec	The std::error_code describing the error.

By default, logs the error and calls stop_session().

Definition at line 145 of file secure_session.cpp.

                                                      {
  NETWORK_LOG_ERROR("[secure_session] Socket error: " + ec.message());

  // Invoke error callback if set
  {
    std::lock_guard<std::mutex> lock(callback_mutex_);
    if (error_callback_) {
      try {
        error_callback_(ec);
      } catch (const std::exception &e) {
        NETWORK_LOG_ERROR("[secure_session] Exception in error callback: " +
                          std::string(e.what()));
      }
    }
  }

  stop_session();
}

References NETWORK_LOG_ERROR.

on_receive()

auto kcenon::network::session::secure_session::on_receive ( const std::vector< uint8_t > & data ) -> void

private

Callback for when encrypted data arrives from the client.

Parameters

data	A vector containing a chunk of received bytes.

Override or extend the logic here to parse messages, handle commands, etc. If decompression/decryption is needed, apply pipeline_ accordingly.

Definition at line 107 of file secure_session.cpp.

                                                                      {
  if (is_stopped_.load()) {
    return;
  }

  NETWORK_LOG_DEBUG("[secure_session] Received " + std::to_string(data.size()) +
                    " bytes.");

  // Check queue size before adding
  {
    std::lock_guard<std::mutex> lock(queue_mutex_);
    size_t queue_size = pending_messages_.size();

    // Apply backpressure if queue is getting full
    if (queue_size >= max_pending_messages_) {
      NETWORK_LOG_WARN("[secure_session] Queue size (" +
                       std::to_string(queue_size) + ") reached limit (" +
                       std::to_string(max_pending_messages_) +
                       "). Applying backpressure.");

      // If queue is severely overflowing, disconnect the session
      if (queue_size >= max_pending_messages_ * 2) {
        NETWORK_LOG_ERROR("[secure_session] Queue overflow (" +
                          std::to_string(queue_size) +
                          "). Disconnecting abusive client.");
        stop_session();
        return;
      }
    }

    // Add message to queue
    pending_messages_.push_back(data);
  }

  // Process messages from queue
  process_next_message();
}

References NETWORK_LOG_DEBUG, NETWORK_LOG_ERROR, and NETWORK_LOG_WARN.

process_next_message()

auto kcenon::network::session::secure_session::process_next_message ( ) -> void

private

Processes pending messages from the queue.

This method dequeues and processes messages one at a time. Implement actual message handling logic here.

Definition at line 164 of file secure_session.cpp.

                                                  {
  std::vector<uint8_t> message;

  // Dequeue one message
  {
    std::lock_guard<std::mutex> lock(queue_mutex_);
    if (pending_messages_.empty()) {
      return;
    }

    message = std::move(pending_messages_.front());
    pending_messages_.pop_front();
  }

  // Process the message
  NETWORK_LOG_DEBUG(
      "[secure_session] Processing message of " +
      std::to_string(message.size()) +
      " bytes. Queue remaining: " + std::to_string(pending_messages_.size()));

  // Invoke receive callback if set
  {
    std::lock_guard<std::mutex> lock(callback_mutex_);
    if (receive_callback_) {
      try {
        receive_callback_(message);
      } catch (const std::exception &e) {
        NETWORK_LOG_ERROR("[secure_session] Exception in receive callback: " +
                          std::string(e.what()));
      }
    }
  }

  // If there are more messages, process them asynchronously
  // to avoid blocking the receive thread
  std::lock_guard<std::mutex> lock(queue_mutex_);
  if (!pending_messages_.empty()) {
    // In a production system, you might want to post this to a thread pool
    // or use a work queue to process messages asynchronously
    // For now, we just process one message per call
  }
}

References kcenon::network::message, NETWORK_LOG_DEBUG, and NETWORK_LOG_ERROR.

send_packet()

auto kcenon::network::session::secure_session::send_packet

(

std::vector< uint8_t > &&

data

)

-> void

Sends data to the connected client with encryption.

Parameters

data	The raw bytes to transmit (moved for efficiency).

Notes

• If compress_mode_ or encrypt_mode_ is true, the data will be processed by the pipeline's compress/encrypt functions before writing.
• Data is moved (not copied) to avoid memory allocation overhead.
• After calling this function, the original vector will be empty.

Definition at line 90 of file secure_session.cpp.

                                                                  {
  if (is_stopped_.load()) {
    return;
  }

  // Send data directly over the secure connection
  socket_->async_send(
      std::move(data), [](std::error_code ec, std::size_t bytes_transferred) {
        if (ec) {
          NETWORK_LOG_ERROR("[secure_session] Send error: " + ec.message());
        } else {
          NETWORK_LOG_DEBUG("[secure_session] Sent " +
                            std::to_string(bytes_transferred) + " bytes");
        }
      });
}

References NETWORK_LOG_DEBUG, and NETWORK_LOG_ERROR.

server_id()

auto kcenon::network::session::secure_session::server_id ( ) const -> const std::string&

inlinenodiscard

Gets the server identifier.

Returns

The server_id string.

Definition at line 140 of file secure_session.h.

                                                                 {
            return server_id_;
        }

References server_id_.

set_disconnection_callback()

auto kcenon::network::session::secure_session::set_disconnection_callback

(

std::function< void(const std::string &)>

callback

)

-> void

Sets the callback for disconnection.

Parameters

callback

Function called when the session stops.

Definition at line 213 of file secure_session.cpp.

                                                           {
  std::lock_guard<std::mutex> lock(callback_mutex_);
  disconnection_callback_ = std::move(callback);
}

set_error_callback()

auto kcenon::network::session::secure_session::set_error_callback

(

std::function< void(std::error_code)>

callback

)

-> void

Sets the callback for errors.

Parameters

callback

Function called when an error occurs.

Definition at line 219 of file secure_session.cpp.

                                                       {
  std::lock_guard<std::mutex> lock(callback_mutex_);
  error_callback_ = std::move(callback);
}

set_receive_callback()

auto kcenon::network::session::secure_session::set_receive_callback

(

std::function< void(const std::vector< uint8_t > &)>

callback

)

-> void

Sets the callback for received data.

Parameters

callback

Function called when data is received.

Definition at line 207 of file secure_session.cpp.

                                                                    {
  std::lock_guard<std::mutex> lock(callback_mutex_);
  receive_callback_ = std::move(callback);
}

start_session()

auto kcenon::network::session::secure_session::start_session

(

)

-> void

Starts the session: performs SSL handshake, sets up read/error callbacks, and begins reading data.

Definition at line 29 of file secure_session.cpp.

                                           {
  if (is_stopped_.load()) {
    return;
  }

  // Perform SSL handshake first
  auto self = shared_from_this();
  socket_->async_handshake(
      asio::ssl::stream_base::server, [this, self](std::error_code ec) {
        if (ec) {
          NETWORK_LOG_ERROR("[secure_session] SSL handshake failed: " +
                            ec.message());
          stop_session();
          return;
        }

        NETWORK_LOG_INFO("[secure_session] SSL handshake completed");

        // Set up callbacks after successful handshake
        socket_->set_receive_callback(
            [this, self](const std::vector<uint8_t> &data) {
              on_receive(data);
            });
        socket_->set_error_callback(
            [this, self](std::error_code ec) { on_error(ec); });

        // Begin reading
        socket_->start_read();

        NETWORK_LOG_INFO("[secure_session] Started secure session on server: " +
                         server_id_);
      });
}

References NETWORK_LOG_ERROR, and NETWORK_LOG_INFO.

stop_session()

auto kcenon::network::session::secure_session::stop_session

(

)

-> void

Stops the session by closing the socket and marking the session as inactive.

Definition at line 63 of file secure_session.cpp.

                                          {
  if (is_stopped_.exchange(true)) {
    return;
  }
  // Close socket safely using atomic close() method
  // This prevents data races between close and async read operations
  if (socket_) {
    socket_->close();
  }

  // Invoke disconnection callback if set
  {
    std::lock_guard<std::mutex> lock(callback_mutex_);
    if (disconnection_callback_) {
      try {
        disconnection_callback_(server_id_);
      } catch (const std::exception &e) {
        NETWORK_LOG_ERROR(
            "[secure_session] Exception in disconnection callback: " +
            std::string(e.what()));
      }
    }
  }

  NETWORK_LOG_INFO("[secure_session] Stopped.");
}

References NETWORK_LOG_ERROR, and NETWORK_LOG_INFO.

Referenced by ~secure_session().

Here is the caller graph for this function:

Member Data Documentation

callback_mutex_

std::mutex kcenon::network::session::secure_session::callback_mutex_

mutableprivate

Mutex protecting callback access.

Definition at line 209 of file secure_session.h.

disconnection_callback_

std::function<void(const std::string&)> kcenon::network::session::secure_session::disconnection_callback_

private

Definition at line 203 of file secure_session.h.

error_callback_

std::function<void(std::error_code)> kcenon::network::session::secure_session::error_callback_

private

Definition at line 204 of file secure_session.h.

is_stopped_

std::atomic<bool> kcenon::network::session::secure_session::is_stopped_

private

Initial value:

{
            false
        }

Indicates whether this session is stopped.

Definition at line 177 of file secure_session.h.

                                   {
            false
        };

Referenced by is_stopped().

max_pending_messages_

size_t kcenon::network::session::secure_session::max_pending_messages_ = 1000

staticconstexprprivate

Maximum number of pending messages before applying backpressure.

When this limit is reached, a warning is logged. If doubled, the session is disconnected.

Definition at line 197 of file secure_session.h.

pending_messages_

std::deque<std::vector<uint8_t> > kcenon::network::session::secure_session::pending_messages_

private

Queue of pending received messages awaiting processing.

Definition at line 184 of file secure_session.h.

queue_mutex_

std::mutex kcenon::network::session::secure_session::queue_mutex_

mutableprivate

Mutex protecting access to pending_messages_ queue.

Definition at line 189 of file secure_session.h.

receive_callback_

std::function<void(const std::vector<uint8_t>&)> kcenon::network::session::secure_session::receive_callback_

private

Callbacks for session events.

Definition at line 202 of file secure_session.h.

server_id_

std::string kcenon::network::session::secure_session::server_id_

private

Identifier for the server side.

Definition at line 172 of file secure_session.h.

Referenced by server_id().

socket_

std::shared_ptr<internal::secure_tcp_socket> kcenon::network::session::secure_session::socket_

private

The wrapped secure TCP socket for this session.

Definition at line 175 of file secure_session.h.

Referenced by secure_session().

---

The documentation for this class was generated from the following files:

• include/kcenon/network/detail/session/secure_session.h
• src/session/secure_session.cpp
