Base class for HTTP/2 frames. More...

#include <frame.h>

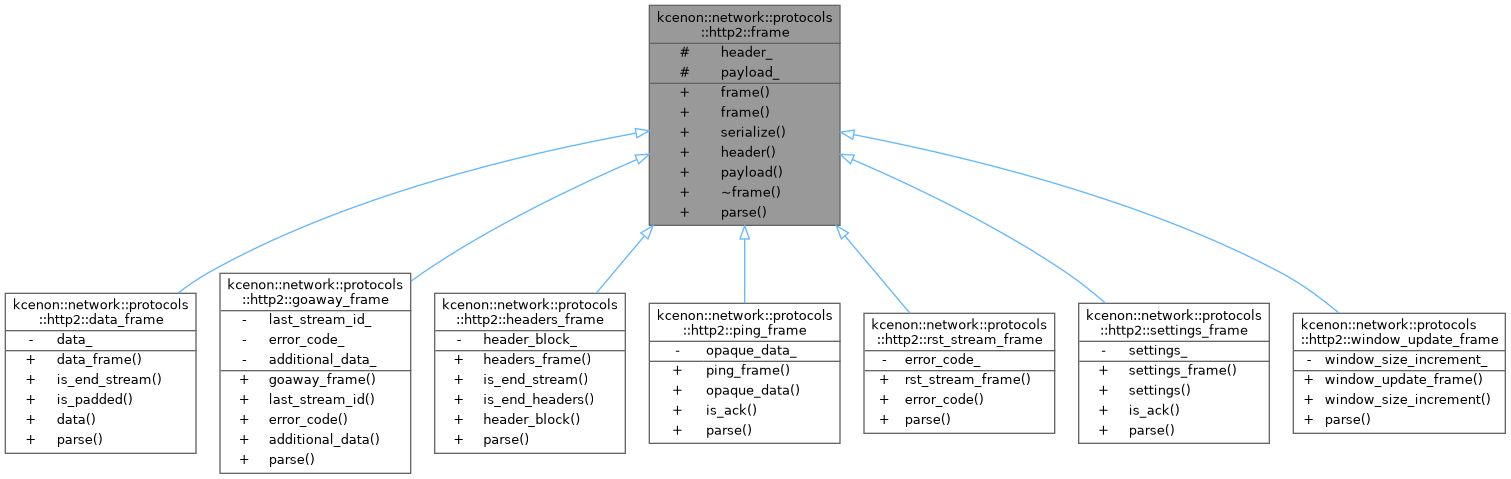

Inheritance diagram for kcenon::network::protocols::http2::frame:

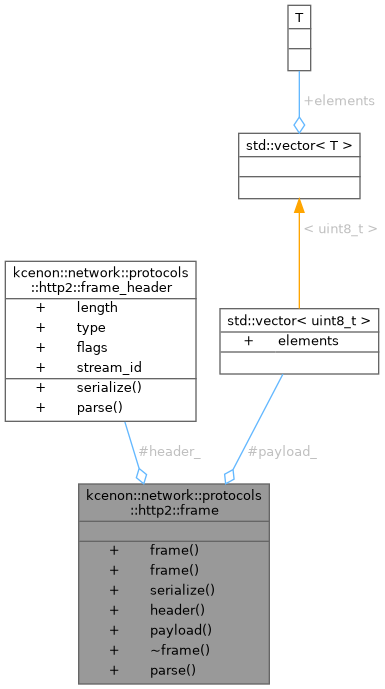

Collaboration diagram for kcenon::network::protocols::http2::frame:

Public Member Functions
	frame ()=default
	Default constructor.

	frame (const frame_header &hdr, std::vector< uint8_t > payload)
	Construct frame with header and payload.

auto	serialize () const -> std::vector< uint8_t >
	Serialize frame to bytes.

auto	header () const -> const frame_header &
	Get frame header.

auto	payload () const -> std::span< const uint8_t >
	Get frame payload.

virtual	~frame ()=default
	Virtual destructor.

Static Public Member Functions
static auto	parse (std::span< const uint8_t > data) -> Result< std::unique_ptr< frame > >
	Parse frame from raw bytes.

Protected Attributes
frame_header	header_
	Frame header.

std::vector< uint8_t >	payload_
	Frame payload.

Detailed Description

Base class for HTTP/2 frames.

Represents a generic HTTP/2 frame with header and payload. Specific frame types inherit from this base class.

Definition at line 81 of file frame.h.

Constructor & Destructor Documentation

◆ frame() [1/2]

kcenon::network::protocols::http2::frame::frame ( )

default

Default constructor.

◆ frame() [2/2]

kcenon::network::protocols::http2::frame::frame	(	const frame_header &	hdr,
		std::vector< uint8_t >	payload )

Construct frame with header and payload.

Parameters

hdr	Frame header
payload	Frame payload data

Definition at line 89 of file frame.cpp.

        : header_(hdr), payload_(std::move(payload))
    {
    }

◆ ~frame()

virtual kcenon::network::protocols::http2::frame::~frame ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ header()

auto kcenon::network::protocols::http2::frame::header ( ) const -> const frame_header&

Get frame header.

Returns: Const reference to frame header

Definition at line 180 of file frame.cpp.

    {
        return header_;
    }

References header_.

◆ parse()

auto kcenon::network::protocols::http2::frame::parse ( std::span< const uint8_t > data ) -> Result<std::unique_ptr<frame>>

static

Parse frame from raw bytes.

Parameters

data	Raw byte data (header + payload)

Returns: Result containing parsed frame or error

Definition at line 94 of file frame.cpp.

    {
        auto header_result = frame_header::parse(data);
        if (header_result.is_err())
        {
            return header_result.error();
        }

        const auto& header = header_result.value();

        if (data.size() < frame_header_size + header.length)
        {
            return error_info(3, "Insufficient data for frame payload", "http2");
        }

        auto payload_span = data.subspan(frame_header_size, header.length);
        std::vector<uint8_t> payload(payload_span.begin(), payload_span.end());

        std::unique_ptr<frame> result_frame;

        switch (header.type)
        {
            case frame_type::data:
            {
                auto parsed = data_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::headers:
            {
                auto parsed = headers_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::settings:
            {
                auto parsed = settings_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::rst_stream:
            {
                auto parsed = rst_stream_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::ping:
            {
                auto parsed = ping_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::goaway:
            {
                auto parsed = goaway_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            case frame_type::window_update:
            {
                auto parsed = window_update_frame::parse(header, payload);
                if (parsed.is_err()) return parsed.error();
                result_frame = std::move(parsed.value());
                break;
            }
            default:
                result_frame = std::make_unique<frame>(header, std::move(payload));
                break;
        }

        return std::move(result_frame);
    }

Referenced by kcenon::network::protocols::http2::http2_client::read_frame(), kcenon::network::protocols::http2::http2_server_connection::read_frame_header(), and kcenon::network::protocols::http2::http2_server_connection::read_frame_payload().

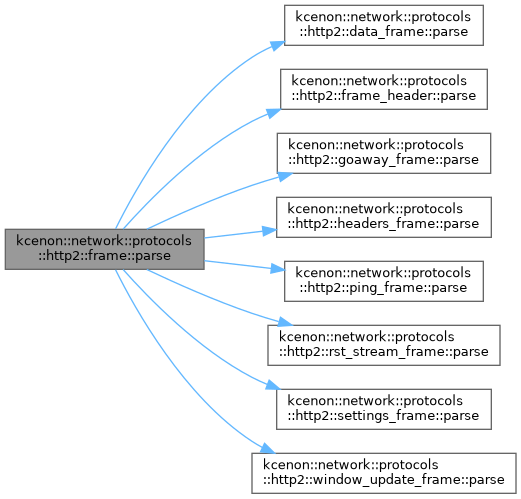

Here is the call graph for this function:

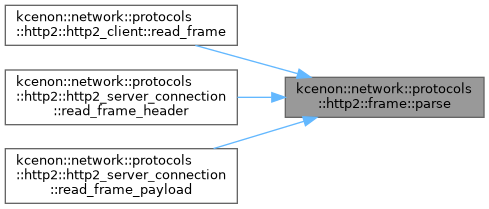

Here is the caller graph for this function:

◆ payload()

auto kcenon::network::protocols::http2::frame::payload ( ) const -> std::span<const uint8_t>

Get frame payload.

Returns: Span of payload bytes

Definition at line 185 of file frame.cpp.

    {
        return payload_;
    }

References payload_.

◆ serialize()

auto kcenon::network::protocols::http2::frame::serialize ( ) const -> std::vector<uint8_t>

Serialize frame to bytes.

Returns: Byte vector containing serialized frame (header + payload)

Definition at line 173 of file frame.cpp.

    {
        auto result = header_.serialize();
        result.insert(result.end(), payload_.begin(), payload_.end());
        return result;
    }

References header_, payload_, and kcenon::network::protocols::http2::frame_header::serialize().

Here is the call graph for this function:

Member Data Documentation

◆ header_

frame_header kcenon::network::protocols::http2::frame::header_

protected

Frame header.

Definition at line 127 of file frame.h.

◆ payload_

std::vector<uint8_t> kcenon::network::protocols::http2::frame::payload_
