kcenon::network::protocols::http2::dynamic_table Class Reference

HPACK dynamic table for header compression. More...

#include <hpack.h>

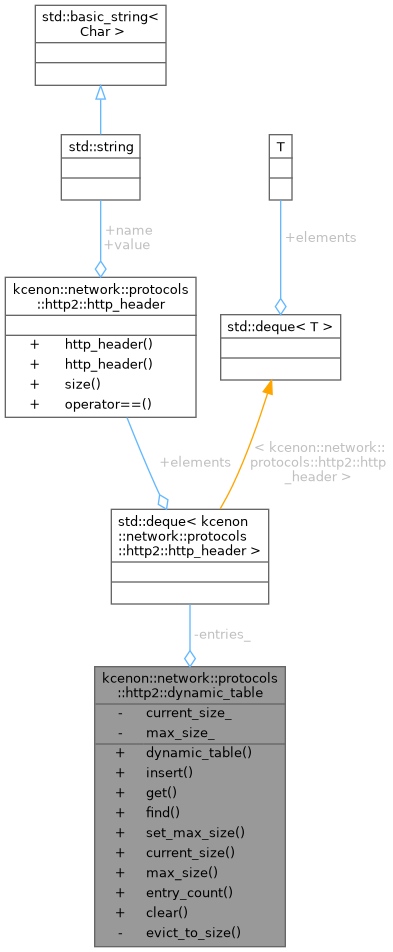

Collaboration diagram for kcenon::network::protocols::http2::dynamic_table:

Public Member Functions
	dynamic_table (size_t max_size=4096)
	Construct dynamic table with max size.
auto	insert (std::string_view name, std::string_view value) -> void
	Insert header at beginning of table.
auto	get (size_t index) const -> std::optional< http_header >
	Get header by dynamic table index.
auto	find (std::string_view name, std::string_view value="") const -> std::optional< size_t >
	Find header in dynamic table.
auto	set_max_size (size_t size) -> void
	Set maximum table size.
auto	current_size () const -> size_t
	Get current table size.
auto	max_size () const -> size_t
	Get maximum table size.
auto	entry_count () const -> size_t
	Get number of entries.
auto	clear () -> void
	Clear all entries.

Private Member Functions
auto	evict_to_size (size_t target_size) -> void

Private Attributes
std::deque< http_header >	entries_
size_t	current_size_ = 0
size_t	max_size_

Detailed Description

HPACK dynamic table for header compression.

The dynamic table maintains recently used headers for compression. Entries are added at the beginning and evicted from the end when the table exceeds max_size.

Definition at line 83 of file hpack.h.

Constructor & Destructor Documentation

dynamic_table()

kcenon::network::protocols::http2::dynamic_table::dynamic_table ( size_t max_size = 4096 )

explicit

Construct dynamic table with max size.

Parameters

max_size

Maximum table size in bytes (default 4096)

Definition at line 110 of file hpack.cpp.

        : max_size_(max_size)
    {
    }

Member Function Documentation

clear()

auto kcenon::network::protocols::http2::dynamic_table::clear

(

)

-> void

Clear all entries.

Definition at line 175 of file hpack.cpp.

    {
        entries_.clear();
        current_size_ = 0;
    }

current_size()

auto kcenon::network::protocols::http2::dynamic_table::current_size

(

)

const -> size_t

Get current table size.

Returns

Current size in bytes

Definition at line 160 of file hpack.cpp.

    {
        return current_size_;
    }

References current_size_.

Referenced by kcenon::network::protocols::http2::hpack_decoder::table_size(), and kcenon::network::protocols::http2::hpack_encoder::table_size().

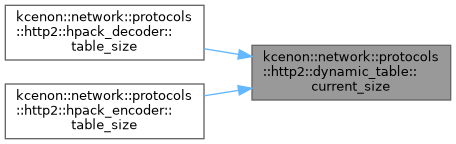

Here is the caller graph for this function:

entry_count()

auto kcenon::network::protocols::http2::dynamic_table::entry_count

(

)

const -> size_t

Get number of entries.

Returns

Entry count

Definition at line 170 of file hpack.cpp.

    {
        return entries_.size();
    }

References entries_.

evict_to_size()

auto kcenon::network::protocols::http2::dynamic_table::evict_to_size ( size_t target_size ) -> void

private

Definition at line 181 of file hpack.cpp.

    {
        while (current_size_ > target_size && !entries_.empty())
        {
            current_size_ -= entries_.back().size();
            entries_.pop_back();
        }
    }

find()

auto kcenon::network::protocols::http2::dynamic_table::find	(	std::string_view	name,
		std::string_view	value = "" ) const -> std::optional<size_t>

Find header in dynamic table.

Parameters

name	Header name
value	Header value (empty to match name only)

Returns

Dynamic table index if found, or empty

Definition at line 137 of file hpack.cpp.

    {
        for (size_t i = 0; i < entries_.size(); ++i)
        {
            const auto& entry = entries_[i];
            if (entry.name == name)
            {
                if (value.empty() || entry.value == value)
                {
                    return i;
                }
            }
        }
        return std::nullopt;
    }

get()

auto kcenon::network::protocols::http2::dynamic_table::get

(

size_t

index

)

const -> std::optional<http_header>

Get header by dynamic table index.

Parameters

index

Dynamic table index (0-based)

Returns

Header if found

Definition at line 128 of file hpack.cpp.

    {
        if (index >= entries_.size())
        {
            return std::nullopt;
        }
        return entries_[index];
    }

insert()

auto kcenon::network::protocols::http2::dynamic_table::insert	(	std::string_view	name,
		std::string_view	value ) -> void

Insert header at beginning of table.

Parameters

name	Header name
value	Header value

Definition at line 115 of file hpack.cpp.

    {
        http_header header{std::string(name), std::string(value)};
        size_t entry_size = header.size();

        // Evict entries if needed
        evict_to_size(max_size_ - entry_size);

        // Insert at beginning
        entries_.push_front(std::move(header));
        current_size_ += entry_size;
    }

References kcenon::network::protocols::http2::http_header::size().

Here is the call graph for this function:

max_size()

auto kcenon::network::protocols::http2::dynamic_table::max_size

(

)

const -> size_t

Get maximum table size.

Returns

Maximum size in bytes

Definition at line 165 of file hpack.cpp.

    {
        return max_size_;
    }

References max_size_.

set_max_size()

auto kcenon::network::protocols::http2::dynamic_table::set_max_size

(

size_t

size

)

-> void

Set maximum table size.

Parameters

size	New maximum size in bytes

Definition at line 154 of file hpack.cpp.

    {
        max_size_ = size;
        evict_to_size(max_size_);
    }

Member Data Documentation

current_size_

size_t kcenon::network::protocols::http2::dynamic_table::current_size_ = 0

private

Definition at line 148 of file hpack.h.

Referenced by current_size().

entries_

std::deque<http_header> kcenon::network::protocols::http2::dynamic_table::entries_

private

Definition at line 147 of file hpack.h.

Referenced by entry_count().

max_size_

size_t kcenon::network::protocols::http2::dynamic_table::max_size_

private

Definition at line 149 of file hpack.h.

Referenced by max_size().

---

The documentation for this class was generated from the following files:

• src/internal/protocols/http2/hpack.h
• src/protocols/http2/hpack.cpp
