Interface for WebSocket server components. More...

#include <i_websocket_server.h>

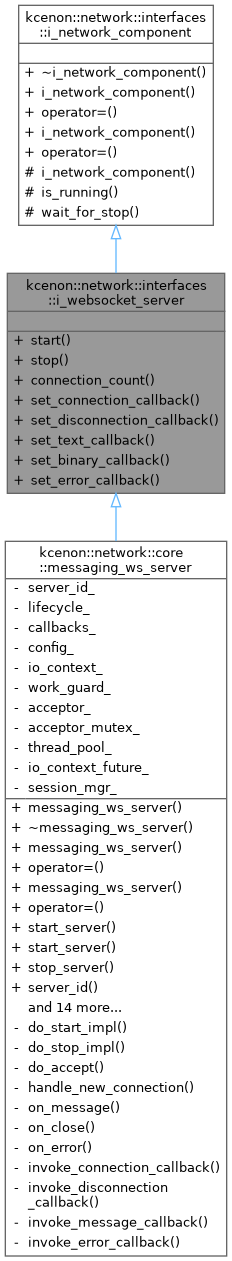

Inheritance diagram for kcenon::network::interfaces::i_websocket_server:

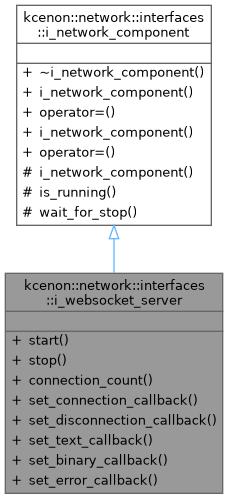

Collaboration diagram for kcenon::network::interfaces::i_websocket_server:

Public Types
using	connection_callback_t = std::function<void(std::shared_ptr<i_websocket_session>)>
	Callback type for new connections.

using	disconnection_callback_t
	Callback type for disconnections (with close code and reason)

using	text_callback_t = std::function<void(std::string_view, const std::string&)>
	Callback type for text messages (session_id, message)

using	binary_callback_t = std::function<void(std::string_view, const std::vector<uint8_t>&)>
	Callback type for binary messages (session_id, data)

using	error_callback_t = std::function<void(std::string_view, std::error_code)>
	Callback type for errors (session_id, error)

Public Member Functions
virtual auto	start (uint16_t port) -> VoidResult=0
	Starts the WebSocket server on the specified port.

virtual auto	stop () -> VoidResult=0
	Stops the WebSocket server.

virtual auto	connection_count () const -> size_t=0
	Gets the number of active WebSocket connections.

virtual auto	set_connection_callback (connection_callback_t callback) -> void=0
	Sets the callback for new connections.

virtual auto	set_disconnection_callback (disconnection_callback_t callback) -> void=0
	Sets the callback for disconnections.

virtual auto	set_text_callback (text_callback_t callback) -> void=0
	Sets the callback for text messages.

virtual auto	set_binary_callback (binary_callback_t callback) -> void=0
	Sets the callback for binary messages.

virtual auto	set_error_callback (error_callback_t callback) -> void=0
	Sets the callback for errors.

Public Member Functions inherited from kcenon::network::interfaces::i_network_component
virtual	~i_network_component ()=default
	Virtual destructor for proper cleanup of derived classes.

	i_network_component (const i_network_component &)=delete

i_network_component &	operator= (const i_network_component &)=delete

	i_network_component (i_network_component &&)=delete

i_network_component &	operator= (i_network_component &&)=delete

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_network_component
	i_network_component ()=default
	Default constructor (only for derived classes)

virtual auto	is_running () const -> bool=0
	Checks if the component is currently running.

virtual auto	wait_for_stop () -> void=0
	Blocks until the component has stopped.

Detailed Description

Interface for WebSocket server components.

This interface extends i_network_component with WebSocket server-specific operations such as handling text/binary messages and session management.

Key Features

Text and binary message support
Session-based client management
Close frame handling with status codes

Thread Safety

All public methods must be thread-safe
Callbacks may be invoked from I/O threads

See also: i_server

Definition at line 79 of file i_websocket_server.h.

Member Typedef Documentation

◆ binary_callback_t

using kcenon::network::interfaces::i_websocket_server::binary_callback_t = std::function<void(std::string_view, const std::vector<uint8_t>&)>

Callback type for binary messages (session_id, data)

Definition at line 95 of file i_websocket_server.h.

◆ connection_callback_t

using kcenon::network::interfaces::i_websocket_server::connection_callback_t = std::function<void(std::shared_ptr<i_websocket_session>)>

Callback type for new connections.

Definition at line 83 of file i_websocket_server.h.

◆ disconnection_callback_t

using kcenon::network::interfaces::i_websocket_server::disconnection_callback_t

Initial value:

 std::function<void(
            std::string_view session_id,
            uint16_t code,
            std::string_view reason)>

Callback type for disconnections (with close code and reason)

Definition at line 86 of file i_websocket_server.h.

◆ error_callback_t

using kcenon::network::interfaces::i_websocket_server::error_callback_t = std::function<void(std::string_view, std::error_code)>

Callback type for errors (session_id, error)

Definition at line 98 of file i_websocket_server.h.

◆ text_callback_t

using kcenon::network::interfaces::i_websocket_server::text_callback_t = std::function<void(std::string_view, const std::string&)>

Callback type for text messages (session_id, message)

Definition at line 92 of file i_websocket_server.h.

Member Function Documentation

◆ connection_count()

virtual auto kcenon::network::interfaces::i_websocket_server::connection_count ( ) const -> size_t

nodiscardpure virtual

Gets the number of active WebSocket connections.

Returns: The count of currently connected clients.

Implemented in kcenon::network::core::messaging_ws_server.

◆ set_binary_callback()

virtual auto kcenon::network::interfaces::i_websocket_server::set_binary_callback ( binary_callback_t callback ) -> void

pure virtual

Sets the callback for binary messages.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_server.

◆ set_connection_callback()

virtual auto kcenon::network::interfaces::i_websocket_server::set_connection_callback ( connection_callback_t callback ) -> void

pure virtual

Sets the callback for new connections.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_server.

◆ set_disconnection_callback()

virtual auto kcenon::network::interfaces::i_websocket_server::set_disconnection_callback ( disconnection_callback_t callback ) -> void

pure virtual

Sets the callback for disconnections.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_server.

◆ set_error_callback()

virtual auto kcenon::network::interfaces::i_websocket_server::set_error_callback ( error_callback_t callback ) -> void

pure virtual

Sets the callback for errors.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_server.

◆ set_text_callback()

virtual auto kcenon::network::interfaces::i_websocket_server::set_text_callback ( text_callback_t callback ) -> void

pure virtual

Sets the callback for text messages.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_server.

◆ start()

virtual auto kcenon::network::interfaces::i_websocket_server::start ( uint16_t port ) -> VoidResult

nodiscardpure virtual

Starts the WebSocket server on the specified port.

Parameters

port	The port number to listen on.

Returns: VoidResult indicating success or failure.

Behavior

Starts TCP listener
Handles WebSocket handshakes for incoming connections
Begins accepting WebSocket connections

Thread Safety

Thread-safe. Only one start operation can succeed at a time.

Implemented in kcenon::network::core::messaging_ws_server.

◆ stop()

virtual auto kcenon::network::interfaces::i_websocket_server::stop ( ) -> VoidResult

nodiscardpure virtual

Stops the WebSocket server.

Returns: VoidResult indicating success or failure.

Behavior

Stops accepting new connections
Closes all active sessions

Implemented in kcenon::network::core::messaging_ws_server.

The documentation for this interface was generated from the following file:

src/internal/interfaces/i_websocket_server.h
