Interface for WebSocket client components. More...

#include <i_websocket_client.h>

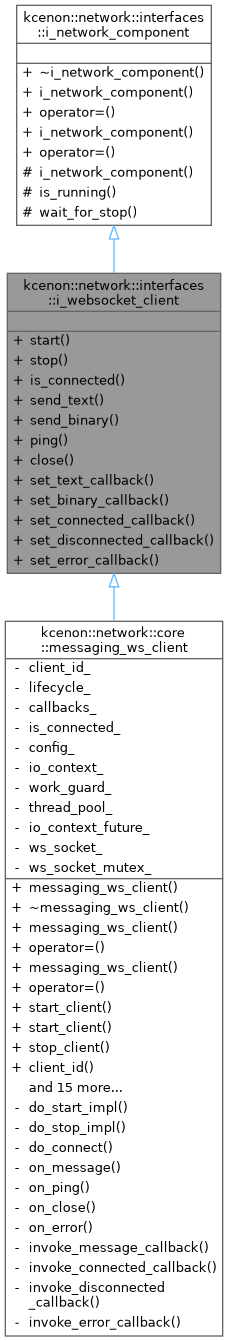

Inheritance diagram for kcenon::network::interfaces::i_websocket_client:

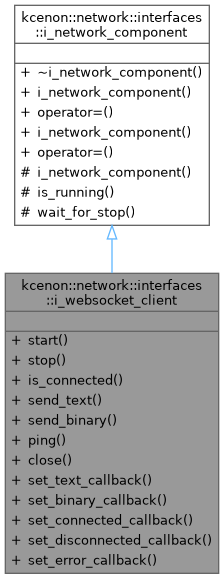

Collaboration diagram for kcenon::network::interfaces::i_websocket_client:

Public Types
using	text_callback_t = std::function<void(const std::string&)>
	Callback type for text messages.

using	binary_callback_t = std::function<void(const std::vector<uint8_t>&)>
	Callback type for binary messages.

using	connected_callback_t = std::function<void()>
	Callback type for connection established.

using	disconnected_callback_t = std::function<void(uint16_t code, std::string_view reason)>
	Callback type for disconnection (with close code and reason)

using	error_callback_t = std::function<void(std::error_code)>
	Callback type for errors.

using	send_callback_t = std::function<void(std::error_code, std::size_t)>
	Callback type for send completion.

Public Member Functions
virtual auto	start (std::string_view host, uint16_t port, std::string_view path="/") -> VoidResult=0
	Starts the WebSocket client connecting to the specified endpoint.

virtual auto	stop () -> VoidResult=0
	Stops the WebSocket client.

virtual auto	is_connected () const -> bool=0
	Checks if the WebSocket connection is established.

virtual auto	send_text (std::string &&message, send_callback_t handler=nullptr) -> VoidResult=0
	Sends a text message.

virtual auto	send_binary (std::vector< uint8_t > &&data, send_callback_t handler=nullptr) -> VoidResult=0
	Sends a binary message.

virtual auto	ping (std::vector< uint8_t > &&payload={}) -> VoidResult=0
	Sends a ping frame.

virtual auto	close (uint16_t code=1000, std::string_view reason="") -> VoidResult=0
	Closes the WebSocket connection gracefully.

virtual auto	set_text_callback (text_callback_t callback) -> void=0
	Sets the callback for text messages.

virtual auto	set_binary_callback (binary_callback_t callback) -> void=0
	Sets the callback for binary messages.

virtual auto	set_connected_callback (connected_callback_t callback) -> void=0
	Sets the callback for connection established.

virtual auto	set_disconnected_callback (disconnected_callback_t callback) -> void=0
	Sets the callback for disconnection.

virtual auto	set_error_callback (error_callback_t callback) -> void=0
	Sets the callback for errors.

Public Member Functions inherited from kcenon::network::interfaces::i_network_component
virtual	~i_network_component ()=default
	Virtual destructor for proper cleanup of derived classes.

	i_network_component (const i_network_component &)=delete

i_network_component &	operator= (const i_network_component &)=delete

	i_network_component (i_network_component &&)=delete

i_network_component &	operator= (i_network_component &&)=delete

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_network_component
	i_network_component ()=default
	Default constructor (only for derived classes)

virtual auto	is_running () const -> bool=0
	Checks if the component is currently running.

virtual auto	wait_for_stop () -> void=0
	Blocks until the component has stopped.

Detailed Description

Interface for WebSocket client components.

This interface extends i_network_component with WebSocket-specific operations such as text/binary message sending, path-based connections, and close frame handling.

Key Features

Text and binary message support
Path-based connection (e.g., "/ws", "/api/stream")
Ping/pong keepalive support
Graceful close with status codes

Thread Safety

All public methods must be thread-safe
Callbacks may be invoked from I/O threads

See also: i_client

Definition at line 41 of file i_websocket_client.h.

Member Typedef Documentation

◆ binary_callback_t

using kcenon::network::interfaces::i_websocket_client::binary_callback_t = std::function<void(const std::vector<uint8_t>&)>

Callback type for binary messages.

Definition at line 48 of file i_websocket_client.h.

◆ connected_callback_t

using kcenon::network::interfaces::i_websocket_client::connected_callback_t = std::function<void()>

Callback type for connection established.

Definition at line 51 of file i_websocket_client.h.

◆ disconnected_callback_t

using kcenon::network::interfaces::i_websocket_client::disconnected_callback_t = std::function<void(uint16_t code, std::string_view reason)>

Callback type for disconnection (with close code and reason)

Definition at line 54 of file i_websocket_client.h.

◆ error_callback_t

using kcenon::network::interfaces::i_websocket_client::error_callback_t = std::function<void(std::error_code)>

Callback type for errors.

Definition at line 57 of file i_websocket_client.h.

◆ send_callback_t

using kcenon::network::interfaces::i_websocket_client::send_callback_t = std::function<void(std::error_code, std::size_t)>

Callback type for send completion.

Definition at line 60 of file i_websocket_client.h.

◆ text_callback_t

using kcenon::network::interfaces::i_websocket_client::text_callback_t = std::function<void(const std::string&)>

Callback type for text messages.

Definition at line 45 of file i_websocket_client.h.

Member Function Documentation

◆ close()

virtual auto kcenon::network::interfaces::i_websocket_client::close	(	uint16_t	code = 1000,
		std::string_view	reason = "" ) -> VoidResult

nodiscardpure virtual

Closes the WebSocket connection gracefully.

Parameters

code	The close status code.
reason	Optional human-readable reason.

Returns: VoidResult indicating success or failure.

Implemented in kcenon::network::core::messaging_ws_client.

◆ is_connected()

virtual auto kcenon::network::interfaces::i_websocket_client::is_connected ( ) const -> bool

nodiscardpure virtual

Checks if the WebSocket connection is established.

Returns: true if connected, false otherwise.

Implemented in kcenon::network::core::messaging_ws_client.

◆ ping()

virtual auto kcenon::network::interfaces::i_websocket_client::ping ( std::vector< uint8_t > && payload = {} ) -> VoidResult

nodiscardpure virtual

Sends a ping frame.

Parameters

payload Optional payload data (max 125 bytes).

Returns: VoidResult indicating success or failure.

Implemented in kcenon::network::core::messaging_ws_client.

◆ send_binary()

virtual auto kcenon::network::interfaces::i_websocket_client::send_binary	(	std::vector< uint8_t > &&	data,
		send_callback_t	handler = nullptr ) -> VoidResult

nodiscardpure virtual

Sends a binary message.

Parameters

data	The binary data to send.
handler	Optional completion handler.

Returns: VoidResult indicating success or failure.

Error Conditions

Returns error if not connected

Implemented in kcenon::network::core::messaging_ws_client.

◆ send_text()

virtual auto kcenon::network::interfaces::i_websocket_client::send_text	(	std::string &&	message,
		send_callback_t	handler = nullptr ) -> VoidResult

nodiscardpure virtual

Sends a text message.

Parameters

message	The text message to send.
handler	Optional completion handler.

Returns: VoidResult indicating success or failure.

Error Conditions

Returns error if not connected

Implemented in kcenon::network::core::messaging_ws_client.

◆ set_binary_callback()

virtual auto kcenon::network::interfaces::i_websocket_client::set_binary_callback ( binary_callback_t callback ) -> void

pure virtual

Sets the callback for binary messages.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_client.

◆ set_connected_callback()

virtual auto kcenon::network::interfaces::i_websocket_client::set_connected_callback ( connected_callback_t callback ) -> void

pure virtual

Sets the callback for connection established.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_client.

◆ set_disconnected_callback()

virtual auto kcenon::network::interfaces::i_websocket_client::set_disconnected_callback ( disconnected_callback_t callback ) -> void

pure virtual

Sets the callback for disconnection.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_client.

◆ set_error_callback()

virtual auto kcenon::network::interfaces::i_websocket_client::set_error_callback ( error_callback_t callback ) -> void

pure virtual

Sets the callback for errors.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_client.

◆ set_text_callback()

virtual auto kcenon::network::interfaces::i_websocket_client::set_text_callback ( text_callback_t callback ) -> void

pure virtual

Sets the callback for text messages.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_ws_client.

◆ start()

virtual auto kcenon::network::interfaces::i_websocket_client::start	(	std::string_view	host,
		uint16_t	port,
		std::string_view	path = "/" ) -> VoidResult

nodiscardpure virtual

Starts the WebSocket client connecting to the specified endpoint.

Parameters

host	The server hostname or IP address.
port	The server port number.
path	The WebSocket path (default: "/").

Returns: VoidResult indicating success or failure.

Behavior

Establishes TCP connection
Performs WebSocket handshake
Begins message receive loop

Error Conditions

Returns error if already running
Returns error if connection fails
Returns error if handshake fails

Thread Safety

Thread-safe. Only one start operation can succeed at a time.

Implemented in kcenon::network::core::messaging_ws_client.

◆ stop()

virtual auto kcenon::network::interfaces::i_websocket_client::stop ( ) -> VoidResult

nodiscardpure virtual

Stops the WebSocket client.

Returns: VoidResult indicating success or failure.

Behavior

Performs graceful close if connected.

Thread Safety

Thread-safe.

Implemented in kcenon::network::core::messaging_ws_client.

The documentation for this interface was generated from the following file:

src/internal/interfaces/i_websocket_client.h
