Interface for QUIC client components. More...

#include <i_quic_client.h>

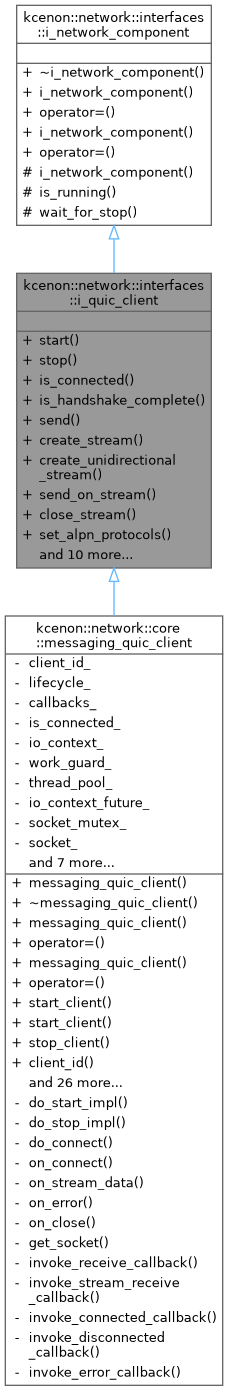

Inheritance diagram for kcenon::network::interfaces::i_quic_client:

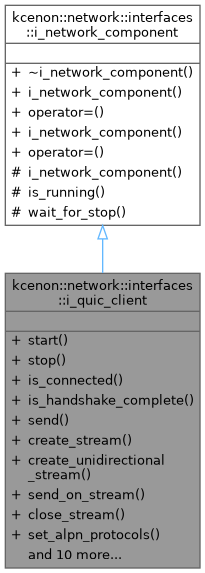

Collaboration diagram for kcenon::network::interfaces::i_quic_client:

Public Types
using	receive_callback_t = std::function<void(const std::vector<uint8_t>&)>
	Callback type for received data on default stream.

using	stream_callback_t = std::function<void(uint64_t, const std::vector<uint8_t>&, bool)>
	Callback type for stream data (stream_id, data, is_fin)

using	connected_callback_t = std::function<void()>
	Callback type for connection established.

using	disconnected_callback_t = std::function<void()>
	Callback type for disconnection.

using	error_callback_t = std::function<void(std::error_code)>
	Callback type for errors.

using	session_ticket_callback_t
	Callback type for session ticket received (for 0-RTT resumption)

using	early_data_callback_t = std::function<std::vector<uint8_t>()>
	Callback type for early data production.

using	early_data_accepted_callback_t = std::function<void(bool accepted)>
	Callback type for early data acceptance notification.

Public Member Functions
virtual auto	start (std::string_view host, uint16_t port) -> VoidResult=0
	Starts the QUIC client connecting to the specified server.

virtual auto	stop () -> VoidResult=0
	Stops the QUIC client.

virtual auto	is_connected () const -> bool=0
	Checks if the client is connected.

virtual auto	is_handshake_complete () const -> bool=0
	Checks if TLS handshake is complete.

virtual auto	send (std::vector< uint8_t > &&data) -> VoidResult=0
	Sends data on the default stream (stream 0).

virtual auto	create_stream () -> Result< uint64_t >=0
	Creates a new bidirectional stream.

virtual auto	create_unidirectional_stream () -> Result< uint64_t >=0
	Creates a new unidirectional stream.

virtual auto	send_on_stream (uint64_t stream_id, std::vector< uint8_t > &&data, bool fin=false) -> VoidResult=0
	Sends data on a specific stream.

virtual auto	close_stream (uint64_t stream_id) -> VoidResult=0
	Closes a stream.

virtual auto	set_alpn_protocols (const std::vector< std::string > &protocols) -> void=0
	Sets the ALPN protocols for negotiation.

virtual auto	alpn_protocol () const -> std::optional< std::string >=0
	Gets the negotiated ALPN protocol.

virtual auto	is_early_data_accepted () const -> bool=0
	Checks if early data was accepted by the server.

virtual auto	set_receive_callback (receive_callback_t callback) -> void=0
	Sets the callback for received data on default stream.

virtual auto	set_stream_callback (stream_callback_t callback) -> void=0
	Sets the callback for stream data.

virtual auto	set_connected_callback (connected_callback_t callback) -> void=0
	Sets the callback for connection established.

virtual auto	set_disconnected_callback (disconnected_callback_t callback) -> void=0
	Sets the callback for disconnection.

virtual auto	set_error_callback (error_callback_t callback) -> void=0
	Sets the callback for errors.

virtual auto	set_session_ticket_callback (session_ticket_callback_t callback) -> void=0
	Sets the callback for session tickets (for 0-RTT).

virtual auto	set_early_data_callback (early_data_callback_t callback) -> void=0
	Sets the callback for early data production.

virtual auto	set_early_data_accepted_callback (early_data_accepted_callback_t callback) -> void=0
	Sets the callback for early data acceptance notification.

Public Member Functions inherited from kcenon::network::interfaces::i_network_component
virtual	~i_network_component ()=default
	Virtual destructor for proper cleanup of derived classes.

	i_network_component (const i_network_component &)=delete

i_network_component &	operator= (const i_network_component &)=delete

	i_network_component (i_network_component &&)=delete

i_network_component &	operator= (i_network_component &&)=delete

Additional Inherited Members
Protected Member Functions inherited from kcenon::network::interfaces::i_network_component
	i_network_component ()=default
	Default constructor (only for derived classes)

virtual auto	is_running () const -> bool=0
	Checks if the component is currently running.

virtual auto	wait_for_stop () -> void=0
	Blocks until the component has stopped.

Detailed Description

Interface for QUIC client components.

This interface extends i_network_component with QUIC-specific operations such as multi-stream support and 0-RTT session resumption.

Key Features

Multiple concurrent bidirectional streams
Unidirectional stream support
0-RTT early data for reduced latency
Built-in TLS 1.3 integration

Thread Safety

All public methods must be thread-safe
Callbacks may be invoked from I/O threads

See also: i_client

Definition at line 41 of file i_quic_client.h.

Member Typedef Documentation

◆ connected_callback_t

using kcenon::network::interfaces::i_quic_client::connected_callback_t = std::function<void()>

Callback type for connection established.

Definition at line 51 of file i_quic_client.h.

◆ disconnected_callback_t

using kcenon::network::interfaces::i_quic_client::disconnected_callback_t = std::function<void()>

Callback type for disconnection.

Definition at line 54 of file i_quic_client.h.

◆ early_data_accepted_callback_t

using kcenon::network::interfaces::i_quic_client::early_data_accepted_callback_t = std::function<void(bool accepted)>

Callback type for early data acceptance notification.

Definition at line 69 of file i_quic_client.h.

◆ early_data_callback_t

using kcenon::network::interfaces::i_quic_client::early_data_callback_t = std::function<std::vector<uint8_t>()>

Callback type for early data production.

Definition at line 66 of file i_quic_client.h.

◆ error_callback_t

using kcenon::network::interfaces::i_quic_client::error_callback_t = std::function<void(std::error_code)>

Callback type for errors.

Definition at line 57 of file i_quic_client.h.

◆ receive_callback_t

using kcenon::network::interfaces::i_quic_client::receive_callback_t = std::function<void(const std::vector<uint8_t>&)>

Callback type for received data on default stream.

Definition at line 45 of file i_quic_client.h.

◆ session_ticket_callback_t

using kcenon::network::interfaces::i_quic_client::session_ticket_callback_t

Initial value:

 std::function<void(
            std::vector<uint8_t> ticket_data,
            uint32_t lifetime_hint,
            uint32_t max_early_data)>

Callback type for session ticket received (for 0-RTT resumption)

Definition at line 60 of file i_quic_client.h.

◆ stream_callback_t

using kcenon::network::interfaces::i_quic_client::stream_callback_t = std::function<void(uint64_t, const std::vector<uint8_t>&, bool)>

Callback type for stream data (stream_id, data, is_fin)

Definition at line 48 of file i_quic_client.h.

Member Function Documentation

◆ alpn_protocol()

virtual auto kcenon::network::interfaces::i_quic_client::alpn_protocol ( ) const -> std::optional< std::string >

nodiscardpure virtual

Gets the negotiated ALPN protocol.

Returns: Protocol string if negotiated, empty optional otherwise.

Implemented in kcenon::network::core::messaging_quic_client.

◆ close_stream()

virtual auto kcenon::network::interfaces::i_quic_client::close_stream ( uint64_t stream_id ) -> VoidResult

nodiscardpure virtual

Closes a stream.

Parameters

stream_id The stream to close.

Returns: VoidResult indicating success or failure.

Implemented in kcenon::network::core::messaging_quic_client.

◆ create_stream()

virtual auto kcenon::network::interfaces::i_quic_client::create_stream ( ) -> Result< uint64_t >

nodiscardpure virtual

Creates a new bidirectional stream.

Returns: Stream ID or error.

Implemented in kcenon::network::core::messaging_quic_client.

◆ create_unidirectional_stream()

virtual auto kcenon::network::interfaces::i_quic_client::create_unidirectional_stream ( ) -> Result< uint64_t >

nodiscardpure virtual

Creates a new unidirectional stream.

Returns: Stream ID or error.

Implemented in kcenon::network::core::messaging_quic_client.

◆ is_connected()

virtual auto kcenon::network::interfaces::i_quic_client::is_connected ( ) const -> bool

nodiscardpure virtual

Checks if the client is connected.

Returns: true if connected, false otherwise.

Implemented in kcenon::network::core::messaging_quic_client.

◆ is_early_data_accepted()

virtual auto kcenon::network::interfaces::i_quic_client::is_early_data_accepted ( ) const -> bool

nodiscardpure virtual

Checks if early data was accepted by the server.

Returns: true if accepted, false otherwise.

Implemented in kcenon::network::core::messaging_quic_client.

◆ is_handshake_complete()

virtual auto kcenon::network::interfaces::i_quic_client::is_handshake_complete ( ) const -> bool

nodiscardpure virtual

Checks if TLS handshake is complete.

Returns: true if handshake is done, false otherwise.

Implemented in kcenon::network::core::messaging_quic_client.

◆ send()

virtual auto kcenon::network::interfaces::i_quic_client::send ( std::vector< uint8_t > && data ) -> VoidResult

nodiscardpure virtual

Sends data on the default stream (stream 0).

Parameters

data	The data to send.

Returns: VoidResult indicating success or failure.

Implemented in kcenon::network::core::messaging_quic_client.

◆ send_on_stream()

virtual auto kcenon::network::interfaces::i_quic_client::send_on_stream	(	uint64_t	stream_id,
		std::vector< uint8_t > &&	data,
		bool	fin = false ) -> VoidResult

nodiscardpure virtual

Sends data on a specific stream.

Parameters

stream_id	The target stream ID.
data	The data to send.
fin	True if this is the final data on the stream.

Returns: VoidResult indicating success or failure.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_alpn_protocols()

virtual auto kcenon::network::interfaces::i_quic_client::set_alpn_protocols ( const std::vector< std::string > & protocols ) -> void

pure virtual

Sets the ALPN protocols for negotiation.

Parameters

protocols List of protocol identifiers (e.g., {"h3", "hq-29"}).

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_connected_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_connected_callback ( connected_callback_t callback ) -> void

pure virtual

Sets the callback for connection established.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_disconnected_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_disconnected_callback ( disconnected_callback_t callback ) -> void

pure virtual

Sets the callback for disconnection.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_early_data_accepted_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_early_data_accepted_callback ( early_data_accepted_callback_t callback ) -> void

pure virtual

Sets the callback for early data acceptance notification.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_early_data_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_early_data_callback ( early_data_callback_t callback ) -> void

pure virtual

Sets the callback for early data production.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_error_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_error_callback ( error_callback_t callback ) -> void

pure virtual

Sets the callback for errors.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_receive_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_receive_callback ( receive_callback_t callback ) -> void

pure virtual

Sets the callback for received data on default stream.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_session_ticket_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_session_ticket_callback ( session_ticket_callback_t callback ) -> void

pure virtual

Sets the callback for session tickets (for 0-RTT).

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ set_stream_callback()

virtual auto kcenon::network::interfaces::i_quic_client::set_stream_callback ( stream_callback_t callback ) -> void

pure virtual

Sets the callback for stream data.

Parameters

callback The callback function.

Implemented in kcenon::network::core::messaging_quic_client.

◆ start()

virtual auto kcenon::network::interfaces::i_quic_client::start	(	std::string_view	host,
		uint16_t	port ) -> VoidResult

nodiscardpure virtual

Starts the QUIC client connecting to the specified server.

Parameters

host	The server hostname or IP address.
port	The server port number.

Returns: VoidResult indicating success or failure.

Behavior

Resolves the server address
Initiates QUIC handshake (includes TLS 1.3)
Creates default stream (stream 0)

Thread Safety

Thread-safe. Only one start operation can succeed at a time.

Implemented in kcenon::network::core::messaging_quic_client.

◆ stop()

virtual auto kcenon::network::interfaces::i_quic_client::stop ( ) -> VoidResult

nodiscardpure virtual

Stops the QUIC client.

Returns: VoidResult indicating success or failure.

Behavior

Closes all streams gracefully
Sends connection close frame

Thread Safety

Thread-safe.

Implemented in kcenon::network::core::messaging_quic_client.

The documentation for this interface was generated from the following file:

src/internal/interfaces/i_quic_client.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Key Features

Thread Safety

Member Typedef Documentation

◆ connected_callback_t

◆ disconnected_callback_t

◆ early_data_accepted_callback_t

◆ early_data_callback_t

◆ error_callback_t

◆ receive_callback_t

◆ session_ticket_callback_t

◆ stream_callback_t

Member Function Documentation

◆ alpn_protocol()

◆ close_stream()

◆ create_stream()

◆ create_unidirectional_stream()

◆ is_connected()

◆ is_early_data_accepted()

◆ is_handshake_complete()

◆ send()

◆ send_on_stream()

◆ set_alpn_protocols()

◆ set_connected_callback()

◆ set_disconnected_callback()

◆ set_early_data_accepted_callback()

◆ set_early_data_callback()

◆ set_error_callback()

◆ set_receive_callback()

◆ set_session_ticket_callback()

◆ set_stream_callback()

◆ start()

Behavior

Thread Safety

◆ stop()

Behavior

Thread Safety
