kcenon::network::interfaces::callback_adapter Class Reference

Adapter to use function callbacks with the observer pattern. More...

#include <connection_observer.h>

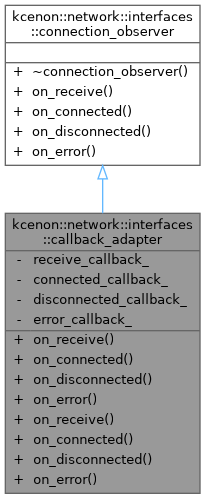

Inheritance diagram for kcenon::network::interfaces::callback_adapter:

Collaboration diagram for kcenon::network::interfaces::callback_adapter:

Public Types
using	receive_fn = std::function<void(std::span<const uint8_t>)>
	Callback type for received data (using span)
using	connected_fn = std::function<void()>
	Callback type for connection established.
using	disconnected_fn = std::function<void(std::optional<std::string_view>)>
	Callback type for disconnection.
using	error_fn = std::function<void(std::error_code)>
	Callback type for errors.

Public Member Functions
auto	on_receive (receive_fn fn) -> callback_adapter &
	Sets the callback for received data.
auto	on_connected (connected_fn fn) -> callback_adapter &
	Sets the callback for connection established.
auto	on_disconnected (disconnected_fn fn) -> callback_adapter &
	Sets the callback for disconnection.
auto	on_error (error_fn fn) -> callback_adapter &
	Sets the callback for errors.
auto	on_receive (std::span< const uint8_t > data) -> void override
	Called when data is received from the server.
auto	on_connected () -> void override
	Called when the connection is established.
auto	on_disconnected (std::optional< std::string_view > reason) -> void override
	Called when the connection is closed.
auto	on_error (std::error_code ec) -> void override
	Called when an error occurs.
Public Member Functions inherited from kcenon::network::interfaces::connection_observer
virtual	~connection_observer ()=default

Private Attributes
receive_fn	receive_callback_
connected_fn	connected_callback_
disconnected_fn	disconnected_callback_
error_fn	error_callback_

Detailed Description

Adapter to use function callbacks with the observer pattern.

This class enables gradual migration from the callback-based API to the observer pattern by wrapping std::function callbacks.

Usage

auto adapter = std::make_shared<callback_adapter>();
adapter->on_receive([](std::span<const uint8_t> data) {
    // Handle data
}).on_connected([]() {
    // Handle connection
}).on_error([](std::error_code ec) {
    // Handle error
});

client->set_observer(adapter);

Thread Safety

Thread-safe for callback invocation. Setting callbacks should be done before starting the client.

Definition at line 165 of file connection_observer.h.

Member Typedef Documentation

connected_fn

using kcenon::network::interfaces::callback_adapter::connected_fn = std::function<void()>

Callback type for connection established.

Definition at line 171 of file connection_observer.h.

disconnected_fn

using kcenon::network::interfaces::callback_adapter::disconnected_fn = std::function<void(std::optional<std::string_view>)>

Callback type for disconnection.

Definition at line 173 of file connection_observer.h.

error_fn

using kcenon::network::interfaces::callback_adapter::error_fn = std::function<void(std::error_code)>

Callback type for errors.

Definition at line 175 of file connection_observer.h.

receive_fn

using kcenon::network::interfaces::callback_adapter::receive_fn = std::function<void(std::span<const uint8_t>)>

Callback type for received data (using span)

Definition at line 169 of file connection_observer.h.

Member Function Documentation

on_connected() [1/2]

auto kcenon::network::interfaces::callback_adapter::on_connected ( ) -> void

inlineoverridevirtual

Called when the connection is established.

This is called after a successful connection to the server.

Implements kcenon::network::interfaces::connection_observer.

Definition at line 230 of file connection_observer.h.

        {
            if (connected_callback_)
            {
                connected_callback_();
            }
        }

References connected_callback_.

on_connected() [2/2]

auto kcenon::network::interfaces::callback_adapter::on_connected ( connected_fn fn ) -> callback_adapter&

inline

Sets the callback for connection established.

Parameters

fn	The callback function.

Returns

Reference to this adapter for chaining.

Definition at line 193 of file connection_observer.h.

        {
            connected_callback_ = std::move(fn);
            return *this;
        }

References connected_callback_.

on_disconnected() [1/2]

auto kcenon::network::interfaces::callback_adapter::on_disconnected ( disconnected_fn fn ) -> callback_adapter&

inline

Sets the callback for disconnection.

Parameters

fn	The callback function.

Returns

Reference to this adapter for chaining.

Definition at line 204 of file connection_observer.h.

        {
            disconnected_callback_ = std::move(fn);
            return *this;
        }

References disconnected_callback_.

on_disconnected() [2/2]

auto kcenon::network::interfaces::callback_adapter::on_disconnected ( std::optional< std::string_view > reason ) -> void

inlineoverridevirtual

Called when the connection is closed.

Parameters

reason

Optional reason for the disconnection.

Note

The reason may be empty for normal disconnections.

Implements kcenon::network::interfaces::connection_observer.

Definition at line 238 of file connection_observer.h.

        {
            if (disconnected_callback_)
            {
                disconnected_callback_(reason);
            }
        }

References disconnected_callback_.

on_error() [1/2]

auto kcenon::network::interfaces::callback_adapter::on_error ( error_fn fn ) -> callback_adapter&

inline

Sets the callback for errors.

Parameters

fn	The callback function.

Returns

Reference to this adapter for chaining.

Definition at line 215 of file connection_observer.h.

        {
            error_callback_ = std::move(fn);
            return *this;
        }

References error_callback_.

on_error() [2/2]

auto kcenon::network::interfaces::callback_adapter::on_error ( std::error_code ec ) -> void

inlineoverridevirtual

Called when an error occurs.

Parameters

ec	The error code describing the error.

Implements kcenon::network::interfaces::connection_observer.

Definition at line 246 of file connection_observer.h.

        {
            if (error_callback_)
            {
                error_callback_(ec);
            }
        }

References error_callback_.

on_receive() [1/2]

auto kcenon::network::interfaces::callback_adapter::on_receive ( receive_fn fn ) -> callback_adapter&

inline

Sets the callback for received data.

Parameters

fn	The callback function.

Returns

Reference to this adapter for chaining.

Definition at line 182 of file connection_observer.h.

        {
            receive_callback_ = std::move(fn);
            return *this;
        }

References receive_callback_.

on_receive() [2/2]

auto kcenon::network::interfaces::callback_adapter::on_receive ( std::span< const uint8_t > data ) -> void

inlineoverridevirtual

Called when data is received from the server.

Parameters

data	The received data as a span of bytes.

Thread Safety

May be called from I/O threads. Implementation must be thread-safe.

Implements kcenon::network::interfaces::connection_observer.

Definition at line 222 of file connection_observer.h.

        {
            if (receive_callback_)
            {
                receive_callback_(data);
            }
        }

References receive_callback_.

Member Data Documentation

connected_callback_

connected_fn kcenon::network::interfaces::callback_adapter::connected_callback_

private

Definition at line 256 of file connection_observer.h.

Referenced by on_connected(), and on_connected().

disconnected_callback_

disconnected_fn kcenon::network::interfaces::callback_adapter::disconnected_callback_

private

Definition at line 257 of file connection_observer.h.

Referenced by on_disconnected(), and on_disconnected().

error_callback_

error_fn kcenon::network::interfaces::callback_adapter::error_callback_

private

Definition at line 258 of file connection_observer.h.

Referenced by on_error(), and on_error().

receive_callback_

receive_fn kcenon::network::interfaces::callback_adapter::receive_callback_

private

Definition at line 255 of file connection_observer.h.

Referenced by on_receive(), and on_receive().

---

The documentation for this class was generated from the following file:

• include/kcenon/network/interfaces/connection_observer.h
