Bridge class for messaging_system compatibility implementing INetworkBridge. More...

#include <messaging_bridge.h>

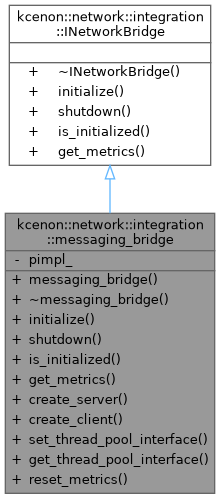

Inheritance diagram for kcenon::network::integration::messaging_bridge:

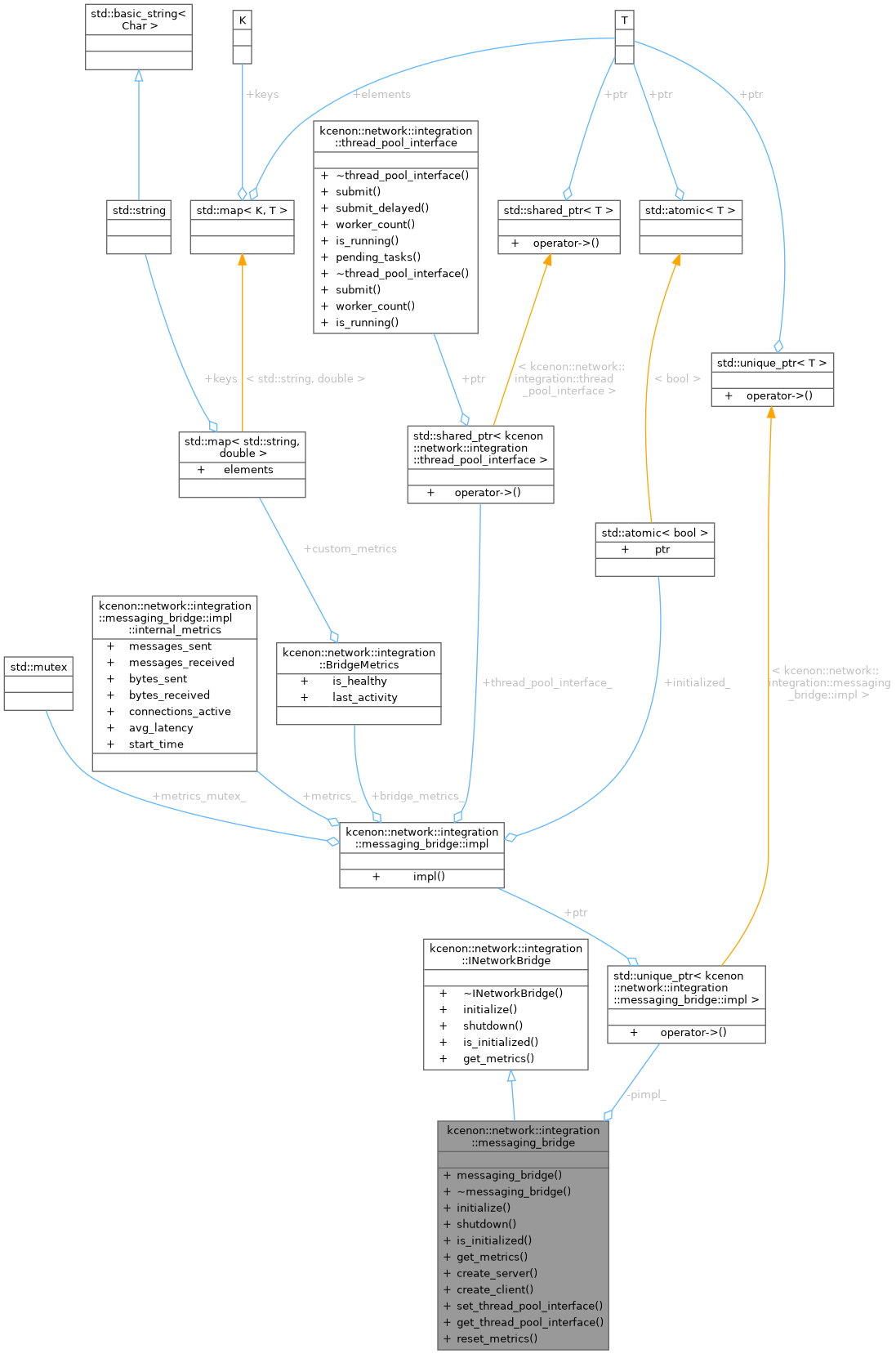

Collaboration diagram for kcenon::network::integration::messaging_bridge:

Classes
class	impl

Public Member Functions
	messaging_bridge ()
	Default constructor.

	~messaging_bridge () override
	Destructor.

VoidResult	initialize (const BridgeConfig &config) override
	Initialize the bridge with configuration.

VoidResult	shutdown () override
	Shutdown the bridge.

bool	is_initialized () const override
	Check if the bridge is initialized.

BridgeMetrics	get_metrics () const override
	Get current metrics.

std::shared_ptr< kcenon::network::core::messaging_server >	create_server (const std::string &server_id)
	Create a messaging server with messaging_system compatible API.

std::shared_ptr< kcenon::network::core::messaging_client >	create_client (const std::string &client_id)
	Create a messaging client with messaging_system compatible API.

void	set_thread_pool_interface (std::shared_ptr< thread_pool_interface > pool)
	Set thread pool using the integration interface.

std::shared_ptr< thread_pool_interface >	get_thread_pool_interface () const
	Get the thread pool interface.

void	reset_metrics ()
	Reset performance metrics.

Public Member Functions inherited from kcenon::network::integration::INetworkBridge
virtual	~INetworkBridge ()=default

Private Attributes
std::unique_ptr< impl >	pimpl_

Detailed Description

Bridge class for messaging_system compatibility implementing INetworkBridge.

This class provides a compatibility layer that allows existing messaging_system code to work with the new independent network_system without modification.

Lifecycle:

Create using constructor or factory methods
Call initialize() with configuration
Use create_server() and create_client() to create messaging components
Call shutdown() before destruction

Thread Safety:

initialize() and shutdown() are not thread-safe (single-threaded usage)
get_metrics() is thread-safe for concurrent queries
create_server() and create_client() are thread-safe after initialization

Definition at line 67 of file messaging_bridge.h.

Constructor & Destructor Documentation

◆ messaging_bridge()

kcenon::network::integration::messaging_bridge::messaging_bridge ( )

Default constructor.

Definition at line 63 of file messaging_bridge.cpp.

                                   : pimpl_(std::make_unique<impl>()) {
    pimpl_->metrics_.start_time = std::chrono::steady_clock::now();
}

References kcenon::network::integration::messaging_bridge::impl::metrics_, pimpl_, and kcenon::network::integration::messaging_bridge::impl::internal_metrics::start_time.

◆ ~messaging_bridge()

kcenon::network::integration::messaging_bridge::~messaging_bridge ( )

override

Destructor.

Automatically calls shutdown() if initialized

Definition at line 67 of file messaging_bridge.cpp.

                                    {
    if (is_initialized()) {
        shutdown();
    }
}

References is_initialized(), and shutdown().

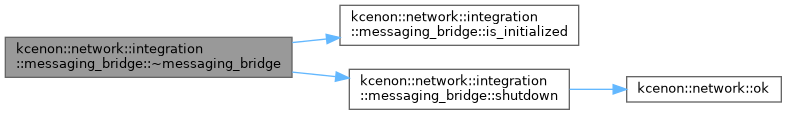

Here is the call graph for this function:

Member Function Documentation

◆ create_client()

std::shared_ptr< kcenon::network::core::messaging_client > kcenon::network::integration::messaging_bridge::create_client ( const std::string & client_id )

Create a messaging client with messaging_system compatible API.

Parameters

client_id Unique identifier for the client

Returns: Shared pointer to the created client

Definition at line 144 of file messaging_bridge.cpp.

  {
    return std::make_shared<kcenon::network::core::messaging_client>(client_id);
}

◆ create_server()

std::shared_ptr< kcenon::network::core::messaging_server > kcenon::network::integration::messaging_bridge::create_server ( const std::string & server_id )

Create a messaging server with messaging_system compatible API.

Parameters

server_id Unique identifier for the server

Returns: Shared pointer to the created server

Definition at line 138 of file messaging_bridge.cpp.

  {
    return std::make_shared<kcenon::network::core::messaging_server>(server_id);
}

◆ get_metrics()

BridgeMetrics kcenon::network::integration::messaging_bridge::get_metrics ( ) const

overridevirtual

Get current metrics.

Returns: Bridge metrics including messaging statistics

Custom Metrics:

"messages_sent": Total messages sent
"messages_received": Total messages received
"bytes_sent": Total bytes sent
"bytes_received": Total bytes received
"connections_active": Number of active connections
"avg_latency_ms": Average message latency in milliseconds

Thread Safety: Safe to call concurrently

Implements kcenon::network::integration::INetworkBridge.

Definition at line 120 of file messaging_bridge.cpp.

                                                  {
    std::lock_guard<std::mutex> lock(pimpl_->metrics_mutex_);

    // Update bridge metrics from performance metrics
    pimpl_->bridge_metrics_.is_healthy = pimpl_->initialized_.load();
    pimpl_->bridge_metrics_.last_activity = std::chrono::steady_clock::now();
    pimpl_->bridge_metrics_.custom_metrics["messages_sent"] = static_cast<double>(pimpl_->metrics_.messages_sent);
    pimpl_->bridge_metrics_.custom_metrics["messages_received"] = static_cast<double>(pimpl_->metrics_.messages_received);
    pimpl_->bridge_metrics_.custom_metrics["bytes_sent"] = static_cast<double>(pimpl_->metrics_.bytes_sent);
    pimpl_->bridge_metrics_.custom_metrics["bytes_received"] = static_cast<double>(pimpl_->metrics_.bytes_received);
    pimpl_->bridge_metrics_.custom_metrics["connections_active"] = static_cast<double>(pimpl_->metrics_.connections_active);
    pimpl_->bridge_metrics_.custom_metrics["avg_latency_ms"] = static_cast<double>(pimpl_->metrics_.avg_latency.count());

    return pimpl_->bridge_metrics_;
}

◆ get_thread_pool_interface()

std::shared_ptr< thread_pool_interface > kcenon::network::integration::messaging_bridge::get_thread_pool_interface ( ) const

Get the thread pool interface.

Returns: Current thread pool interface

Definition at line 184 of file messaging_bridge.cpp.

                                                                                       {
    if (!pimpl_->thread_pool_interface_) {
        // Return the global thread integration manager's pool
        return thread_integration_manager::instance().get_thread_pool();
    }
    return pimpl_->thread_pool_interface_;
}

References kcenon::network::integration::thread_integration_manager::get_thread_pool(), kcenon::network::integration::thread_integration_manager::instance(), pimpl_, and kcenon::network::integration::messaging_bridge::impl::thread_pool_interface_.

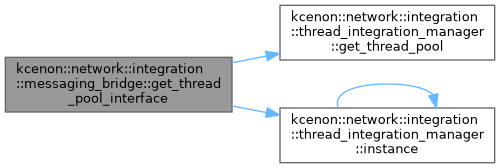

Here is the call graph for this function:

◆ initialize()

VoidResult kcenon::network::integration::messaging_bridge::initialize ( const BridgeConfig & config )

overridevirtual

Initialize the bridge with configuration.

Parameters

config Configuration parameters

Returns: ok() on success, error_info on failure

Configuration Properties:

"enabled": "true" or "false" (default: "true")
"server_id": Default server identifier (optional)
"client_id": Default client identifier (optional)

Error Conditions:

Already initialized
Invalid configuration

Example:

BridgeConfig config;
config.integration_name = "messaging_system";
config.properties["enabled"] = "true";

auto result = bridge->initialize(config);
if (result.is_err()) {
    std::cerr << "Init failed: " << result.error().message << std::endl;
}

Implements kcenon::network::integration::INetworkBridge.

Definition at line 75 of file messaging_bridge.cpp.

                                                                  {
    std::lock_guard<std::mutex> lock(pimpl_->metrics_mutex_);

    if (pimpl_->initialized_.load()) {
        return error_void(
            error_codes::common_errors::already_exists,
            "messaging_bridge already initialized",
            "messaging_bridge::initialize");
    }

    // Process configuration properties
    auto enabled_it = config.properties.find("enabled");
    if (enabled_it != config.properties.end() && enabled_it->second == "false") {
        return error_void(
            error_codes::common_errors::invalid_argument,
            "Bridge is disabled in configuration",
            "messaging_bridge::initialize");
    }

    // Initialize bridge metrics
    pimpl_->bridge_metrics_.is_healthy = true;
    pimpl_->bridge_metrics_.last_activity = std::chrono::steady_clock::now();
    pimpl_->bridge_metrics_.custom_metrics.clear();

    pimpl_->initialized_.store(true);
    return ok();
}

References kcenon::network::error_codes::common_errors::already_exists, kcenon::network::integration::messaging_bridge::impl::bridge_metrics_, config, kcenon::network::integration::BridgeMetrics::custom_metrics, kcenon::network::error_void(), kcenon::network::integration::messaging_bridge::impl::initialized_, kcenon::network::error_codes::common_errors::invalid_argument, kcenon::network::integration::BridgeMetrics::is_healthy, kcenon::network::integration::BridgeMetrics::last_activity, kcenon::network::integration::messaging_bridge::impl::metrics_mutex_, kcenon::network::ok(), and pimpl_.

Here is the call graph for this function:

◆ is_initialized()

bool kcenon::network::integration::messaging_bridge::is_initialized ( ) const

overridevirtual

Check if the bridge is initialized.

Returns: true if initialized and ready, false otherwise

Implements kcenon::network::integration::INetworkBridge.

Definition at line 116 of file messaging_bridge.cpp.

                                            {
    return pimpl_->initialized_.load();
}

References kcenon::network::integration::messaging_bridge::impl::initialized_, and pimpl_.

Referenced by ~messaging_bridge().

Here is the caller graph for this function:

◆ reset_metrics()

void kcenon::network::integration::messaging_bridge::reset_metrics ( )

Reset performance metrics.

Definition at line 172 of file messaging_bridge.cpp.

                                     {
    std::lock_guard<std::mutex> lock(pimpl_->metrics_mutex_);
    pimpl_->metrics_ = impl::internal_metrics{};
    pimpl_->metrics_.start_time = std::chrono::steady_clock::now();
}

References kcenon::network::integration::messaging_bridge::impl::metrics_, kcenon::network::integration::messaging_bridge::impl::metrics_mutex_, pimpl_, and kcenon::network::integration::messaging_bridge::impl::internal_metrics::start_time.

◆ set_thread_pool_interface()

void kcenon::network::integration::messaging_bridge::set_thread_pool_interface ( std::shared_ptr< thread_pool_interface > pool )

Set thread pool using the integration interface.

Parameters

pool	Thread pool interface implementation

Definition at line 178 of file messaging_bridge.cpp.

  {
    pimpl_->thread_pool_interface_ = pool;
}

References pimpl_, and kcenon::network::integration::messaging_bridge::impl::thread_pool_interface_.

◆ shutdown()

VoidResult kcenon::network::integration::messaging_bridge::shutdown ( )

overridevirtual

Shutdown the bridge.

Returns: ok() on success, error_info on failure

Shuts down the bridge and releases resources. This method is idempotent - multiple calls are safe.

Implements kcenon::network::integration::INetworkBridge.

Definition at line 103 of file messaging_bridge.cpp.

                                      {
    std::lock_guard<std::mutex> lock(pimpl_->metrics_mutex_);

    if (!pimpl_->initialized_.load()) {
        return ok(); // Already shut down, idempotent
    }

    pimpl_->initialized_.store(false);
    pimpl_->bridge_metrics_.is_healthy = false;

    return ok();
}
