kcenon::network::integration::io_context_thread_manager Class Reference

Manages io_context execution on shared thread pools. More...

#include <io_context_thread_manager.h>

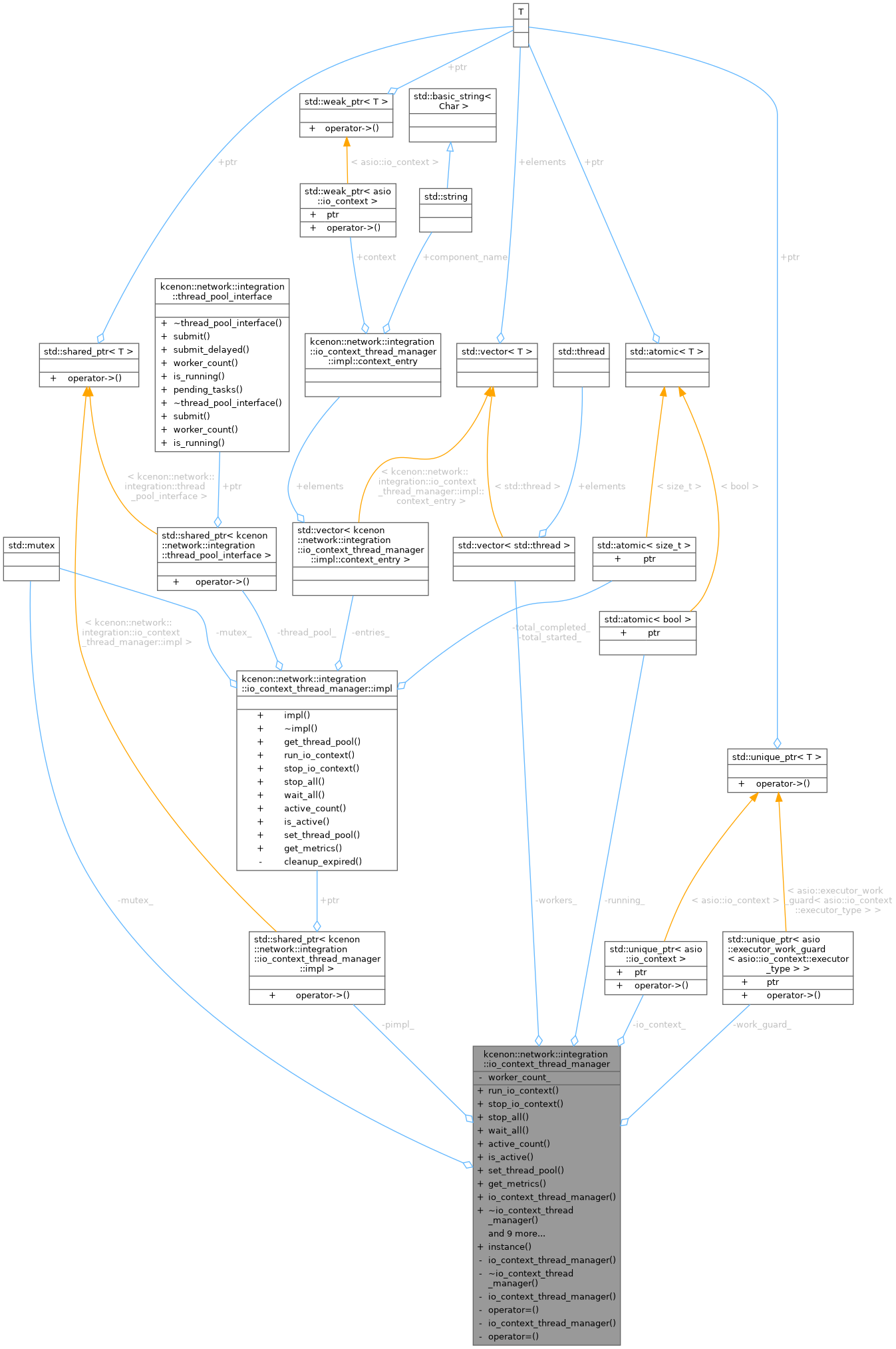

Collaboration diagram for kcenon::network::integration::io_context_thread_manager:

Classes
class	impl
struct	metrics
	Get current metrics. More...

Public Member Functions
std::future< void >	run_io_context (std::shared_ptr< asio::io_context > io_context, const std::string &component_name="")
	Run an io_context on the shared thread pool.
void	stop_io_context (std::shared_ptr< asio::io_context > io_context)
	Stop an io_context managed by this manager.
void	stop_all ()
	Stop all managed io_contexts.
void	wait_all ()
	Wait for all managed io_contexts to complete.
size_t	active_count () const
	Get the number of active io_contexts.
bool	is_active (std::shared_ptr< asio::io_context > io_context) const
	Check if an io_context is managed and running.
void	set_thread_pool (std::shared_ptr< thread_pool_interface > pool)
	Set a custom thread pool.
metrics	get_metrics () const
	Get current metrics.
	io_context_thread_manager (size_t worker_count=0)
	Construct a manager with specified worker count.
	~io_context_thread_manager ()
	Destructor - stops the manager if running.
	io_context_thread_manager (const io_context_thread_manager &)=delete
io_context_thread_manager &	operator= (const io_context_thread_manager &)=delete
	io_context_thread_manager (io_context_thread_manager &&) noexcept
io_context_thread_manager &	operator= (io_context_thread_manager &&) noexcept
bool	start ()
	Start the io_context worker threads.
void	stop ()
	Stop the io_context and join worker threads.
bool	is_running () const noexcept
	Check if the manager is running.
asio::io_context &	get_io_context () noexcept
	Get the managed io_context.
size_t	worker_count () const noexcept
	Get the number of worker threads.

Static Public Member Functions
static io_context_thread_manager &	instance ()
	Get the singleton instance.

Private Member Functions
	io_context_thread_manager ()
	~io_context_thread_manager ()
	io_context_thread_manager (const io_context_thread_manager &)=delete
io_context_thread_manager &	operator= (const io_context_thread_manager &)=delete
	io_context_thread_manager (io_context_thread_manager &&)=delete
io_context_thread_manager &	operator= (io_context_thread_manager &&)=delete

Private Attributes
std::shared_ptr< impl >	pimpl_
	PIMPL pointer with intentional leak pattern.
std::unique_ptr< asio::io_context >	io_context_
std::unique_ptr< asio::executor_work_guard< asio::io_context::executor_type > >	work_guard_
std::vector< std::thread >	workers_
std::atomic< bool >	running_ {false}
size_t	worker_count_
std::mutex	mutex_

Detailed Description

Manages io_context execution on shared thread pools.

Manages ASIO io_context lifecycle and worker threads.

This class provides unified thread management for all asio::io_context instances in the network system. Instead of each component managing its own threads, this manager provides a centralized approach.

Benefits

• Unified thread resource management
• Consistent shutdown behavior across all components
• Reduced total thread count
• Simplified component implementation

Thread Safety

All public methods are thread-safe.

Usage Example

auto& manager = io_context_thread_manager::instance();

// Run io_context on the shared thread pool
auto io_ctx = std::make_shared<asio::io_context>();
auto future = manager.run_io_context(io_ctx, "my_component");

// ... use io_context for async operations ...

// Stop when done
manager.stop_io_context(io_ctx);
future.wait();

This class provides a thread-safe wrapper around asio::io_context, managing worker threads for asynchronous I/O operations.

Definition at line 180 of file core.cppm.

Constructor & Destructor Documentation

io_context_thread_manager() [1/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( )

private

Definition at line 233 of file io_context_thread_manager.cpp.

    : pimpl_(new impl(), [](impl*) { /* no-op deleter - intentional leak */ }) {
}

~io_context_thread_manager() [1/2]

kcenon::network::integration::io_context_thread_manager::~io_context_thread_manager ( )

privatedefault

io_context_thread_manager() [2/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( const io_context_thread_manager & )

privatedelete

io_context_thread_manager() [3/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( io_context_thread_manager && )

privatedelete

io_context_thread_manager() [4/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( size_t worker_count = 0 )

explicitexport

Construct a manager with specified worker count.

Parameters

worker_count

Number of worker threads (0 = hardware concurrency)

~io_context_thread_manager() [2/2]

kcenon::network::integration::io_context_thread_manager::~io_context_thread_manager ( )

export

Destructor - stops the manager if running.

io_context_thread_manager() [5/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( const io_context_thread_manager & )

exportdelete

io_context_thread_manager() [6/6]

kcenon::network::integration::io_context_thread_manager::io_context_thread_manager ( io_context_thread_manager && )

exportnoexcept

Member Function Documentation

active_count()

size_t kcenon::network::integration::io_context_thread_manager::active_count

(

)

const

Get the number of active io_contexts.

Returns

Number of io_contexts currently running

Definition at line 264 of file io_context_thread_manager.cpp.

                                                     {
    return pimpl_->active_count();
}

References pimpl_.

get_io_context()

asio::io_context & kcenon::network::integration::io_context_thread_manager::get_io_context ( )

exportnoexcept

Get the managed io_context.

Returns

Reference to the io_context

get_metrics()

io_context_thread_manager::metrics kcenon::network::integration::io_context_thread_manager::get_metrics

(

)

const

Get current metrics.

Returns

Current metrics

Definition at line 280 of file io_context_thread_manager.cpp.

                                                                              {
    return pimpl_->get_metrics();
}

References pimpl_.

instance()

io_context_thread_manager & kcenon::network::integration::io_context_thread_manager::instance ( )

static

Get the singleton instance.

Returns

Reference to the singleton instance

Definition at line 228 of file io_context_thread_manager.cpp.

                                                               {
    static io_context_thread_manager instance;
    return instance;
}

References instance().

Referenced by kcenon::network::core::messaging_client::do_start_impl(), kcenon::network::core::messaging_server::do_start_impl(), kcenon::network::core::messaging_client::do_stop_impl(), kcenon::network::core::messaging_server::do_stop_impl(), and instance().

Here is the call graph for this function:

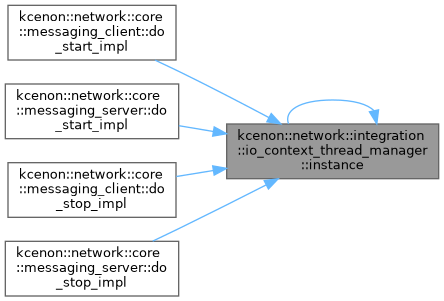

Here is the caller graph for this function:

is_active()

bool kcenon::network::integration::io_context_thread_manager::is_active

(

std::shared_ptr< asio::io_context >

io_context

)

const

Check if an io_context is managed and running.

Parameters

io_context

The io_context to check

Returns

true if the io_context is active, false otherwise

Definition at line 268 of file io_context_thread_manager.cpp.

        {
    return pimpl_->is_active(io_context);
}

References pimpl_.

is_running()

bool kcenon::network::integration::io_context_thread_manager::is_running ( ) const

exportnoexcept

Check if the manager is running.

Returns

true if running, false otherwise

operator=() [1/4]

io_context_thread_manager & kcenon::network::integration::io_context_thread_manager::operator= ( const io_context_thread_manager & )

privatedelete

operator=() [2/4]

io_context_thread_manager & kcenon::network::integration::io_context_thread_manager::operator= ( const io_context_thread_manager & )

exportdelete

operator=() [3/4]

io_context_thread_manager & kcenon::network::integration::io_context_thread_manager::operator= ( io_context_thread_manager && )

exportnoexcept

operator=() [4/4]

io_context_thread_manager & kcenon::network::integration::io_context_thread_manager::operator= ( io_context_thread_manager && )

privatedelete

run_io_context()

std::future< void > kcenon::network::integration::io_context_thread_manager::run_io_context	(	std::shared_ptr< asio::io_context >	io_context,
		const std::string &	component_name = "" )

Run an io_context on the shared thread pool.

Submits the io_context::run() call as a task to the thread pool. The io_context will run until stopped or an error occurs.

Parameters

io_context	The io_context to run
component_name	Optional name for logging/identification

Returns

Future that completes when io_context::run() returns

Note

The io_context must have work posted to it or use a work_guard, otherwise io_context::run() will return immediately.

Definition at line 243 of file io_context_thread_manager.cpp.

  {
    return pimpl_->run_io_context(io_context, component_name);
}

References pimpl_.

Referenced by kcenon::network::core::messaging_client::do_start_impl(), and kcenon::network::core::messaging_server::do_start_impl().

Here is the caller graph for this function:

set_thread_pool()

void kcenon::network::integration::io_context_thread_manager::set_thread_pool

(

std::shared_ptr< thread_pool_interface >

pool

)

Set a custom thread pool.

By default, uses the thread pool from network_context. This allows using a different thread pool if needed.

Parameters

pool	The thread pool to use

Definition at line 274 of file io_context_thread_manager.cpp.

  {
    pimpl_->set_thread_pool(pool);
}

References pimpl_.

start()

bool kcenon::network::integration::io_context_thread_manager::start ( )

export

Start the io_context worker threads.

Returns

true if started successfully, false if already running

stop()

void kcenon::network::integration::io_context_thread_manager::stop ( )

export

Stop the io_context and join worker threads.

stop_all()

void kcenon::network::integration::io_context_thread_manager::stop_all

(

)

Stop all managed io_contexts.

Stops all io_contexts that were started via run_io_context(). Useful for application shutdown.

Definition at line 256 of file io_context_thread_manager.cpp.

                                         {
    pimpl_->stop_all();
}

References pimpl_.

stop_io_context()

void kcenon::network::integration::io_context_thread_manager::stop_io_context

(

std::shared_ptr< asio::io_context >

io_context

)

Stop an io_context managed by this manager.

Calls io_context::stop() to terminate the run loop. The future returned by run_io_context() will complete after this.

Parameters

io_context

The io_context to stop

Definition at line 250 of file io_context_thread_manager.cpp.

  {
    pimpl_->stop_io_context(io_context);
}

References pimpl_.

Referenced by kcenon::network::core::messaging_client::do_stop_impl(), and kcenon::network::core::messaging_server::do_stop_impl().

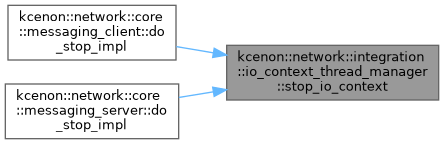

Here is the caller graph for this function:

wait_all()

void kcenon::network::integration::io_context_thread_manager::wait_all

(

)

Wait for all managed io_contexts to complete.

Blocks until all io_context::run() calls have returned. Should be called after stop_all() for clean shutdown.

Definition at line 260 of file io_context_thread_manager.cpp.

                                         {
    pimpl_->wait_all();
}

References pimpl_.

worker_count()

size_t kcenon::network::integration::io_context_thread_manager::worker_count ( ) const

exportnoexcept

Get the number of worker threads.

Returns

Number of worker threads

Member Data Documentation

io_context_

std::unique_ptr<asio::io_context> kcenon::network::integration::io_context_thread_manager::io_context_

exportprivate

Definition at line 229 of file core.cppm.

mutex_

std::mutex kcenon::network::integration::io_context_thread_manager::mutex_

mutableexportprivate

Definition at line 234 of file core.cppm.

pimpl_

std::shared_ptr<impl> kcenon::network::integration::io_context_thread_manager::pimpl_

private

PIMPL pointer with intentional leak pattern.

Uses shared_ptr with no-op deleter to prevent heap corruption during static destruction. This is intentional - see docs/DESIGN_DECISIONS.md for detailed rationale.

Note

Memory is intentionally not freed. This is safe because:

• Only ~100-200 bytes per singleton instance
• Process terminates immediately after static destruction
• OS reclaims all process memory on exit

Warning

Do not "fix" this by changing to unique_ptr or adding a real deleter. Doing so will cause heap corruption on shutdown.

See also

docs/DESIGN_DECISIONS.md#intentional-leak-pattern

Definition at line 181 of file io_context_thread_manager.h.

Referenced by active_count(), get_metrics(), is_active(), run_io_context(), set_thread_pool(), stop_all(), stop_io_context(), and wait_all().

running_

std::atomic<bool> kcenon::network::integration::io_context_thread_manager::running_ {false}

exportprivate

Definition at line 232 of file core.cppm.

{false};

work_guard_

std::unique_ptr<asio::executor_work_guard<asio::io_context::executor_type> > kcenon::network::integration::io_context_thread_manager::work_guard_

exportprivate

Definition at line 230 of file core.cppm.

worker_count_

size_t kcenon::network::integration::io_context_thread_manager::worker_count_

exportprivate

Definition at line 233 of file core.cppm.

workers_

std::vector<std::thread> kcenon::network::integration::io_context_thread_manager::workers_

exportprivate

Definition at line 231 of file core.cppm.

---

The documentation for this class was generated from the following files:

• src/internal/integration/io_context_thread_manager.h
• src/modules/core.cppm
• src/integration/io_context_thread_manager.cpp
