kcenon::network::integration::NetworkSystemBridge Class Reference

Unified facade for all network_system integration bridges. More...

#include <network_system_bridge.h>

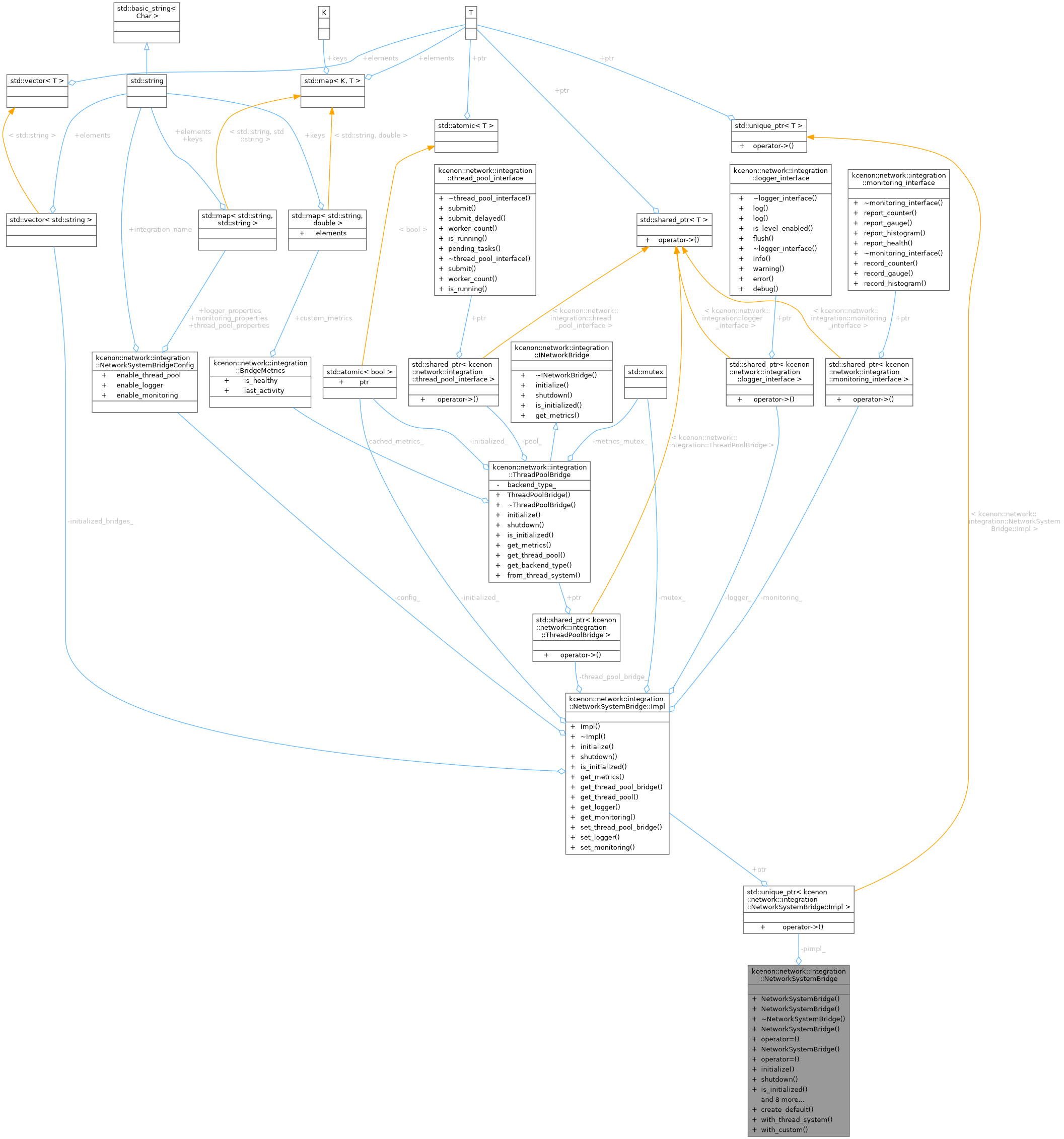

Collaboration diagram for kcenon::network::integration::NetworkSystemBridge:

Classes
class	Impl

Public Member Functions
	NetworkSystemBridge ()
	Default constructor.
	NetworkSystemBridge (std::shared_ptr< ThreadPoolBridge > thread_pool)
	Construct bridge with custom thread pool.
	~NetworkSystemBridge ()
	Destructor.
	NetworkSystemBridge (const NetworkSystemBridge &)=delete
NetworkSystemBridge &	operator= (const NetworkSystemBridge &)=delete
	NetworkSystemBridge (NetworkSystemBridge &&) noexcept
NetworkSystemBridge &	operator= (NetworkSystemBridge &&) noexcept
VoidResult	initialize (const NetworkSystemBridgeConfig &config)
	Initialize all configured bridges.
VoidResult	shutdown ()
	Shutdown all bridges.
bool	is_initialized () const
	Check if the bridge is initialized.
BridgeMetrics	get_metrics () const
	Get aggregated metrics from all bridges.
std::shared_ptr< ThreadPoolBridge >	get_thread_pool_bridge () const
	Get thread pool bridge.
std::shared_ptr< thread_pool_interface >	get_thread_pool () const
	Get thread pool interface.
std::shared_ptr< logger_interface >	get_logger () const
	Get logger interface.
std::shared_ptr< monitoring_interface >	get_monitoring () const
	Get monitoring interface.
VoidResult	set_thread_pool_bridge (std::shared_ptr< ThreadPoolBridge > bridge)
	Set custom thread pool bridge.
VoidResult	set_logger (std::shared_ptr< logger_interface > logger)
	Set custom logger.
VoidResult	set_monitoring (std::shared_ptr< monitoring_interface > monitoring)
	Set custom monitoring.

Static Public Member Functions
static std::shared_ptr< NetworkSystemBridge >	create_default ()
	Create bridge with default configuration.
static std::shared_ptr< NetworkSystemBridge >	with_thread_system (const std::string &pool_name="network_pool")
	Create bridge with thread_system integration.
static std::shared_ptr< NetworkSystemBridge >	with_custom (std::shared_ptr< thread_pool_interface > thread_pool=nullptr, std::shared_ptr< logger_interface > logger=nullptr, std::shared_ptr< monitoring_interface > monitoring=nullptr)
	Create bridge with custom components.

Private Attributes
std::unique_ptr< Impl >	pimpl_

Detailed Description

Unified facade for all network_system integration bridges.

This class provides a single entry point for managing all external system integrations in network_system. It consolidates thread pool, logger, and monitoring integrations into a unified interface.

Key Features:

• Single initialization point for all integrations
• Factory methods for common scenarios
• Thread-safe access to bridge components
• Centralized lifecycle management
• Metrics aggregation from all bridges

Lifecycle:

1. Create using factory method or direct constructor
2. Call initialize() with configuration
3. Access bridge components via getters
4. Call shutdown() before destruction

Thread Safety:

• All public methods are thread-safe
• initialize() and shutdown() can be called from multiple threads
• Getters are thread-safe after initialization

Definition at line 149 of file network_system_bridge.h.

Constructor & Destructor Documentation

NetworkSystemBridge() [1/4]

kcenon::network::integration::NetworkSystemBridge::NetworkSystemBridge

(

)

Default constructor.

Creates a bridge with default settings. All integrations are disabled until explicitly configured and initialized.

Definition at line 206 of file network_system_bridge.cpp.

    : pimpl_(std::make_unique<Impl>()) {
}

NetworkSystemBridge() [2/4]

kcenon::network::integration::NetworkSystemBridge::NetworkSystemBridge ( std::shared_ptr< ThreadPoolBridge > thread_pool )

explicit

Construct bridge with custom thread pool.

Parameters

thread_pool

Thread pool bridge to use

Creates a bridge with a specific thread pool bridge. Other integrations can be added via set_* methods.

Definition at line 210 of file network_system_bridge.cpp.

    : pimpl_(std::make_unique<Impl>()) {
    pimpl_->set_thread_pool_bridge(std::move(thread_pool));
}

References pimpl_.

~NetworkSystemBridge()

kcenon::network::integration::NetworkSystemBridge::~NetworkSystemBridge ( )

default

Destructor.

Automatically calls shutdown() if initialized

NetworkSystemBridge() [3/4]

kcenon::network::integration::NetworkSystemBridge::NetworkSystemBridge ( const NetworkSystemBridge & )

delete

NetworkSystemBridge() [4/4]

kcenon::network::integration::NetworkSystemBridge::NetworkSystemBridge ( NetworkSystemBridge && )

defaultnoexcept

Member Function Documentation

create_default()

std::shared_ptr< NetworkSystemBridge > kcenon::network::integration::NetworkSystemBridge::create_default ( )

static

Create bridge with default configuration.

Returns

Shared pointer to NetworkSystemBridge

Creates a bridge with:

• Thread pool from thread_system (if available)
• Default logger (disabled)
• Default monitoring (disabled)

Example:

auto bridge = NetworkSystemBridge::create_default();
NetworkSystemBridgeConfig config;
bridge->initialize(config);

Definition at line 311 of file network_system_bridge.cpp.

                                                                       {
    auto bridge = std::make_shared<NetworkSystemBridge>();

    // Try to create thread pool from thread_system if available
#if KCENON_WITH_THREAD_SYSTEM
    auto thread_pool_bridge = ThreadPoolBridge::from_thread_system("network_pool");
    bridge->set_thread_pool_bridge(thread_pool_bridge);
#endif

    return bridge;
}

References kcenon::network::integration::ThreadPoolBridge::from_thread_system().

Here is the call graph for this function:

get_logger()

std::shared_ptr< logger_interface > kcenon::network::integration::NetworkSystemBridge::get_logger

(

)

const

Get logger interface.

Returns

Shared pointer to logger, or nullptr if not configured

Definition at line 265 of file network_system_bridge.cpp.

                                                                      {
    if (!pimpl_) {
        return nullptr;
    }
    return pimpl_->get_logger();
}

References pimpl_.

get_metrics()

BridgeMetrics kcenon::network::integration::NetworkSystemBridge::get_metrics

(

)

const

Get aggregated metrics from all bridges.

Returns

Aggregated bridge metrics

Returns combined metrics from all initialized bridges. Custom metrics from each bridge are prefixed with the bridge name.

Definition at line 244 of file network_system_bridge.cpp.

                                                     {
    if (!pimpl_) {
        return BridgeMetrics{};
    }
    return pimpl_->get_metrics();
}

References pimpl_.

get_monitoring()

std::shared_ptr< monitoring_interface > kcenon::network::integration::NetworkSystemBridge::get_monitoring

(

)

const

Get monitoring interface.

Returns

Shared pointer to monitoring, or nullptr if not configured

Definition at line 272 of file network_system_bridge.cpp.

                                                                              {
    if (!pimpl_) {
        return nullptr;
    }
    return pimpl_->get_monitoring();
}

References pimpl_.

get_thread_pool()

std::shared_ptr< thread_pool_interface > kcenon::network::integration::NetworkSystemBridge::get_thread_pool

(

)

const

Get thread pool interface.

Returns

Shared pointer to thread pool, or nullptr if not configured

Convenience method equivalent to:

auto bridge = get_thread_pool_bridge();
return bridge ? bridge->get_thread_pool() : nullptr;

Definition at line 258 of file network_system_bridge.cpp.

                                                                                {
    if (!pimpl_) {
        return nullptr;
    }
    return pimpl_->get_thread_pool();
}

References pimpl_.

get_thread_pool_bridge()

std::shared_ptr< ThreadPoolBridge > kcenon::network::integration::NetworkSystemBridge::get_thread_pool_bridge

(

)

const

Get thread pool bridge.

Returns

Shared pointer to thread pool bridge, or nullptr if not configured

Definition at line 251 of file network_system_bridge.cpp.

                                                                                  {
    if (!pimpl_) {
        return nullptr;
    }
    return pimpl_->get_thread_pool_bridge();
}

References pimpl_.

initialize()

VoidResult kcenon::network::integration::NetworkSystemBridge::initialize

(

const NetworkSystemBridgeConfig &

config

)

Initialize all configured bridges.

Parameters

config

Configuration for all bridges

Returns

ok() on success, error_info on failure

Initializes all enabled bridges according to the configuration. If any bridge fails to initialize, all previously initialized bridges are shut down and an error is returned.

Error Conditions:

• Already initialized
• Bridge initialization failure
• Invalid configuration

Example:

NetworkSystemBridgeConfig config;
config.enable_thread_pool = true;
config.thread_pool_properties["pool_name"] = "network_pool";

auto result = bridge->initialize(config);
if (result.is_err()) {
    std::cerr << "Init failed: " << result.error().message << std::endl;
}

Definition at line 220 of file network_system_bridge.cpp.

                                                                                  {
    if (!pimpl_) {
        return error_void(
            error_codes::common_errors::not_initialized,
            "Bridge has been moved",
            "NetworkSystemBridge::initialize");
    }
    return pimpl_->initialize(config);
}

References config, kcenon::network::error_void(), and kcenon::network::error_codes::common_errors::not_initialized.

Here is the call graph for this function:

is_initialized()

bool kcenon::network::integration::NetworkSystemBridge::is_initialized

(

)

const

Check if the bridge is initialized.

Returns

true if initialized and ready, false otherwise

Definition at line 237 of file network_system_bridge.cpp.

                                               {
    if (!pimpl_) {
        return false;
    }
    return pimpl_->is_initialized();
}

References pimpl_.

operator=() [1/2]

NetworkSystemBridge & kcenon::network::integration::NetworkSystemBridge::operator= ( const NetworkSystemBridge & )

delete

operator=() [2/2]

NetworkSystemBridge & kcenon::network::integration::NetworkSystemBridge::operator= ( NetworkSystemBridge && )

defaultnoexcept

set_logger()

VoidResult kcenon::network::integration::NetworkSystemBridge::set_logger

(

std::shared_ptr< logger_interface >

logger

)

Set custom logger.

Parameters

logger

Logger implementation to use

Returns

ok() on success, error_info on failure

Sets a custom logger. Must be called before initialize().

Definition at line 289 of file network_system_bridge.cpp.

                                                                                 {
    if (!pimpl_) {
        return error_void(
            error_codes::common_errors::not_initialized,
            "Bridge has been moved",
            "NetworkSystemBridge::set_logger");
    }
    return pimpl_->set_logger(std::move(logger));
}

References kcenon::network::error_void(), kcenon::network::error_codes::common_errors::not_initialized, and pimpl_.

Here is the call graph for this function:

set_monitoring()

VoidResult kcenon::network::integration::NetworkSystemBridge::set_monitoring

(

std::shared_ptr< monitoring_interface >

monitoring

)

Set custom monitoring.

Parameters

monitoring

Monitoring implementation to use

Returns

ok() on success, error_info on failure

Sets a custom monitoring implementation. Must be called before initialize().

Definition at line 299 of file network_system_bridge.cpp.

                                                                                             {
    if (!pimpl_) {
        return error_void(
            error_codes::common_errors::not_initialized,
            "Bridge has been moved",
            "NetworkSystemBridge::set_monitoring");
    }
    return pimpl_->set_monitoring(std::move(monitoring));
}

References kcenon::network::error_void(), kcenon::network::error_codes::common_errors::not_initialized, and pimpl_.

Here is the call graph for this function:

set_thread_pool_bridge()

VoidResult kcenon::network::integration::NetworkSystemBridge::set_thread_pool_bridge

(

std::shared_ptr< ThreadPoolBridge >

bridge

)

Set custom thread pool bridge.

Parameters

bridge

Thread pool bridge to use

Returns

ok() on success, error_info on failure

Sets a custom thread pool bridge. Must be called before initialize().

Error Conditions:

• Already initialized
• Null bridge pointer

Definition at line 279 of file network_system_bridge.cpp.

                                                                                             {
    if (!pimpl_) {
        return error_void(
            error_codes::common_errors::not_initialized,
            "Bridge has been moved",
            "NetworkSystemBridge::set_thread_pool_bridge");
    }
    return pimpl_->set_thread_pool_bridge(std::move(bridge));
}

References kcenon::network::error_void(), kcenon::network::error_codes::common_errors::not_initialized, and pimpl_.

Here is the call graph for this function:

shutdown()

VoidResult kcenon::network::integration::NetworkSystemBridge::shutdown

(

)

Shutdown all bridges.

Returns

ok() on success, error_info on failure

Shuts down all initialized bridges in reverse initialization order. This method is idempotent - multiple calls are safe.

Definition at line 230 of file network_system_bridge.cpp.

                                         {
    if (!pimpl_) {
        return ok(); // Already moved or destroyed
    }
    return pimpl_->shutdown();
}

References kcenon::network::ok(), and pimpl_.

Here is the call graph for this function:

with_custom()

std::shared_ptr< NetworkSystemBridge > kcenon::network::integration::NetworkSystemBridge::with_custom ( std::shared_ptr< thread_pool_interface > thread_pool = nullptr, std::shared_ptr< logger_interface > logger = nullptr, std::shared_ptr< monitoring_interface > monitoring = nullptr )

static

Create bridge with custom components.

Parameters

thread_pool	Custom thread pool (optional)
logger	Custom logger (optional)
monitoring	Custom monitoring (optional)

Returns

Shared pointer to NetworkSystemBridge

Creates a bridge with custom components.

Definition at line 365 of file network_system_bridge.cpp.

                                                    {

    auto bridge = std::make_shared<NetworkSystemBridge>();

    if (thread_pool) {
        auto thread_pool_bridge = std::make_shared<ThreadPoolBridge>(
            thread_pool, ThreadPoolBridge::BackendType::Custom);
        bridge->set_thread_pool_bridge(thread_pool_bridge);
    }

    if (logger) {
        bridge->set_logger(logger);
    }

    if (monitoring) {
        bridge->set_monitoring(monitoring);
    }

    return bridge;
}

References kcenon::network::integration::ThreadPoolBridge::Custom.

with_thread_system()

std::shared_ptr< NetworkSystemBridge > kcenon::network::integration::NetworkSystemBridge::with_thread_system ( const std::string & pool_name = "network_pool" )

static

Create bridge with thread_system integration.

Parameters

pool_name

Thread pool name (default: "network_pool")

Returns

Shared pointer to NetworkSystemBridge

Creates a bridge configured for thread_system integration.

Example:

auto bridge = NetworkSystemBridge::with_thread_system("network_pool");
NetworkSystemBridgeConfig config;
config.enable_thread_pool = true;
bridge->initialize(config);

Definition at line 323 of file network_system_bridge.cpp.

                                {
    auto bridge = std::make_shared<NetworkSystemBridge>();

#if KCENON_WITH_THREAD_SYSTEM
    auto thread_pool_bridge = ThreadPoolBridge::from_thread_system(pool_name);
    bridge->set_thread_pool_bridge(thread_pool_bridge);
#endif

    return bridge;
}

References kcenon::network::integration::ThreadPoolBridge::from_thread_system().

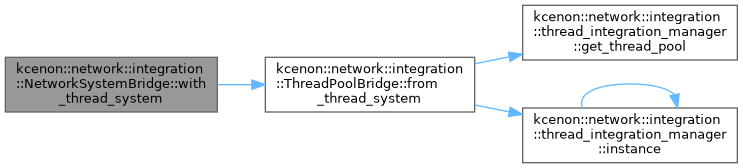

Here is the call graph for this function:

Member Data Documentation

pimpl_

std::unique_ptr<Impl> kcenon::network::integration::NetworkSystemBridge::pimpl_

private

Definition at line 379 of file network_system_bridge.h.

Referenced by get_logger(), get_metrics(), get_monitoring(), get_thread_pool(), get_thread_pool_bridge(), is_initialized(), NetworkSystemBridge(), set_logger(), set_monitoring(), set_thread_pool_bridge(), and shutdown().

---

The documentation for this class was generated from the following files:

• include/kcenon/network/integration/network_system_bridge.h
• src/integration/network_system_bridge.cpp
