kcenon::monitoring::ring_buffer_stats Struct Reference

Statistics for ring buffer performance monitoring. More...

#include <ring_buffer.h>

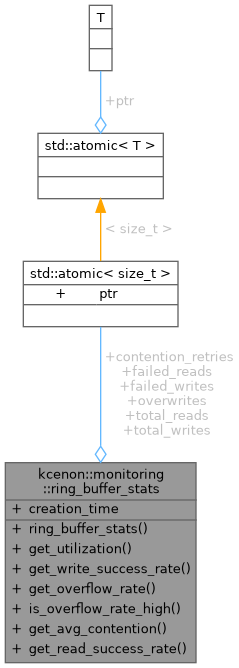

Collaboration diagram for kcenon::monitoring::ring_buffer_stats:

Public Member Functions
	ring_buffer_stats ()
double	get_utilization (size_t current_size, size_t capacity) const
	Get current utilization percentage.
double	get_write_success_rate () const
	Get write success rate.
double	get_overflow_rate () const
	Get overflow rate (overwrites per total writes)
bool	is_overflow_rate_high () const
	Check if overflow rate is high (> 10%)
double	get_avg_contention () const
	Get average contention (retries per write)
double	get_read_success_rate () const
	Get read success rate.

Public Attributes
std::atomic< size_t >	total_writes {0}
std::atomic< size_t >	total_reads {0}
std::atomic< size_t >	overwrites {0}
std::atomic< size_t >	failed_writes {0}
std::atomic< size_t >	failed_reads {0}
std::atomic< size_t >	contention_retries {0}
std::chrono::system_clock::time_point	creation_time

Detailed Description

Statistics for ring buffer performance monitoring.

Definition at line 64 of file ring_buffer.h.

Constructor & Destructor Documentation

ring_buffer_stats()

kcenon::monitoring::ring_buffer_stats::ring_buffer_stats ( )

inline

Definition at line 73 of file ring_buffer.h.

: creation_time(std::chrono::system_clock::now()) {}

Member Function Documentation

get_avg_contention()

double kcenon::monitoring::ring_buffer_stats::get_avg_contention ( ) const

inline

Get average contention (retries per write)

Definition at line 110 of file ring_buffer.h.

                                      {
        auto total = total_writes.load();
        auto retries = contention_retries.load();
        return total > 0 ? static_cast<double>(retries) / total : 0.0;
    }

References contention_retries, and total_writes.

get_overflow_rate()

double kcenon::monitoring::ring_buffer_stats::get_overflow_rate ( ) const

inline

Get overflow rate (overwrites per total writes)

Definition at line 94 of file ring_buffer.h.

                                     {
        auto total = total_writes.load();
        auto overflows = overwrites.load();
        return total > 0 ? (static_cast<double>(overflows) / total) * 100.0 : 0.0;
    }

References overwrites, and total_writes.

Referenced by kcenon::monitoring::ring_buffer< T >::get_overflow_rate(), and is_overflow_rate_high().

Here is the caller graph for this function:

get_read_success_rate()

double kcenon::monitoring::ring_buffer_stats::get_read_success_rate ( ) const

inline

Get read success rate.

Definition at line 119 of file ring_buffer.h.

                                         {
        auto total = total_reads.load();
        auto failed = failed_reads.load();
        return total > 0 ? (1.0 - static_cast<double>(failed) / total) * 100.0 : 100.0;
    }

References failed_reads, and total_reads.

get_utilization()

double kcenon::monitoring::ring_buffer_stats::get_utilization ( size_t current_size, size_t capacity ) const

inline

Get current utilization percentage.

Definition at line 78 of file ring_buffer.h.

                                                                       {
        return capacity > 0 ? (static_cast<double>(current_size) / capacity) * 100.0 : 0.0;
    }

get_write_success_rate()

double kcenon::monitoring::ring_buffer_stats::get_write_success_rate ( ) const

inline

Get write success rate.

Definition at line 85 of file ring_buffer.h.

                                          {
        auto total = total_writes.load();
        auto failed = failed_writes.load();
        return total > 0 ? (1.0 - static_cast<double>(failed) / total) * 100.0 : 100.0;
    }

References failed_writes, and total_writes.

is_overflow_rate_high()

bool kcenon::monitoring::ring_buffer_stats::is_overflow_rate_high ( ) const

inline

Check if overflow rate is high (> 10%)

Definition at line 103 of file ring_buffer.h.

                                       {
        return get_overflow_rate() > 10.0;
    }

References get_overflow_rate().

Referenced by kcenon::monitoring::ring_buffer< T >::is_overflow_rate_high().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

contention_retries

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::contention_retries {0}

Definition at line 70 of file ring_buffer.h.

{0};

Referenced by get_avg_contention(), and kcenon::monitoring::ring_buffer< T >::reset_stats().

creation_time

std::chrono::system_clock::time_point kcenon::monitoring::ring_buffer_stats::creation_time

Definition at line 71 of file ring_buffer.h.

Referenced by kcenon::monitoring::ring_buffer< T >::reset_stats().

failed_reads

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::failed_reads {0}

Definition at line 69 of file ring_buffer.h.

{0};

Referenced by get_read_success_rate(), kcenon::monitoring::ring_buffer< T >::read(), and kcenon::monitoring::ring_buffer< T >::reset_stats().

failed_writes

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::failed_writes {0}

Definition at line 68 of file ring_buffer.h.

{0};

Referenced by get_write_success_rate(), kcenon::monitoring::ring_buffer< T >::reset_stats(), and kcenon::monitoring::ring_buffer< T >::write().

overwrites

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::overwrites {0}

Definition at line 67 of file ring_buffer.h.

{0};

Referenced by get_overflow_rate(), kcenon::monitoring::ring_buffer< T >::reset_stats(), and kcenon::monitoring::ring_buffer< T >::write().

total_reads

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::total_reads {0}

Definition at line 66 of file ring_buffer.h.

{0};

Referenced by get_read_success_rate(), kcenon::monitoring::ring_buffer< T >::read(), and kcenon::monitoring::ring_buffer< T >::reset_stats().

total_writes

std::atomic<size_t> kcenon::monitoring::ring_buffer_stats::total_writes {0}

Definition at line 65 of file ring_buffer.h.

{0};

Referenced by get_avg_contention(), get_overflow_rate(), get_write_success_rate(), kcenon::monitoring::ring_buffer< T >::reset_stats(), and kcenon::monitoring::ring_buffer< T >::write().

---

The documentation for this struct was generated from the following file:

• include/kcenon/monitoring/utils/ring_buffer.h
