kcenon::monitoring::network_metrics Struct Reference

Aggregated network metrics from all sources. More...

#include <network_metrics_collector.h>

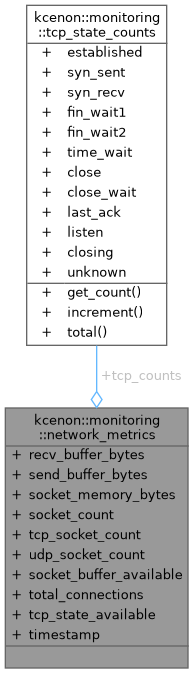

Collaboration diagram for kcenon::monitoring::network_metrics:

Public Attributes
uint64_t	recv_buffer_bytes {0}
	Total bytes in receive buffers.
uint64_t	send_buffer_bytes {0}
	Total bytes in send buffers.
uint64_t	socket_memory_bytes {0}
	Total socket buffer memory used.
uint64_t	socket_count {0}
	Total number of sockets.
uint64_t	tcp_socket_count {0}
	Number of TCP sockets.
uint64_t	udp_socket_count {0}
	Number of UDP sockets.
bool	socket_buffer_available {false}
	Socket buffer metrics availability.
tcp_state_counts	tcp_counts
	TCP state counts.
uint64_t	total_connections {0}
	Total TCP connections.
bool	tcp_state_available {false}
	TCP state metrics availability.
std::chrono::system_clock::time_point	timestamp
	Reading timestamp.

Detailed Description

Aggregated network metrics from all sources.

Definition at line 169 of file network_metrics_collector.h.

Member Data Documentation

recv_buffer_bytes

uint64_t kcenon::monitoring::network_metrics::recv_buffer_bytes {0}

Total bytes in receive buffers.

Definition at line 171 of file network_metrics_collector.h.

{0};

send_buffer_bytes

uint64_t kcenon::monitoring::network_metrics::send_buffer_bytes {0}

Total bytes in send buffers.

Definition at line 172 of file network_metrics_collector.h.

{0};

socket_buffer_available

bool kcenon::monitoring::network_metrics::socket_buffer_available {false}

Socket buffer metrics availability.

Definition at line 177 of file network_metrics_collector.h.

{false};

socket_count

uint64_t kcenon::monitoring::network_metrics::socket_count {0}

Total number of sockets.

Definition at line 174 of file network_metrics_collector.h.

{0};

socket_memory_bytes

uint64_t kcenon::monitoring::network_metrics::socket_memory_bytes {0}

Total socket buffer memory used.

Definition at line 173 of file network_metrics_collector.h.

{0};

tcp_counts

tcp_state_counts kcenon::monitoring::network_metrics::tcp_counts

TCP state counts.

Definition at line 180 of file network_metrics_collector.h.

tcp_socket_count

uint64_t kcenon::monitoring::network_metrics::tcp_socket_count {0}

Number of TCP sockets.

Definition at line 175 of file network_metrics_collector.h.

{0};

tcp_state_available

bool kcenon::monitoring::network_metrics::tcp_state_available {false}

TCP state metrics availability.

Definition at line 182 of file network_metrics_collector.h.

{false};

timestamp

std::chrono::system_clock::time_point kcenon::monitoring::network_metrics::timestamp

Reading timestamp.

Definition at line 184 of file network_metrics_collector.h.

total_connections

uint64_t kcenon::monitoring::network_metrics::total_connections {0}

Total TCP connections.

Definition at line 181 of file network_metrics_collector.h.

{0};

udp_socket_count

uint64_t kcenon::monitoring::network_metrics::udp_socket_count {0}

Number of UDP sockets.

Definition at line 176 of file network_metrics_collector.h.

{0};

---

The documentation for this struct was generated from the following file:

• include/kcenon/monitoring/collectors/network_metrics_collector.h
