kcenon::monitoring::protobuf_wire Namespace Reference

Classes
class	reader
	Minimal protobuf wire reader used for round-trip tests. More...

Enumerations
enum class	wire_type : std::uint8_t { varint = 0 , fixed64 = 1 , length_delimited = 2 , fixed32 = 5 }

Functions
void	encode_varint (std::vector< std::uint8_t > &out, std::uint64_t value)
	Encode an unsigned varint into the buffer.
void	encode_tag (std::vector< std::uint8_t > &out, std::uint32_t field_number, wire_type wt)
	Encode a tag (field_number << 3 | wire_type) as a varint.
void	encode_fixed64 (std::vector< std::uint8_t > &out, std::uint64_t value)
	Encode a fixed64 little-endian value (used for Zipkin timestamps).
void	encode_length_delimited (std::vector< std::uint8_t > &out, const std::uint8_t *data, std::size_t size)
	Encode a length-delimited byte sequence.
void	encode_string_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, const std::string &value)
	Encode a string field.
void	encode_bytes_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, const std::vector< std::uint8_t > &value)
	Encode a bytes field.
void	encode_uint64_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, std::uint64_t value)
	Encode a uint32 / uint64 / int64 varint field (skips zero).
void	encode_uint64_field_always (std::vector< std::uint8_t > &out, std::uint32_t field_number, std::uint64_t value)
	Encode a uint32 field that is not allowed to be skipped even if zero.
void	encode_enum_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, std::int32_t value)
	Encode an enum field (always written when nonzero).
void	encode_bool_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, bool value)
	Encode a bool field (proto3 skips false).
void	encode_fixed64_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, std::uint64_t value)
	Encode a fixed64 field.
void	encode_message_field (std::vector< std::uint8_t > &out, std::uint32_t field_number, const std::vector< std::uint8_t > &serialized)
	Encode an embedded message field given its pre-serialized bytes.
bool	decode_tag (reader &r, std::uint32_t &field_number, wire_type &wt)
	Decode a tag into (field_number, wire_type).
std::vector< std::uint8_t >	hex_to_bytes (const std::string &hex)
	Decode a hexadecimal string into bytes. Odd-length strings are zero-padded on the left; non-hex characters yield an empty vector.
std::string	bytes_to_hex (const std::vector< std::uint8_t > &bytes)
	Encode raw bytes as a lowercase hex string.
std::vector< std::uint8_t >	left_pad (const std::vector< std::uint8_t > &in, std::size_t width)
	Left-pad bytes to a target width. Used to normalize 8-byte trace IDs to Jaeger's 16-byte on-wire width and similar cases.

Enumeration Type Documentation

wire_type

enum class kcenon::monitoring::protobuf_wire::wire_type : std::uint8_t

strong

Enumerator
varint	int32/int64/uint32/uint64/sint*‍/bool/enum
fixed64	fixed64/sfixed64/double
length_delimited	string/bytes/embedded messages/packed repeated
fixed32	fixed32/sfixed32/float

Definition at line 29 of file protobuf_wire.h.

                     : std::uint8_t {
    varint           = 0,
    fixed64          = 1,
    length_delimited = 2,
    fixed32          = 5
};

Function Documentation

bytes_to_hex()

std::string kcenon::monitoring::protobuf_wire::bytes_to_hex ( const std::vector< std::uint8_t > & bytes )

inline

Encode raw bytes as a lowercase hex string.

Definition at line 321 of file protobuf_wire.h.

                                                                  {
    static const char hex_chars[] = "0123456789abcdef";
    std::string out;
    out.reserve(bytes.size() * 2);
    for (std::uint8_t b : bytes) {
        out.push_back(hex_chars[(b >> 4) & 0x0F]);
        out.push_back(hex_chars[b & 0x0F]);
    }
    return out;
}

decode_tag()

bool kcenon::monitoring::protobuf_wire::decode_tag ( reader & r, std::uint32_t & field_number, wire_type & wt )

inline

Decode a tag into (field_number, wire_type).

Definition at line 276 of file protobuf_wire.h.

                                      {
    auto tag = r.read_varint();
    if (!tag) return false;
    field_number = static_cast<std::uint32_t>(*tag >> 3);
    wt = static_cast<wire_type>(*tag & 0x07);
    return true;
}

References kcenon::monitoring::protobuf_wire::reader::read_varint().

Referenced by kcenon::monitoring::zipkin_proto::decode_annotation(), kcenon::monitoring::jaeger_proto::decode_batch(), kcenon::monitoring::zipkin_proto::decode_endpoint(), kcenon::monitoring::jaeger_proto::decode_key_value(), kcenon::monitoring::zipkin_proto::decode_list_of_spans(), kcenon::monitoring::zipkin_proto::decode_map_entry(), kcenon::monitoring::jaeger_proto::decode_process(), kcenon::monitoring::jaeger_proto::decode_span(), kcenon::monitoring::zipkin_proto::decode_span(), kcenon::monitoring::jaeger_proto::decode_span_ref(), and kcenon::monitoring::jaeger_proto::decode_timestamp().

Here is the call graph for this function:

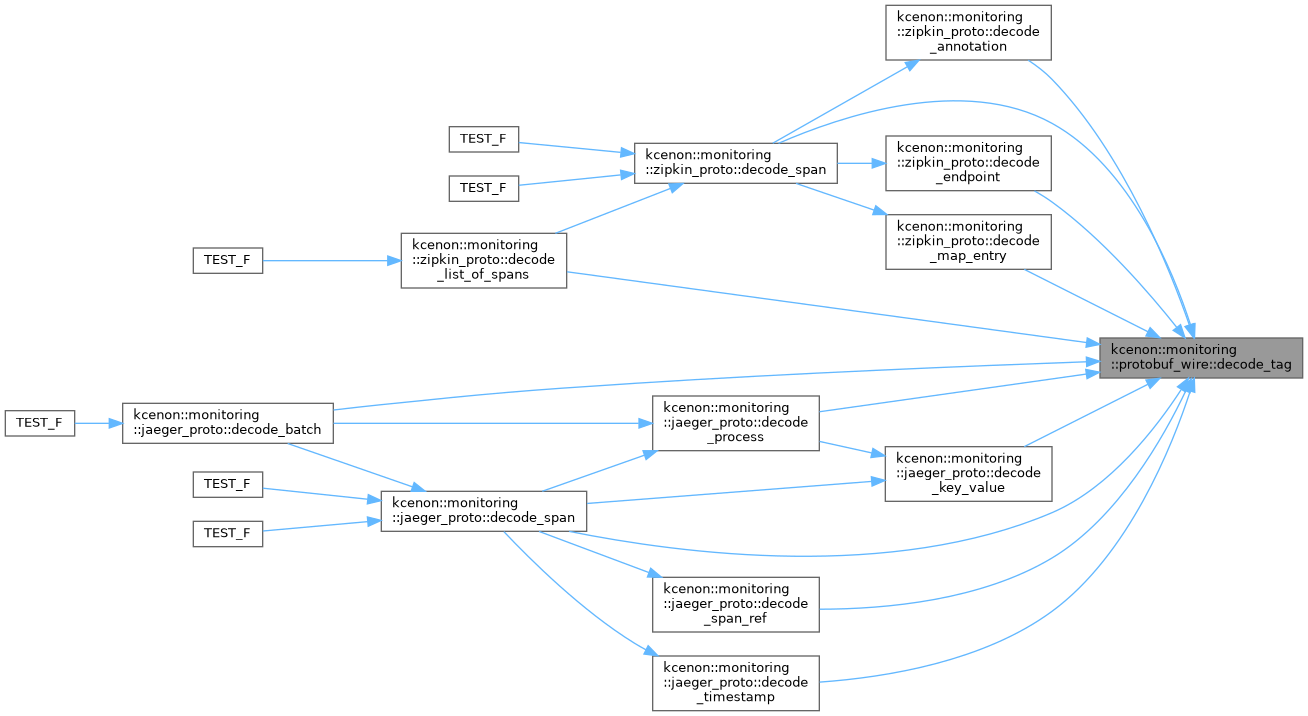

Here is the caller graph for this function:

encode_bool_field()

void kcenon::monitoring::protobuf_wire::encode_bool_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, bool value )

inline

Encode a bool field (proto3 skips false).

Definition at line 133 of file protobuf_wire.h.

                                          {
    if (!value) {
        return;
    }
    encode_tag(out, field_number, wire_type::varint);
    encode_varint(out, 1);
}

References encode_tag(), encode_varint(), and varint.

Referenced by kcenon::monitoring::jaeger_proto::encode_key_value(), and kcenon::monitoring::zipkin_proto::encode_span().

Here is the call graph for this function:

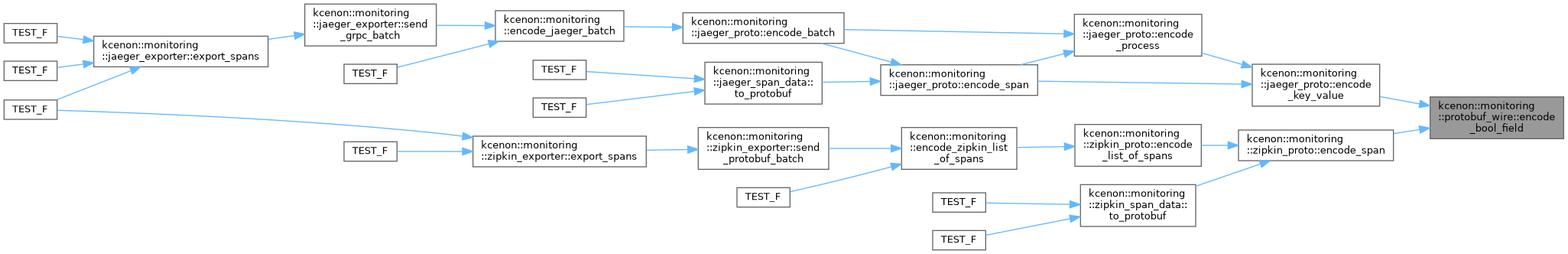

Here is the caller graph for this function:

encode_bytes_field()

void kcenon::monitoring::protobuf_wire::encode_bytes_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, const std::vector< std::uint8_t > & value )

inline

Encode a bytes field.

Definition at line 92 of file protobuf_wire.h.

                                                                   {
    if (value.empty()) {
        return;  // proto3 defaults: skip empty bytes
    }
    encode_tag(out, field_number, wire_type::length_delimited);
    encode_length_delimited(out, value.data(), value.size());
}

References encode_length_delimited(), encode_tag(), and length_delimited.

Referenced by kcenon::monitoring::zipkin_proto::encode_endpoint(), kcenon::monitoring::jaeger_proto::encode_key_value(), kcenon::monitoring::jaeger_proto::encode_span(), kcenon::monitoring::zipkin_proto::encode_span(), and kcenon::monitoring::jaeger_proto::encode_span_ref().

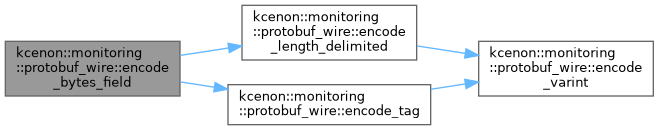

Here is the call graph for this function:

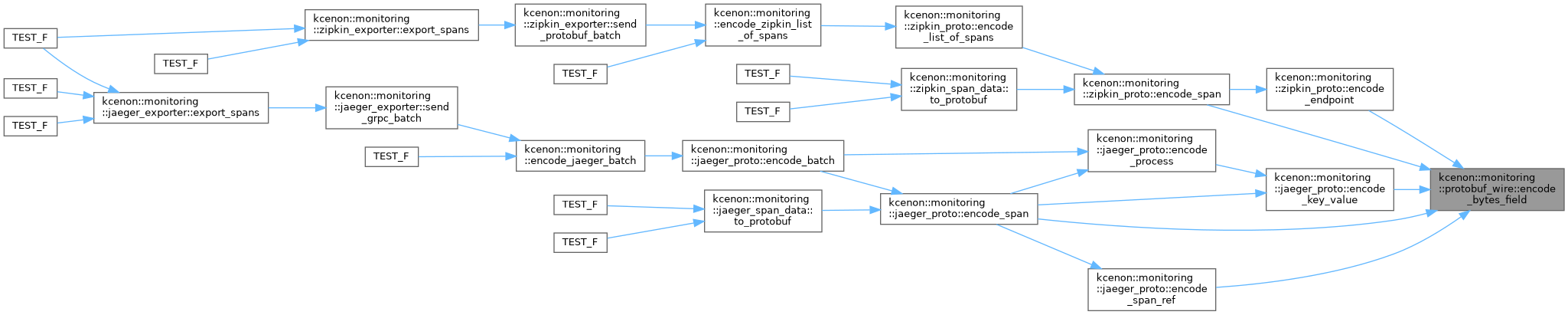

Here is the caller graph for this function:

encode_enum_field()

void kcenon::monitoring::protobuf_wire::encode_enum_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, std::int32_t value )

inline

Encode an enum field (always written when nonzero).

Definition at line 122 of file protobuf_wire.h.

                                                {
    if (value == 0) {
        return;
    }
    encode_tag(out, field_number, wire_type::varint);
    encode_varint(out, static_cast<std::uint64_t>(value));
}

References encode_tag(), encode_varint(), and varint.

Referenced by kcenon::monitoring::jaeger_proto::encode_key_value(), kcenon::monitoring::zipkin_proto::encode_span(), and kcenon::monitoring::jaeger_proto::encode_span_ref().

Here is the call graph for this function:

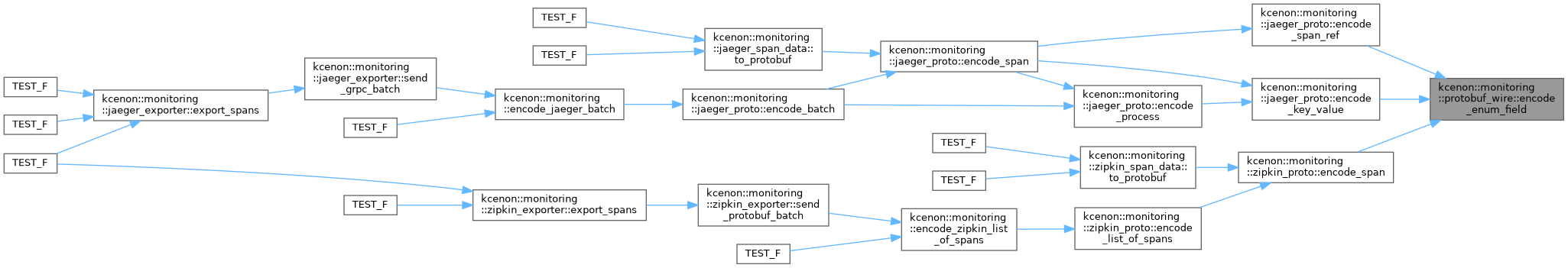

Here is the caller graph for this function:

encode_fixed64()

void kcenon::monitoring::protobuf_wire::encode_fixed64 ( std::vector< std::uint8_t > & out, std::uint64_t value )

inline

Encode a fixed64 little-endian value (used for Zipkin timestamps).

Definition at line 61 of file protobuf_wire.h.

                                                                          {
    for (int i = 0; i < 8; ++i) {
        out.push_back(static_cast<std::uint8_t>((value >> (i * 8)) & 0xFF));
    }
}

Referenced by kcenon::monitoring::zipkin_proto::encode_annotation(), encode_fixed64_field(), and kcenon::monitoring::jaeger_proto::encode_key_value().

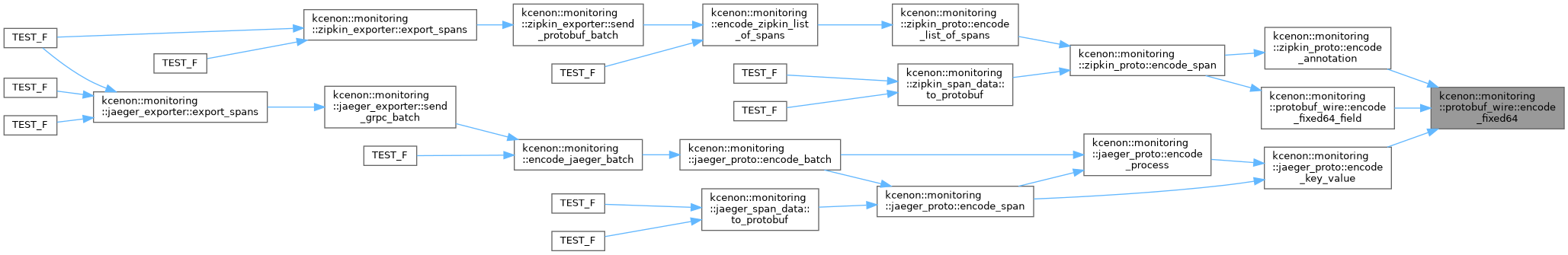

Here is the caller graph for this function:

encode_fixed64_field()

void kcenon::monitoring::protobuf_wire::encode_fixed64_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, std::uint64_t value )

inline

Encode a fixed64 field.

Definition at line 144 of file protobuf_wire.h.

                                                    {
    if (value == 0) {
        return;
    }
    encode_tag(out, field_number, wire_type::fixed64);
    encode_fixed64(out, value);
}

References encode_fixed64(), encode_tag(), and fixed64.

Referenced by kcenon::monitoring::zipkin_proto::encode_span().

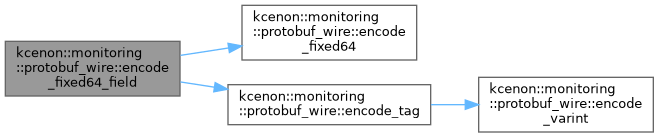

Here is the call graph for this function:

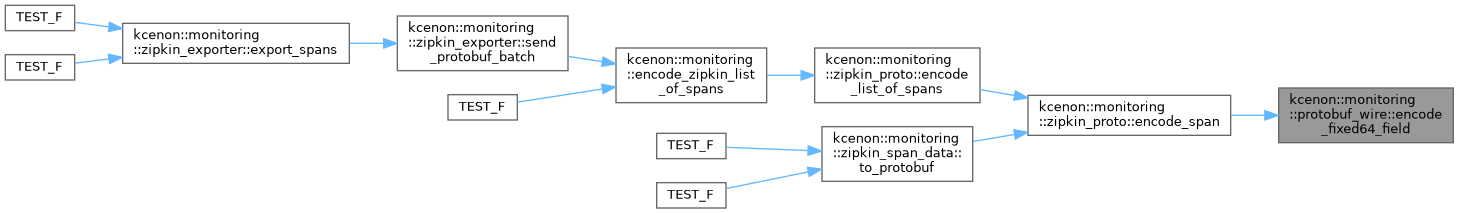

Here is the caller graph for this function:

encode_length_delimited()

void kcenon::monitoring::protobuf_wire::encode_length_delimited ( std::vector< std::uint8_t > & out, const std::uint8_t * data, std::size_t size )

inline

Encode a length-delimited byte sequence.

Definition at line 70 of file protobuf_wire.h.

                                                    {
    encode_varint(out, static_cast<std::uint64_t>(size));
    out.insert(out.end(), data, data + size);
}

References encode_varint().

Referenced by encode_bytes_field(), encode_message_field(), and encode_string_field().

Here is the call graph for this function:

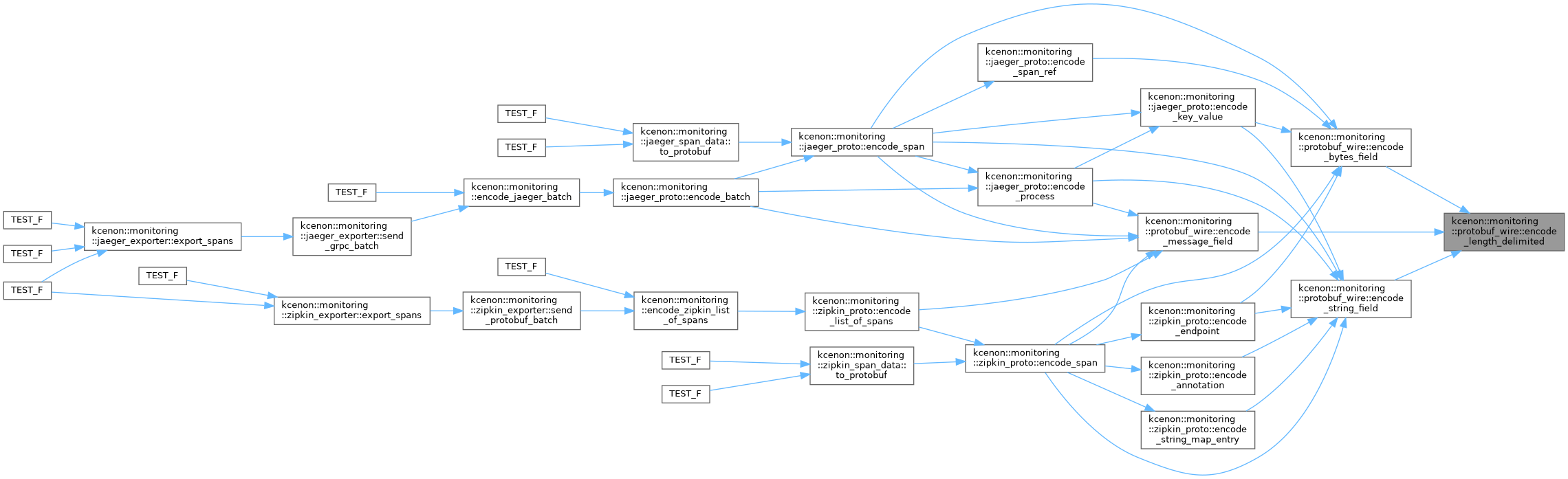

Here is the caller graph for this function:

encode_message_field()

void kcenon::monitoring::protobuf_wire::encode_message_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, const std::vector< std::uint8_t > & serialized )

inline

Encode an embedded message field given its pre-serialized bytes.

Definition at line 155 of file protobuf_wire.h.

                                                                          {
    encode_tag(out, field_number, wire_type::length_delimited);
    encode_length_delimited(out, serialized.data(), serialized.size());
}

References encode_length_delimited(), encode_tag(), and length_delimited.

Referenced by kcenon::monitoring::jaeger_proto::encode_batch(), kcenon::monitoring::zipkin_proto::encode_list_of_spans(), kcenon::monitoring::jaeger_proto::encode_process(), kcenon::monitoring::jaeger_proto::encode_span(), and kcenon::monitoring::zipkin_proto::encode_span().

Here is the call graph for this function:

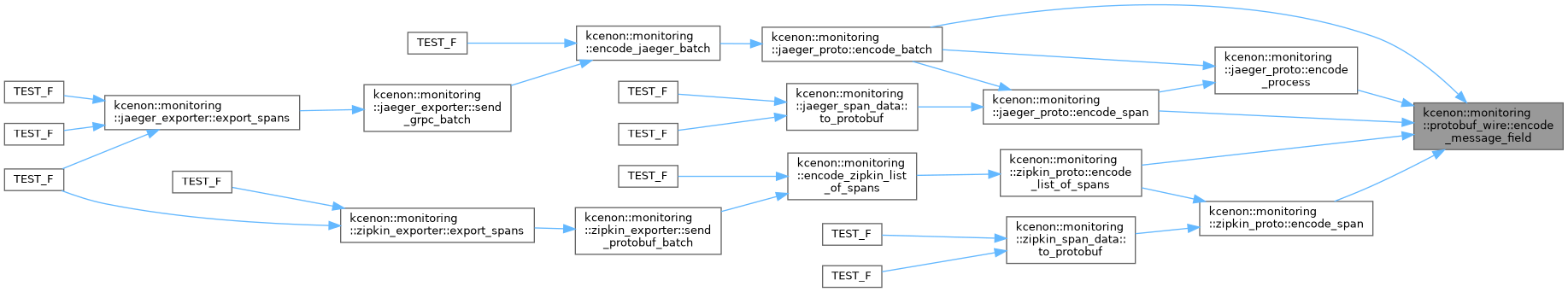

Here is the caller graph for this function:

encode_string_field()

void kcenon::monitoring::protobuf_wire::encode_string_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, const std::string & value )

inline

Encode a string field.

Definition at line 78 of file protobuf_wire.h.

                                                        {
    if (value.empty()) {
        return;  // proto3 defaults: skip empty string
    }
    encode_tag(out, field_number, wire_type::length_delimited);
    encode_length_delimited(
        out,
        reinterpret_cast<const std::uint8_t*>(value.data()),
        value.size());
}

References encode_length_delimited(), encode_tag(), and length_delimited.

Referenced by kcenon::monitoring::zipkin_proto::encode_annotation(), kcenon::monitoring::zipkin_proto::encode_endpoint(), kcenon::monitoring::jaeger_proto::encode_key_value(), kcenon::monitoring::jaeger_proto::encode_process(), kcenon::monitoring::jaeger_proto::encode_span(), kcenon::monitoring::zipkin_proto::encode_span(), and kcenon::monitoring::zipkin_proto::encode_string_map_entry().

Here is the call graph for this function:

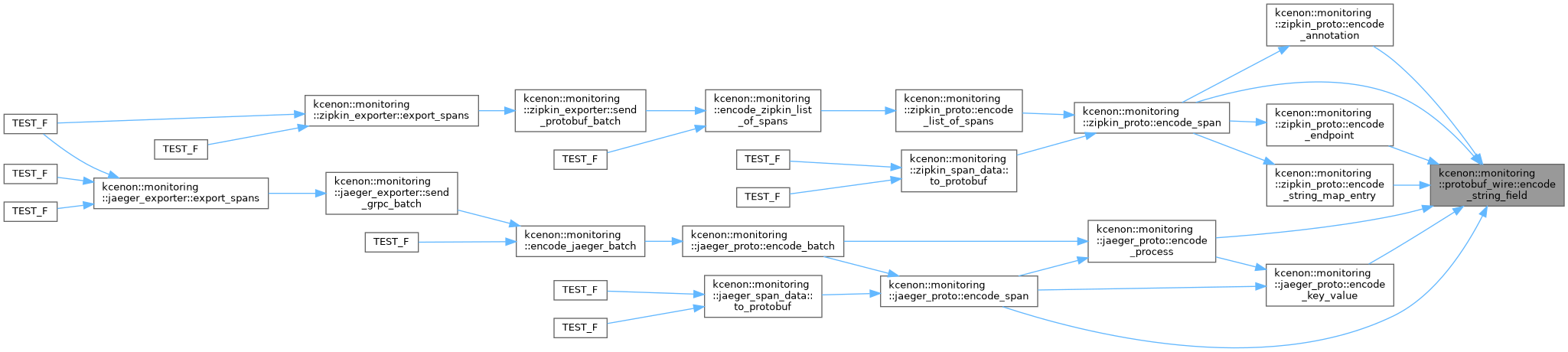

Here is the caller graph for this function:

encode_tag()

void kcenon::monitoring::protobuf_wire::encode_tag ( std::vector< std::uint8_t > & out, std::uint32_t field_number, wire_type wt )

inline

Encode a tag (field_number << 3 | wire_type) as a varint.

Definition at line 50 of file protobuf_wire.h.

                                     {
    encode_varint(out,
                  (static_cast<std::uint64_t>(field_number) << 3) |
                      static_cast<std::uint64_t>(wt));
}

References encode_varint().

Referenced by kcenon::monitoring::zipkin_proto::encode_annotation(), encode_bool_field(), encode_bytes_field(), encode_enum_field(), encode_fixed64_field(), kcenon::monitoring::jaeger_proto::encode_key_value(), encode_message_field(), encode_string_field(), encode_uint64_field(), and encode_uint64_field_always().

Here is the call graph for this function:

Here is the caller graph for this function:

encode_uint64_field()

void kcenon::monitoring::protobuf_wire::encode_uint64_field ( std::vector< std::uint8_t > & out, std::uint32_t field_number, std::uint64_t value )

inline

Encode a uint32 / uint64 / int64 varint field (skips zero).

Definition at line 103 of file protobuf_wire.h.

                                                   {
    if (value == 0) {
        return;
    }
    encode_tag(out, field_number, wire_type::varint);
    encode_varint(out, value);
}

References encode_tag(), encode_varint(), and varint.

Referenced by kcenon::monitoring::jaeger_proto::encode_duration(), kcenon::monitoring::zipkin_proto::encode_endpoint(), kcenon::monitoring::jaeger_proto::encode_span(), kcenon::monitoring::zipkin_proto::encode_span(), and kcenon::monitoring::jaeger_proto::encode_timestamp().

Here is the call graph for this function:

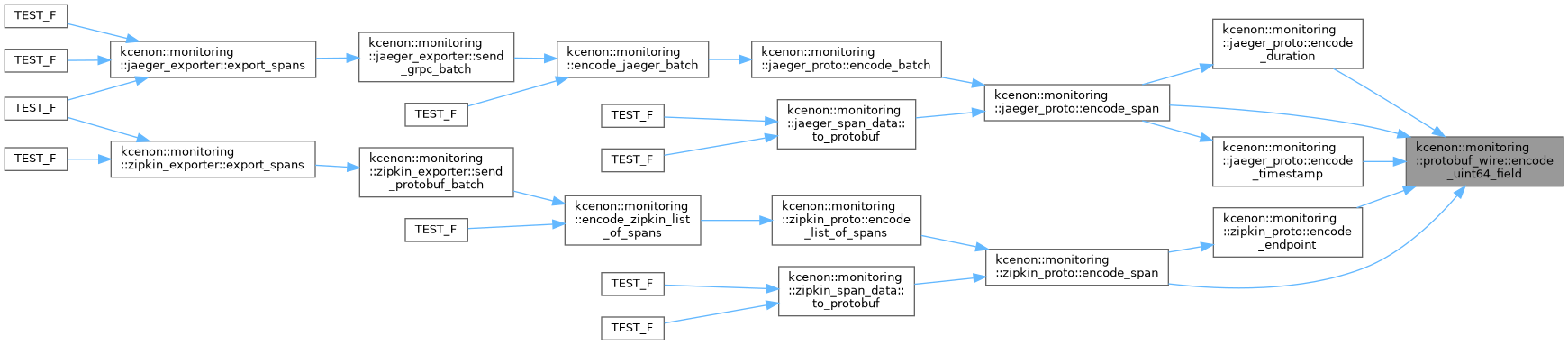

Here is the caller graph for this function:

encode_uint64_field_always()

void kcenon::monitoring::protobuf_wire::encode_uint64_field_always ( std::vector< std::uint8_t > & out, std::uint32_t field_number, std::uint64_t value )

inline

Encode a uint32 field that is not allowed to be skipped even if zero.

Definition at line 114 of file protobuf_wire.h.

                                                          {
    encode_tag(out, field_number, wire_type::varint);
    encode_varint(out, value);
}

References encode_tag(), encode_varint(), and varint.

Here is the call graph for this function:

encode_varint()

void kcenon::monitoring::protobuf_wire::encode_varint ( std::vector< std::uint8_t > & out, std::uint64_t value )

inline

Encode an unsigned varint into the buffer.

Definition at line 39 of file protobuf_wire.h.

                                                                         {
    while (value >= 0x80) {
        out.push_back(static_cast<std::uint8_t>((value & 0x7F) | 0x80));
        value >>= 7;
    }
    out.push_back(static_cast<std::uint8_t>(value));
}

Referenced by encode_bool_field(), encode_enum_field(), kcenon::monitoring::jaeger_proto::encode_key_value(), encode_length_delimited(), encode_tag(), encode_uint64_field(), and encode_uint64_field_always().

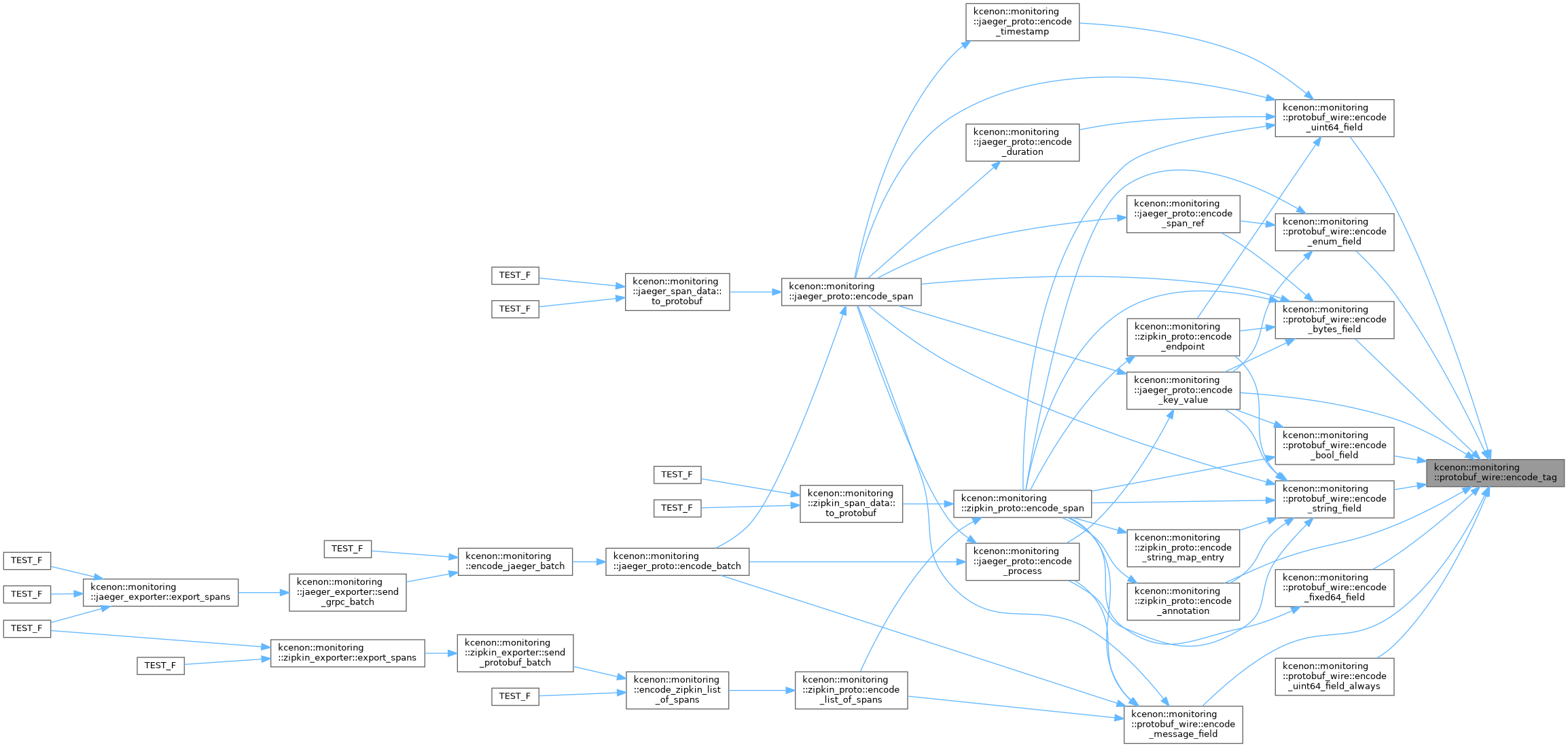

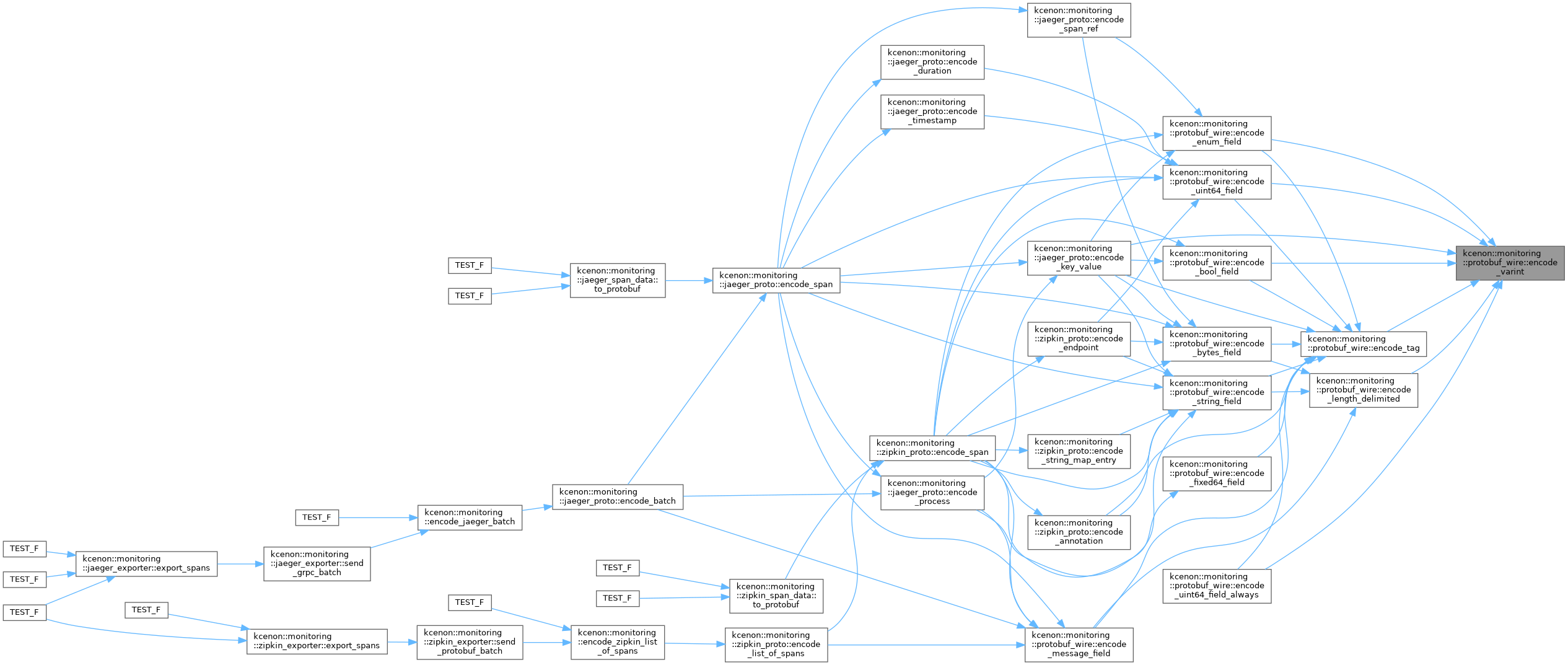

Here is the caller graph for this function:

hex_to_bytes()

std::vector< std::uint8_t > kcenon::monitoring::protobuf_wire::hex_to_bytes ( const std::string & hex )

inline

Decode a hexadecimal string into bytes. Odd-length strings are zero-padded on the left; non-hex characters yield an empty vector.

Definition at line 294 of file protobuf_wire.h.

                                                                {
    auto nibble = [](char c) -> int {
        if (c >= '0' && c <= '9') return c - '0';
        if (c >= 'a' && c <= 'f') return 10 + (c - 'a');
        if (c >= 'A' && c <= 'F') return 10 + (c - 'A');
        return -1;
    };
    std::string s = hex;
    if (s.size() % 2 == 1) {
        s.insert(s.begin(), '0');
    }
    std::vector<std::uint8_t> out;
    out.reserve(s.size() / 2);
    for (std::size_t i = 0; i < s.size(); i += 2) {
        int hi = nibble(s[i]);
        int lo = nibble(s[i + 1]);
        if (hi < 0 || lo < 0) {
            return {};  // invalid; caller treats empty as absent
        }
        out.push_back(static_cast<std::uint8_t>((hi << 4) | lo));
    }
    return out;
}

Referenced by kcenon::monitoring::encode_jaeger_batch(), kcenon::monitoring::encode_zipkin_list_of_spans(), kcenon::monitoring::jaeger_span_data::to_protobuf(), and kcenon::monitoring::zipkin_span_data::to_protobuf().

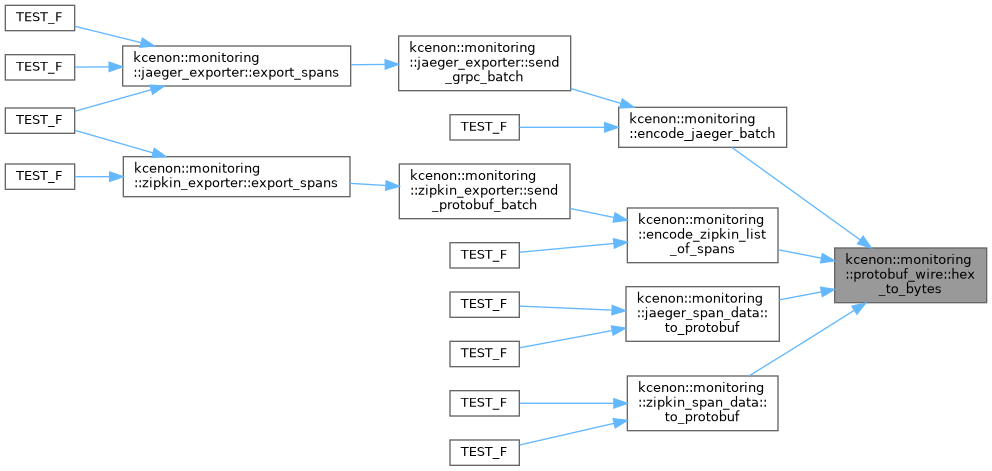

Here is the caller graph for this function:

left_pad()

std::vector< std::uint8_t > kcenon::monitoring::protobuf_wire::left_pad ( const std::vector< std::uint8_t > & in, std::size_t width )

inline

Left-pad bytes to a target width. Used to normalize 8-byte trace IDs to Jaeger's 16-byte on-wire width and similar cases.

Definition at line 336 of file protobuf_wire.h.

                                                           {
    if (in.size() >= width) return in;
    std::vector<std::uint8_t> out(width, 0);
    std::memcpy(out.data() + (width - in.size()), in.data(), in.size());
    return out;
}

Referenced by kcenon::monitoring::encode_jaeger_batch(), kcenon::monitoring::encode_zipkin_list_of_spans(), kcenon::monitoring::jaeger_span_data::to_protobuf(), and kcenon::monitoring::zipkin_span_data::to_protobuf().

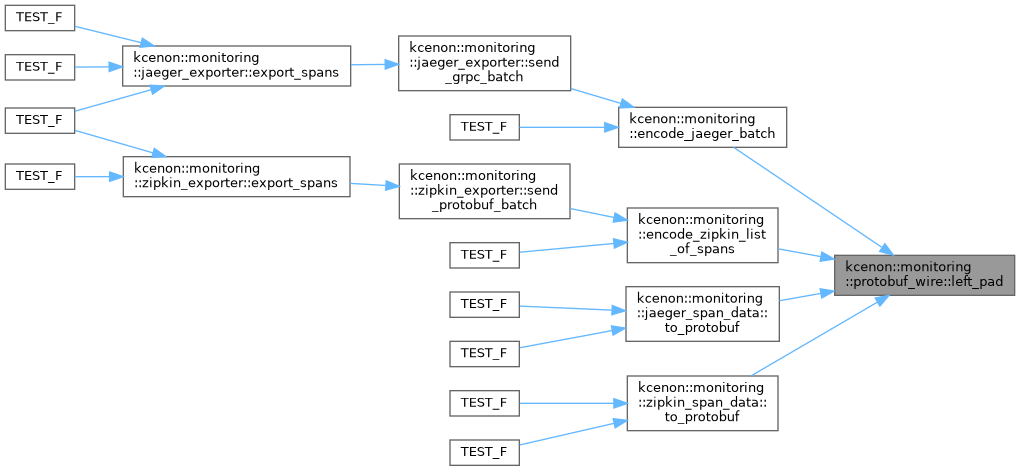

Here is the caller graph for this function:
