multi_service_tracing_example.cpp File Reference

Demonstrates distributed tracing across multiple services. More...

#include <iostream>
#include <memory>
#include <string>
#include <chrono>
#include <thread>
#include <iomanip>
#include "kcenon/monitoring/tracing/distributed_tracer.h"

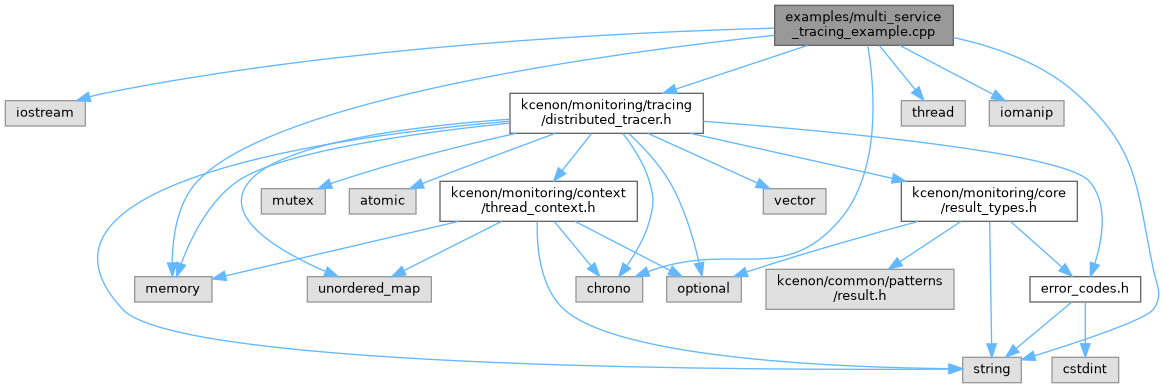

Include dependency graph for multi_service_tracing_example.cpp:

Go to the source code of this file.

Classes
class	ApiGatewayService
	Simulated API Gateway service. More...
class	AuthService
	Simulated Authentication service. More...
class	UserService
	Simulated User service. More...
class	CacheService
	Simulated Cache service. More...

Functions
void	display_span (const trace_span &span, int depth)
	Display single span.
void	display_children (const std::vector< trace_span > &spans, const std::string &parent_id, int depth)
	Display children recursively.
void	display_trace_tree (const std::vector< trace_span > &spans)
	Display trace tree structure.
void	simulate_multi_service_request ()
	Simulate complete multi-service request flow.
int	main ()

Detailed Description

Demonstrates distributed tracing across multiple services.

Definition in file multi_service_tracing_example.cpp.

Function Documentation

display_children()

void display_children	(	const std::vector< trace_span > &	spans,
		const std::string &	parent_id,
		int	depth )

Display children recursively.

Examples

multi_service_tracing_example.cpp.

Definition at line 350 of file multi_service_tracing_example.cpp.

                                {
    for (const auto& span : spans) {
        if (span.parent_span_id == parent_id) {
            display_span(span, depth);
            display_children(spans, span.span_id, depth + 1);
        }
    }
}

References display_children(), and display_span().

Referenced by display_children(), and display_trace_tree().

Here is the call graph for this function:

Here is the caller graph for this function:

display_span()

void display_span	(	const trace_span &	span,
		int	depth )

Display single span.

Examples

multi_service_tracing_example.cpp.

Definition at line 323 of file multi_service_tracing_example.cpp.

                                                     {
    std::string indent(depth * 2, ' ');
    std::string prefix = depth == 0 ? "┌─" : "├─";

    std::cout << indent << prefix << " [" << span.service_name << "] "
              << span.operation_name << std::endl;
    std::cout << indent << "   Span ID: " << span.span_id << std::endl;
    std::cout << indent << "   Duration: " << span.duration.count() << "µs" << std::endl;

    if (!span.tags.empty()) {
        std::cout << indent << "   Tags:";
        int count = 0;
        for (const auto& [key, value] : span.tags) {
            if (count++ < 3) {  // Show first 3 tags
                std::cout << " " << key << "=" << value;
            }
        }
        if (span.tags.size() > 3) {
            std::cout << " +" << (span.tags.size() - 3) << " more";
        }
        std::cout << std::endl;
    }
}

References kcenon::monitoring::trace_span::duration, kcenon::monitoring::trace_span::operation_name, kcenon::monitoring::trace_span::service_name, kcenon::monitoring::trace_span::span_id, and kcenon::monitoring::trace_span::tags.

Referenced by display_children(), and display_trace_tree().

Here is the caller graph for this function:

display_trace_tree()

void display_trace_tree

(

const std::vector< trace_span > &

spans

)

Display trace tree structure.

Examples

multi_service_tracing_example.cpp.

Definition at line 291 of file multi_service_tracing_example.cpp.

                                                            {
    std::cout << "\n=== Trace Tree Structure ===" << std::endl;

    // Find root span
    const trace_span* root = nullptr;
    for (const auto& span : spans) {
        if (span.parent_span_id.empty()) {
            root = &span;
            break;
        }
    }

    if (!root) {
        std::cout << "No root span found" << std::endl;
        return;
    }

    std::cout << "\nTrace ID: " << root->trace_id << "\n" << std::endl;

    // Display root
    display_span(*root, 0);

    // Display children
    display_children(spans, root->span_id, 1);

    std::cout << "\n=== Total Spans: " << spans.size() << " ===" << std::endl;
    std::cout << "Total trace duration: " << root->duration.count() << "µs" << std::endl;
}

References display_children(), display_span(), kcenon::monitoring::trace_span::duration, kcenon::monitoring::trace_span::span_id, and kcenon::monitoring::trace_span::trace_id.

Referenced by simulate_multi_service_request().

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main

(

)

Definition at line 420 of file multi_service_tracing_example.cpp.

           {
    std::cout << "Multi-Service Distributed Tracing Example\n" << std::endl;

    simulate_multi_service_request();

    std::cout << "\n" << std::string(60, '=') << std::endl;
    std::cout << "\nKey Concepts Demonstrated:" << std::endl;
    std::cout << "1. Trace context propagation across services" << std::endl;
    std::cout << "2. Parent-child span relationships" << std::endl;
    std::cout << "3. Baggage propagation for cross-cutting data" << std::endl;
    std::cout << "4. W3C Trace Context standard" << std::endl;
    std::cout << "5. Service-specific span tags and metadata" << std::endl;

    return 0;
}

References simulate_multi_service_request().

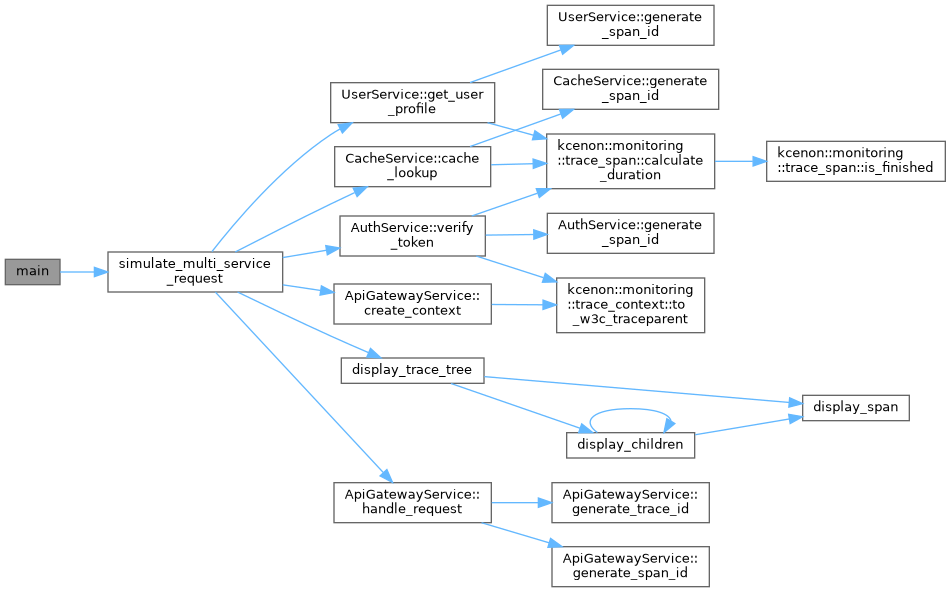

Here is the call graph for this function:

simulate_multi_service_request()

void simulate_multi_service_request

(

)

Simulate complete multi-service request flow.

Examples

multi_service_tracing_example.cpp.

Definition at line 364 of file multi_service_tracing_example.cpp.

                                      {
    std::cout << "=== Multi-Service Distributed Tracing Example ===" << std::endl;

    std::vector<trace_span> collected_spans;

    // Step 1: API Gateway receives request
    std::cout << "\n--- Step 1: API Gateway ---" << std::endl;
    ApiGatewayService gateway;
    auto gateway_span = gateway.handle_request("/api/user/profile", "GET");
    auto gateway_ctx = gateway.create_context(gateway_span);

    // Step 2: Check cache (parallel to auth)
    std::cout << "\n--- Step 2: Cache Lookup ---" << std::endl;
    CacheService cache;
    auto cache_span = cache.cache_lookup(gateway_ctx, "user:user-12345");
    collected_spans.push_back(cache_span);

    // Step 3: Authenticate request
    std::cout << "\n--- Step 3: Authentication ---" << std::endl;
    AuthService auth;
    auto auth_span = auth.verify_token(gateway_ctx, "eyJhbGc...");
    collected_spans.push_back(auth_span);

    // Create context for user service call
    trace_context user_ctx;
    user_ctx.trace_id = gateway_ctx.trace_id;
    user_ctx.span_id = gateway_span.span_id;
    user_ctx.baggage = gateway_ctx.baggage;

    // Step 4: Fetch user profile (after cache miss)
    std::cout << "\n--- Step 4: User Profile Service ---" << std::endl;
    UserService user_service;
    auto user_span = user_service.get_user_profile(user_ctx, "user-12345");
    collected_spans.push_back(user_span);

    // Complete gateway span
    std::this_thread::sleep_for(5ms);
    gateway_span.end_time = std::chrono::system_clock::now();
    gateway_span.calculate_duration();
    gateway_span.status = trace_span::status_code::ok;
    gateway_span.tags["http.status_code"] = "200";
    collected_spans.insert(collected_spans.begin(), gateway_span);

    // Display complete trace
    display_trace_tree(collected_spans);

    // Show baggage propagation
    std::cout << "\n=== Baggage Propagation ===" << std::endl;
    std::cout << "Baggage items propagated across all services:" << std::endl;
    for (const auto& [key, value] : gateway_span.baggage) {
        std::cout << "   " << key << " = " << value << std::endl;
    }

    std::cout << "\n=== Example completed successfully ===" << std::endl;
}

References kcenon::monitoring::trace_context::baggage, CacheService::cache_lookup(), ApiGatewayService::create_context(), display_trace_tree(), UserService::get_user_profile(), ApiGatewayService::handle_request(), kcenon::monitoring::trace_context::span_id, kcenon::monitoring::trace_context::trace_id, and AuthService::verify_token().

Referenced by main().

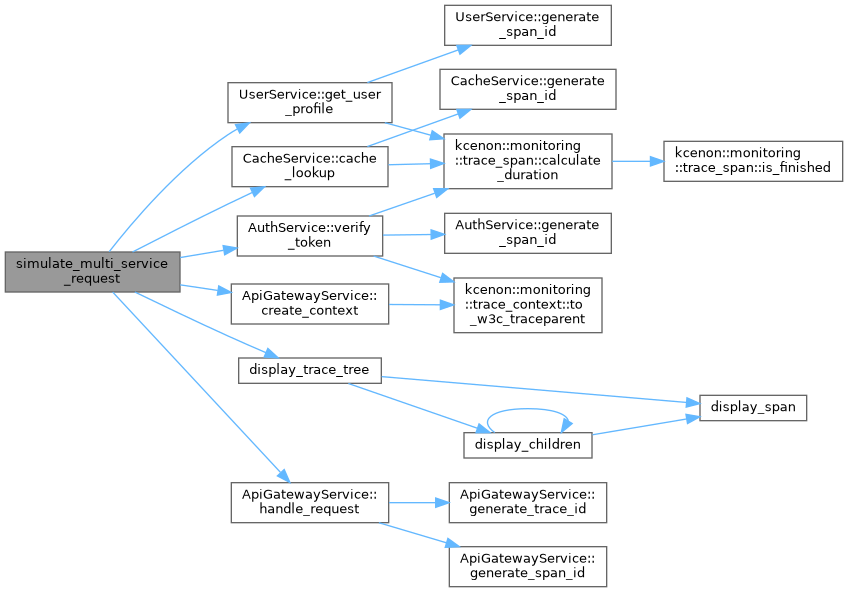

Here is the call graph for this function:

Here is the caller graph for this function:
