metric_exporters.h File Reference

Metric data exporters for various monitoring and observability systems. More...

#include "../core/result_types.h"
#include "../core/error_codes.h"
#include "../interfaces/monitoring_core.h"
#include "../interfaces/monitorable_interface.h"
#include "opentelemetry_adapter.h"
#include "udp_transport.h"
#include "http_transport.h"
#include "grpc_transport.h"
#include <vector>
#include <string>
#include <memory>
#include <chrono>
#include <optional>
#include <functional>
#include <atomic>
#include <algorithm>
#include <unordered_map>
#include <sstream>
#include <regex>
#include <mutex>
#include <cctype>
#include <cstdint>

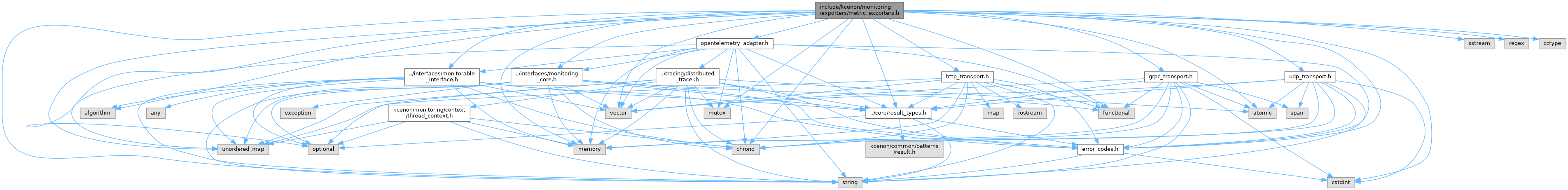

Include dependency graph for metric_exporters.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::monitoring::metric_export_config
	Configuration for metric exporters. More...
struct	kcenon::monitoring::prometheus_metric_data
	Prometheus-specific metric representation. More...
struct	kcenon::monitoring::statsd_metric_data
	StatsD-specific metric representation. More...
class	kcenon::monitoring::metric_exporter_interface
	Abstract interface for metric exporters. More...
class	kcenon::monitoring::prometheus_exporter
	Prometheus metric exporter implementation. More...
class	kcenon::monitoring::statsd_exporter
	StatsD metric exporter implementation. More...
class	kcenon::monitoring::otlp_metrics_exporter
	OpenTelemetry Protocol (OTLP) metrics exporter implementation. More...
class	kcenon::monitoring::metric_exporter_factory
	Factory for creating metric exporters. More...

Namespaces
namespace	kcenon
namespace	kcenon::monitoring

Enumerations
enum class	kcenon::monitoring::metric_export_format {   kcenon::monitoring::prometheus_text , kcenon::monitoring::prometheus_protobuf , kcenon::monitoring::statsd_plain , kcenon::monitoring::statsd_datadog ,   kcenon::monitoring::otlp_grpc , kcenon::monitoring::otlp_http_json , kcenon::monitoring::otlp_http_protobuf }
	Supported metric export formats. More...
enum class	kcenon::monitoring::metric_type {   kcenon::monitoring::counter , kcenon::monitoring::gauge , kcenon::monitoring::histogram , kcenon::monitoring::summary ,   kcenon::monitoring::timer , kcenon::monitoring::counter = 0 , kcenon::monitoring::gauge , kcenon::monitoring::histogram ,   kcenon::monitoring::summary , kcenon::monitoring::timer , kcenon::monitoring::set }
	Metric types supported by exporters. More...

Functions
std::unique_ptr< prometheus_exporter >	kcenon::monitoring::create_prometheus_exporter (std::uint16_t port=9090, const std::string &job_name="monitoring_system")
	Helper function to create a Prometheus exporter.
std::unique_ptr< statsd_exporter >	kcenon::monitoring::create_statsd_exporter (const std::string &host="localhost", std::uint16_t port=8125, bool datadog_format=false)
	Helper function to create a StatsD exporter.
std::unique_ptr< otlp_metrics_exporter >	kcenon::monitoring::create_otlp_metrics_exporter (const std::string &endpoint, const otel_resource &resource, metric_export_format format=metric_export_format::otlp_grpc)
	Helper function to create an OTLP metrics exporter.

Detailed Description

Metric data exporters for various monitoring and observability systems.

This file provides exporters for popular metric collection systems:

• Prometheus (Pull-based metrics system with HTTP endpoint)
• StatsD (Push-based UDP metrics aggregation system)
• OpenTelemetry Metrics (OTLP metrics protocol)

Each exporter handles format conversion and protocol-specific transmission to the respective metrics backend.

Definition in file metric_exporters.h.
