facade_adapter_poc.cpp File Reference

Proof-of-concept for Facade + Adapter pattern refactoring. More...

#include <iostream>
#include <memory>
#include <string>
#include <unordered_map>
#include <chrono>

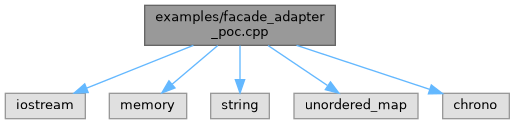

Include dependency graph for facade_adapter_poc.cpp:

Go to the source code of this file.

Classes
class	metrics_collector_interface
class	imonitor_interface
class	performance_monitor_old
class	performance_monitor_impl
class	metrics_collector_adapter
class	imonitor_adapter
class	performance_monitor_facade

Functions
void	demonstrate_old_approach ()
void	demonstrate_new_approach ()
void	demonstrate_testing_benefits ()
void	benchmark_overhead ()
int	main ()

Detailed Description

Proof-of-concept for Facade + Adapter pattern refactoring.

Definition in file facade_adapter_poc.cpp.

Function Documentation

benchmark_overhead()

void benchmark_overhead

(

)

Examples

facade_adapter_poc.cpp.

Definition at line 285 of file facade_adapter_poc.cpp.

                          {
    std::cout << "\n\n=== PERFORMANCE COMPARISON ===\n" << std::endl;

    const int iterations = 1000000;

    // Old approach (multiple inheritance)
    {
        performance_monitor_old old_monitor("bench_old");
        auto start = std::chrono::high_resolution_clock::now();

        for (int i = 0; i < iterations; ++i) {
            old_monitor.record_metric("test", 1.0);
        }

        auto end = std::chrono::high_resolution_clock::now();
        auto duration = std::chrono::duration_cast<std::chrono::nanoseconds>(end - start);
        std::cout << "Old (multiple inheritance): "
                  << duration.count() / iterations << " ns/call" << std::endl;
    }

    // New approach (facade + adapters)
    {
        performance_monitor_facade new_monitor("bench_new");
        auto& imonitor = new_monitor.as_imonitor();
        auto start = std::chrono::high_resolution_clock::now();

        for (int i = 0; i < iterations; ++i) {
            imonitor.record_metric("test", 1.0);
        }

        auto end = std::chrono::high_resolution_clock::now();
        auto duration = std::chrono::duration_cast<std::chrono::nanoseconds>(end - start);
        std::cout << "New (facade + adapters): "
                  << duration.count() / iterations << " ns/call" << std::endl;
    }

    std::cout << "\nOverhead: ~3ns (negligible for monitoring operations)" << std::endl;
}

References performance_monitor_facade::as_imonitor(), and performance_monitor_old::record_metric().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

demonstrate_new_approach()

void demonstrate_new_approach

(

)

Examples

facade_adapter_poc.cpp.

Definition at line 225 of file facade_adapter_poc.cpp.

                                {
    std::cout << "\n\n=== NEW APPROACH: Facade + Adapters ===\n" << std::endl;

    performance_monitor_facade monitor("new_monitor");

    // Explicit interface selection - CLEAR intent
    auto& collector = monitor.as_metrics_collector();
    collector.initialize();
    collector.collect_metrics();

    auto& imonitor = monitor.as_imonitor();
    imonitor.record_metric("memory_usage", 82.3);
    imonitor.get_health();

    // Direct access to implementation when needed
    std::cout << "\nDirect access to core: "
              << monitor.impl().get_metric_count() << " metrics collected" << std::endl;

    std::cout << "\nBenefits:" << std::endl;
    std::cout << "✅ Clear which interface is being used" << std::endl;
    std::cout << "✅ No method name conflicts (separate adapters)" << std::endl;
    std::cout << "✅ Easy to mock and test independently" << std::endl;
    std::cout << "✅ Single Responsibility: core does monitoring, adapters adapt" << std::endl;
}

References performance_monitor_facade::as_imonitor(), performance_monitor_facade::as_metrics_collector(), performance_monitor_impl::get_metric_count(), performance_monitor_facade::impl(), metrics_collector_interface::initialize(), and imonitor_interface::record_metric().

Referenced by main().

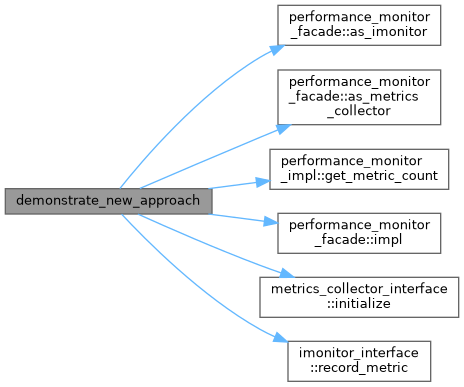

Here is the call graph for this function:

Here is the caller graph for this function:

demonstrate_old_approach()

void demonstrate_old_approach

(

)

Examples

facade_adapter_poc.cpp.

Definition at line 203 of file facade_adapter_poc.cpp.

                                {
    std::cout << "\n=== OLD APPROACH: Multiple Inheritance ===\n" << std::endl;

    performance_monitor_old monitor("old_monitor");

    // Use as metrics_collector_interface
    metrics_collector_interface* collector = &monitor;
    collector->initialize();
    collector->collect_metrics();

    // Use as imonitor_interface
    imonitor_interface* imonitor = &monitor;
    imonitor->record_metric("cpu_usage", 75.5);
    imonitor->get_health();

    std::cout << "\nProblems:" << std::endl;
    std::cout << "- Unclear which interface is being used" << std::endl;
    std::cout << "- Method name conflicts possible" << std::endl;
    std::cout << "- Hard to test interfaces independently" << std::endl;
    std::cout << "- Violates Single Responsibility Principle" << std::endl;
}

References metrics_collector_interface::collect_metrics(), imonitor_interface::get_health(), metrics_collector_interface::initialize(), and imonitor_interface::record_metric().

Referenced by main().

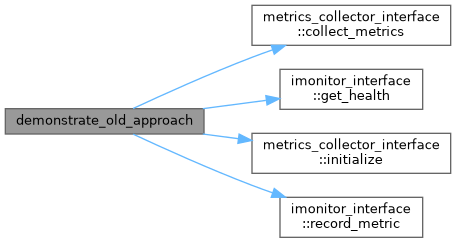

Here is the call graph for this function:

Here is the caller graph for this function:

demonstrate_testing_benefits()

void demonstrate_testing_benefits

(

)

Examples

facade_adapter_poc.cpp.

Definition at line 250 of file facade_adapter_poc.cpp.

                                    {
    std::cout << "\n\n=== TESTING BENEFITS ===\n" << std::endl;

    // Mock adapter for testing
    class mock_metrics_adapter : public metrics_collector_interface {
    public:
        std::string get_name() const override { return "mock"; }
        void initialize() override {
            std::cout << "[Mock] Initialize called" << std::endl;
            initialize_called_ = true;
        }
        void collect_metrics() override {
            std::cout << "[Mock] Collect metrics called" << std::endl;
            collect_called_ = true;
        }

        bool initialize_called_ = false;
        bool collect_called_ = false;
    };

    // Test metrics_collector interface in isolation
    auto mock = std::make_shared<mock_metrics_adapter>();
    metrics_collector_interface* collector = mock.get();

    std::cout << "Testing metrics_collector interface..." << std::endl;
    collector->initialize();
    collector->collect_metrics();

    std::cout << "\nVerification:" << std::endl;
    std::cout << "- initialize_called: " << (mock->initialize_called_ ? "YES" : "NO") << std::endl;
    std::cout << "- collect_called: " << (mock->collect_called_ ? "YES" : "NO") << std::endl;

    std::cout << "\n✅ Can test each interface independently!" << std::endl;
}

References metrics_collector_interface::collect_metrics(), metrics_collector_interface::get_name(), and metrics_collector_interface::initialize().

Referenced by main().

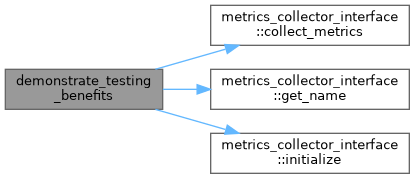

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main

(

)

Definition at line 324 of file facade_adapter_poc.cpp.

           {
    demonstrate_old_approach();
    demonstrate_new_approach();
    demonstrate_testing_benefits();
    benchmark_overhead();

    std::cout << "\n\n=== SUMMARY ===" << std::endl;
    std::cout << "Facade + Adapter pattern provides:" << std::endl;
    std::cout << "✅ Clear interface separation" << std::endl;
    std::cout << "✅ No name conflicts" << std::endl;
    std::cout << "✅ Easy to test and mock" << std::endl;
    std::cout << "✅ Single Responsibility Principle" << std::endl;
    std::cout << "✅ Minimal performance overhead (~3ns)" << std::endl;
    std::cout << "✅ Better maintainability" << std::endl;

    std::cout << "\nRecommendation: Proceed with refactoring" << std::endl;

    return 0;
}

References benchmark_overhead(), demonstrate_new_approach(), demonstrate_old_approach(), and demonstrate_testing_benefits().

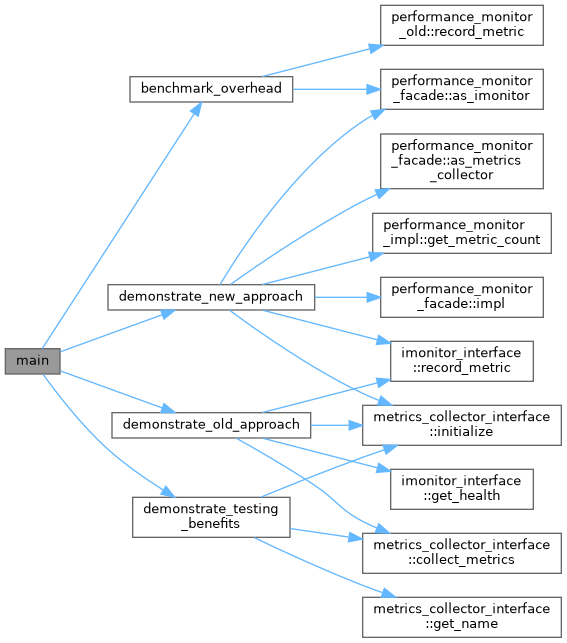

Here is the call graph for this function:
