Thread-safe ring buffer for time-series data with statistics. More...

#include <time_series_buffer.h>

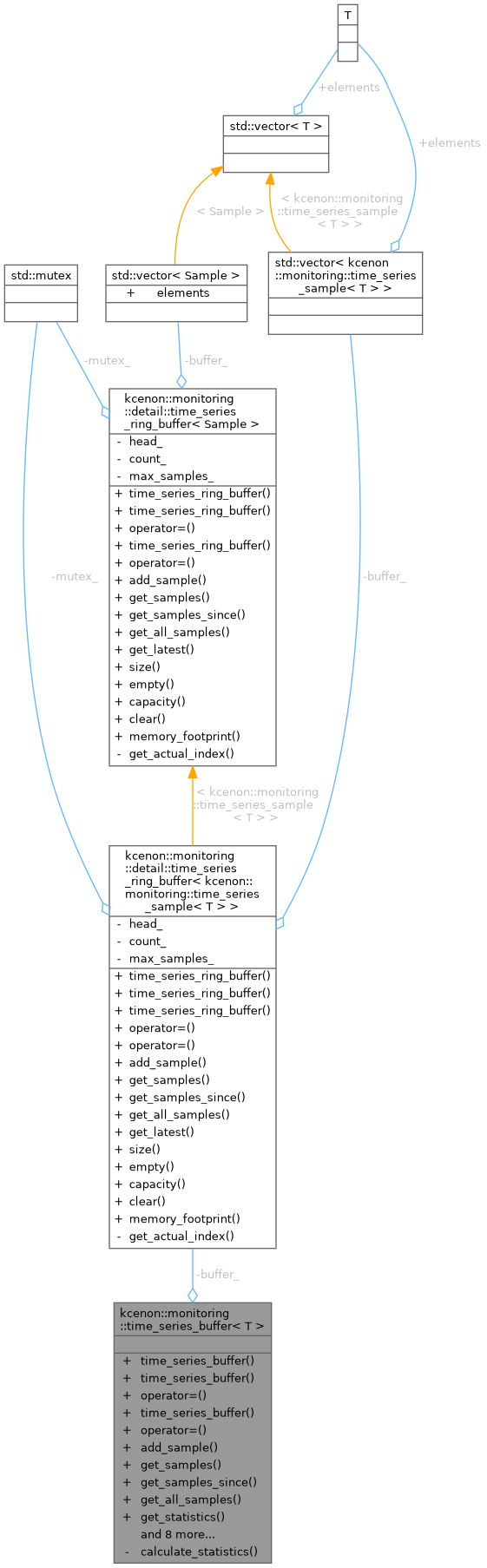

Collaboration diagram for kcenon::monitoring::time_series_buffer< T >:

Public Member Functions
	time_series_buffer (const time_series_buffer_config &config={})
	Constructor with configuration.

	time_series_buffer (const time_series_buffer &)=delete

time_series_buffer &	operator= (const time_series_buffer &)=delete

	time_series_buffer (time_series_buffer &&)=delete

time_series_buffer &	operator= (time_series_buffer &&)=delete

void	add_sample (T value, std::chrono::system_clock::time_point timestamp=std::chrono::system_clock::now())
	Add a sample to the buffer.

template<typename Duration >
std::vector< time_series_sample< T > >	get_samples (Duration duration) const
	Get samples within a duration from now.

std::vector< time_series_sample< T > >	get_samples_since (std::chrono::system_clock::time_point since) const
	Get samples since a specific timestamp.

std::vector< time_series_sample< T > >	get_all_samples () const
	Get all samples in chronological order.

template<typename Duration >
time_series_statistics	get_statistics (Duration duration) const
	Get statistics for samples within a duration.

time_series_statistics	get_statistics () const
	Get statistics for all samples.

common::Result< T >	get_latest () const
	Get the latest sample value.

common::Result< time_series_sample< T > >	get_latest_sample () const
	Get the latest sample with timestamp.

size_t	size () const noexcept
	Get current number of samples.

bool	empty () const noexcept
	Check if buffer is empty.

size_t	capacity () const noexcept
	Get buffer capacity.

void	clear () noexcept
	Clear all samples.

size_t	memory_footprint () const noexcept
	Get memory footprint in bytes.

Static Private Member Functions
static time_series_statistics	calculate_statistics (const std::vector< time_series_sample< T > > &samples)

Private Attributes
detail::time_series_ring_buffer< time_series_sample< T > >	buffer_

Detailed Description

template<typename T>
class kcenon::monitoring::time_series_buffer< T >

Thread-safe ring buffer for time-series data with statistics.

This class wraps detail::time_series_ring_buffer to provide a specialized interface for single-value time series with automatic statistics calculation.

Template Parameters

T	The type of values to store (must be numeric)

Definition at line 331 of file time_series_buffer.h.

Constructor & Destructor Documentation

◆ time_series_buffer() [1/3]

template<typename T >

kcenon::monitoring::time_series_buffer< T >::time_series_buffer ( const time_series_buffer_config & config = {} )

inlineexplicit

Constructor with configuration.

Parameters

config Time series buffer configuration options

Exceptions

std::invalid_argument if configuration validation fails

Definition at line 343 of file time_series_buffer.h.

                                                                          {})
        : buffer_(config.max_samples) {
        auto validation = config.validate();
        if (validation.is_err()) {
            throw std::invalid_argument("Invalid time_series_buffer configuration: " +
                                        validation.error().message);
        }
    }

◆ time_series_buffer() [2/3]

template<typename T >

kcenon::monitoring::time_series_buffer< T >::time_series_buffer ( const time_series_buffer< T > & )

delete

◆ time_series_buffer() [3/3]

template<typename T >

kcenon::monitoring::time_series_buffer< T >::time_series_buffer ( time_series_buffer< T > && )

delete

Member Function Documentation

◆ add_sample()

template<typename T >

void kcenon::monitoring::time_series_buffer< T >::add_sample	(	T	value,
		std::chrono::system_clock::time_point	timestamp = std::chrono::system_clock::now() )

inline

Add a sample to the buffer.

Parameters

value	The value to add
timestamp	Optional timestamp (defaults to now)

Definition at line 362 of file time_series_buffer.h.

                                                    {
        buffer_.add_sample(time_series_sample<T>(timestamp, value));
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ calculate_statistics()

template<typename T >

static time_series_statistics kcenon::monitoring::time_series_buffer< T >::calculate_statistics ( const std::vector< time_series_sample< T > > & samples )

inlinestaticprivate

Definition at line 472 of file time_series_buffer.h.

                                                         {
        if (samples.empty()) {
            time_series_statistics stats;
            stats.sample_count = 0;
            stats.min_value = 0.0;
            stats.max_value = 0.0;
            return stats;
        }

        std::vector<double> values;
        values.reserve(samples.size());
        for (const auto& sample : samples) {
            values.push_back(static_cast<double>(sample.value));
        }

        return detail::calculate_basic_statistics(
            values,
            samples.front().timestamp,
            samples.back().timestamp);
    }

References kcenon::monitoring::detail::calculate_basic_statistics(), kcenon::monitoring::time_series_statistics::max_value, kcenon::monitoring::time_series_statistics::min_value, and kcenon::monitoring::time_series_statistics::sample_count.

Referenced by kcenon::monitoring::time_series_buffer< T >::get_statistics(), and kcenon::monitoring::time_series_buffer< T >::get_statistics().

Here is the call graph for this function:

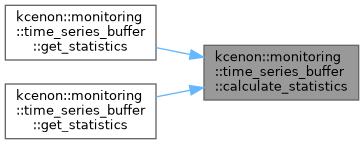

Here is the caller graph for this function:

◆ capacity()

template<typename T >

size_t kcenon::monitoring::time_series_buffer< T >::capacity ( ) const

inlinenoexcept

Get buffer capacity.

Definition at line 453 of file time_series_buffer.h.

                                     {
        return buffer_.capacity();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ clear()

template<typename T >

void kcenon::monitoring::time_series_buffer< T >::clear ( )

inlinenoexcept

Clear all samples.

Definition at line 460 of file time_series_buffer.h.

                          {
        buffer_.clear();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ empty()

template<typename T >

bool kcenon::monitoring::time_series_buffer< T >::empty ( ) const

inlinenoexcept

Check if buffer is empty.

Definition at line 446 of file time_series_buffer.h.

                                {
        return buffer_.empty();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ get_all_samples()

template<typename T >

std::vector< time_series_sample< T > > kcenon::monitoring::time_series_buffer< T >::get_all_samples ( ) const

inline

Get all samples in chronological order.

Returns: Vector of all samples

Definition at line 392 of file time_series_buffer.h.

                                                             {
        return buffer_.get_all_samples();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

Referenced by kcenon::monitoring::time_series_buffer< T >::get_statistics().

Here is the caller graph for this function:

◆ get_latest()

template<typename T >

common::Result< T > kcenon::monitoring::time_series_buffer< T >::get_latest ( ) const

inline

Get the latest sample value.

Returns: Result containing the latest value or error

Definition at line 420 of file time_series_buffer.h.

                                       {
        auto sample_result = buffer_.get_latest();
        if (sample_result.is_err()) {
            return common::Result<T>::err(sample_result.error());
        }
        return common::ok(sample_result.value().value);
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ get_latest_sample()

template<typename T >

common::Result< time_series_sample< T > > kcenon::monitoring::time_series_buffer< T >::get_latest_sample ( ) const

inline

Get the latest sample with timestamp.

Returns: Result containing the latest sample or error

Definition at line 432 of file time_series_buffer.h.

                                                                  {
        return buffer_.get_latest();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ get_samples()

template<typename T >

template<typename Duration >

std::vector< time_series_sample< T > > kcenon::monitoring::time_series_buffer< T >::get_samples ( Duration duration ) const

inline

Get samples within a duration from now.

Parameters

duration How far back to look

Returns: Vector of samples within the duration

Definition at line 374 of file time_series_buffer.h.

                                                                          {
        return buffer_.get_samples(duration);
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

Referenced by kcenon::monitoring::time_series_buffer< T >::get_statistics().

Here is the caller graph for this function:

◆ get_samples_since()

template<typename T >

std::vector< time_series_sample< T > > kcenon::monitoring::time_series_buffer< T >::get_samples_since ( std::chrono::system_clock::time_point since ) const

inline

Get samples since a specific timestamp.

Parameters

since The timestamp to start from

Returns: Vector of samples since the timestamp

Definition at line 383 of file time_series_buffer.h.

                                                     {
        return buffer_.get_samples_since(since);
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ get_statistics() [1/2]

template<typename T >

time_series_statistics kcenon::monitoring::time_series_buffer< T >::get_statistics ( ) const

inline

Get statistics for all samples.

Returns: Statistics for all samples

Definition at line 411 of file time_series_buffer.h.

                                                  {
        auto samples = get_all_samples();
        return calculate_statistics(samples);
    }

References kcenon::monitoring::time_series_buffer< T >::calculate_statistics(), and kcenon::monitoring::time_series_buffer< T >::get_all_samples().

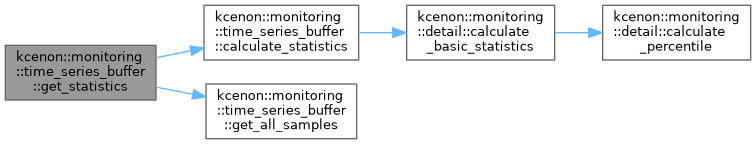

Here is the call graph for this function:

◆ get_statistics() [2/2]

template<typename T >

template<typename Duration >

time_series_statistics kcenon::monitoring::time_series_buffer< T >::get_statistics ( Duration duration ) const

inline

Get statistics for samples within a duration.

Parameters

duration How far back to look

Returns: Statistics for the samples

Definition at line 402 of file time_series_buffer.h.

                                                                   {
        auto samples = get_samples(duration);
        return calculate_statistics(samples);
    }

References kcenon::monitoring::time_series_buffer< T >::calculate_statistics(), and kcenon::monitoring::time_series_buffer< T >::get_samples().

Here is the call graph for this function:

◆ memory_footprint()

template<typename T >

size_t kcenon::monitoring::time_series_buffer< T >::memory_footprint ( ) const

inlinenoexcept

Get memory footprint in bytes.

Definition at line 467 of file time_series_buffer.h.

                                             {
        return buffer_.memory_footprint();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

◆ operator=() [1/2]

template<typename T >

time_series_buffer & kcenon::monitoring::time_series_buffer< T >::operator= ( const time_series_buffer< T > & )

delete

◆ operator=() [2/2]

template<typename T >

time_series_buffer & kcenon::monitoring::time_series_buffer< T >::operator= ( time_series_buffer< T > && )

delete

◆ size()

template<typename T >

size_t kcenon::monitoring::time_series_buffer< T >::size ( ) const

inlinenoexcept

Get current number of samples.

Definition at line 439 of file time_series_buffer.h.

                                 {
        return buffer_.size();
    }

References kcenon::monitoring::time_series_buffer< T >::buffer_.

Member Data Documentation

◆ buffer_

template<typename T >

detail::time_series_ring_buffer<time_series_sample<T> > kcenon::monitoring::time_series_buffer< T >::buffer_

private

Definition at line 335 of file time_series_buffer.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/utils/time_series_buffer.h
