Full-featured streaming aggregation. More...

#include <stream_aggregator.h>

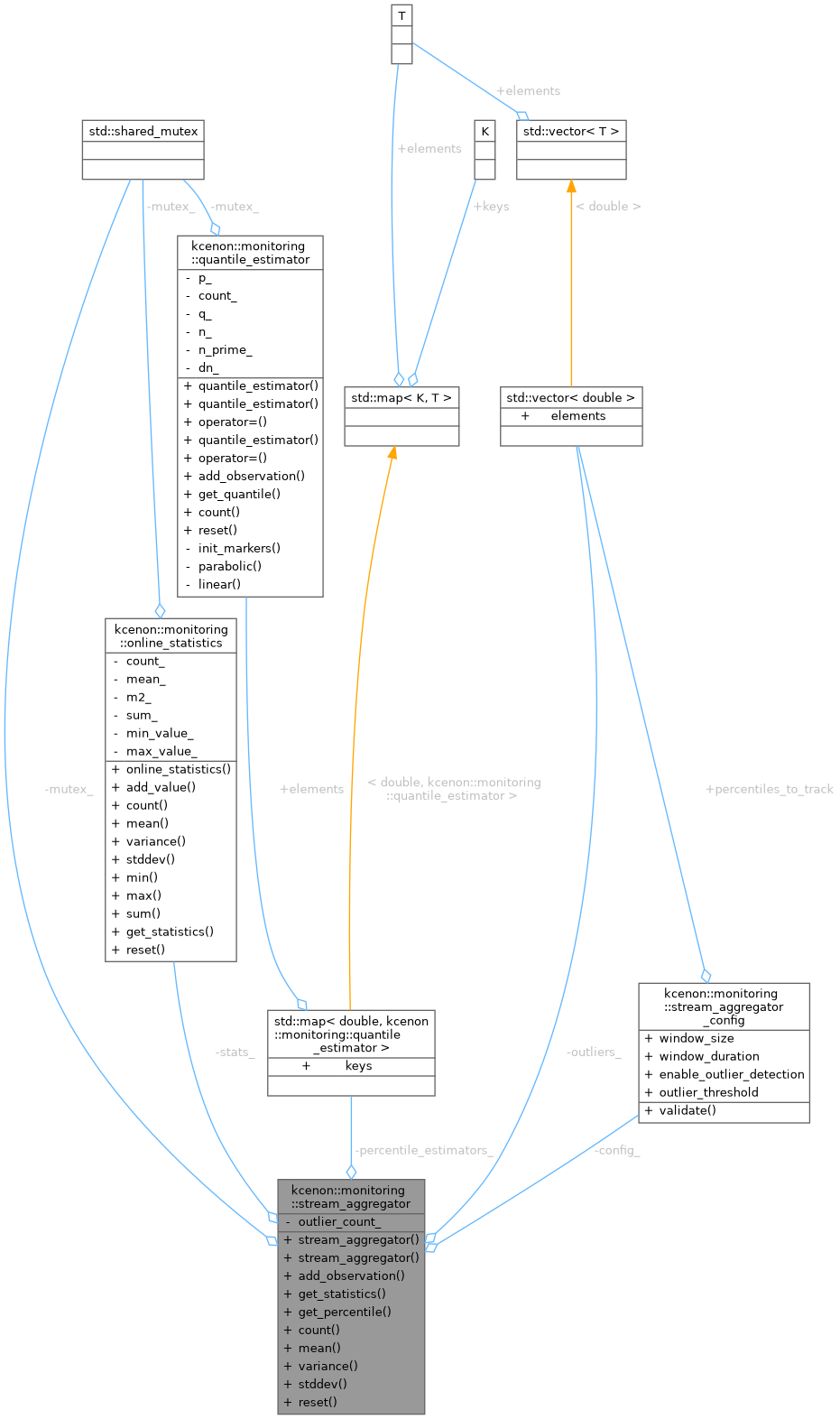

Collaboration diagram for kcenon::monitoring::stream_aggregator:

Public Member Functions
	stream_aggregator ()
	Default constructor.

	stream_aggregator (const stream_aggregator_config &config)
	Constructor with configuration.

common::VoidResult	add_observation (double value)
	Add an observation.

streaming_statistics	get_statistics () const
	Get full statistics.

std::optional< double >	get_percentile (double p) const
	Get specific percentile.

size_t	count () const
	Get observation count.

double	mean () const
	Get mean.

double	variance () const
	Get variance.

double	stddev () const
	Get standard deviation.

void	reset ()
	Reset the aggregator.

Private Attributes
std::shared_mutex	mutex_

stream_aggregator_config	config_

online_statistics	stats_

std::map< double, quantile_estimator >	percentile_estimators_

size_t	outlier_count_ = 0

std::vector< double >	outliers_

Detailed Description

Full-featured streaming aggregation.

Combines online statistics, quantile estimation, and outlier detection for comprehensive streaming metric aggregation.

Definition at line 523 of file stream_aggregator.h.

Constructor & Destructor Documentation

◆ stream_aggregator() [1/2]

kcenon::monitoring::stream_aggregator::stream_aggregator ( )

inline

Default constructor.

Definition at line 528 of file stream_aggregator.h.

528: stream_aggregator(stream_aggregator_config{}) {}

kcenon::monitoring::stream_aggregator::stream_aggregator

stream_aggregator()

Default constructor.

Definition stream_aggregator.h:528

◆ stream_aggregator() [2/2]

kcenon::monitoring::stream_aggregator::stream_aggregator ( const stream_aggregator_config & config )

inlineexplicit

Constructor with configuration.

Parameters

config The configuration

Definition at line 534 of file stream_aggregator.h.

        : config_(config) {
        // Initialize percentile estimators
        for (double p : config_.percentiles_to_track) {
            percentile_estimators_.emplace(p, quantile_estimator(p));
        }
    }

References config_, and kcenon::monitoring::stream_aggregator_config::percentiles_to_track.

Member Function Documentation

◆ add_observation()

common::VoidResult kcenon::monitoring::stream_aggregator::add_observation ( double value )

inline

Add an observation.

Parameters

value The observation value

Returns: Result indicating success or failure

Definition at line 547 of file stream_aggregator.h.

                                                   {
        std::unique_lock<std::shared_mutex> lock(mutex_);

        // Check for outlier
        if (config_.enable_outlier_detection && stats_.count() > 10) {
            double z_score = std::abs(value - stats_.mean()) /
                            (stats_.stddev() + 1e-10);
            if (z_score > config_.outlier_threshold) {
                outlier_count_++;
                outliers_.push_back(value);
                if (outliers_.size() > 100) {
                    outliers_.erase(outliers_.begin());
                }
            }
        }

        stats_.add_value(value);

        // Update percentile estimators
        for (auto& [p, estimator] : percentile_estimators_) {
            estimator.add_observation(value);
        }

        return common::ok();
    }

References kcenon::monitoring::online_statistics::add_value(), config_, kcenon::monitoring::online_statistics::count(), kcenon::monitoring::stream_aggregator_config::enable_outlier_detection, kcenon::monitoring::online_statistics::mean(), mutex_, outlier_count_, kcenon::monitoring::stream_aggregator_config::outlier_threshold, outliers_, percentile_estimators_, stats_, and kcenon::monitoring::online_statistics::stddev().

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

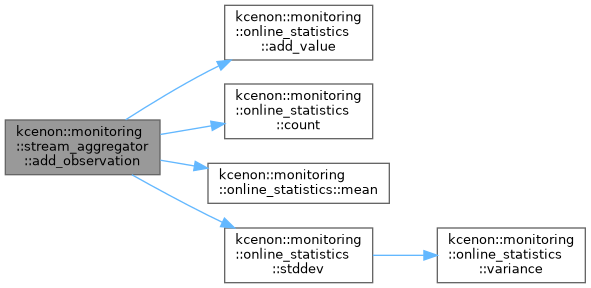

Here is the call graph for this function:

Here is the caller graph for this function:

◆ count()

size_t kcenon::monitoring::stream_aggregator::count ( ) const

inline

Get observation count.

Definition at line 607 of file stream_aggregator.h.

                         {
        return stats_.count();
    }

References kcenon::monitoring::online_statistics::count(), and stats_.

Referenced by TEST_F(), and TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_percentile()

std::optional< double > kcenon::monitoring::stream_aggregator::get_percentile ( double p ) const

inline

Get specific percentile.

Parameters

p	The percentile (0.0 to 1.0)

Returns: Optional containing the percentile value

Definition at line 595 of file stream_aggregator.h.

                                                       {
        std::shared_lock<std::shared_mutex> lock(mutex_);
        auto it = percentile_estimators_.find(p);
        if (it != percentile_estimators_.end()) {
            return it->second.get_quantile();
        }
        return std::nullopt;
    }

References mutex_, and percentile_estimators_.

Referenced by TEST_F().

Here is the caller graph for this function:

◆ get_statistics()

streaming_statistics kcenon::monitoring::stream_aggregator::get_statistics ( ) const

inline

Get full statistics.

Definition at line 576 of file stream_aggregator.h.

                                                {
        std::shared_lock<std::shared_mutex> lock(mutex_);
        auto stats = stats_.get_statistics();
        stats.outlier_count = outlier_count_;
        stats.outliers = outliers_;

        // Add percentiles
        for (const auto& [p, estimator] : percentile_estimators_) {
            stats.percentiles[p] = estimator.get_quantile();
        }

        return stats;
    }

References kcenon::monitoring::online_statistics::get_statistics(), mutex_, kcenon::monitoring::streaming_statistics::outlier_count, outlier_count_, outliers_, percentile_estimators_, and stats_.

Referenced by TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mean()

double kcenon::monitoring::stream_aggregator::mean ( ) const

inline

Get mean.

Definition at line 614 of file stream_aggregator.h.

                        {
        return stats_.mean();
    }

References kcenon::monitoring::online_statistics::mean(), and stats_.

Referenced by TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void kcenon::monitoring::stream_aggregator::reset ( )

inline

Reset the aggregator.

Definition at line 635 of file stream_aggregator.h.

                 {
        std::unique_lock<std::shared_mutex> lock(mutex_);
        stats_.reset();
        outlier_count_ = 0;
        outliers_.clear();
        for (auto& [p, estimator] : percentile_estimators_) {
            estimator.reset();
        }
    }

References mutex_, outlier_count_, outliers_, percentile_estimators_, kcenon::monitoring::online_statistics::reset(), and stats_.

Referenced by TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stddev()

double kcenon::monitoring::stream_aggregator::stddev ( ) const

inline

Get standard deviation.

Definition at line 628 of file stream_aggregator.h.

                          {
        return stats_.stddev();
    }

References stats_, and kcenon::monitoring::online_statistics::stddev().

Here is the call graph for this function:

◆ variance()

double kcenon::monitoring::stream_aggregator::variance ( ) const

inline

Get variance.

Definition at line 621 of file stream_aggregator.h.

                            {
        return stats_.variance();
    }

References stats_, and kcenon::monitoring::online_statistics::variance().

Referenced by TEST_F().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ config_

stream_aggregator_config kcenon::monitoring::stream_aggregator::config_

private

Definition at line 647 of file stream_aggregator.h.

Referenced by add_observation(), and stream_aggregator().

◆ mutex_

std::shared_mutex kcenon::monitoring::stream_aggregator::mutex_

mutableprivate

Definition at line 646 of file stream_aggregator.h.

Referenced by add_observation(), get_percentile(), get_statistics(), and reset().

◆ outlier_count_

size_t kcenon::monitoring::stream_aggregator::outlier_count_ = 0

private

Definition at line 650 of file stream_aggregator.h.

Referenced by add_observation(), get_statistics(), and reset().

◆ outliers_

std::vector<double> kcenon::monitoring::stream_aggregator::outliers_

private

Definition at line 651 of file stream_aggregator.h.

Referenced by add_observation(), get_statistics(), and reset().

◆ percentile_estimators_

std::map<double, quantile_estimator> kcenon::monitoring::stream_aggregator::percentile_estimators_

private

Definition at line 649 of file stream_aggregator.h.

Referenced by add_observation(), get_percentile(), get_statistics(), and reset().

◆ stats_

online_statistics kcenon::monitoring::stream_aggregator::stats_

private

Definition at line 648 of file stream_aggregator.h.

Referenced by add_observation(), count(), get_statistics(), mean(), reset(), stddev(), and variance().

The documentation for this class was generated from the following file:

include/kcenon/monitoring/utils/stream_aggregator.h
