Performance monitor combining profiling and system monitoring. More...

#include <performance_monitor.h>

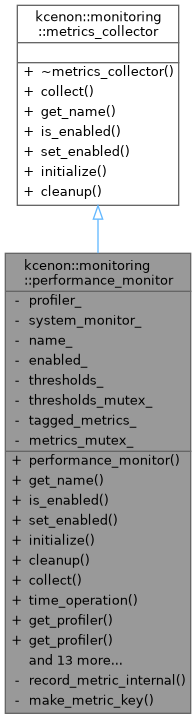

Inheritance diagram for kcenon::monitoring::performance_monitor:

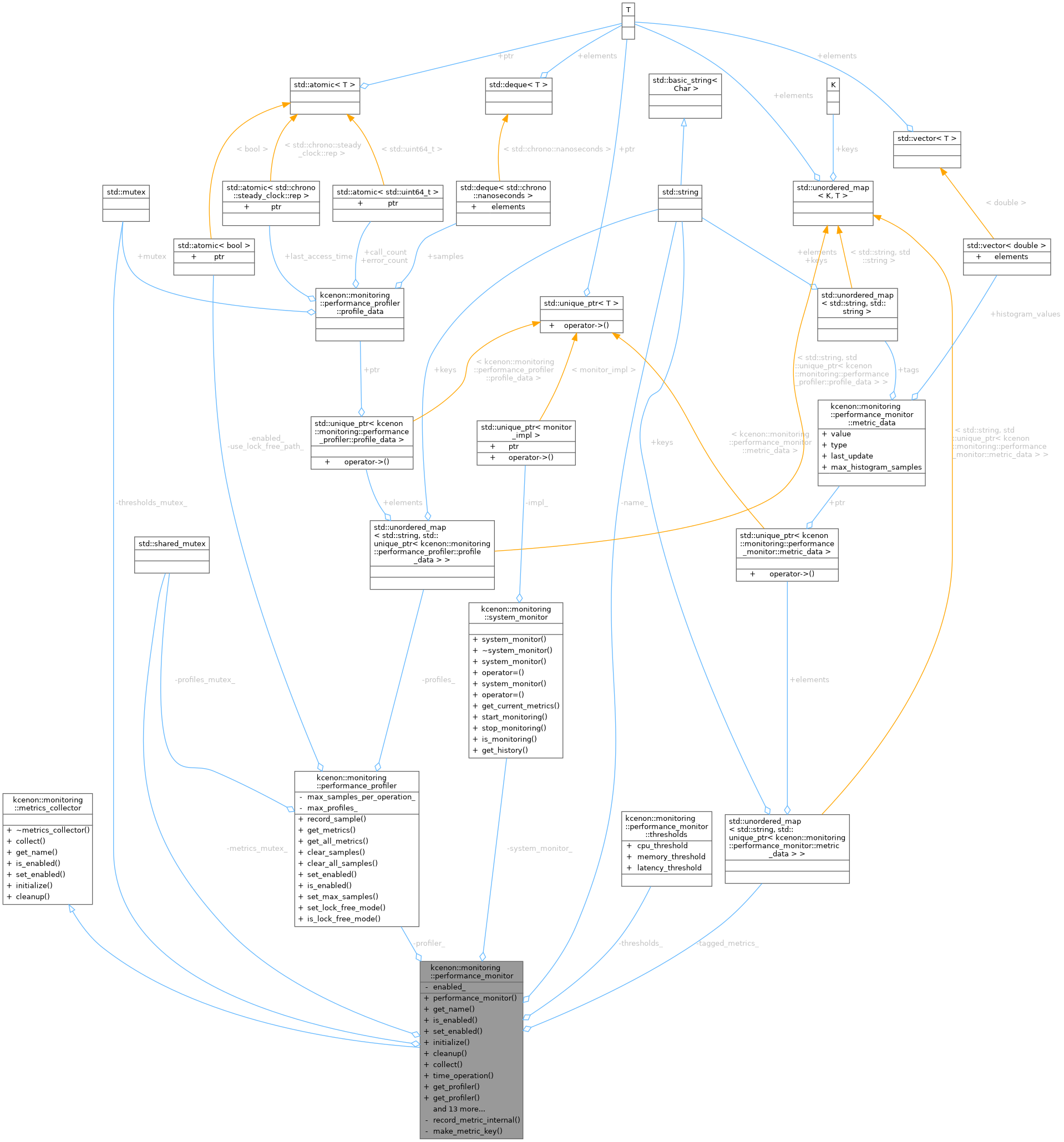

Collaboration diagram for kcenon::monitoring::performance_monitor:

Classes
struct	metric_data

struct	thresholds

Public Member Functions
	performance_monitor (const std::string &name="performance_monitor")

std::string	get_name () const override
	Get the name of this performance monitor.

bool	is_enabled () const override
	Check if this performance monitor is enabled.

common::VoidResult	set_enabled (bool enable) override
	Enable or disable the collector.

common::VoidResult	initialize () override
	Initialize the collector.

common::VoidResult	cleanup () override
	Cleanup collector resources.

common::Result< metrics_snapshot >	collect () override
	Collect metrics.

scoped_timer	time_operation (const std::string &operation_name)
	Create a scoped timer for an operation.

performance_profiler &	get_profiler ()
	Get performance profiler.

const performance_profiler &	get_profiler () const
	Get performance profiler (const)

system_monitor &	get_system_monitor ()
	Get system monitor.

const system_monitor &	get_system_monitor () const
	Get system monitor (const)

void	set_cpu_threshold (double threshold)
	Set performance thresholds.

void	set_memory_threshold (double threshold)

void	set_latency_threshold (std::chrono::milliseconds threshold)

thresholds	get_thresholds () const
	Get current threshold values.

common::Result< bool >	check_thresholds () const
	Check if any thresholds are exceeded.

void	reset ()
	Reset all performance profiler samples and system metrics.

common::VoidResult	record_counter (const std::string &name, double value, const tag_map &tags={})

common::VoidResult	record_gauge (const std::string &name, double value, const tag_map &tags={})

common::VoidResult	record_histogram (const std::string &name, double value, const tag_map &tags={})

std::vector< tagged_metric >	get_all_tagged_metrics () const
	Get all recorded tagged metrics.

void	clear_all_metrics ()
	Clear all recorded tagged metrics.

Public Member Functions inherited from kcenon::monitoring::metrics_collector
virtual	~metrics_collector ()=default

Private Member Functions
common::VoidResult	record_metric_internal (const std::string &name, double value, recorded_metric_type type, const tag_map &tags)
	Internal method to record a metric with type and tags.

Static Private Member Functions
static std::string	make_metric_key (const std::string &name, const tag_map &tags)
	Generate a unique key from metric name and tags.

Private Attributes
performance_profiler	profiler_

system_monitor	system_monitor_

std::string	name_

bool	enabled_ {true}

struct kcenon::monitoring::performance_monitor::thresholds	thresholds_

std::mutex	thresholds_mutex_

std::unordered_map< std::string, std::unique_ptr< metric_data > >	tagged_metrics_

std::shared_mutex	metrics_mutex_

Detailed Description

Performance monitor combining profiling and system monitoring.

Implements kcenon::monitoring::metrics_collector for internal monitoring. For interoperability with common::interfaces::IMonitor, use performance_monitor_adapter.

Thread Safety:

Thread-safe. All public methods can be called concurrently.

profiler_ is thread-safe (uses internal synchronization)
system_monitor_ is thread-safe (uses internal synchronization)
thresholds_ protected by thresholds_mutex_

See also: performance_monitor_adapter For bridging to common::interfaces::IMonitor

Examples: basic_monitoring_example.cpp, and production_monitoring_example.cpp.

Definition at line 354 of file performance_monitor.h.

Constructor & Destructor Documentation

◆ performance_monitor()

kcenon::monitoring::performance_monitor::performance_monitor ( const std::string & name = "performance_monitor" )

inlineexplicit

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 382 of file performance_monitor.h.

383 : name_(name) {}

kcenon::monitoring::performance_monitor::name_

std::string name_

Definition performance_monitor.h:358

Member Function Documentation

◆ check_thresholds()

common::Result< bool > kcenon::monitoring::performance_monitor::check_thresholds ( ) const

Check if any thresholds are exceeded.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ cleanup()

common::VoidResult kcenon::monitoring::performance_monitor::cleanup ( )

inlineoverridevirtual

Cleanup collector resources.

Returns: Result indicating success or cleanup error

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h, and basic_monitoring_example.cpp.

Definition at line 413 of file performance_monitor.h.

                                        {
        auto result = system_monitor_.stop_monitoring();
        if (result.is_err()) {
            return common::VoidResult::err(result.error());
        }
        return common::ok();
    }

References kcenon::monitoring::system_monitor::stop_monitoring().

Referenced by main(), and PerformanceMonitoringTest::TearDown().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear_all_metrics()

void kcenon::monitoring::performance_monitor::clear_all_metrics ( )

Clear all recorded tagged metrics.

Thread Safety:: Thread-safe, uses shared_mutex for synchronization

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ collect()

common::Result< metrics_snapshot > kcenon::monitoring::performance_monitor::collect ( )

overridevirtual

Collect metrics.

Returns: Result containing collected metrics or error

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h, and basic_monitoring_example.cpp.

Referenced by main().

Here is the caller graph for this function:

◆ get_all_tagged_metrics()

std::vector< tagged_metric > kcenon::monitoring::performance_monitor::get_all_tagged_metrics ( ) const

Get all recorded tagged metrics.

Returns: Vector of tagged_metric containing all recorded metrics with their tags

Thread Safety:: Thread-safe, uses shared_mutex for synchronization

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ get_name()

std::string kcenon::monitoring::performance_monitor::get_name ( ) const

inlineoverridevirtual

Get the name of this performance monitor.

Returns: The monitor name string

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 391 of file performance_monitor.h.

391{ return name_; }

References name_.

◆ get_profiler() [1/2]

performance_profiler & kcenon::monitoring::performance_monitor::get_profiler ( )

inline

Get performance profiler.

Returns: Reference to the internal performance profiler

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 434 of file performance_monitor.h.

434{ return profiler_; }

kcenon::monitoring::performance_monitor::profiler_

performance_profiler profiler_

Definition performance_monitor.h:356

◆ get_profiler() [2/2]

const performance_profiler & kcenon::monitoring::performance_monitor::get_profiler ( ) const

inline

Get performance profiler (const)

Returns: Const reference to the internal performance profiler

Definition at line 440 of file performance_monitor.h.

440{ return profiler_; }

◆ get_system_monitor() [1/2]

system_monitor & kcenon::monitoring::performance_monitor::get_system_monitor ( )

inline

Get system monitor.

Returns: Reference to the internal system monitor

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h, and basic_monitoring_example.cpp.

Definition at line 446 of file performance_monitor.h.

446{ return system_monitor_; }

Referenced by main().

Here is the caller graph for this function:

◆ get_system_monitor() [2/2]

const system_monitor & kcenon::monitoring::performance_monitor::get_system_monitor ( ) const

inline

Get system monitor (const)

Returns: Const reference to the internal system monitor

Definition at line 452 of file performance_monitor.h.

452{ return system_monitor_; }

◆ get_thresholds()

thresholds kcenon::monitoring::performance_monitor::get_thresholds ( ) const

inline

Get current threshold values.

Thread Safety:: Thread-safe. Uses mutex for synchronization.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 477 of file performance_monitor.h.

                                      {
        std::lock_guard<std::mutex> lock(thresholds_mutex_);
        return thresholds_;
    }

◆ initialize()

common::VoidResult kcenon::monitoring::performance_monitor::initialize ( )

inlineoverridevirtual

Initialize the collector.

Returns: Result indicating success or initialization error

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h, and basic_monitoring_example.cpp.

Definition at line 405 of file performance_monitor.h.

                                           {
        auto result = system_monitor_.start_monitoring();
        if (result.is_err()) {
            return common::VoidResult::err(result.error());
        }
        return common::ok();
    }

References kcenon::monitoring::system_monitor::start_monitoring().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_enabled()

bool kcenon::monitoring::performance_monitor::is_enabled ( ) const

inlineoverridevirtual

Check if this performance monitor is enabled.

Returns: True if the monitor is currently enabled

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 397 of file performance_monitor.h.

397{ return enabled_; }

kcenon::monitoring::performance_monitor::enabled_

bool enabled_

Definition performance_monitor.h:359

◆ make_metric_key()

static std::string kcenon::monitoring::performance_monitor::make_metric_key	(	const std::string &	name,
		const tag_map &	tags )

staticprivate

Generate a unique key from metric name and tags.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ record_counter()

common::VoidResult kcenon::monitoring::performance_monitor::record_counter	(	const std::string &	name,
		double	value,
		const tag_map &	tags = {} )

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ record_gauge()

common::VoidResult kcenon::monitoring::performance_monitor::record_gauge	(	const std::string &	name,
		double	value,
		const tag_map &	tags = {} )

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ record_histogram()

common::VoidResult kcenon::monitoring::performance_monitor::record_histogram	(	const std::string &	name,
		double	value,
		const tag_map &	tags = {} )

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ record_metric_internal()

common::VoidResult kcenon::monitoring::performance_monitor::record_metric_internal	(	const std::string &	name,
		double	value,
		recorded_metric_type	type,
		const tag_map &	tags )

private

Internal method to record a metric with type and tags.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ reset()

void kcenon::monitoring::performance_monitor::reset ( )

inline

Reset all performance profiler samples and system metrics.

Note: For IMonitor interface compatibility, use performance_monitor_adapter

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 493 of file performance_monitor.h.

                 {
        profiler_.clear_all_samples();
        clear_all_metrics();
    }

References kcenon::monitoring::performance_profiler::clear_all_samples().

Here is the call graph for this function:

◆ set_cpu_threshold()

void kcenon::monitoring::performance_monitor::set_cpu_threshold ( double threshold )

inline

Set performance thresholds.

Thread Safety:: Thread-safe. Uses mutex for synchronization.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 458 of file performance_monitor.h.

                                             {
        std::lock_guard<std::mutex> lock(thresholds_mutex_);
        thresholds_.cpu_threshold = threshold;
    }

◆ set_enabled()

common::VoidResult kcenon::monitoring::performance_monitor::set_enabled ( bool enable )

inlineoverridevirtual

Enable or disable the collector.

Parameters

enable true to enable, false to disable

Returns: Result indicating success or error

Implements kcenon::monitoring::metrics_collector.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 399 of file performance_monitor.h.

                                                       {
        enabled_ = enable;
        profiler_.set_enabled(enable);
        return common::ok();
    }

References kcenon::monitoring::performance_profiler::set_enabled().

Referenced by PerformanceMonitoringTest::SetUp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_latency_threshold()

void kcenon::monitoring::performance_monitor::set_latency_threshold ( std::chrono::milliseconds threshold )

inline

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 468 of file performance_monitor.h.

                                                                {
        std::lock_guard<std::mutex> lock(thresholds_mutex_);
        thresholds_.latency_threshold = threshold;
    }

◆ set_memory_threshold()

void kcenon::monitoring::performance_monitor::set_memory_threshold ( double threshold )

inline

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 463 of file performance_monitor.h.

                                                {
        std::lock_guard<std::mutex> lock(thresholds_mutex_);
        thresholds_.memory_threshold = threshold;
    }

◆ time_operation()

scoped_timer kcenon::monitoring::performance_monitor::time_operation ( const std::string & operation_name )

inline

Create a scoped timer for an operation.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h, and basic_monitoring_example.cpp.

Definition at line 426 of file performance_monitor.h.

                                                                 {
        return scoped_timer(&profiler_, operation_name);
    }

Referenced by main().

Here is the caller graph for this function:

Member Data Documentation

◆ enabled_

bool kcenon::monitoring::performance_monitor::enabled_ {true}

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 359 of file performance_monitor.h.

359{true};

◆ metrics_mutex_

std::shared_mutex kcenon::monitoring::performance_monitor::metrics_mutex_

mutableprivate

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 379 of file performance_monitor.h.

◆ name_

std::string kcenon::monitoring::performance_monitor::name_

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 358 of file performance_monitor.h.

◆ profiler_

performance_profiler kcenon::monitoring::performance_monitor::profiler_

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 356 of file performance_monitor.h.

◆ system_monitor_

system_monitor kcenon::monitoring::performance_monitor::system_monitor_

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 357 of file performance_monitor.h.

◆ tagged_metrics_

std::unordered_map<std::string, std::unique_ptr<metric_data> > kcenon::monitoring::performance_monitor::tagged_metrics_

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 378 of file performance_monitor.h.

◆ thresholds_

struct kcenon::monitoring::performance_monitor::thresholds kcenon::monitoring::performance_monitor::thresholds_

private

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

◆ thresholds_mutex_

std::mutex kcenon::monitoring::performance_monitor::thresholds_mutex_

mutableprivate

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/core/performance_monitor.h.

Definition at line 367 of file performance_monitor.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/core/performance_monitor.h

Classes

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ performance_monitor()

Member Function Documentation

◆ check_thresholds()

◆ cleanup()

◆ clear_all_metrics()

◆ collect()

◆ get_all_tagged_metrics()

◆ get_name()

◆ get_profiler() [1/2]

◆ get_profiler() [2/2]

◆ get_system_monitor() [1/2]

◆ get_system_monitor() [2/2]

◆ get_thresholds()

◆ initialize()

◆ is_enabled()

◆ make_metric_key()

◆ record_counter()

◆ record_gauge()

◆ record_histogram()

◆ record_metric_internal()

◆ reset()

◆ set_cpu_threshold()

◆ set_enabled()

◆ set_latency_threshold()

◆ set_memory_threshold()

◆ time_operation()

Member Data Documentation

◆ enabled_

◆ metrics_mutex_

◆ name_

◆ profiler_

◆ system_monitor_

◆ tagged_metrics_

◆ thresholds_

◆ thresholds_mutex_
