kcenon::monitoring::otlp_grpc_exporter Class Reference

OTLP gRPC trace exporter. More...

#include <otlp_grpc_exporter.h>

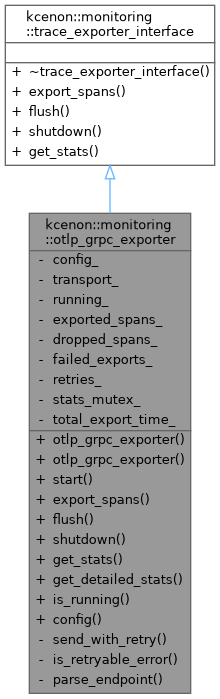

Inheritance diagram for kcenon::monitoring::otlp_grpc_exporter:

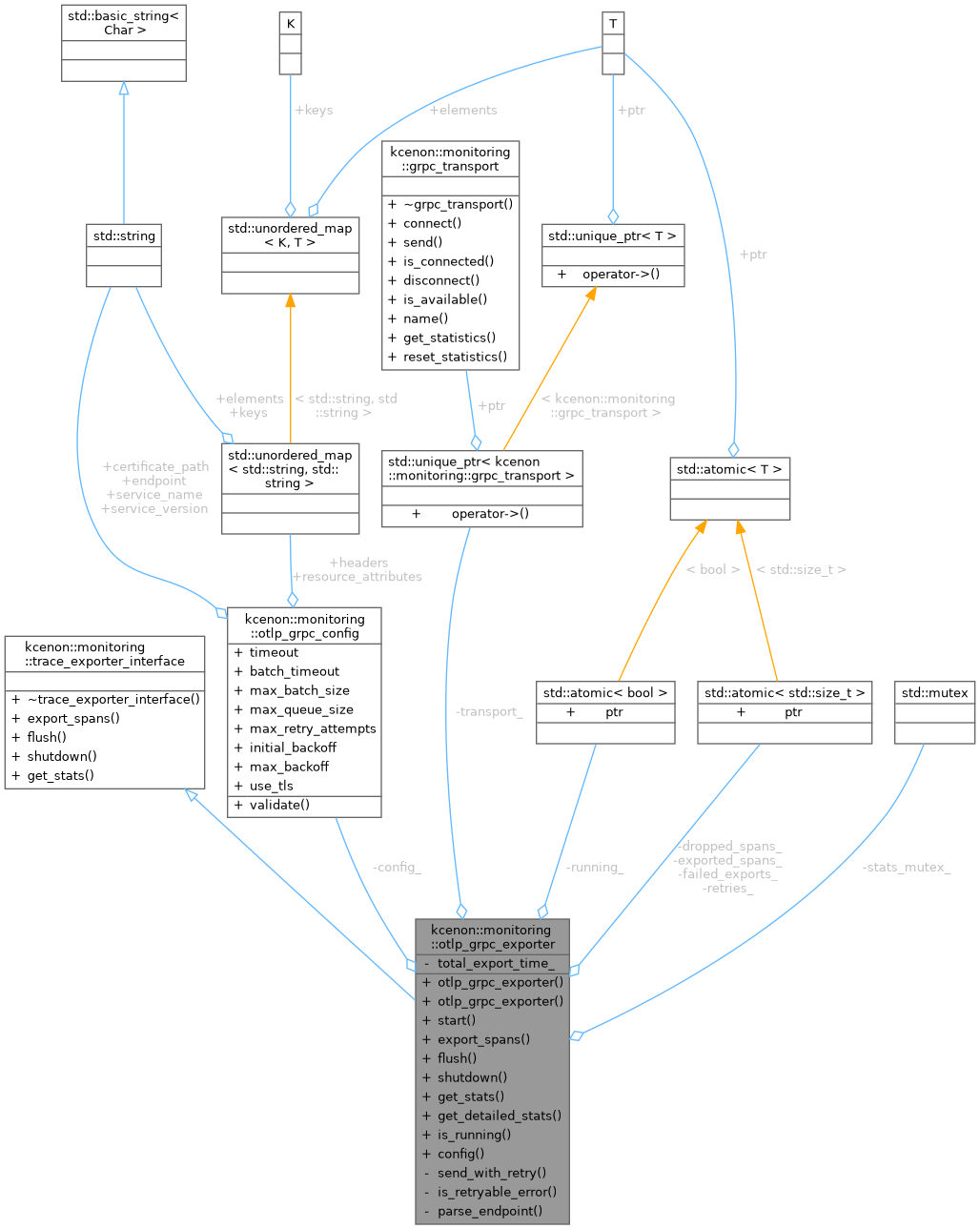

Collaboration diagram for kcenon::monitoring::otlp_grpc_exporter:

Public Member Functions
	otlp_grpc_exporter (const otlp_grpc_config &config)
	Construct with configuration.
	otlp_grpc_exporter (const otlp_grpc_config &config, std::unique_ptr< grpc_transport > transport)
	Construct with configuration and custom transport.
common::VoidResult	start ()
	Start the exporter.
common::VoidResult	export_spans (const std::vector< trace_span > &spans) override
	Export a batch of spans.
common::VoidResult	flush () override
	Flush pending exports.
common::VoidResult	shutdown () override
	Shutdown the exporter.
std::unordered_map< std::string, std::size_t >	get_stats () const override
	Get exporter statistics.
otlp_exporter_stats	get_detailed_stats () const
	Get detailed statistics.
bool	is_running () const
	Check if exporter is running.
const otlp_grpc_config &	config () const
	Get configuration.
Public Member Functions inherited from kcenon::monitoring::trace_exporter_interface
virtual	~trace_exporter_interface ()=default

Private Member Functions
common::Result< grpc_response >	send_with_retry (const grpc_request &request)

Static Private Member Functions
static bool	is_retryable_error (int status_code)
static std::pair< std::string, uint16_t >	parse_endpoint (const std::string &endpoint)

Private Attributes
otlp_grpc_config	config_
std::unique_ptr< grpc_transport >	transport_
std::atomic< bool >	running_ {false}
std::atomic< std::size_t >	exported_spans_ {0}
std::atomic< std::size_t >	dropped_spans_ {0}
std::atomic< std::size_t >	failed_exports_ {0}
std::atomic< std::size_t >	retries_ {0}
std::mutex	stats_mutex_
std::chrono::microseconds	total_export_time_ {0}

Detailed Description

OTLP gRPC trace exporter.

Exports trace spans to an OpenTelemetry-compatible backend via gRPC. Implements batching, retry with exponential backoff, and async export.

Definition at line 380 of file otlp_grpc_exporter.h.

Constructor & Destructor Documentation

otlp_grpc_exporter() [1/2]

kcenon::monitoring::otlp_grpc_exporter::otlp_grpc_exporter ( const otlp_grpc_config & config )

inlineexplicit

Construct with configuration.

Parameters

config

Exporter configuration

Definition at line 397 of file otlp_grpc_exporter.h.

        : config_(config), transport_(create_default_grpc_transport()) {}

otlp_grpc_exporter() [2/2]

kcenon::monitoring::otlp_grpc_exporter::otlp_grpc_exporter ( const otlp_grpc_config & config, std::unique_ptr< grpc_transport > transport )

inline

Construct with configuration and custom transport.

Parameters

config	Exporter configuration
transport	Custom gRPC transport (for testing)

Definition at line 405 of file otlp_grpc_exporter.h.

        : config_(config), transport_(std::move(transport)) {}

Member Function Documentation

config()

const otlp_grpc_config & kcenon::monitoring::otlp_grpc_exporter::config ( ) const

inline

Get configuration.

Definition at line 550 of file otlp_grpc_exporter.h.

                                           {
        return config_;
    }

References config_.

export_spans()

common::VoidResult kcenon::monitoring::otlp_grpc_exporter::export_spans ( const std::vector< trace_span > & spans )

inlineoverridevirtual

Export a batch of spans.

Parameters

spans

Spans to export

Returns

common::VoidResult indicating success or failure

Implements kcenon::monitoring::trace_exporter_interface.

Definition at line 438 of file otlp_grpc_exporter.h.

                                                                               {
        if (spans.empty()) {
            return common::ok();
        }

        if (!transport_->is_connected()) {
            dropped_spans_ += spans.size();
            return common::VoidResult::err(error_info(
                monitoring_error_code::network_error,
                "Not connected to OTLP receiver",
                "otlp_grpc_exporter"
            ).to_common_error());
        }

        // Convert spans to OTLP format
        auto payload = otlp_span_converter::convert_to_otlp(
            spans,
            config_.service_name,
            config_.service_version,
            config_.resource_attributes);

        // Prepare gRPC request
        grpc_request request;
        request.service = "opentelemetry.proto.collector.trace.v1.TraceService";
        request.method = "Export";
        request.body = std::move(payload);
        request.timeout = config_.timeout;

        // Add headers/metadata
        for (const auto& [key, value] : config_.headers) {
            request.metadata[key] = value;
        }

        // Send with retry
        auto start_time = std::chrono::steady_clock::now();
        auto send_result = send_with_retry(request);
        auto end_time = std::chrono::steady_clock::now();

        {
            std::lock_guard<std::mutex> lock(stats_mutex_);
            total_export_time_ += std::chrono::duration_cast<std::chrono::microseconds>(
                end_time - start_time);
        }

        if (send_result.is_ok()) {
            exported_spans_ += spans.size();
            return common::ok();
        } else {
            failed_exports_++;
            dropped_spans_ += spans.size();
            return common::VoidResult::err(error_info(
                monitoring_error_code::operation_failed,
                "Failed to export spans: " + send_result.error().message,
                "otlp_grpc_exporter"
            ).to_common_error());
        }
    }

References kcenon::monitoring::grpc_request::body, config_, kcenon::monitoring::otlp_span_converter::convert_to_otlp(), dropped_spans_, exported_spans_, failed_exports_, kcenon::monitoring::otlp_grpc_config::headers, kcenon::monitoring::grpc_request::metadata, kcenon::monitoring::grpc_request::method, kcenon::monitoring::network_error, kcenon::monitoring::operation_failed, kcenon::monitoring::otlp_grpc_config::resource_attributes, send_with_retry(), kcenon::monitoring::grpc_request::service, kcenon::monitoring::otlp_grpc_config::service_name, kcenon::monitoring::otlp_grpc_config::service_version, stats_mutex_, kcenon::monitoring::grpc_request::timeout, kcenon::monitoring::otlp_grpc_config::timeout, kcenon::monitoring::error_info::to_common_error(), total_export_time_, and transport_.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

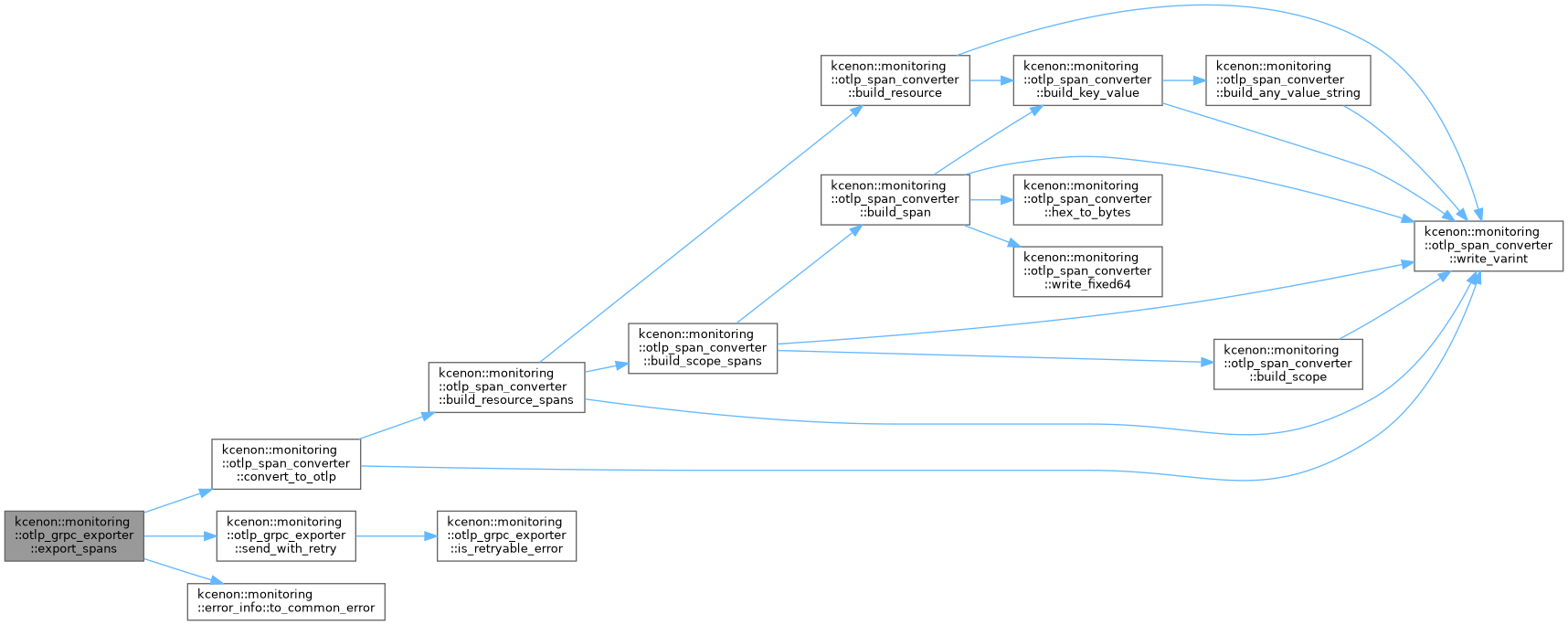

Here is the call graph for this function:

Here is the caller graph for this function:

flush()

common::VoidResult kcenon::monitoring::otlp_grpc_exporter::flush ( )

inlineoverridevirtual

Flush pending exports.

Implements kcenon::monitoring::trace_exporter_interface.

Definition at line 499 of file otlp_grpc_exporter.h.

                                      {
        // Synchronous exporter - nothing to flush
        return common::ok();
    }

get_detailed_stats()

otlp_exporter_stats kcenon::monitoring::otlp_grpc_exporter::get_detailed_stats ( ) const

inline

Get detailed statistics.

Definition at line 528 of file otlp_grpc_exporter.h.

                                                   {
        otlp_exporter_stats stats;
        stats.spans_exported = exported_spans_.load();
        stats.spans_dropped = dropped_spans_.load();
        stats.export_failures = failed_exports_.load();
        stats.retries = retries_.load();

        std::lock_guard<std::mutex> lock(const_cast<std::mutex&>(stats_mutex_));
        stats.total_export_time = total_export_time_;
        return stats;
    }

References dropped_spans_, kcenon::monitoring::otlp_exporter_stats::export_failures, exported_spans_, failed_exports_, kcenon::monitoring::otlp_exporter_stats::retries, retries_, kcenon::monitoring::otlp_exporter_stats::spans_dropped, kcenon::monitoring::otlp_exporter_stats::spans_exported, stats_mutex_, kcenon::monitoring::otlp_exporter_stats::total_export_time, and total_export_time_.

Referenced by TEST_F().

Here is the caller graph for this function:

get_stats()

std::unordered_map< std::string, std::size_t > kcenon::monitoring::otlp_grpc_exporter::get_stats ( ) const

inlineoverridevirtual

Get exporter statistics.

Implements kcenon::monitoring::trace_exporter_interface.

Definition at line 516 of file otlp_grpc_exporter.h.

                                                                      {
        return {
            {"exported_spans", exported_spans_.load()},
            {"dropped_spans", dropped_spans_.load()},
            {"failed_exports", failed_exports_.load()},
            {"retries", retries_.load()}
        };
    }

References dropped_spans_, exported_spans_, failed_exports_, and retries_.

Referenced by TEST_F(), TEST_F(), and TEST_F().

Here is the caller graph for this function:

is_retryable_error()

static bool kcenon::monitoring::otlp_grpc_exporter::is_retryable_error ( int status_code )

inlinestaticprivate

Definition at line 601 of file otlp_grpc_exporter.h.

                                                    {
        // gRPC status codes that are retryable:
        // 1 = CANCELLED, 4 = DEADLINE_EXCEEDED, 8 = RESOURCE_EXHAUSTED,
        // 10 = ABORTED, 14 = UNAVAILABLE
        return status_code == 1 || status_code == 4 || status_code == 8 ||
               status_code == 10 || status_code == 14;
    }

Referenced by send_with_retry().

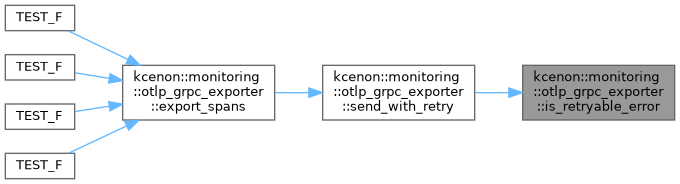

Here is the caller graph for this function:

is_running()

bool kcenon::monitoring::otlp_grpc_exporter::is_running ( ) const

inline

Check if exporter is running.

Definition at line 543 of file otlp_grpc_exporter.h.

                            {
        return running_.load();
    }

References running_.

Referenced by TEST_F().

Here is the caller graph for this function:

parse_endpoint()

static std::pair< std::string, uint16_t > kcenon::monitoring::otlp_grpc_exporter::parse_endpoint ( const std::string & endpoint )

inlinestaticprivate

Definition at line 609 of file otlp_grpc_exporter.h.

                                                                                  {
        std::string host = "localhost";
        uint16_t port = 4317;

        auto colon_pos = endpoint.rfind(':');
        if (colon_pos != std::string::npos) {
            host = endpoint.substr(0, colon_pos);
            try {
                port = static_cast<uint16_t>(std::stoi(endpoint.substr(colon_pos + 1)));
            } catch (...) {
                port = 4317;
            }
        } else {
            host = endpoint;
        }

        return {host, port};
    }

References kcenon::monitoring::host.

Referenced by start().

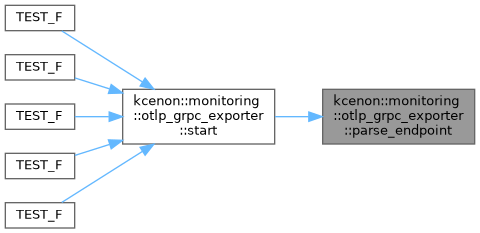

Here is the caller graph for this function:

send_with_retry()

common::Result< grpc_response > kcenon::monitoring::otlp_grpc_exporter::send_with_retry ( const grpc_request & request )

inlineprivate

Definition at line 555 of file otlp_grpc_exporter.h.

                                                                             {
        std::size_t attempt = 0;
        auto backoff = config_.initial_backoff;

        while (attempt < config_.max_retry_attempts) {
            auto result = transport_->send(request);

            if (result.is_ok()) {
                const auto& response = result.value();
                // gRPC status 0 = OK
                if (response.status_code == 0) {
                    return result;
                }

                // Check if error is retryable
                if (is_retryable_error(response.status_code)) {
                    attempt++;
                    retries_++;
                    if (attempt < config_.max_retry_attempts) {
                        std::this_thread::sleep_for(backoff);
                        backoff = std::min(backoff * 2, config_.max_backoff);
                    }
                    continue;
                }

                // Non-retryable error
                return common::make_error<grpc_response>(
                    static_cast<int>(monitoring_error_code::operation_failed),
                    "OTLP export failed with status: " +
                        std::to_string(response.status_code) + " - " + response.status_message);
            }

            // Transport error
            attempt++;
            retries_++;
            if (attempt < config_.max_retry_attempts) {
                std::this_thread::sleep_for(backoff);
                backoff = std::min(backoff * 2, config_.max_backoff);
            }
        }

        return common::make_error<grpc_response>(
            static_cast<int>(monitoring_error_code::operation_failed),
            "OTLP export failed after " + std::to_string(config_.max_retry_attempts) + " retries");
    }

References config_, kcenon::monitoring::otlp_grpc_config::initial_backoff, is_retryable_error(), kcenon::monitoring::otlp_grpc_config::max_backoff, kcenon::monitoring::otlp_grpc_config::max_retry_attempts, kcenon::monitoring::operation_failed, retries_, and transport_.

Referenced by export_spans().

Here is the call graph for this function:

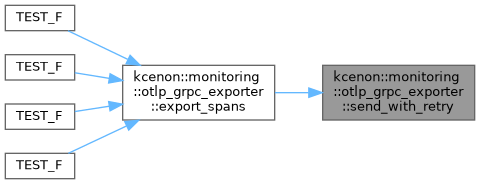

Here is the caller graph for this function:

shutdown()

common::VoidResult kcenon::monitoring::otlp_grpc_exporter::shutdown ( )

inlineoverridevirtual

Shutdown the exporter.

Implements kcenon::monitoring::trace_exporter_interface.

Definition at line 507 of file otlp_grpc_exporter.h.

                                         {
        running_ = false;
        transport_->disconnect();
        return common::ok();
    }

References running_, and transport_.

Referenced by TEST_F().

Here is the caller graph for this function:

start()

common::VoidResult kcenon::monitoring::otlp_grpc_exporter::start ( )

inline

Start the exporter.

Returns

common::VoidResult indicating success or failure

Definition at line 414 of file otlp_grpc_exporter.h.

                             {
        auto validate_result = config_.validate();
        if (validate_result.is_err()) {
            return validate_result;
        }

        // Parse endpoint
        auto [host, port] = parse_endpoint(config_.endpoint);

        // Connect to server
        auto connect_result = transport_->connect(host, port);
        if (connect_result.is_err()) {
            return connect_result;
        }

        running_ = true;
        return common::ok();
    }

References config_, kcenon::monitoring::otlp_grpc_config::endpoint, kcenon::monitoring::host, parse_endpoint(), running_, transport_, and kcenon::monitoring::otlp_grpc_config::validate().

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

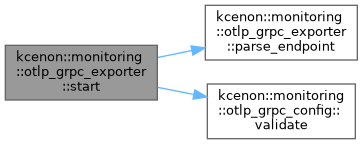

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

config_

otlp_grpc_config kcenon::monitoring::otlp_grpc_exporter::config_

private

Definition at line 382 of file otlp_grpc_exporter.h.

Referenced by config(), export_spans(), send_with_retry(), and start().

dropped_spans_

std::atomic<std::size_t> kcenon::monitoring::otlp_grpc_exporter::dropped_spans_ {0}

private

Definition at line 386 of file otlp_grpc_exporter.h.

{0};

Referenced by export_spans(), get_detailed_stats(), and get_stats().

exported_spans_

std::atomic<std::size_t> kcenon::monitoring::otlp_grpc_exporter::exported_spans_ {0}

private

Definition at line 385 of file otlp_grpc_exporter.h.

{0};

Referenced by export_spans(), get_detailed_stats(), and get_stats().

failed_exports_

std::atomic<std::size_t> kcenon::monitoring::otlp_grpc_exporter::failed_exports_ {0}

private

Definition at line 387 of file otlp_grpc_exporter.h.

{0};

Referenced by export_spans(), get_detailed_stats(), and get_stats().

retries_

std::atomic<std::size_t> kcenon::monitoring::otlp_grpc_exporter::retries_ {0}

private

Definition at line 388 of file otlp_grpc_exporter.h.

{0};

Referenced by get_detailed_stats(), get_stats(), and send_with_retry().

running_

std::atomic<bool> kcenon::monitoring::otlp_grpc_exporter::running_ {false}

private

Definition at line 384 of file otlp_grpc_exporter.h.

{false};

Referenced by is_running(), shutdown(), and start().

stats_mutex_

std::mutex kcenon::monitoring::otlp_grpc_exporter::stats_mutex_

private

Definition at line 389 of file otlp_grpc_exporter.h.

Referenced by export_spans(), and get_detailed_stats().

total_export_time_

std::chrono::microseconds kcenon::monitoring::otlp_grpc_exporter::total_export_time_ {0}

private

Definition at line 390 of file otlp_grpc_exporter.h.

{0};

Referenced by export_spans(), and get_detailed_stats().

transport_

std::unique_ptr<grpc_transport> kcenon::monitoring::otlp_grpc_exporter::transport_

private

Definition at line 383 of file otlp_grpc_exporter.h.

Referenced by export_spans(), send_with_retry(), shutdown(), and start().

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/exporters/otlp_grpc_exporter.h
