kcenon::monitoring::monitorable_component Class Reference

Base class providing default monitorable implementation. More...

#include <monitorable_interface.h>

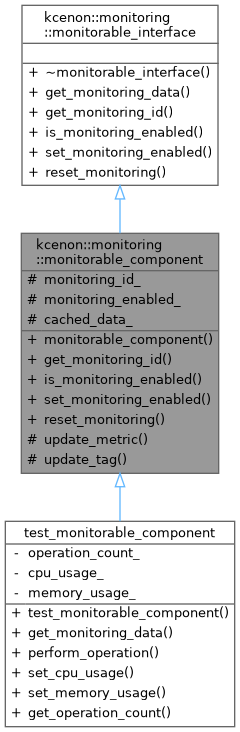

Inheritance diagram for kcenon::monitoring::monitorable_component:

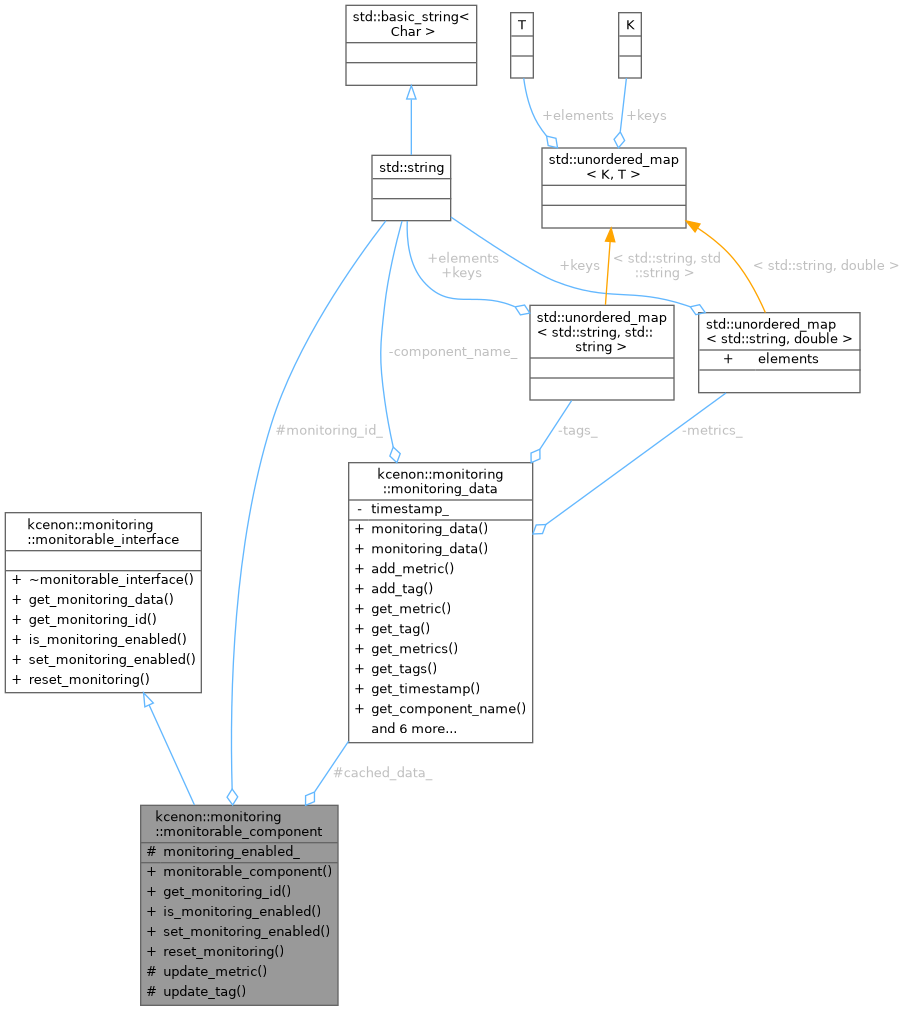

Collaboration diagram for kcenon::monitoring::monitorable_component:

Public Member Functions
	monitorable_component (const std::string &id)
	Constructor.
std::string	get_monitoring_id () const override
	Get monitoring identifier.
bool	is_monitoring_enabled () const override
	Check if monitoring is enabled.
common::VoidResult	set_monitoring_enabled (bool enable) override
	Enable or disable monitoring.
common::VoidResult	reset_monitoring () override
	Reset monitoring data.
Public Member Functions inherited from kcenon::monitoring::monitorable_interface
virtual	~monitorable_interface ()=default
virtual common::Result< monitoring_data >	get_monitoring_data () const =0
	Get current monitoring data from the component.

Protected Member Functions
void	update_metric (const std::string &key, double value) const
	Helper to update a metric.
void	update_tag (const std::string &key, const std::string &value) const
	Helper to update a tag.

Protected Attributes
std::string	monitoring_id_
bool	monitoring_enabled_ = true
monitoring_data	cached_data_

Detailed Description

Base class providing default monitorable implementation.

This class provides a convenient base for components that want to implement the monitorable interface with common functionality. It handles ID management, enable/disable state, and cached data.

Thread Safety:

The base implementation uses mutable cached_data_ which is NOT thread-safe. Derived classes should add synchronization if needed for concurrent access.

Definition at line 343 of file monitorable_interface.h.

Constructor & Destructor Documentation

monitorable_component()

kcenon::monitoring::monitorable_component::monitorable_component ( const std::string & id )

inlineexplicit

Constructor.

Parameters

id	Monitoring identifier for this component

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 354 of file monitorable_interface.h.

        : monitoring_id_(id)
        , cached_data_(id) {}

Member Function Documentation

get_monitoring_id()

std::string kcenon::monitoring::monitorable_component::get_monitoring_id ( ) const

inlineoverridevirtual

Get monitoring identifier.

Returns

Component's monitoring ID

Implements kcenon::monitoring::monitorable_interface.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 362 of file monitorable_interface.h.

                                                 {
        return monitoring_id_;
    }

References monitoring_id_.

Referenced by test_monitorable_component::get_monitoring_data(), and TEST_F().

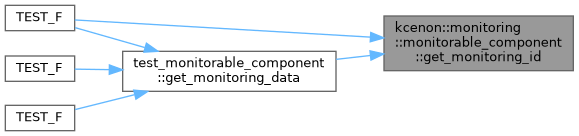

Here is the caller graph for this function:

is_monitoring_enabled()

bool kcenon::monitoring::monitorable_component::is_monitoring_enabled ( ) const

inlineoverridevirtual

Check if monitoring is enabled.

Returns

true if monitoring is active

Reimplemented from kcenon::monitoring::monitorable_interface.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 370 of file monitorable_interface.h.

                                                {
        return monitoring_enabled_;
    }

References monitoring_enabled_.

Referenced by test_monitorable_component::get_monitoring_data(), TEST_F(), and TEST_F().

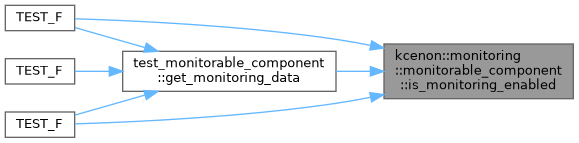

Here is the caller graph for this function:

reset_monitoring()

common::VoidResult kcenon::monitoring::monitorable_component::reset_monitoring ( )

inlineoverridevirtual

Reset monitoring data.

Returns

Result indicating success

Reimplemented from kcenon::monitoring::monitorable_interface.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 388 of file monitorable_interface.h.

                                                 {
        cached_data_.clear();
        cached_data_.set_component_name(monitoring_id_);
        return common::ok();
    }

References cached_data_, kcenon::monitoring::monitoring_data::clear(), monitoring_id_, and kcenon::monitoring::monitoring_data::set_component_name().

Referenced by TEST_F().

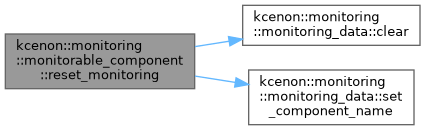

Here is the call graph for this function:

Here is the caller graph for this function:

set_monitoring_enabled()

common::VoidResult kcenon::monitoring::monitorable_component::set_monitoring_enabled ( bool enable )

inlineoverridevirtual

Enable or disable monitoring.

Parameters

enable

true to enable, false to disable

Returns

Result indicating success

Reimplemented from kcenon::monitoring::monitorable_interface.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 379 of file monitorable_interface.h.

                                                                  {
        monitoring_enabled_ = enable;
        return common::ok();
    }

References monitoring_enabled_.

Referenced by TEST_F().

Here is the caller graph for this function:

update_metric()

void kcenon::monitoring::monitorable_component::update_metric ( const std::string & key, double value ) const

inlineprotected

Helper to update a metric.

Parameters

key	Metric name
value	Metric value

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 400 of file monitorable_interface.h.

                                                                 {
        cached_data_.add_metric(key, value);
    }

References kcenon::monitoring::monitoring_data::add_metric(), and cached_data_.

Here is the call graph for this function:

update_tag()

void kcenon::monitoring::monitorable_component::update_tag ( const std::string & key, const std::string & value ) const

inlineprotected

Helper to update a tag.

Parameters

key	Tag name
value	Tag value

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 409 of file monitorable_interface.h.

                                                                        {
        cached_data_.add_tag(key, value);
    }

References kcenon::monitoring::monitoring_data::add_tag(), and cached_data_.

Here is the call graph for this function:

Member Data Documentation

cached_data_

monitoring_data kcenon::monitoring::monitorable_component::cached_data_

mutableprotected

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 347 of file monitorable_interface.h.

Referenced by reset_monitoring(), update_metric(), and update_tag().

monitoring_enabled_

bool kcenon::monitoring::monitorable_component::monitoring_enabled_ = true

protected

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 346 of file monitorable_interface.h.

Referenced by is_monitoring_enabled(), and set_monitoring_enabled().

monitoring_id_

std::string kcenon::monitoring::monitorable_component::monitoring_id_

protected

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/monitorable_interface.h.

Definition at line 345 of file monitorable_interface.h.

Referenced by get_monitoring_id(), and reset_monitoring().

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/interfaces/monitorable_interface.h
