kcenon::monitoring::interface_observable Class Reference

Interface for components that can be observed. More...

#include <observer_interface.h>

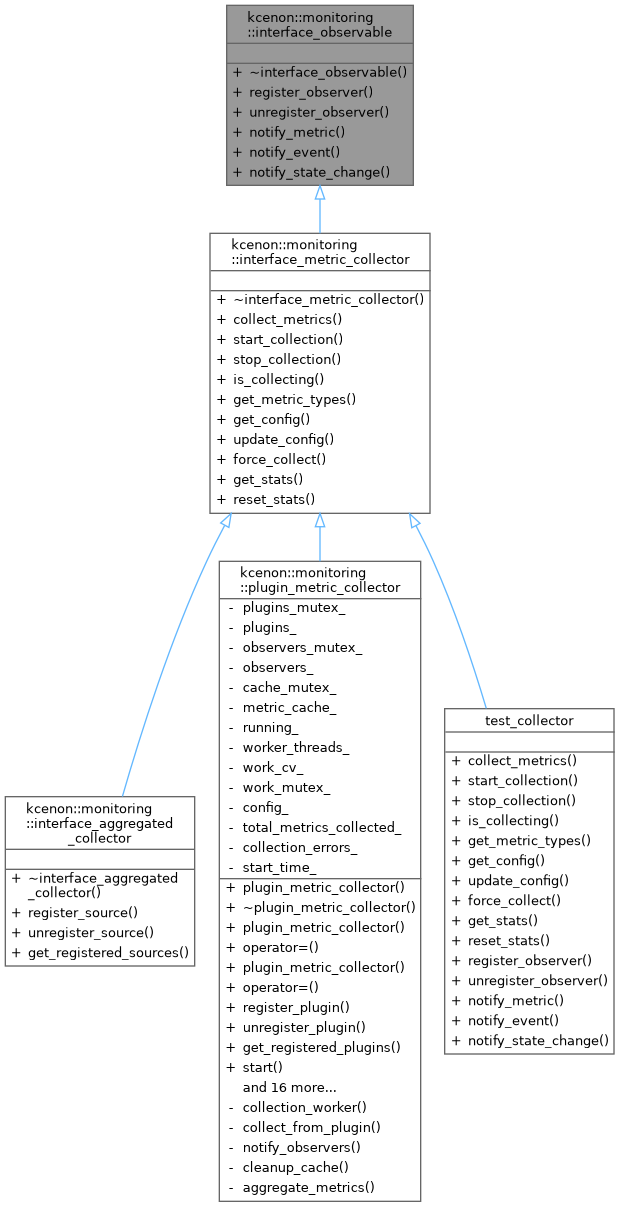

Inheritance diagram for kcenon::monitoring::interface_observable:

Collaboration diagram for kcenon::monitoring::interface_observable:

Public Member Functions
virtual	~interface_observable ()=default
virtual common::VoidResult	register_observer (std::shared_ptr< interface_monitoring_observer > observer)=0
	Register an observer for events.
virtual common::VoidResult	unregister_observer (std::shared_ptr< interface_monitoring_observer > observer)=0
	Unregister an observer.
virtual void	notify_metric (const metric_event &event)=0
	Notify all observers of a metric event.
virtual void	notify_event (const system_event &event)=0
	Notify all observers of a system event.
virtual void	notify_state_change (const state_change_event &event)=0
	Notify all observers of a state change.

Detailed Description

Interface for components that can be observed.

Provides the subject side of the observer pattern. Components implementing this interface can register observers and notify them of metric events, system events, and state changes.

Thread Safety:

Implementations MUST be thread-safe. Observer registration/unregistration and notification can occur from multiple threads simultaneously.

Definition at line 261 of file observer_interface.h.

Constructor & Destructor Documentation

~interface_observable()

virtual kcenon::monitoring::interface_observable::~interface_observable ( )

virtualdefault

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

Member Function Documentation

notify_event()

virtual void kcenon::monitoring::interface_observable::notify_event ( const system_event & event )

pure virtual

Notify all observers of a system event.

Parameters

event

The system event to broadcast

Implemented in test_collector.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

notify_metric()

virtual void kcenon::monitoring::interface_observable::notify_metric ( const metric_event & event )

pure virtual

Notify all observers of a metric event.

Parameters

event

The metric event to broadcast

Implemented in test_collector.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

notify_state_change()

virtual void kcenon::monitoring::interface_observable::notify_state_change ( const state_change_event & event )

pure virtual

Notify all observers of a state change.

Parameters

event

The state change event to broadcast

Implemented in test_collector.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

register_observer()

virtual common::VoidResult kcenon::monitoring::interface_observable::register_observer ( std::shared_ptr< interface_monitoring_observer > observer )

pure virtual

Register an observer for events.

Parameters

observer

The observer to register

Returns

Result indicating success or failure

Implemented in kcenon::monitoring::plugin_metric_collector, and test_collector.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

unregister_observer()

virtual common::VoidResult kcenon::monitoring::interface_observable::unregister_observer ( std::shared_ptr< interface_monitoring_observer > observer )

pure virtual

Unregister an observer.

Parameters

observer

The observer to unregister

Returns

Result indicating success or failure

Implemented in kcenon::monitoring::plugin_metric_collector, and test_collector.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/observer_interface.h.

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/interfaces/observer_interface.h
