Pure virtual interface for event bus implementation. More...

#include <event_bus_interface.h>

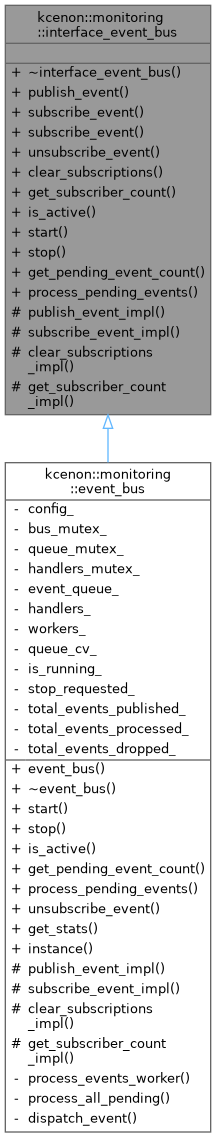

Inheritance diagram for kcenon::monitoring::interface_event_bus:

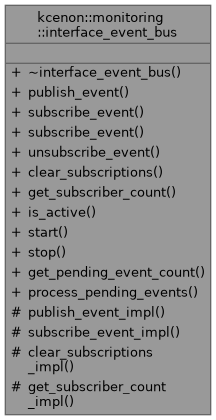

Collaboration diagram for kcenon::monitoring::interface_event_bus:

Public Member Functions
virtual	~interface_event_bus ()=default

template<concepts::EventType E>
common::VoidResult	publish_event (const E &event)
	Publish an event to all subscribers.

template<concepts::EventType E>
common::Result< subscription_token >	subscribe_event (std::function< void(const E &)> handler, event_priority priority=event_priority::normal)
	Subscribe to events of a specific type.

template<concepts::EventType E, concepts::EventHandler< E > H>
common::Result< subscription_token >	subscribe_event (H &&handler, event_priority priority=event_priority::normal)
	Subscribe to events with a callable handler.

virtual common::VoidResult	unsubscribe_event (const subscription_token &token)=0
	Unsubscribe from events using subscription token.

template<concepts::EventType E>
common::VoidResult	clear_subscriptions ()
	Clear all subscriptions for a specific event type.

template<concepts::EventType E>
size_t	get_subscriber_count () const
	Get the number of subscribers for an event type.

virtual bool	is_active () const =0
	Check if event bus is active.

virtual common::VoidResult	start ()=0
	Start the event bus.

virtual common::VoidResult	stop ()=0
	Stop the event bus.

virtual size_t	get_pending_event_count () const =0
	Get pending event count.

virtual common::VoidResult	process_pending_events ()=0
	Process all pending events synchronously.

Protected Member Functions
virtual common::VoidResult	publish_event_impl (std::type_index event_type, std::any event)=0

virtual common::Result< subscription_token >	subscribe_event_impl (std::type_index event_type, std::function< void(const std::any &)> handler, uint64_t handler_id, event_priority priority)=0

virtual common::VoidResult	clear_subscriptions_impl (std::type_index event_type)=0

virtual size_t	get_subscriber_count_impl (std::type_index event_type) const =0

Detailed Description

Pure virtual interface for event bus implementation.

The event bus provides a centralized communication mechanism for loosely coupled components using publish-subscribe pattern. It supports typed events, priority-based handler execution, and subscription management via tokens.

Thread Safety:: Implementations MUST be thread-safe. Publishing and subscribing can occur from multiple threads simultaneously. Handler execution order is determined by priority, and handlers should not block for extended periods.

Definition at line 251 of file event_bus_interface.h.

Constructor & Destructor Documentation

◆ ~interface_event_bus()

virtual kcenon::monitoring::interface_event_bus::~interface_event_bus ( )

virtualdefault

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Member Function Documentation

◆ clear_subscriptions()

template<concepts::EventType E>

common::VoidResult kcenon::monitoring::interface_event_bus::clear_subscriptions ( )

inline

Clear all subscriptions for a specific event type.

Template Parameters

E	The event type to clear subscriptions for (must satisfy concepts::EventType)

Returns: Result indicating success or failure

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Definition at line 321 of file event_bus_interface.h.

                                           {
        return clear_subscriptions_impl(std::type_index(typeid(E)));
    }

References clear_subscriptions_impl().

Here is the call graph for this function:

◆ clear_subscriptions_impl()

virtual common::VoidResult kcenon::monitoring::interface_event_bus::clear_subscriptions_impl ( std::type_index event_type )

protectedpure virtual

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Referenced by clear_subscriptions().

Here is the caller graph for this function:

◆ get_pending_event_count()

virtual size_t kcenon::monitoring::interface_event_bus::get_pending_event_count ( ) const

pure virtual

Get pending event count.

Returns: Number of events waiting to be processed

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

◆ get_subscriber_count()

template<concepts::EventType E>

size_t kcenon::monitoring::interface_event_bus::get_subscriber_count ( ) const

inline

Get the number of subscribers for an event type.

Template Parameters

E	The event type to check (must satisfy concepts::EventType)

Returns: Number of subscribers

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Definition at line 331 of file event_bus_interface.h.

                                        {
        return get_subscriber_count_impl(std::type_index(typeid(E)));
    }

References get_subscriber_count_impl().

Here is the call graph for this function:

◆ get_subscriber_count_impl()

virtual size_t kcenon::monitoring::interface_event_bus::get_subscriber_count_impl ( std::type_index event_type ) const

protectedpure virtual

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Referenced by get_subscriber_count().

Here is the caller graph for this function:

◆ is_active()

virtual bool kcenon::monitoring::interface_event_bus::is_active ( ) const

pure virtual

Check if event bus is active.

Returns: True if active, false otherwise

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

◆ process_pending_events()

virtual common::VoidResult kcenon::monitoring::interface_event_bus::process_pending_events ( )

pure virtual

Process all pending events synchronously.

Returns: Result indicating success or failure

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

◆ publish_event()

template<concepts::EventType E>

common::VoidResult kcenon::monitoring::interface_event_bus::publish_event ( const E & event )

inline

Publish an event to all subscribers.

Template Parameters

E	The type of event to publish (must satisfy concepts::EventType)

Parameters

event The event to publish

Returns: Result indicating success or failure

The event type must be a class type and copy-constructible. Using C++20 Concepts provides clear compile-time error messages when these requirements are not met.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Definition at line 266 of file event_bus_interface.h.

                                                   {
        return publish_event_impl(std::type_index(typeid(E)), std::make_any<E>(event));
    }

References publish_event_impl().

Here is the call graph for this function:

◆ publish_event_impl()

virtual common::VoidResult kcenon::monitoring::interface_event_bus::publish_event_impl	(	std::type_index	event_type,
		std::any	event )

protectedpure virtual

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Referenced by publish_event().

Here is the caller graph for this function:

◆ start()

virtual common::VoidResult kcenon::monitoring::interface_event_bus::start ( )

pure virtual

Start the event bus.

Returns: Result indicating success or failure

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

◆ stop()

virtual common::VoidResult kcenon::monitoring::interface_event_bus::stop ( )

pure virtual

Stop the event bus.

Returns: Result indicating success or failure

Implemented in kcenon::monitoring::event_bus.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

◆ subscribe_event() [1/2]

template<concepts::EventType E, concepts::EventHandler< E > H>

common::Result< subscription_token > kcenon::monitoring::interface_event_bus::subscribe_event	(	H &&	handler,
		event_priority	priority = event_priority::normal )

inline

Subscribe to events with a callable handler.

Template Parameters

E	The type of event to subscribe to (must satisfy concepts::EventType)
H	The handler type (must satisfy concepts::EventHandler<E>)

Parameters

handler	The handler callable
priority	Priority for handler execution

Returns: Subscription token for managing the subscription

This overload accepts any callable that satisfies the EventHandler concept, providing more flexibility than the std::function overload.

Definition at line 303 of file event_bus_interface.h.

                                                                                               {
        return subscribe_event(std::function<void(const E&)>(std::forward<H>(handler)), priority);
    }

References subscribe_event().

Here is the call graph for this function:

◆ subscribe_event() [2/2]

template<concepts::EventType E>

common::Result< subscription_token > kcenon::monitoring::interface_event_bus::subscribe_event	(	std::function< void(const E &)>	handler,
		event_priority	priority = event_priority::normal )

inline

Subscribe to events of a specific type.

Template Parameters

E	The type of event to subscribe to (must satisfy concepts::EventType)

Parameters

handler	The handler function for the event
priority	Priority for handler execution

Returns: Subscription token for managing the subscription

The event type must be a class type and copy-constructible. Using C++20 Concepts provides clear compile-time error messages when these requirements are not met.

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/interfaces/event_bus_interface.h.

Definition at line 282 of file event_bus_interface.h.

                                                                                               {
        auto wrapped_handler = event_handler<E>(handler, priority);
        return subscribe_event_impl(
            std::type_index(typeid(E)),
            [wrapped_handler](const std::any& event) { wrapped_handler(std::any_cast<E>(event)); },
            wrapped_handler.get_id(), priority);
    }

References subscribe_event_impl().

Referenced by subscribe_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subscribe_event_impl()

virtual common::Result< subscription_token > kcenon::monitoring::interface_event_bus::subscribe_event_impl	(	std::type_index	event_type,
		std::function< void(const std::any &)>	handler,
		uint64_t	handler_id,
		event_priority	priority )
